OPEL GRANDLAND X 2018.75 Manual user

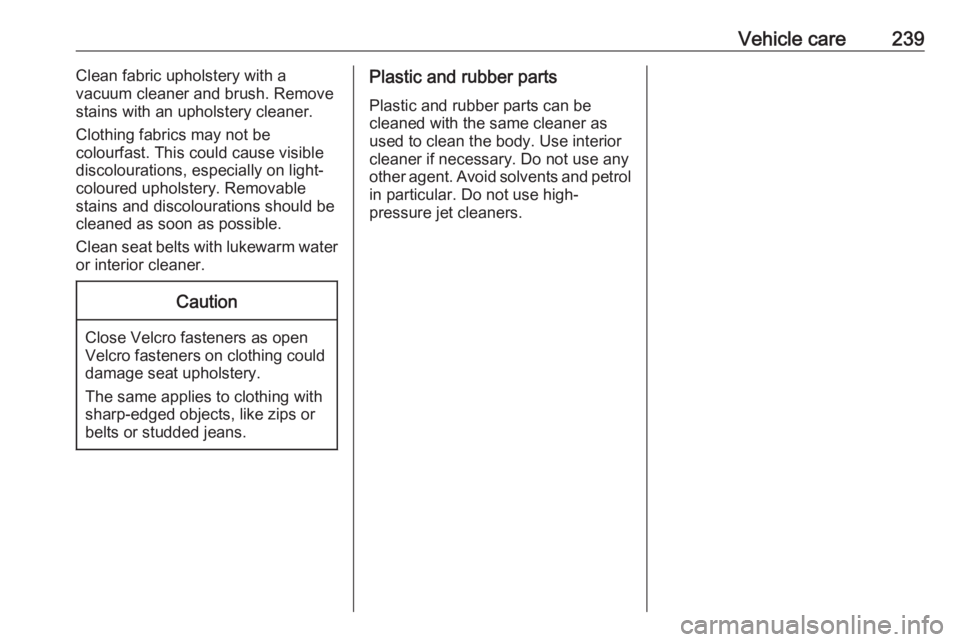

Vehicle care239Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible discolourations, especially on light-
coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.
Clean seat belts with lukewarm water
or interior cleaner.Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could
damage seat upholstery.
The same applies to clothing with
sharp-edged objects, like zips or
belts or studded jeans.
Plastic and rubber parts
Plastic and rubber parts can be
cleaned with the same cleaner as
used to clean the body. Use interior cleaner if necessary. Do not use any
other agent. Avoid solvents and petrol in particular. Do not use high-
pressure jet cleaners.

240Service and maintenanceService and
maintenanceGeneral information ...................240
Service information ..................240
Recommended fluids, lubricants
and parts .................................... 242
Recommended fluids and lubricants ................................ 242General information
Service information In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is available
at the workshop.
Severe operating conditions exist if one or more of the following
circumstances occur frequently: Cold
starting, stop and go operation, e.g.
for taxis and police vehicles, trailer
operation, mountain driving, driving
on poor and sandy road surfaces,
increased air pollution, presence of
airborne sand and high dust content,
driving at high altitude and large
variations of temperature.
Under these severe operating
conditions, certain service work may
be required more frequently than the
regular service interval indicated inthe service display. Contact a
workshop for customised service
schedules.
Service display 3 93.
Service intervals - country group 1 Maintenance of your vehicle
equipped with a diesel engine is
required every 30,000 km or after one
year, whichever occurs first, unless
otherwise indicated in the service
display. Maintenance of your vehicle
equipped with engine DV6FC and
any other engine is required every
25,000 km or after one year,
whichever occurs first, unless
otherwise indicated in the service
display.
These service intervals are valid for
the following countries:
Andorra, Austria, Belgium, Cyprus,
Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy,
Liechtenstein, Luxembourg, Malta,
Monaco, Netherlands, Norway,
Portugal, San Marino, Spain,
Sweden, Switzerland, United
Kingdom.

Service and maintenance241Service intervals - country group 2Maintenance of your vehicle
equipped with a diesel engine is
required every 30,000 km or after one
year, whichever occurs first, unless
otherwise indicated in the service
display. Maintenance of your vehicle
equipped with engine DV6FC is
required every 25,000 km or after one year, whichever occurs first, unless
otherwise indicated in the service
display. Maintenance of your vehicle
equipped with engine EP6FDTM is
required every 20,000 km or after one
year, with any other petrol engine
every 15,000 km or after one year,
whichever occurs first, unless
otherwise indicated in the service
display.
These service intervals are valid for
the following countries:
Albania, Estonia, Latvia, Lithuania,
Macedonia, Montenegro, Poland, Serbia, Slovenia.Service intervals - country group 3
Maintenance of your vehicle
equipped with a diesel engine is
required every 30,000 km or after one
year, whichever occurs first, unless
otherwise indicated in the service
display. Maintenance of your vehicle
equipped with engine DV6FC is
required every 25,000 km or after one year, whichever occurs first, unless
otherwise indicated in the service
display. Maintenance of your vehicle
equipped with engine EB2ADTS is
required every 15,000 km or after one year, whichever occurs first, unless
otherwise indicated in the service
display. Maintenance of your vehicle
equipped with engine EB2DTS is
required every 10,000 km or after one
year, unless otherwise indicated in
the service display.
These service intervals are valid for
the following countries:
Bosnia-Herzegovina, Bulgaria,
Croatia, Czech Republic, Hungary,
Romania, Slovakia.Service intervals - country group 4
Maintenance of your vehicle
equipped with engine DW10FC or
EP6FDTM is required every
20,000 km or after one year, with any
other engine every 15,000 km or after
one year, whichever occurs first,
unless otherwise indicated in the service display.
These service intervals are valid for
the following countries:
Israel, South Africa, Turkey.
Service intervals - country group 5 Maintenance of your vehicle is
required every 10,000 km or after one
year, whichever occurs first, unless
otherwise indicated in the service
display.
These service interval is valid for the
countries which are not listed in
country group 1, 2, 3, 4 or 5.

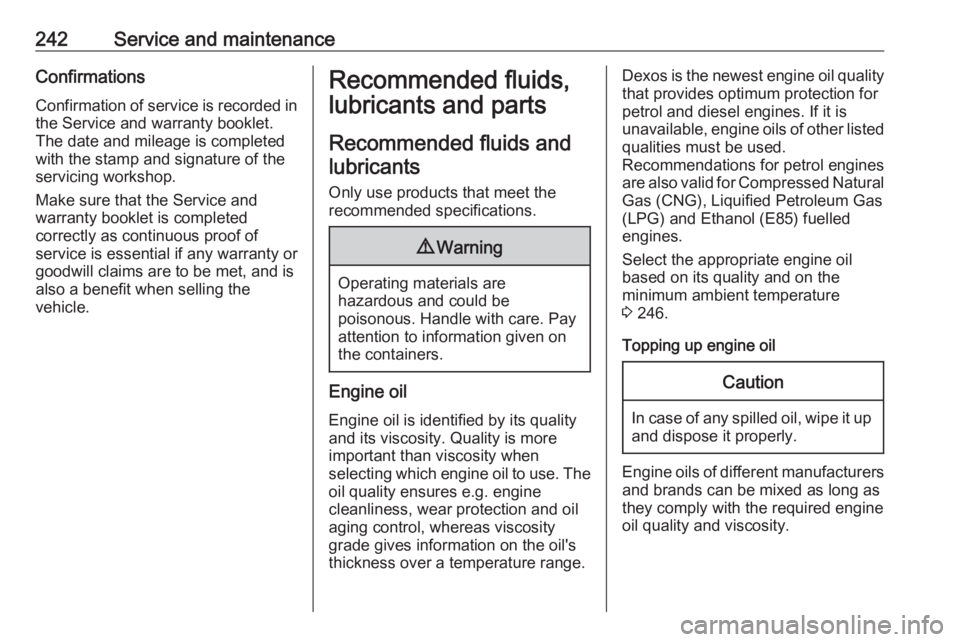

242Service and maintenanceConfirmations
Confirmation of service is recorded in the Service and warranty booklet.
The date and mileage is completed
with the stamp and signature of the
servicing workshop.
Make sure that the Service and
warranty booklet is completed
correctly as continuous proof of
service is essential if any warranty or goodwill claims are to be met, and is
also a benefit when selling the
vehicle.Recommended fluids,
lubricants and parts
Recommended fluids andlubricants
Only use products that meet the
recommended specifications.9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil quality
that provides optimum protection for
petrol and diesel engines. If it is
unavailable, engine oils of other listed qualities must be used.
Recommendations for petrol engines
are also valid for Compressed Natural
Gas (CNG), Liquified Petroleum Gas
(LPG) and Ethanol (E85) fuelled
engines.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 246.
Topping up engine oilCaution
In case of any spilled oil, wipe it up and dispose it properly.
Engine oils of different manufacturersand brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.

Service and maintenance243Use of engine oils for all petrol
engines with only ACEA quality is
prohibited, since it can cause engine
damage under certain operating
conditions.
Select the appropriate engine oil based on its quality and on the
minimum ambient temperature
3 246.
Additional engine oil additives
The use of additional engine oil
additives could cause damage and
invalidate the warranty.
Engine oil viscosity grades
The SAE viscosity grade gives
information of the thickness of the oil.
Multigrade oil is indicated by two
figures, e.g. SAE 5W-30. The first
figure, followed by a W, indicates the
low temperature viscosity and the
second figure the high temperature viscosity.
Select the appropriate viscosity grade depending on the minimum ambient
temperature 3 246.All of the recommended viscosity
grades are suitable for high ambient
temperatures.
Coolant and antifreeze
Use only organic acid type-long life
coolant (LLC) antifreeze approved for
the vehicle. Consult a workshop.
The system is factory filled with
coolant designed for excellent
corrosion protection and frost
protection down to approx. -28 °C. In
cold regions with very low
temperatures the factory filled coolant provides frost protection down to
approx. -37 °C. This concentration
should be maintained all year round.
The use of additional coolant
additives that intend to give additional
corrosion protection or seal against
minor leaks can cause function
problems. Liability for consequences
resulting from the use of additional
coolant additives will be rejected.Washer fluid
Use only washer fluid approved for
the vehicle to prevent damage of
wiper blades, paintwork, plastic and
rubber parts. Consult a workshop.
Brake and clutch fluidOver time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should therefore be replaced at the specified
interval.
AdBlue Only use AdBlue to reduce the
nitrogen oxides in the exhaust
emission 3 145.

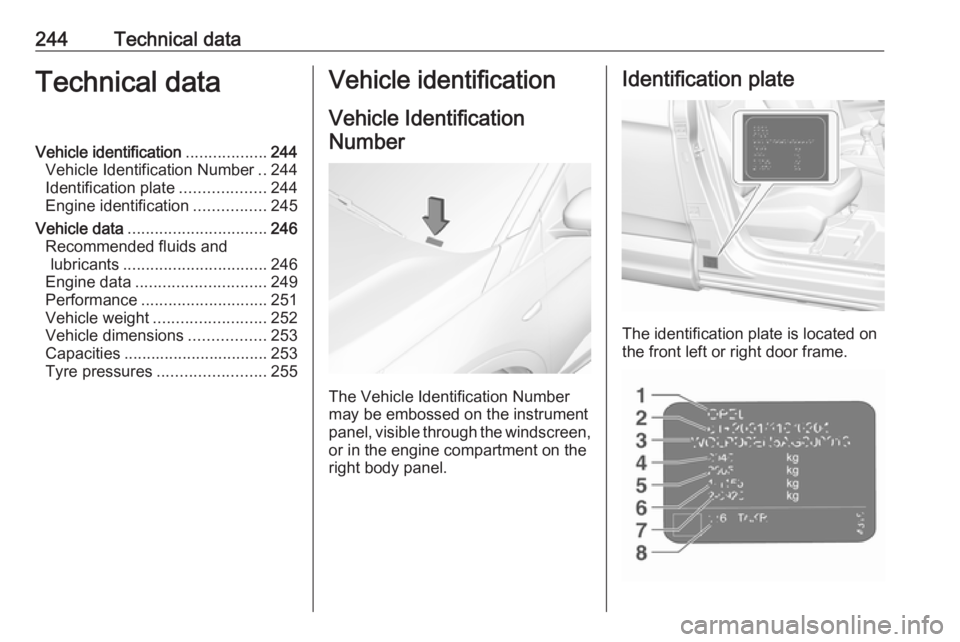

244Technical dataTechnical dataVehicle identification..................244
Vehicle Identification Number ..244
Identification plate ...................244
Engine identification ................245
Vehicle data ............................... 246
Recommended fluids and lubricants ................................ 246
Engine data ............................. 249
Performance ............................ 251
Vehicle weight ......................... 252
Vehicle dimensions .................253
Capacities ................................ 253
Tyre pressures ........................ 255Vehicle identification
Vehicle IdentificationNumber
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen, or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.

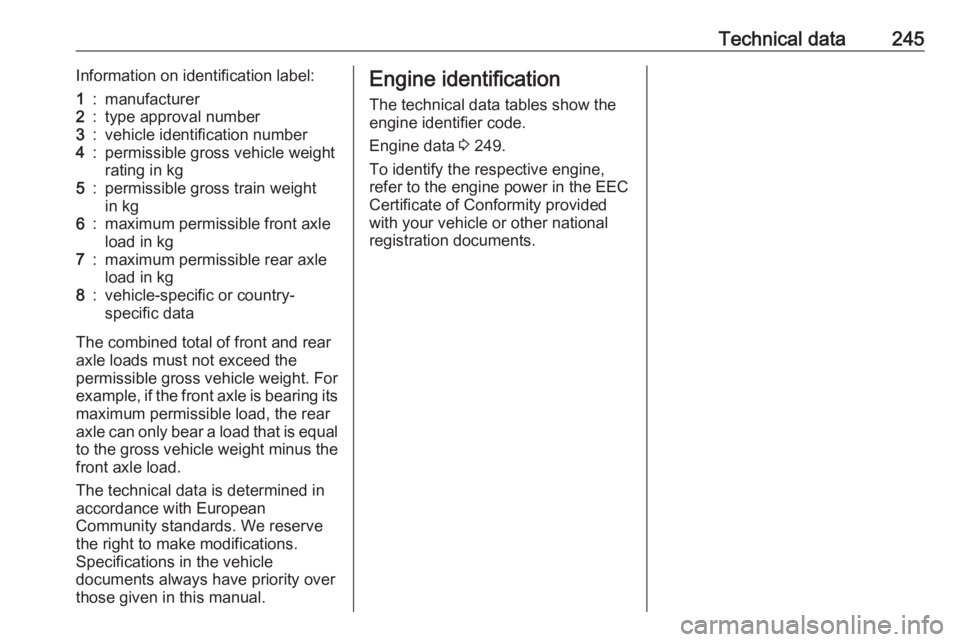

Technical data245Information on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weightrating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code.
Engine data 3 249.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

246Technical dataVehicle dataRecommended fluids and lubricantsService interval country groups 1 to 3 Required engine oil qualityAll countries listed in country groups 1 to 3 3 240Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
Diesel engines only: In case dexos quality is unavailable, you may use max. 1 l engine oil quality ACEA C3 once between
each oil change.
Engine oil viscosity grades
All countries listed in country groups 1 to 3 3 240Ambient temperaturePetrol and diesel enginesDiesel enginesdown to -25 °CSAE 5W-30SAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40below -25 °CSAE 5W-30SAE 0W-30 or SAE 0W-40

Technical data247Service interval country group 4Required engine oil qualityCountries included in country group 4 3 240Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
In case dexos quality is unavailable you may use the oil qualities listed below:
Countries included in country group 4 3 240Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B4–✔ACEA C3–✔
Engine oil viscosity grades
Countries included in country group 4 3 240Ambient temperaturePetrol enginesDiesel enginesdown to -25 °CSAE 5W-30SAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40

248Technical dataCountries included in country group 4 3 240below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of oils with dexos quality is recommended.
