OPEL GRANDLAND X 2018 Infotainment system

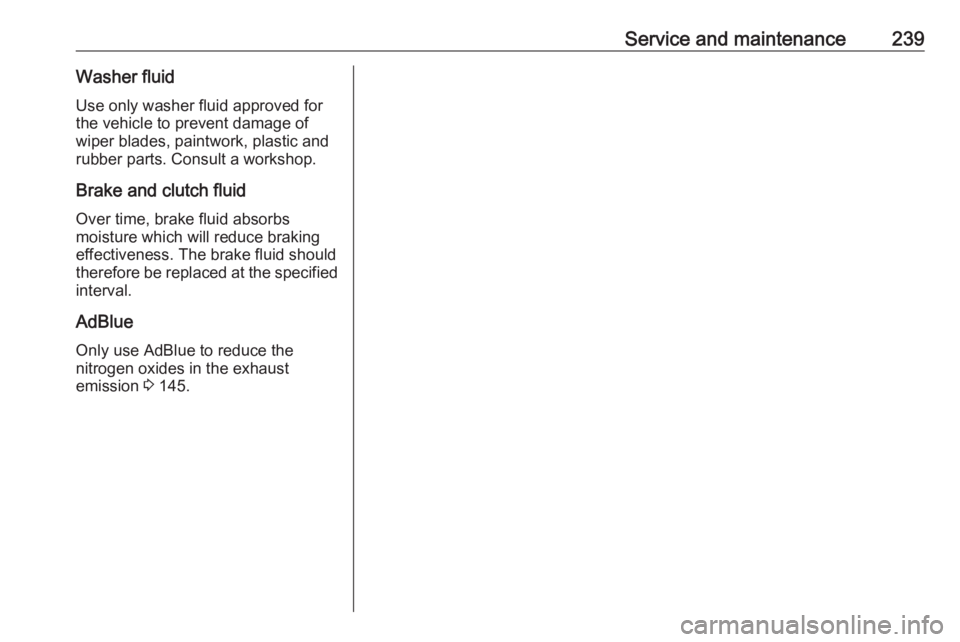

Service and maintenance239Washer fluidUse only washer fluid approved for
the vehicle to prevent damage of
wiper blades, paintwork, plastic and
rubber parts. Consult a workshop.
Brake and clutch fluid Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore be replaced at the specified
interval.
AdBlue Only use AdBlue to reduce the
nitrogen oxides in the exhaust
emission 3 145.

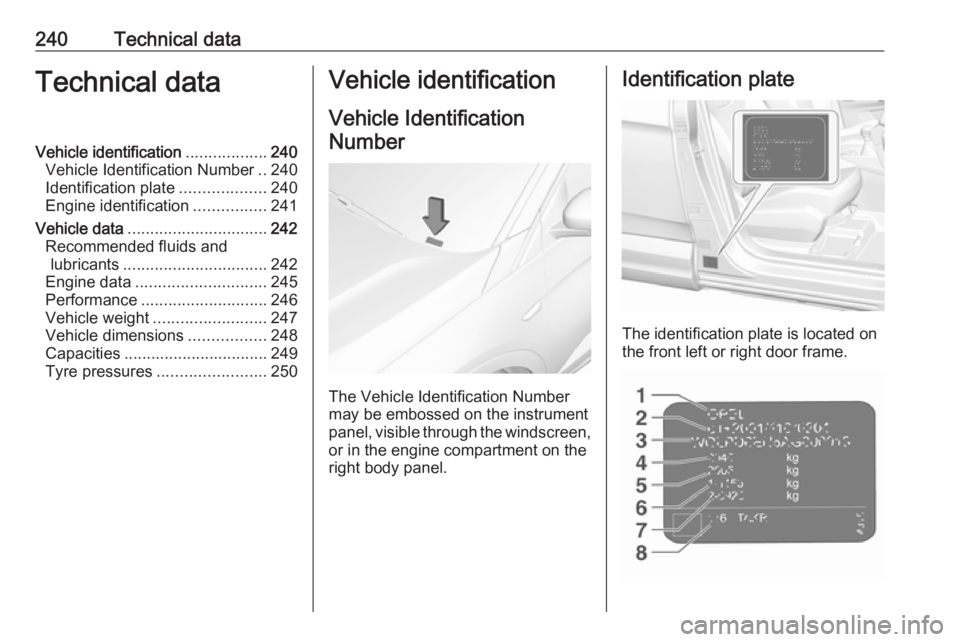

240Technical dataTechnical dataVehicle identification..................240
Vehicle Identification Number ..240
Identification plate ...................240
Engine identification ................241
Vehicle data ............................... 242
Recommended fluids and lubricants ................................ 242
Engine data ............................. 245
Performance ............................ 246
Vehicle weight ......................... 247
Vehicle dimensions .................248
Capacities ................................ 249
Tyre pressures ........................ 250Vehicle identification
Vehicle IdentificationNumber
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen, or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.

Technical data241Information on identification label:1:manufacturer2:operating permit number3:vehicle identification number4:permissible gross vehicle weightrating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 245.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

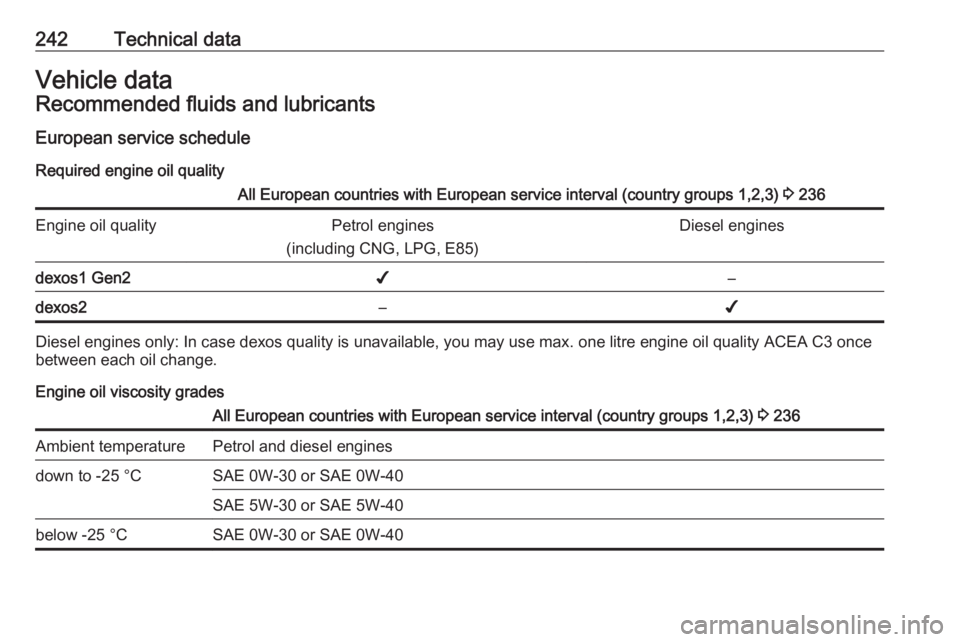

242Technical dataVehicle dataRecommended fluids and lubricantsEuropean service schedule Required engine oil qualityAll European countries with European service interval (country groups 1,2,3) 3 236Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
Diesel engines only: In case dexos quality is unavailable, you may use max. one litre engine oil quality ACEA C3 once
between each oil change.
Engine oil viscosity grades
All European countries with European service interval (country groups 1,2,3) 3 236Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

Technical data243International service scheduleRequired engine oil qualityAll countries with international service interval (country group 4) 3 236Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries with international service interval (country group 4) 3 236Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B4–✔ACEA C3–✔
Engine oil viscosity grades
All countries with international service interval (country group 4) 3 236Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40

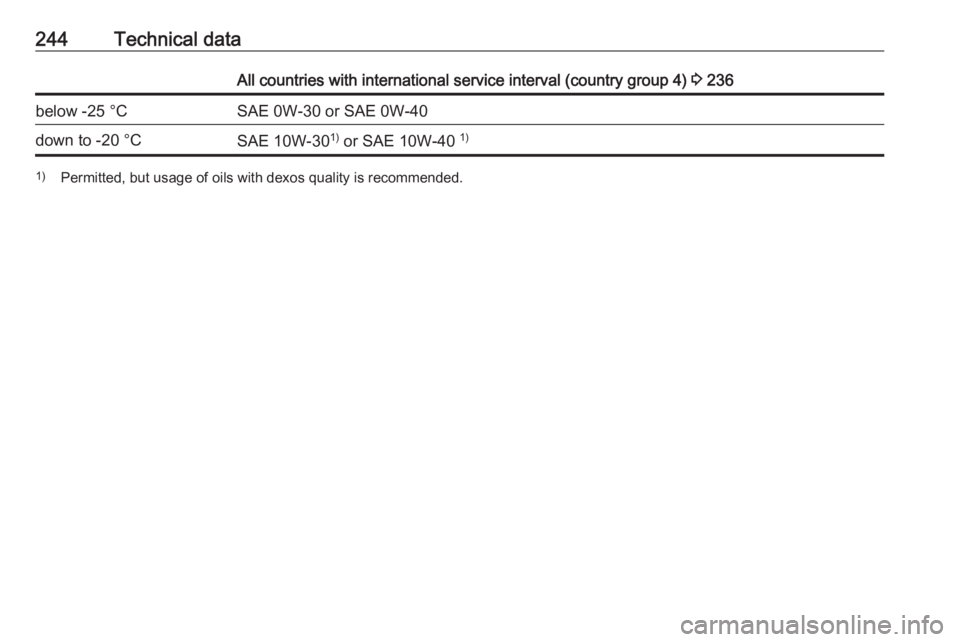

244Technical dataAll countries with international service interval (country group 4) 3 236below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of oils with dexos quality is recommended.

Technical data245Engine dataEngine identifier codeB12XHTB16DTHSales designation1.2 Turbo1.6Engineering codeEB2DTSDV6FCPiston displacement [cm3
]12001560Engine power [kW]9688at rpm55003500Torque [Nm]230300at rpm17501750Fuel typePetrolDieselOctane rating RON 2)–recommended95–possible98–possible91–Additional fuel type––2)
A country specific label at the fuel filler flap can supersede the engine specific requirement.

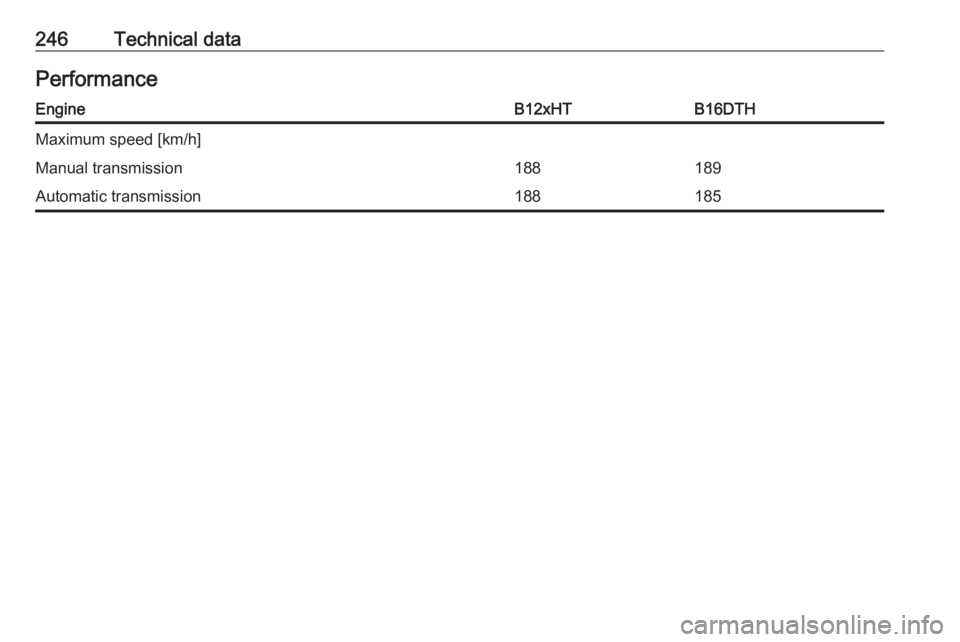

246Technical dataPerformanceEngineB12xHTB16DTHMaximum speed [km/h]Manual transmission188189Automatic transmission188185

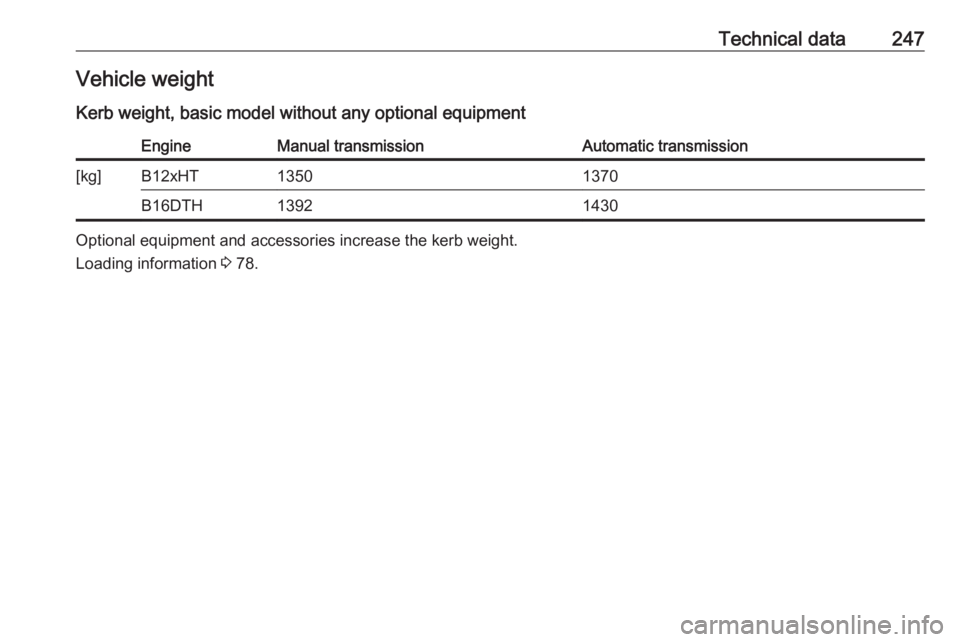

Technical data247Vehicle weightKerb weight, basic model without any optional equipmentEngineManual transmissionAutomatic transmission[kg]B12xHT13501370B16DTH13921430
Optional equipment and accessories increase the kerb weight.
Loading information 3 78.

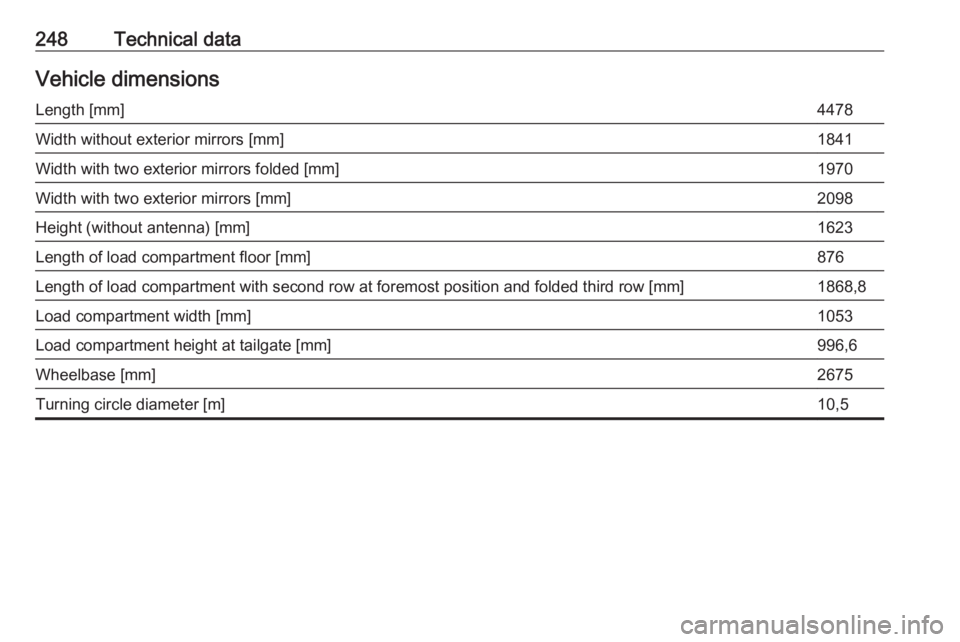

248Technical dataVehicle dimensionsLength [mm]4478Width without exterior mirrors [mm]1841Width with two exterior mirrors folded [mm]1970Width with two exterior mirrors [mm]2098Height (without antenna) [mm]1623Length of load compartment floor [mm]876Length of load compartment with second row at foremost position and folded third row [mm]1868,8Load compartment width [mm]1053Load compartment height at tailgate [mm]996,6Wheelbase [mm]2675Turning circle diameter [m]10,5
