remote start OPEL GRANDLAND X 2019 Manual user

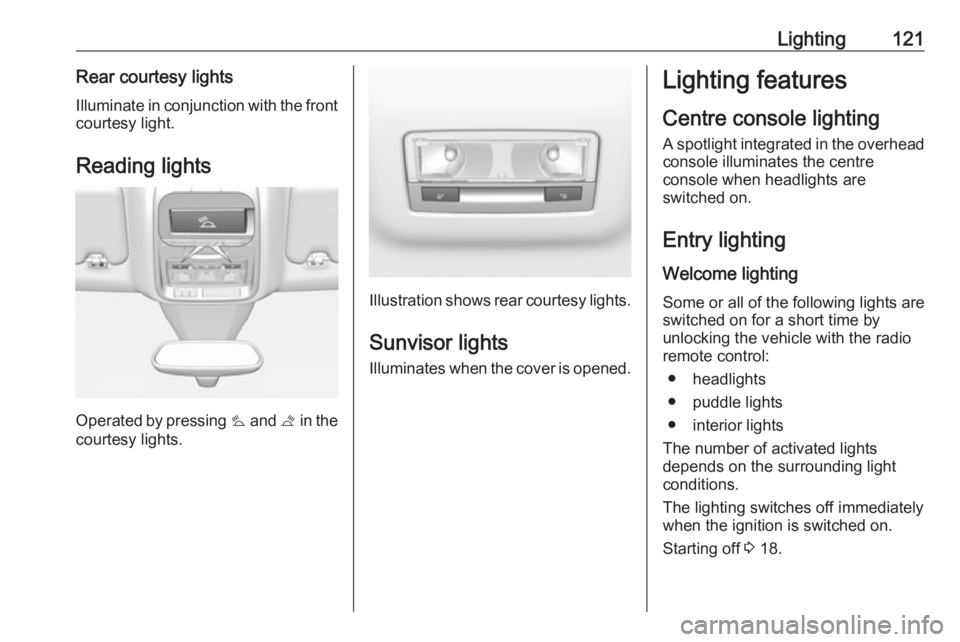

Lighting121Rear courtesy lightsIlluminate in conjunction with the front
courtesy light.
Reading lights
Operated by pressing s and t in the
courtesy lights.
Illustration shows rear courtesy lights.
Sunvisor lights
Illuminates when the cover is opened.
Lighting features
Centre console lighting A spotlight integrated in the overheadconsole illuminates the centre
console when headlights are
switched on.
Entry lighting Welcome lighting
Some or all of the following lights are
switched on for a short time by
unlocking the vehicle with the radio remote control:
● headlights
● puddle lights
● interior lights
The number of activated lights
depends on the surrounding light
conditions.
The lighting switches off immediately
when the ignition is switched on.
Starting off 3 18.

Driving and operating1379Warning
If the vehicle battery is discharged,
the vehicle must not be towed,
tow-started or jump-started as the
steering wheel lock cannot be
disengaged.
Operation on vehicles with
electronic key system in case of
failure
If either the electronic key fails or the
battery of the electronic key is weak,
a message may be displayed in the
Driver Information Centre.
Hold the electronic key with buttons
outside at the marking on the steering column cover as shown in the
illustration.
Operate the clutch pedal (manual
transmission), the brake pedal and
press Start/Stop .
This option is intended for
emergencies only. Replace the
electronic key battery as soon as
possible 3 23.
For unlocking or locking the doors,
see fault in radio remote control unit
or electronic key system 3 24.
Power saving mode
This mode deactivates electrical
consumers to avoid excessive
discharging of the vehicle battery.
These consumers, such as the
Infotainment system, windscreen
wipers, low beam headlights,
courtesy light, etc. can be used for a
total maximum time of about
40 minutes after ignition is switched
off.Changing into power saving
mode
When power saving mode is
activated, a message appears in the
Driver Information Centre.
An active telephone call using the
hands-free option will be maintained
for around 10 minutes longer.
Deactivating power saving mode
Power saving mode is deactivated
automatically when the engine is
restarted. Run the engine for a
sufficient charge:
● for less than 10 minutes to use the consumers for approx.
5 minutes
● for more than 10 minutes to use the consumers for up to approx.
30 minutes

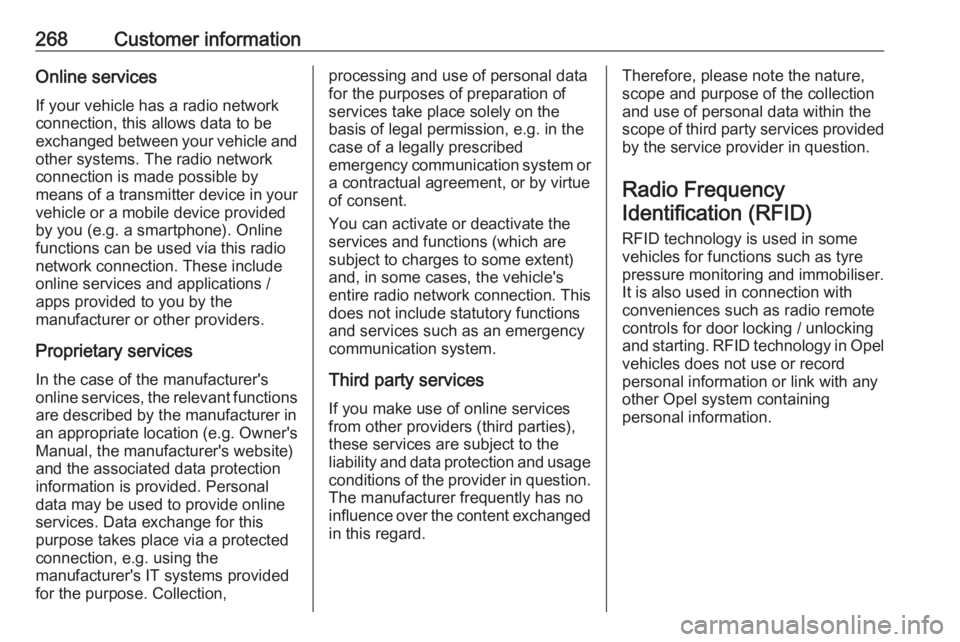

268Customer informationOnline servicesIf your vehicle has a radio networkconnection, this allows data to be
exchanged between your vehicle and other systems. The radio network
connection is made possible by
means of a transmitter device in your
vehicle or a mobile device provided
by you (e.g. a smartphone). Online
functions can be used via this radio
network connection. These include
online services and applications /
apps provided to you by the
manufacturer or other providers.
Proprietary services
In the case of the manufacturer's
online services, the relevant functions are described by the manufacturer in
an appropriate location (e.g. Owner's
Manual, the manufacturer's website) and the associated data protection
information is provided. Personal
data may be used to provide online
services. Data exchange for this
purpose takes place via a protected
connection, e.g. using the
manufacturer's IT systems provided
for the purpose. Collection,processing and use of personal data
for the purposes of preparation of services take place solely on the
basis of legal permission, e.g. in the
case of a legally prescribed
emergency communication system or a contractual agreement, or by virtue
of consent.
You can activate or deactivate the services and functions (which are
subject to charges to some extent)
and, in some cases, the vehicle's
entire radio network connection. This
does not include statutory functions
and services such as an emergency
communication system.
Third party services If you make use of online services
from other providers (third parties),
these services are subject to the
liability and data protection and usage conditions of the provider in question.
The manufacturer frequently has no
influence over the content exchanged
in this regard.Therefore, please note the nature,
scope and purpose of the collection
and use of personal data within the
scope of third party services provided by the service provider in question.
Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tyre
pressure monitoring and immobiliser.
It is also used in connection with
conveniences such as radio remote
controls for door locking / unlocking and starting. RFID technology in Opel vehicles does not use or record
personal information or link with any
other Opel system containing
personal information.

273RRadio Frequency Identification (RFID) ..................................... 268
Radio remote control ...................22
Rain sensor .................................. 99
REACH ....................................... 262
Reading lights ............................ 121
Rear floor storage cover ..............72
Rear fog light ...............99, 119, 211
Rear seats .................................... 51
Rear view camera ...................... 187
Rear window wiper and washer ..82
Recommended fluids and lubricants ........................ 244, 248
Refuelling ................................... 194
Registered trademarks ...............265
Reversing lights .........................120
Ride control systems ..................154
Roller blinds ................................. 42
Roof .............................................. 43
Roof load ...................................... 76
Roof rack ..................................... 75
S Safety net .................................... 73
Seat adjustment ............................. 7
Seat belt ........................................ 8
Seat belt reminder .......................93
Seat belts ..................................... 51Seat heating ................................. 50
Seat heating, rear .....................51
Seat position ................................ 45
Selective catalytic reduction .......144
Selective ride control ..................155
Selector lever ............................. 147
Service ............................... 133, 241
Service display ............................ 92
Service information ....................241
Service vehicle soon .................... 94
Side airbag system ......................58
Side blind spot alert ..............99, 182
Sidelights .................................... 113
Side turn lights ........................... 214
Software acknowledgement .......263
Software update ......................... 264
Spare wheel ............................... 229
Speed limiter....................... 100, 160
Speedometer ............................... 90
Sport mode ................................ 157
Starting and operating ................135
Starting off ................................... 18
Starting the engine ....................138
Steering ...................................... 135
Steering wheel adjustment ......9, 79
Steering wheel controls ...............79
Stop engine .................................. 95
Stop-start system........................ 139
Storage ......................................... 68
Storage compartments .................68Sunvisor lights ........................... 121
Sun visors .................................... 42
Symbols ......................................... 4
System check ............................... 95
T
Tachometer ................................. 90
Tailgate ......................................... 30
Tail lights ................................... 211
Three-point seat belt .................... 52
Tools .......................................... 219
Tow bar....................................... 196 Towing ................................ 196, 234
Towing another vehicle .............235
Towing equipment .....................197
Towing the vehicle .....................234
Trailer coupling ........................... 196
Trailer stability assist .................200
Trailer towing ............................. 197
Transmission ............................... 18
Transmission display .................147
Tread depth ............................... 223
Trip odometer .............................. 90
Turn lights ............................ 93, 118
Tyre chains ................................ 224
Tyre deflation detection system . 222
Tyre designations ......................221
Tyre pressure ............................ 221
Tyre pressures ........................... 257
Tyre repair kit ............................. 225
