OPEL GRANDLAND X 2020 Owner's Manual

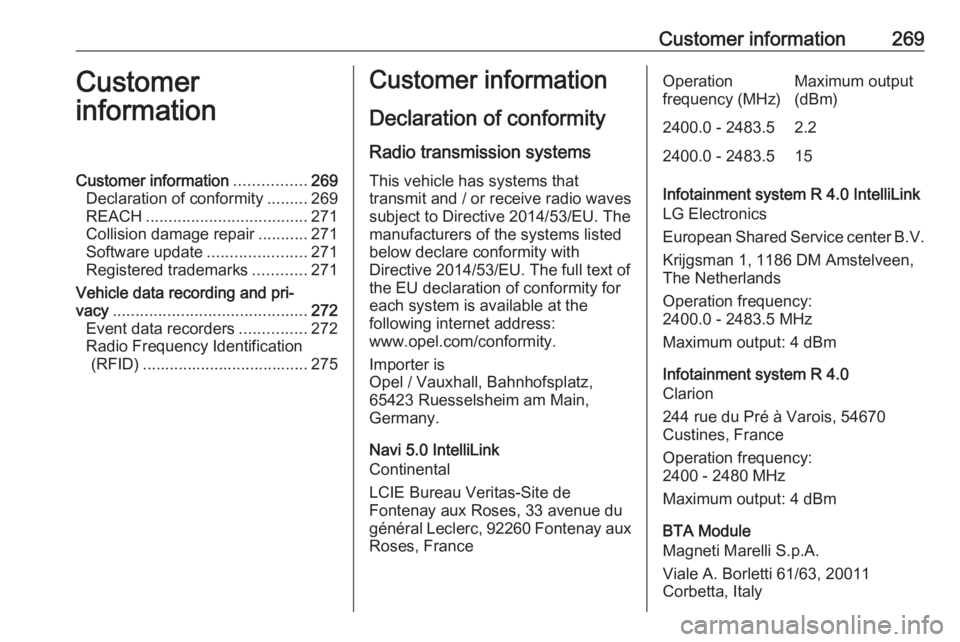

Customer information269Customer
informationCustomer information ................269
Declaration of conformity .........269
REACH .................................... 271
Collision damage repair ...........271
Software update ......................271
Registered trademarks ............271
Vehicle data recording and pri‐ vacy ........................................... 272
Event data recorders ...............272
Radio Frequency Identification (RFID) ..................................... 275Customer information
Declaration of conformity
Radio transmission systems
This vehicle has systems that
transmit and / or receive radio waves
subject to Directive 2014/53/EU. The
manufacturers of the systems listed
below declare conformity with
Directive 2014/53/EU. The full text of
the EU declaration of conformity for each system is available at the
following internet address:
www.opel.com/conformity.
Importer is
Opel / Vauxhall, Bahnhofsplatz,
65423 Ruesselsheim am Main,
Germany.
Navi 5.0 IntelliLink
Continental
LCIE Bureau Veritas-Site de
Fontenay aux Roses, 33 avenue du
général Leclerc, 92260 Fontenay aux Roses, FranceOperation
frequency (MHz)Maximum output
(dBm)2400.0 - 2483.52.22400.0 - 2483.515
Infotainment system R 4.0 IntelliLink
LG Electronics
European Shared Service center B.V.
Krijgsman 1, 1186 DM Amstelveen,
The Netherlands
Operation frequency:
2400.0 - 2483.5 MHz
Maximum output: 4 dBm
Infotainment system R 4.0
Clarion
244 rue du Pré à Varois, 54670
Custines, France
Operation frequency:
2400 - 2480 MHz
Maximum output: 4 dBm
BTA Module
Magneti Marelli S.p.A.
Viale A. Borletti 61/63, 20011
Corbetta, Italy

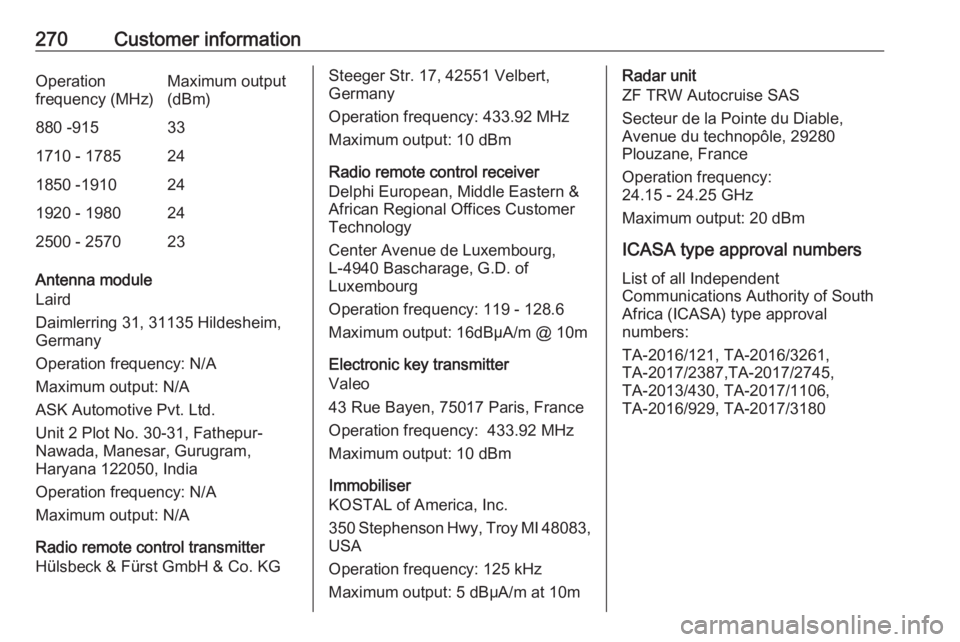

270Customer informationOperation
frequency (MHz)Maximum output
(dBm)880 -915331710 - 1785241850 -1910241920 - 1980242500 - 257023
Antenna module
Laird
Daimlerring 31, 31135 Hildesheim, Germany
Operation frequency: N/A
Maximum output: N/A
ASK Automotive Pvt. Ltd.
Unit 2 Plot No. 30-31, Fathepur-
Nawada, Manesar, Gurugram,
Haryana 122050, India
Operation frequency: N/A
Maximum output: N/A
Radio remote control transmitter
Hülsbeck & Fürst GmbH & Co. KG
Steeger Str. 17, 42551 Velbert,
Germany
Operation frequency: 433.92 MHz
Maximum output: 10 dBm
Radio remote control receiver
Delphi European, Middle Eastern &
African Regional Offices Customer
Technology
Center Avenue de Luxembourg,
L-4940 Bascharage, G.D. of
Luxembourg
Operation frequency: 119 - 128.6
Maximum output: 16dBµA/m @ 10m
Electronic key transmitter
Valeo
43 Rue Bayen, 75017 Paris, France
Operation frequency: 433.92 MHz
Maximum output: 10 dBm
Immobiliser
KOSTAL of America, Inc.
350 Stephenson Hwy, Troy MI 48083,
USA
Operation frequency: 125 kHz
Maximum output: 5 dBμA/m at 10mRadar unit
ZF TRW Autocruise SAS
Secteur de la Pointe du Diable,
Avenue du technopôle, 29280
Plouzane, France
Operation frequency:
24.15 - 24.25 GHz
Maximum output: 20 dBm
ICASA type approval numbers List of all Independent
Communications Authority of South
Africa (ICASA) type approval
numbers:
TA-2016/121, TA-2016/3261,
TA-2017/2387,TA-2017/2745,
TA-2013/430, TA-2017/1106,
TA-2016/929, TA-2017/3180

Customer information271REACH
Registration, Evaluation,
Authorisation and Restriction of
Chemicals (REACH) is a European
Union regulation adopted to improve
the protection of human health and
the environment from the risks that
can be posed by chemicals. Visit
www.opel.com for further information
and for access to the Article 33
communication.
Collision damage repair
Paint thickness Due to production techniques, the
thickness of the paint can vary
between 50 and 400 µm.
Therefore, different paint thickness is
no indicator for a collision damage
repair.
Software update The Infotainment system can
download and install selected
software updates over a wireless
connection.Note
The availability of these over-the-air
vehicle software updates varies by
vehicle and country. Find more
information on our home page.
Internet connection
Downloading over-the-air vehicle
software updates requires internet
connectivity, which can be accessed
through a password-protected Wi-Fi
hotspot, e.g. provided by a mobile phone.
To connect the Infotainment system
to a hotspot, refer to the Infotainment
Manual.
Updates
The system will prompt for certain
updates to be downloaded and
installed. There is also an option to
check for updates manually.
To manually check for updates, select
Settings on the home screen,
Software Information and then
System Update . Follow the on-screen
prompts.Note
Steps for downloading and installing updates may vary by vehicle.
Note
During the installation process, the
vehicle may not be operational.
Registered trademarksApple Inc.
Apple CarPlay™ is a trademark of
Apple Inc.
App Store ®
and iTunes Store ®
are
registered trademarks of Apple Inc.
iPhone ®
, iPod ®
, iPod touch ®
, iPod
nano ®
, iPad ®
and Siri ®
are registered
trademarks of Apple Inc.Bluetooth SIG, Inc.
Bluetooth ®
is a registered trademark
of Bluetooth SIG, Inc.DivX, LLC
DivX ®
and DivX Certified ®
are
registered trademarks of DivX, LLC.Google Inc.
Android™ and Google Play™ Store
are trademarks of Google Inc.

272Customer informationVelcro Companies
Velcro ®
is a registered trademark of
Velcro Companies.Verband der Automobilindustrie e.V.
AdBlue ®
is a registered trademark of
the VDA.Vehicle data recording
and privacy
Event data recorders
Electronic control units are installed in
your vehicle. Control units process
data which they receive, e.g. by
vehicle sensors or which they
generate themselves or exchange
amongst themselves. Some control
units are necessary for the safe
functioning of your vehicle, others
assist you while you drive (driver
assistance systems), while others
provide comfort or infotainment
functions.
The following contains general
information about data processing in
the vehicle. You will find additional
information as to which specific data
is uploaded, stored and passed on to third parties and for what purpose in
your vehicle under the key word Data Protection closely linked to the
references for the affected functional
characteristics in the relevant
Owner's Manual or in the general
terms of sale. These are also
available online.Operating data in the vehicle
Control units process data for
operation of the vehicle.
This data includes: ● vehicle status information (e.g. speed, movement delay, lateral
acceleration, wheel rotation rate,
"seat belts fastened" display)
● ambient conditions (e.g. temperature, rain sensor,
distance sensor)
As a rule such data is transient and is not stored for longer than an
operational cycle, and only processed
on board the vehicle itself. Often
control units include data storage
(including the vehicle key). This is
used to allow information to be
documented temporarily or
permanently on vehicle condition,
component stress, maintenance
requirements and technical events
and errors.

Customer information273Depending on technical equipment
levels, the data stored is as follows:
● system component operating states (e.g. fill level, tyre
pressure, battery status)
● faults and defects in important system components (e.g. lights,
brakes)
● system reactions in special driving situations (e.g. triggeringof an airbag, actuation of the
stability control systems)
● information on events damaging the vehicle
● for electric vehicles the amount of
charge in the high-voltage
battery, estimated range
In special cases (e.g. if the vehicle
has detected a malfunction), it may be
necessary to save data that would
otherwise just be volatile.
When you use services (e.g. repairs,
maintenance), the operating data
saved can be read together with the
vehicle identification number and
used where necessary. Staff working
for the service network ( e.g. garages,
manufacturers) or third parties (e.g.breakdown services) can read the
data from the vehicle. The same
applies to warranty work and quality
assurance measures.
Data is generally read via the OBD
(On-Board Diagnostics) port
prescribed by law in the vehicle. The operating data read documents the
technical condition of the vehicle or
individual components and assists
with fault diagnosis, compliance with
warranty obligations and quality
improvement. This data, in particular information on component stress,
technical events, operator errors and
other faults, is transmitted to the
manufacturer where appropriate,
together with the vehicle identification
number. The manufacturer is also
subject to product liability. The
manufacturer potentially also uses operating data from vehicles for
product recalls. This data can also be used to check customer warranty and
guarantee claims.
Fault memories in the vehicle can be
reset by a service company when
carrying out servicing or repairs or at
your request.Comfort and infotainment
functions
Comfort settings and custom settings can be stored in the vehicle and
changed or reset at any time.
Depending on the equipment level in
question, these include
● seat and steering wheel position settings
● chassis and air conditioning settings
● custom settings such as interior lighting
You can input your own data in the
infotainment functions for your
vehicle as part of the selected
features.
Depending on the equipment level in
question, these include
● multimedia data such as music, videos or photos for playback in
an integrated multimedia system
● address book data for use with an
integrated hands-free system or an integrated navigation system

274Customer information● input destinations
● data on the use of online services
This data for comfort and
infotainment functions can be stored
locally in the vehicle or be kept on a
device that you have connected to the vehicle ( e.g. a smartphone, USB stick
or MP3 player). Data that you have
input yourself can be deleted at any
time.
This data can only be transmitted out of the vehicle at your request,
particularly when using online
services in accordance with the
settings selected by you.
Smartphone integration, e.g.
Android Auto or Apple CarPlay
If your vehicle is equipped
accordingly, you can connect your
smartphone or another mobile device
to the vehicle so that you can control
it via the controls integrated in the
vehicle. The smartphone image and
sound can be output via the
multimedia system in this case. At the
same time, specific information is
transmitted to your smartphone.
Depending on the type of integration,this includes data such as position
data, day / night mode and other
general vehicle information. For more information, please see the operating
instructions for the vehicle /
infotainment system.
Integration allows selected
smartphone apps to be used, such as
navigation or music playback. No
further integration is possible
between smartphone and vehicle, in
particular active access to vehicle
data. The nature of further data
processing is determined by the
provider of the app used. Whether
you can define settings, and if so
which ones, is dependent on the app
in question and your smartphone's
operating system.Online services
If your vehicle has a radio networkconnection, this allows data to be exchanged between your vehicle and other systems. The radio network
connection is made possible by
means of a transmitter device in your
vehicle or a mobile device provided
by you (e.g. a smartphone). Online
functions can be used via this radio
network connection. These include
online services and applications /
apps provided to you by the
manufacturer or other providers.
Proprietary services
In the case of the manufacturer's
online services, the relevant functions are described by the manufacturer in
an appropriate location (e.g. Owner's
Manual, the manufacturer's website)
and the associated data protection
information is provided. Personal
data may be used to provide online
services. Data exchange for this
purpose takes place via a protected
connection, e.g. using the
manufacturer's IT systems provided
for the purpose. Collection,

Customer information275processing and use of personal data
for the purposes of preparation of services take place solely on the
basis of legal permission, e.g. in the
case of a legally prescribed
emergency communication system or
a contractual agreement, or by virtue
of consent.
You can activate or deactivate the services and functions (which are
subject to charges to some extent)
and, in some cases, the vehicle's
entire radio network connection. This
does not include statutory functions
and services such as an emergency
communication system.
Third party services
If you make use of online services
from other providers (third parties),
these services are subject to the
liability and data protection and usage conditions of the provider in question.
The manufacturer frequently has no
influence over the content exchanged
in this regard.Therefore, please note the nature,
scope and purpose of the collection
and use of personal data within the
scope of third party services provided by the service provider in question.
Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tyre
pressure monitoring and immobiliser.
It is also used in connection with
conveniences such as radio remote
controls for door locking / unlocking
and starting. RFID technology in Opel vehicles does not use or record
personal information or link with any other Opel system containing
personal information.

276IndexAAccessories and vehicle modifications .......................... 211
Active emergency braking ..101, 173
Adaptive cruise control .......100, 165
AdBlue .................................. 98, 143
Adjustable air vents ...................132
Advanced parking assist ............180
Airbag and belt tensioners ...........94
Airbag deactivation ................60, 95
Airbag label................................... 55 Airbag system .............................. 55
Air conditioning regular operation ................................ 133
Air conditioning system .............. 124
Air intake .................................... 133
Air vents...................................... 132
All-wheel drive ........................... 152
Antilock brake system ................ 153
Antilock brake system (ABS) .......97
Anti-theft alarm system ................35
Anti-theft locking system .............. 35
Appearance care ........................247
Armrest ................................... 51, 52
Ashtrays ....................................... 88
Automatic anti-dazzle ..................39
Automatic crash notification (ACN) ...................................... 111
Automatic light control ...............114
Automatic locking ........................28Automatic operation of electric
parking brake off .......................97
Automatic transmission .............148
Automatic transmission electrified ................................. 147
Autostop ............................... 99, 139
Auxiliary heater ........................... 131
B Battery discharge protection ......122
Battery gauge ............................... 91
BlueInjection ............................... 143
Bonnet ....................................... 214
Brake and clutch fluid .................255
Brake and clutch system .............96
Brake assist ............................... 156
Brake fluid .................................. 217
Brakes ............................... 153, 217
Breakdown.................................. 245
Bulb replacement ....................... 220
C Capacities .................................. 266
Catalytic converter .....................143
Central locking system ................24
Centre console lighting ..............122
Centre console storage ...............70
Changing tyre and wheel size ...235
Charge cord ................................ 199
Charge cord connected ................99
Charging ..................................... 195

277Charging status.......................... 199
Charging system .......................... 95
Child locks ................................... 29
Child restraint installation locations ................................... 65
Child restraints.............................. 62
Child restraint systems ................62
Cigarette lighter ........................... 88
Climate control ............................. 16
Climate control systems .............123
Clock............................................. 84
Collision damage repair ..............271
Control indicators.......................... 93
Control of the vehicle .................135
Controls ........................................ 80
Convex shape .............................. 37
Coolant and antifreeze ...............255
Cruise control ....................100, 160
Cupholders .................................. 69
Curtain airbag system .................. 60
Curve lighting.............................. 115
D Danger, Warnings and Cautions ...4
Daytime running lights ...............115
Declaration of conformity ............269
DEF ............................................ 143
Deflation detection system ...........99
Diesel exhaust fluid ....................143
Diesel fuel system bleeding .......219Door open .................................. 101
Doors ............................................ 30
Drive modes ............................... 152
Driver alert .................................. 194
Driver assistance systems ..........160
Driver Information Centre ...........101
Driving characteristics and towing tips .............................. 206
Driving hints ................................ 135
E Electric adjustment ......................37
Electrical system......................... 226
Electric parking brake ...96, 153, 154
Electric parking brake fault ...........96
Electronic climate control system 127
Electronic driving programmes ..150
Electronic key system ...................23
Electronic Stability Control and Traction Control system ....97, 157
Electronic Stability Control and Traction Control system off .......98
Emergency call ........................... 111
End-of-life vehicle recovery .......213
Engine compartment fuse box ...227
Engine coolant ........................... 216
Engine coolant temperature ........98
Engine coolant temperature gauge ....................................... 92
Engine data ............................... 261Engine exhaust .......................... 142
Engine identification ...................258
Engine oil ................... 215, 255, 259
Engine oil level monitor ................92
Engine oil pressure ......................99
Entry lighting .............................. 122
Event data recorders ..................272
Exhaust filter ......................... 98, 142
Exit lighting ................................ 122
Exterior care .............................. 247
Exterior light ................................. 99
Exterior lighting ....................13, 113
Exterior mirrors ............................. 37
F
Fault ........................................... 150
First aid ......................................... 76
First aid kit ................................... 76
Fixed air vents ........................... 133
Floor mats................................... 250
Folding mirrors ............................. 38
Forward collision alert................. 171
Front airbag system .....................59
Front fog lights ...........100, 119, 222
Front pedestrian protection ........176
Front seats.................................... 46
Fuel............................................. 202
Fuel for diesel engines ..............203
Fuel for petrol engines ...............202

278Fuel gauge ................................... 91Fuses ......................................... 226
G
Gauges ......................................... 90
Gear selection ........................... 148
Gear shifting ................................. 97
General information ...................206
Glass panel .................................. 43
Glovebox ..................................... 69
Glovebox cooler ......................... 133
H Halogen headlights ....................220
Hazard warning flashers ............118
Headlight flash ........................... 114
Headlight range adjustment ......115
Headlights................................... 113
Headlights when driving abroad 115
Head restraint adjustment .............8
Head restraints ............................ 45
Heated mirrors ............................. 38
Heated rear window ..................... 41
Heated steering wheel .................81
Heated windscreen .......................42
Heating .................................. 51, 52
Heating and ventilation system . 123
High beam ......................... 100, 114
High beam assist ........................100
Hill start assist ........................... 156
Horn ....................................... 14, 81Hybrid system active....................96
Hybrid system fault .......................96
I Identification plate .....................257
Ignition switch positions .............135
Immobiliser .................................. 37
Indicators ...................................... 90
Inductive charging ........................87
Info Display ................................. 103
Instrument cluster ........................88
Instrument panel fuse box .........228
Instrument panel illumination control .................................... 120
Instrument panel overview ........... 10
Interior care ............................... 249
Interior lighting ............................ 120
Interior lights ...................... 121, 226
Interior mirrors .............................. 39
Interruption of power supply ......150
Introduction .................................... 3
J
Jump starting ............................. 244
K Keys ............................................. 21
Keys, locks ................................... 21L
Lane departure warning .......97, 191
Lane keep assist ..................97, 192
Lashing eyes ............................... 74
LED headlights ...........100, 115, 222
Lighting features .........................122
Light switch ................................ 113
Load compartment ................30, 70
Load compartment cover .............72
Loading information .....................77
Low beam ................................... 100
Low fuel ....................................... 99
M Malfunction indicator light ............95
Manual anti-dazzle ......................39
Manual mode ............................. 149
Manual seat adjustment ...............47
Manual transmission .................. 151
Mirror adjustment ........................... 9
Misted light covers .....................120
N
New vehicle running-in ..............135
Number plate light .....................226
O Object detection systems ...........177
Odometer ..................................... 90
Oil, engine .......................... 255, 259
Opel Connect.............................. 111
