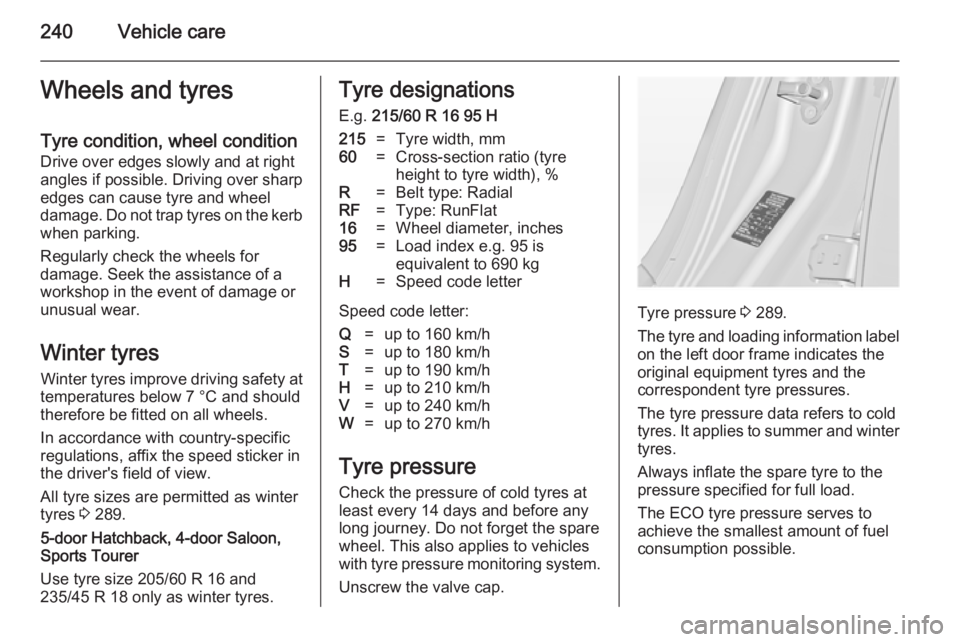

240Vehicle careWheels and tyres
Tyre condition, wheel condition
Drive over edges slowly and at right
angles if possible. Driving over sharp
edges can cause tyre and wheel
damage. Do not trap tyres on the kerb when parking.
Regularly check the wheels for
damage. Seek the assistance of a
workshop in the event of damage or
unusual wear.
Winter tyres Winter tyres improve driving safety at
temperatures below 7 °C and should
therefore be fitted on all wheels.
In accordance with country-specific
regulations, affix the speed sticker in
the driver's field of view.
All tyre sizes are permitted as winter
tyres 3 289.
5-door Hatchback, 4-door Saloon,
Sports Tourer
Use tyre size 205/60 R 16 and
235/45 R 18 only as winter tyres.Tyre designations
E.g. 215/60 R 16 95 H215=Tyre width, mm60=Cross-section ratio (tyre
height to tyre width), %R=Belt type: RadialRF=Type: RunFlat16=Wheel diameter, inches95=Load index e.g. 95 is
equivalent to 690 kgH=Speed code letter
Speed code letter:
Q=up to 160 km/hS=up to 180 km/hT=up to 190 km/hH=up to 210 km/hV=up to 240 km/hW=up to 270 km/h
Tyre pressure
Check the pressure of cold tyres at least every 14 days and before any
long journey. Do not forget the spare
wheel. This also applies to vehicles
with tyre pressure monitoring system.
Unscrew the valve cap.
Tyre pressure 3 289.
The tyre and loading information label on the left door frame indicates the
original equipment tyres and the
correspondent tyre pressures.
The tyre pressure data refers to cold
tyres. It applies to summer and winter tyres.
Always inflate the spare tyre to the
pressure specified for full load.
The ECO tyre pressure serves to
achieve the smallest amount of fuel
consumption possible.

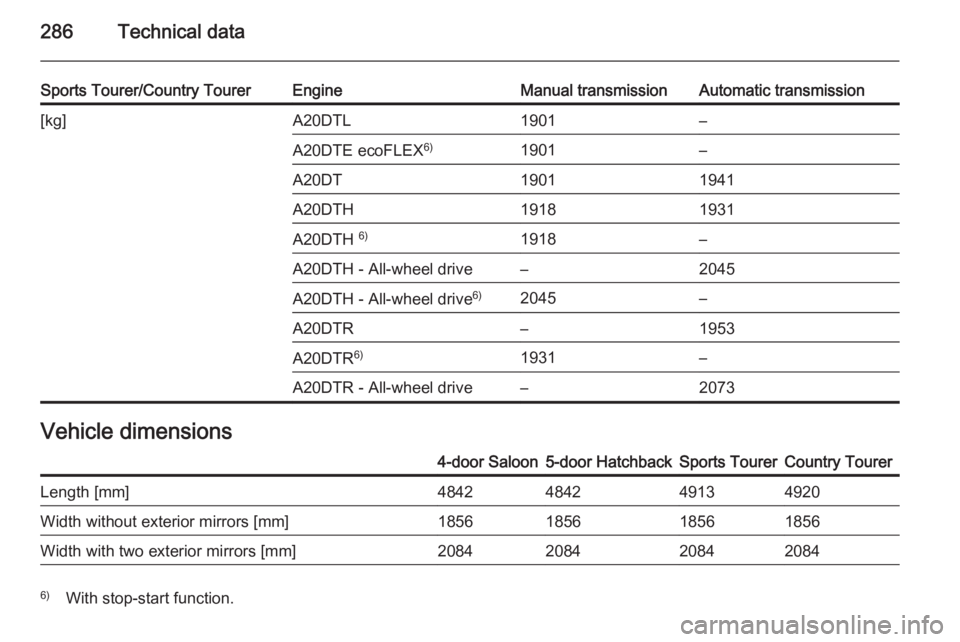

286Technical data
Sports Tourer/Country TourerEngineManual transmissionAutomatic transmission[kg]A20DTL1901–A20DTE ecoFLEX6)1901–A20DT19011941A20DTH19181931A20DTH 6)1918–A20DTH - All-wheel drive–2045A20DTH - All-wheel drive 6)2045–A20DTR–1953A20DTR6)1931–A20DTR - All-wheel drive–2073Vehicle dimensions4-door Saloon5-door HatchbackSports TourerCountry TourerLength [mm]4842484249134920Width without exterior mirrors [mm]1856185618561856Width with two exterior mirrors [mm]20842084208420846)
With stop-start function.

Technical data287
