OPEL INSIGNIA 2017 Infotainment system

Introduction911X........................................... 93
If switched off: short press:
switch power on
If switched on: short press: mute system; long press:
switch power off
Turn: adjust volume
2 N
Press: scroll to previous
favourites page
3 Display
4 Softkeys
Favourites: press: select
favourites; press and hold:
save radio stations as
favourites ............................ 101
Interaction selector bar:
press: select
corresponding screen
button .................................... 95
5 O
Press: scroll to next
favourites page6 MENU
Central control for
selection and navigation in
menus ................................... 95
7 ;
Press: display Home
screen ................................... 95
8 BACK
Menu: one level back ............95
Input: delete last character
or entire entry ........................ 95
9 v
Radio: short press: skip to
next station; press and
hold: seek up ...................... 100
External devices: short
press: skip to next track;
press and hold: fast forward 110
10 d (if CD player equipped)
Press: eject discTONE (if CD player not
equipped)
Press: display tone
settings menu ...................... 106
11 t
Radio: short press: skip to
previous station; press
and hold: seek down ..........100
External devices: short
press: skip to previous
track; press and hold: fast
rewind ................................. 110
12 MEDIA
Activate media or change
media source ...................... 110
13 RADIO
Activate radio or change
waveband ........................... 100
14 CD slot (if CD player equipped)

92IntroductionSteering wheel controls
1s
Press: take phone call ........116
2 n
Press: end/decline call ........116
or activate/deactivate
mute function ...................... 116
For a description of all other controls,
see Owner's manual.
1 N
Press: display menu for
application selection;
return to next higher menu
level on the Driver
Information Centre (see
image below)
2 P / Q
Short press: select menu
item on the Driver
Information Centre
Long press: fast-scroll
through a long contacts list on the Driver Information Centre
3 9
Press: confirm selection
on the Driver Information Centre
4 j
Press: display application-
specific main menu on the
Driver Information Centre
5 ! / # ..................................... 93
Press upwards: increase volume
Press downwards:
decrease volume

Introduction936k / l
Radio: press to select
next / previous favourite on the Driver Information
Centre ................................. 101
Media: press to select
next / previous track on the Driver Information Centre .... 107Driver Information Centre:
Usage
Control elements
The Infotainment system is operated
via function buttons, a MENU knob
and menus that are shown on the
display.
Inputs are made optionally via: ● the control panel on the Infotainment system 3 90
● audio controls on the steering wheel 3 90
Switching the Infotainment
system on or off
Press X briefly. After switching on,
the last selected Infotainment source
becomes active.
Press and hold X again to turn the
system off.
Automatic switch-off
If the Infotainment system is switched
on by pressing X while the ignition is
switched off, it switches off again
automatically after 10 minutes.
Setting the volume Turn m. The current setting is shown
on the display.
When the Infotainment system is
switched on, the last selected volume
is set, provided that the volume is
lower than the maximum start-up
volume 3 97.
Speed compensated volume
When Auto volume is activated
3 97, the volume is adapted
automatically to make up for the road and wind noises as you drive.

94IntroductionMute function
Press m to mute the audio sources.
To cancel the mute function: turn m.
Modes of operation Radio
Press RADIO to open the radio main
menu or to toggle between the
different wavebands.
For a detailed description of the radio
functions 3 100.
CD player
Press MEDIA repeatedly to activate
the CD player.
For a detailed description of the CD player functions 3 106.
External devices
Press MEDIA repeatedly to activate
the playback mode for a connected
external device.
For a detailed descriptions on
connecting and operating external
devices 3 109.
Phone
Press ; to display the Home screen.Select PHONE to establish a
Bluetooth connection between the Infotainment system and a mobile
phone.
If a connection can be established,
the main menu of the phone mode is
displayed.
For a detailed description of mobile
phone operation via the Infotainment
system 3 116.
If no connection can be established,
a corresponding message is
displayed. For a detailed description
of preparing and establishing a
Bluetooth connection between the
Infotainment system and a mobile phone 3 113.

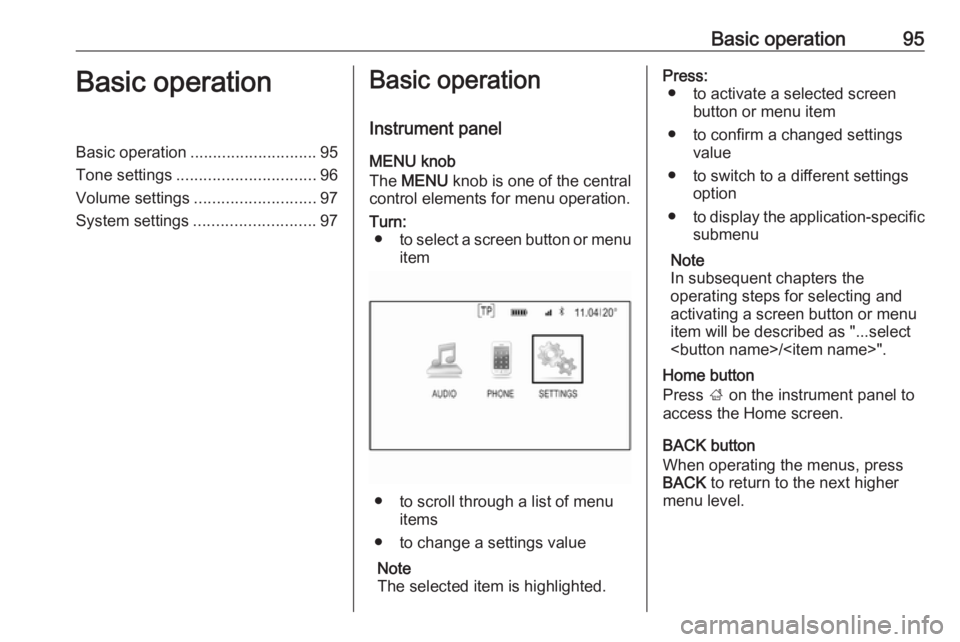

Basic operation95Basic operationBasic operation............................ 95
Tone settings ............................... 96
Volume settings ........................... 97
System settings ........................... 97Basic operation
Instrument panel MENU knob
The MENU knob is one of the central
control elements for menu operation.Turn: ● to select a screen button or menu
item
● to scroll through a list of menu items
● to change a settings value
Note
The selected item is highlighted.
Press: ● to activate a selected screen button or menu item
● to confirm a changed settings value
● to switch to a different settings option
● to display the application-specific
submenu
Note
In subsequent chapters the
operating steps for selecting and
activating a screen button or menu
item will be described as "...select
/".
Home button
Press ; on the instrument panel to
access the Home screen.
BACK button
When operating the menus, press
BACK to return to the next higher
menu level.

96Basic operationSoftkeys
Press one of the softkeys to activate
the favourite or function screen button displayed immediately above the
respective softkey.
Note
In subsequent chapters the
operating steps for selecting and
activating a screen button or menu
item will be described as "...select
/".
Tone settings
In the tone settings menu, the tone
characteristics can be set. If adjusted in one menu, they are globally set
within all source modes. The menu may be accessed from each
individual audio main menu.
Press MENU , scroll through the list
and select Tone Settings .
Setting bass, midrange, and
treble
Scroll through the list and press
MENU to activate Bass, Midrange or
Treble .
Turn MENU to adjust the setting as
desired.
Press MENU to confirm the setting.
Setting the volume distribution
between front and rear
Scroll through the list and press
MENU to activate Fade.
Turn MENU to adjust the setting as
desired.
Press MENU to confirm the setting.
Setting the volume distribution
between right and left
Scroll through the list and press
MENU to activate Balance.
Turn MENU to adjust the setting as
desired.
Press MENU to confirm the setting.
Selecting a tone style Scroll through the list and press
MENU to activate EQ (Equaliser).
The options offer optimised bass,
middle and treble presettings for the
relevant style of music.
Turn MENU to scroll through the
different options.
Press MENU to confirm the selected
option.
Note
If EQ is set to Custom, Bass ,
Midrange and Treble can be
adjusted manually.

Basic operation97Volume settings
Maximum start-up volume
Press ; and then select SETTINGS .
Scroll through the list and select
Radio and then Maximum Startup
Volume .
Turn MENU to adjust the volume as
desired.
Automatic Volume Adjustment The volume may be adjusted
automatically relative to the speed of the vehicle.
Press ; and then select SETTINGS.
Scroll through the list and select Radio and then Auto Volume .
To access the setting from an audio
main menu, press MENU, scroll
through the list and select Auto
Volume .
To adjust the degree of volume
adaptation, set Auto Volume to one of
the available options.
Off : no enhancement of volume with
increasing vehicle speed.High : maximum enhancement of
volume with increasing vehicle
speed.
System settings
Various settings and adaptions for the
Infotainment system can be
performed via the SETTINGS
application.
Time
Press ; and then select SETTINGS.
Select Time.
Set Time
Select Set Time to enter the
respective submenu.
Select AUTO SET at the bottom of the
screen. Activate either On - RDS or
Off - Manual .
If Off - Manual is selected, adjust
hours and minutes.
Repeatedly select 12-24 HR at the
bottom of the screen to choose a time mode.
If the 12-hour mode is selected, a
third column for AM and PM selection
is displayed. Select the desired
option.
Clock Display
Select Clock Display to enter the
respective submenu.
To turn off the digital clock display in
the menus, select Off.
Language Press ; and then select SETTINGS.
Select Language .
Scroll through the list and select the desired language.

98Basic operationValet mode
If valet mode is activated, all vehicle
displays are locked and no changes
may be performed within the system.
Note
Vehicle-related messages remain
enabled.
Locking the system
Press ; and then select SETTINGS.
Scroll through the list and select Valet
Mode . A keypad is displayed.
Enter a four-digit code and select
ENTER . The keypad is redisplayed.
To confirm the first input, reenter the
four-digit code and select LOCK. The
system is locked.
Unlocking the system
Turn the Infotainment system on. A
keypad is displayed.
Enter the respective four-digit code
and select UNLOCK. The system is
unlocked.
Forgotten PIN code
To reset the PIN code to the default
setting, contact your workshop.
Display Press ; and then select SETTINGS.
Scroll through the list and select
Display .
Select Turn Display Off to turn off the
display.
To turn the display back on, press a
button on the instrument panel.
Return to Factory Settings Press ; and then select SETTINGS.
Scroll through the list and select
Return to Factory Settings .
Restore Vehicle Settings
Select Restore Vehicle Settings to
restore all vehicle personalisation
settings. A warning message is
displayed.
Select Restore . The settings are
reset.
Clear All Private Data
Select Clear All Private Data to delete
e.g. paired Bluetooth devices, stored
phone books or favourites.
A warning message is displayed.
Select DELETE . The data is deleted.

Basic operation99Restore Radio Settings
Select Restore Radio Settings to
reset Infotainment settings, e.g. tone
settings.
A warning message is displayed.
Select Restore . The settings are
reset.
Software Information Press ; and select SETTINGS.
Scroll through the list and select
Software Information .
This menu contains specific
information on the software.

100RadioRadioUsage........................................ 100
Station search ............................ 100
Favourite lists ............................. 101
Radio data system (RDS) ..........103
Digital audio broadcasting .........104Usage
The radio function is part of the
AUDIO application.
Activating the radio function
Press RADIO .
Selecting the waveband
Repeatedly press RADIO on the
instrument panel to toggle between the different wavebands.
Station search
Automatic station search
Press t or v to play the previous
or next station.
Manual station search
Press and hold t or v . Release the
respective button when the required
frequency has almost been reached.
Manual tuning
FM and DAB waveband
Press MENU to open the waveband
menu and then select Manual Tuning.
Depending on the waveband
selected, a list of all FM or DAB
frequencies is displayed.
Select the desired frequency.
AM waveband
Turn MENU and set the optimal
reception frequency.
