Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............21
Seats, restraints ........................... 46
Storage ........................................ 70
Instruments and controls .............85
Lighting ...................................... 129
Climate control ........................... 141
Driving and operating .................155
Vehicle care ............................... 226
Service and maintenance ..........275
Technical data ........................... 279
Customer information ................313
Index .......................................... 320Contents

In brief111Power windows .....................41
2 Central locking system ..........25
3 Exterior mirrors .....................38
4 Light switch ........................ 129
Headlight range
adjustment ......................... 132
Front/rear fog lights ............136
Instrument illumination .......137
5 Side air vents ...................... 152
6 Turn and lane-change
signals, headlight flash,
low/high beam, high beam assist ................................... 135
Exit lighting ......................... 139
Parking lights ...................... 136
Buttons for Driver
Information Centre ..............111
7 Cruise control .....................181
Speed limiter ....................... 183
Adaptive cruise control .......184
Forward collision alert .........1928Instruments ........................ 100
Driver Information Centre .... 111
9 Buttons for Driver
Information Centre ..............111
10 Windscreen wiper and
washer, headlight washer,
rear wiper and washer .........87
11 Centre air vents .................. 152
12 Sport/Tour mode ................179
Traction Control system .....177
Electronic Stability Control . 177
Hazard warning flashers ....135
Parking assist/Advanced
parking aid ......................... 197
Lane departure warning .....213
13 Anti-theft alarm system
status LED ........................... 35
14 Colour-Info-Display ............118
15 Glovebox .............................. 70
16 Control indicator for airbag
activation/deactivation .......105
Control indicator for front
passenger seat belt ...........10417Controls for Colour-Info-
Display operation ................118
18 CD-slot
19 Climate control system ........ 141
20 Electric parking brake .........175
21 Manual transmission ..........173
Automatic transmission ......168
22 Storage ................................. 70
23 Eco button for stop-start
system ................................. 160
Fuel selector button ............102
24 Ignition/Power switch ..........156
25 Horn ..................................... 87
26 Steering wheel adjustment ..86
27 Bonnet release lever ..........228
28 Storage compartment ...........71
Fuse box ............................ 250

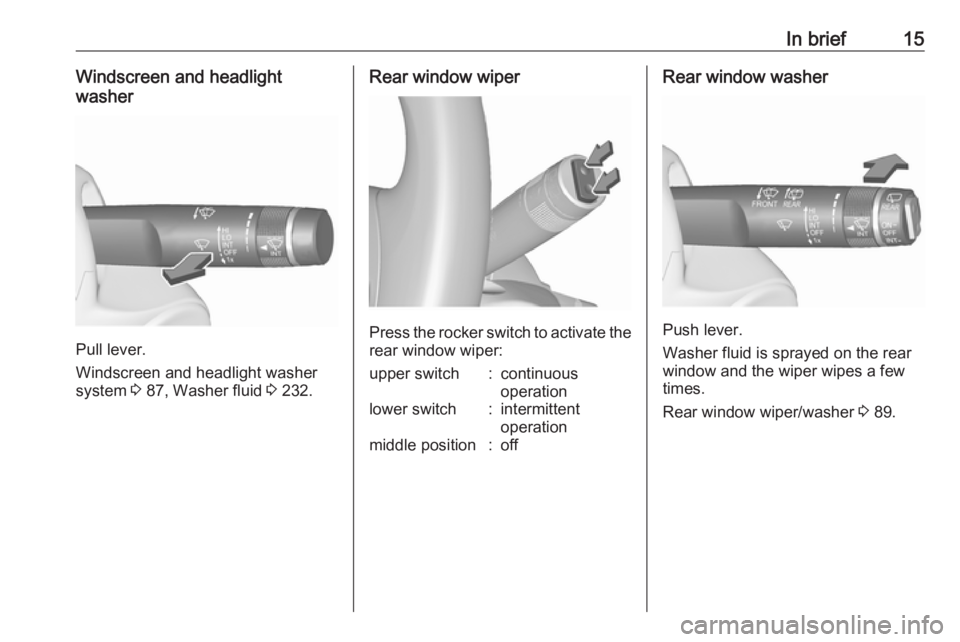

In brief15Windscreen and headlight
washer
Pull lever.
Windscreen and headlight washer
system 3 87, Washer fluid 3 232.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch:continuous
operationlower switch:intermittent
operationmiddle position:offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 89.

16In briefClimate control
Heated rear window, heated
exterior mirrors
Heating is operated by pressing Ü.
Heated rear window 3 43.
Demisting and defrosting the
windows, air conditioning system
Press V.
Set temperature control to warmest
level.
Switch on heated rear window Ü.
Air conditioning system 3 141.
Demisting and defrosting the
windows, automatic climate
control
Press V.
Temperature and air distribution are
set automatically and the fan runs at
high speed.
Switch on heated rear window Ü.
Dual automatic climate control
3 148

In brief17Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 173.
Automatic transmissionP:parkR:reverseN:neutralD:automatic modeM:manual mode: move selector
lever from D to the left.<:manual mode upshifting]:manual mode downshifting
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 168.
Starting off
Check before starting off ● Tyre pressure and condition 3 254, 3 295.
● Engine oil level and fluid levels 3 229.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 38, 3 48,
3 56.
● Brake function at low speed, particularly if the brakes are wet.

In brief19
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 160.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the manual
parking brake without pressing the release button. Apply as
firmly as possible on a downhill slope or uphill slope. Depress
brake pedal at the same time to
reduce operating force.
For vehicles with electric
parking brake, pull switch m for
approx. one second.
The electric parking brake is
applied when control indicator
m illuminates 3 106.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P before
removing the ignition key or
switching off ignition on
vehicles with power button. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P before removing the ignition
key or switching off ignition on
vehicles with power button.
Turn the front wheels towards
the kerb.
● Close the windows and the sunroof.
● Remove the ignition key from the ignition switch or switch off
ignition on vehicles with power
button. Turn the steering wheel until the steering wheel lock is
felt to engage.
For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.

Keys, doors and windows21Keys, doors and
windowsKeys, locks ................................... 21
Keys .......................................... 21
Car Pass .................................... 22
Radio remote control .................22
Electronic key system ................23
Memorised settings ...................24
Central locking system ..............25
Automatic locking ......................28
Child locks ................................. 29
Doors ........................................... 30
Load compartment ....................30
Vehicle security ............................ 34
Anti-theft locking system ...........34
Anti-theft alarm system ..............35
Immobiliser ................................ 37
Exterior mirrors ............................ 38
Convex shape ........................... 38
Electric adjustment ....................38
Folding mirrors .......................... 38
Heated mirrors ........................... 39
Automatic dimming ....................39
Parking assist ............................ 39Interior mirrors............................. 40
Manual anti-dazzle ....................40
Automatic anti-dazzle ................40
Windows ...................................... 40
Windscreen ............................... 40
Manual windows ........................41
Power windows ......................... 41
Heated rear window ..................43
Sun visors .................................. 43
Roller blinds ............................... 43
Roof ............................................. 44
Sunroof ...................................... 44Keys, locks
KeysCaution
Do not attach heavy or bulky items to the ignition key.
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 272, Radio remote control
3 22, Electronic key 3 23, Central
locking 3 25, Starting the engine
3 159.
The code number of the adapter for
the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 262.

22Keys, doors and windowsKey with foldaway key section
Press button to extend. To fold the
key, first press the button.
Car Pass The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.
Radio remote control
Enables operation of the following
functions via the use of the remote control buttons:
● central locking system 3 25
● anti-theft locking system 3 34
● anti-theft alarm system 3 35
● tailgate 3 30
● power windows 3 41
● sunroof 3 44
● mirror folding 3 38
The remote control has a range of
approx. 50 metres. It can be restricted
by external influences. The hazard
warning flashers confirm operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Replacing battery in radio remote
control
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.

Keys, doors and windows23
Extend the key and open the unit.
Replace the battery (battery type CR 2032), paying attention to the
installation position. Close the unit
and synchronise.
Radio remote control
synchronisation
After replacing the battery, unlock the
door with the key in the driver's door
lock. The radio remote control will be
synchronised when you switch on the
ignition.
Fault
If the central locking system cannot
be operated with the radio remote
control, the cause may be one of the
following:
● Fault in radio remote control.
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the radio remote control while notin range, which will require re-
synchronisation.
● Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Manual unlocking 3 25.Electronic key system
Enables a keyless operation of the
following functions:
● central locking system 3 25
● tailgate 3 30
● ignition switching on and starting the engine 3 159
The electronic key simply needs to be on the driver's person.
Additionally, the electronic key
includes the functionality of the radio
remote control 3 22.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.

24Keys, doors and windowsNote
Do not put the electronic key in the
load compartment or in front of the
Info-Display.
Replacing battery in electronic
key
Replace the battery as soon as the
system no longer operates properly
or the range is reduced. The need for battery replacement is indicated by a
message in the Driver Information
Centre 3 120.
Battery replacement, see 'Radio
remote control' 3 22.
Electronic key synchronisation The electronic key synchronises itself automatically during every starting
procedure.Fault
If the central locking cannot be
operated or the engine cannot be
started, the cause may be one of the
following:
● Fault in electronic key.
● Electronic key is out of reception range.
● The battery voltage is too low. ● Overload of the central locking system by operating at frequent
intervals; the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
To rectify the cause of the fault,
change the position of the electronic
key.
Manual unlocking 3 25.
Memorised settings
Whenever the ignition is switched off, the following settings are
automatically memorised by the
remote control unit or the electronic key:● automatic climate control
● lighting
● Infotainment system
● central locking system
● Sport mode settings
● comfort settings
The saved settings are automatically
used the next time the ignition is
switched on with the memorised key
with remote control unit 3 156 or
electronic key 3 23.
A precondition is that Personalisation
by Driver is activated in the personal
settings of the Info-Display. This must
be set for each remote control unit or
electronic key which is used.
Also memorised are the adjustments
of the driver's seat and exterior
mirrors, independent of the memory
positions 3 51.
Power seat automatically moves into the saved position when unlocking
and opening the driver's door with the
memorised remote control or
electronic key and Auto Memory
Recall in the Info-Display is activated.
Vehicle personalisation 3 121.
