OPEL INSIGNIA BREAK 2018.5 Infotainment system

Phone121Contacts settings
The contacts list can be sorted by last name or first name.
Press ; and then select Settings to
display the respective menu.
Select Bluetooth and then Sort
Order . Activate the desired option.

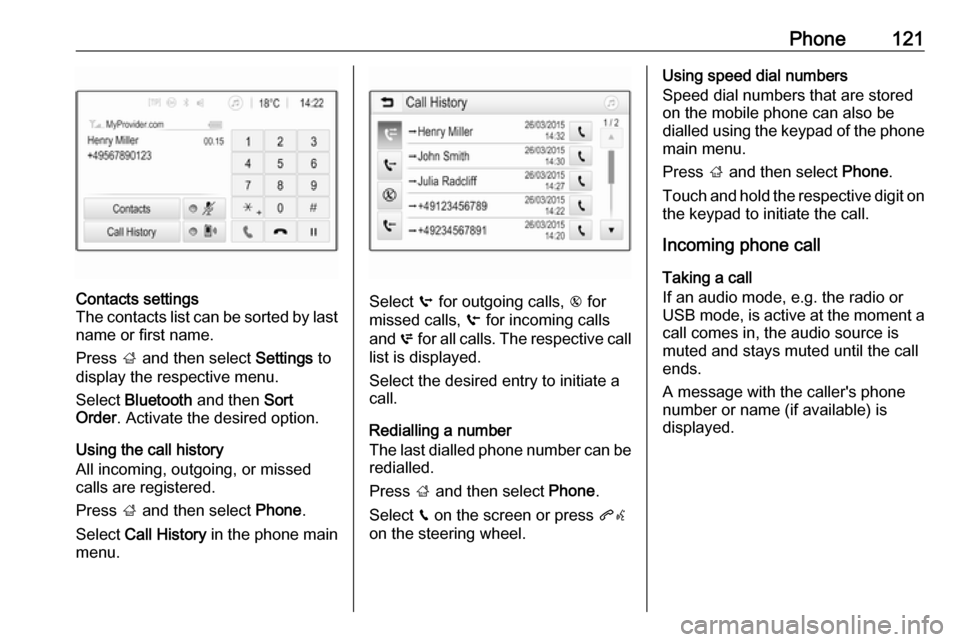

Using the call history
All incoming, outgoing, or missed calls are registered.
Press ; and then select Phone.
Select Call History in the phone main
menu.
Select q for outgoing calls, r for
missed calls, s for incoming calls
and p for all calls. The respective call
list is displayed.
Select the desired entry to initiate a
call.
Redialling a number
The last dialled phone number can be
redialled.
Press ; and then select Phone.
Select v on the screen or press qw
on the steering wheel.
Using speed dial numbers
Speed dial numbers that are stored
on the mobile phone can also be
dialled using the keypad of the phone
main menu.
Press ; and then select Phone.
Touch and hold the respective digit on the keypad to initiate the call.
Incoming phone call
Taking a call
If an audio mode, e.g. the radio or
USB mode, is active at the moment a
call comes in, the audio source is
muted and stays muted until the call
ends.
A message with the caller's phone
number or name (if available) is
displayed.

122Phone
To answer the call, select v in the
message or press qw on the steering
wheel.
Rejecting a call
To reject the call, select J in the
message or press xn on the
steering wheel.
Changing the ring tone
Press ; and then select Settings.
Select Bluetooth and then Ringtones
to display the respective menu. A list
of all paired devices is displayed.
Select the desired device. A list of all
ringtones available for this device is
displayed.
Select one of the ringtones.
Functions during a call
During an ongoing phone call, the
phone main menu is displayed.
Deactivating the hands-free mode
temporarily
To continue the conversation via the mobile phone, activate m.
To return to the hands-free mode,
deactivate m.
Deactivating the microphone
temporarily
To mute the microphone, activate n.
To reactivate the microphone,
deactivate n.
Ending a phone call
Select J to end the call.
Voice mail box You may operate your voice mail box
via the Infotainment system.
Voice mail number
Press ; and then select Settings.
Select Bluetooth . Scroll through the
list and select Voice Mail Numbers .
A list of all paired devices is
displayed.
Select the respective phone. A
keypad is displayed.
Enter the voice mail number for the
respective phone.
Calling the voice mail box
Press ; and then select Phone.
Select t on the screen. The mail
box is called.
Alternatively, enter the voice mail
number via the phone keypad.

Phone123Mobile phones and CB radio
equipment
Installation instructions and
operating guidelines
The vehicle specific installation
instructions and the operating
guidelines of the mobile phone and
hands-free manufacturer must be
observed when installing and
operating a mobile telephone. Failure to do so could invalidate the vehicle
type approval (EU directive 95/54/
EC).
Recommendations for fault-free
operation:
● Professionally installed exterior antenna to obtain the maximum
range possible.
● Maximum transmission power 10 W.
● Installation of the phone in a suitable spot, consider relevant
Note in the Owner's Manual,
section Airbag system .Seek advice on predetermined
installation points for the external
antenna or equipment holder and
ways of using devices with a
transmission power exceeding 10 W.
Use of a hands-free attachment
without external antenna with mobile
telephone standards GSM
900/1800/1900 and UMTS is only
permitted if the maximum
transmission power of the mobile
telephone is 2 W for GSM 900 or 1 W for the other types.
For reasons of safety, do not use the
phone while driving. Even use of a hands-free set can be a distraction
while driving.9 Warning
Operation of radio equipment and
mobile telephones which fail to
meet above mentioned mobile
telephone standards is only
permitted using an antenna
located outside of the vehicle.
Caution
Mobile telephones and radio
equipment may lead to
malfunctions in the vehicle
electronics when operated inside
the vehicle with no exterior
antenna, unless the above
mentioned regulations are
observed.

124IndexAActivating Bluetooth music .........109
Activating phone .........................119
Activating radio ........................... 101
Activating USB audio ..................109
Activating USB movie .................111
Activating USB picture ................110
Audio files ................................... 107
Auto volume.................................. 98
B Basic operation ............................. 95
Bluetooth Bluetooth connection ..............116
Bluetooth music menu ............109
Connecting device ..................107
General information ................107
Pairing ..................................... 116
Phone ...................................... 119
Bluetooth connection ..................116
C Call Functions during a call ............119
Incoming call ........................... 119
Initiating a phone call ..............119
Ring tone ................................. 119
Call history .................................. 119Control elements
Infotainment system ..................88
Steering wheel .......................... 88
Control elements overview ...........88
D DAB ............................................ 105
Digital audio broadcasting ..........105
Displaying pictures .....................110
Display settings ..................110, 111
E Emergency call ........................... 118
F Favourite lists ............................. 103
Retrieving stations................... 103
Storing stations .......................103
File formats Audio files................................ 107
Movie files ............................... 107
Picture files.............................. 107
G
General information ....107, 114, 115
Bluetooth ................................. 107
DAB ......................................... 105
Infotainment system ..................86
Phone ...................................... 115
Smartphone applications ........107
USB ......................................... 107

125HHome menu .................................. 95
I Infotainment control panel ............88
Intellitext ..................................... 105
M Maximum startup volume .............98
Menu operation............................. 95 Mobile phones and CB radio equipment .............................. 123
Movie files................................... 107 Mute.............................................. 92
O Operation .................................... 119
External devices ......................107
Menu ......................................... 95
Phone ...................................... 119
Radio ....................................... 101
P Pairing ........................................ 116
Personalisation of home menu .....95
Phone Bluetooth ................................. 115
Bluetooth connection ..............116
Call history .............................. 119
Emergency calls ......................118
Entering a number ..................119Functions during a call ............119
General information ................115
Incoming call ........................... 119
Phone book ............................. 119
Phone main menu ...................119
Selecting the ring tone ............119
Speed dial number ..................119
Phone book ................................ 119
Phone projection ........................112
Picture files ................................. 107
Playing audio .............................. 109
Playing movies ........................... 111
R
Radio Activating................................. 101Configuring DAB .....................105
Configuring RDS .....................103
DAB announcements ..............105
Digital audio broadcasting
(DAB) ...................................... 105
Favourite lists .......................... 103
Intellitext .................................. 105
Radio data system (RDS) .......103
Regional .................................. 103
Regionalisation ....................... 103
Retrieving stations................... 103
Selecting the waveband ..........101
Station search ......................... 101
Station tuning .......................... 101Storing stations.......................103
Usage ...................................... 101
Radio data system .....................103
RDS ............................................ 103
Regional ..................................... 103
Regionalisation ........................... 103
Retrieving stations ......................103
Ring tone Changing the ring tone ............119
Ring tone volume ......................98
S Smartphone ................................ 107
Phone projection .....................112
Speech recognition .....................114
Speed dial numbers ...................119
Station search............................. 101
Steering wheel audio controls ......88
Storing stations ........................... 103
Switching the Infotainment system on .................................. 92
System settings ............................ 98
T
Theft-deterrent feature ................. 87
Tone settings ................................ 97
Touch beep volume ......................98
TP volume .................................... 98

126UUsage ........................... 92, 101, 114
Bluetooth ................................. 107
Menu ......................................... 95
Phone ...................................... 119
Radio ....................................... 101
USB ......................................... 107
USB Connecting device ..................107
General information ................107
USB audio menu .....................109
USB movie menu ....................111
USB picture menu ...................110
Using smartphone applications ..112
V Voice recognition ........................114
Volume Auto volume .............................. 98
Maximum startup volume ..........98
Mute function............................. 92
Ring tone volume ......................98
Setting the volume ....................92
Speed compensated volume ....98
Touch beep volume ..................98
TP volume ................................. 98
Volume limitation at high
temperatures ............................. 92
Volume settings ............................ 98W
Waveband selection ...................101
