Page 321 of 345
Technical data319Comfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])D20DTH225/55 R17,
235/50 R18 13)
,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)235/45 R18,
245/35 R20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)13) Country Tourer only
Page 322 of 345
320Technical dataTyre pressures for vehicles with All-wheel drive
Grand Sport, Sports Tourer, Country TourerComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])D20DTH225/55 R17,
245/45 R18,
235/50 R18 13)220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)235/45 R18,
245/35 R20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)D20DTR225/55 R17,
245/45 R18230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)235/50 R18 13)220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)235/45 R18250/2.5 (36)250/2.5 (36)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)245/35 R20240/2.4 (35)240/2.4 (35)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)
Page 323 of 345
Technical data321Comfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])AllTemporary spare
wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2 (60)420/4.2 (60)13) Country Tourer only
Page 324 of 345
322Technical dataTowing hitch installation dimensions
Grandsport
Page 325 of 345
Technical data323Sports Tourer, Country Tourer
Page 326 of 345

324Customer informationCustomer
informationCustomer information ................324
Declaration of conformity .........324
REACH .................................... 328
Collision damage repair ...........328
Software acknowledgement ....328
Software update ......................330
Registered trademarks ............330
Vehicle data recording and pri‐
vacy ........................................... 331
Event data recorders ...............331
Radio Frequency Identification (RFID) ..................................... 334Customer information
Declaration of conformity
Radio transmission systems
This vehicle has systems that
transmit and / or receive radio waves
subject to Directive 2014/53/EU. The
manufacturers of the systems listed
below declare conformity with
Directive 2014/53/EU. The full text of
the EU declaration of conformity for each system is available at the
following internet address:
www.opel.com/conformity.
Importer is
Opel / Vauxhall, Bahnhofsplatz,
65423 Ruesselsheim am Main,
Germany.
Antenna
Laird
Daimlerring 31, 31135 Hildesheim, Germany
Operation frequency: N/A
Maximum output: N/AAntenna
Kathrein Automotive GmbH
Roemerring 1, 31137 Hildesheim,
Germany
Operation frequency: N/A
Maximum output: N/A
Electronic key receiver
Denso Corporation
Waldeckerstaße 11, 64546
Mörfelden-Walldorf, Germany
Operation frequency: 125 kHz
Maximum output: -0.14 dBm
Electronic key transmitter
Denso Corporation
1-1, Showa-cho, Kariya-shi, Aichi-
ken 448-8661, Japan
Operation frequency: 433.92 MHz
Maximum output: -5.88 dBm
Immobiliser
Robert Bosch GmbH
Robert Bosch Platz 1, 70839
Gerlingen, Germany
Operation frequency: 125 kHz
Page 327 of 345

Customer information325Maximum output:
5.1 dBµA/m @ 10 m
Infotainment system Multimedia
LG Electronics
European Shared Service Center
B.V., Krijgsman 1, 1186 DM
Amstelveen, The NetherlandsOperation
frequency (MHz)Maximum output
(dBm)2400.0 - 2483.582400.0 - 2483.5165725.0 - 5875.09
Infotainment system
Multimedia Navi Pro
Harman International Industries
Becker-Goering-Str. 16, 76307
Karlsbad, Germany
Operation
frequency (MHz)Maximum output
(dBm)2400.0 - 2483.592400.0 - 2483.5195725.0 - 5875.013.9
OnStar module
LG Electronics
European Shared Service Center
B.V., Krijgsman 1, 1186 DM
Amstelveen, The Netherlands
Operation
frequency (MHz)Maximum output
(dBm)2402 - 248042412 - 246218880 - 915331710 - 1785241850 - 1910241920 - 1980242500 - 257023Parking heater remote control
receiver
Webasto Thermo & Comfort SE
Friedrichshafener Str. 9, 82205
Gilching, Germany
Operation frequency: N/A
Maximum output: N/A
Parking heater remote control
transmitter
Webasto Thermo & Comfort SE
Friedrichshafener Str. 9, 82205
Gilching, Germany
Operation frequency: 869.0 MHz
Maximum output: 14 dBm
Radar unit
Continental Automotive GmbH
ADC Automotive Distance Control
Systems GmbH, Peter-Dornier-
Strasse 10, 88131 Lindau, Germany
Operation frequency: 76-77 Ghz
Maximum output: 35 EIRP dBm
Radar unit
Hella KGaA Hueck & Co.
Page 328 of 345
326Customer informationRixbecker Straße 75, 59552
Lippstadt
Operation frequency:
24.05-24.25 Ghz
Maximum output: 20 EIRP dBm
Radio remote control transmitter
Robert Bosch GmbH
Robert Bosch Platz 1, 70839
Gerlingen, Germany
Operation frequency: 433.92 MHz
Maximum output: -4 dBm
Radio remote control receiver
Robert Bosch GmbH
Robert Bosch Platz 1, 70839
Gerlingen, Germany
Operation frequency: N/A
Maximum output: N/A
Tyre pressure sensors
Schrader Electronics Ltd.
11 Technology Park, Belfast Road,
Antrim BT41 1QS, Northern Ireland,
United Kingdom
Operation frequency: 433.92 MHz
Maximum output: 10 dBm
Page 329 of 345

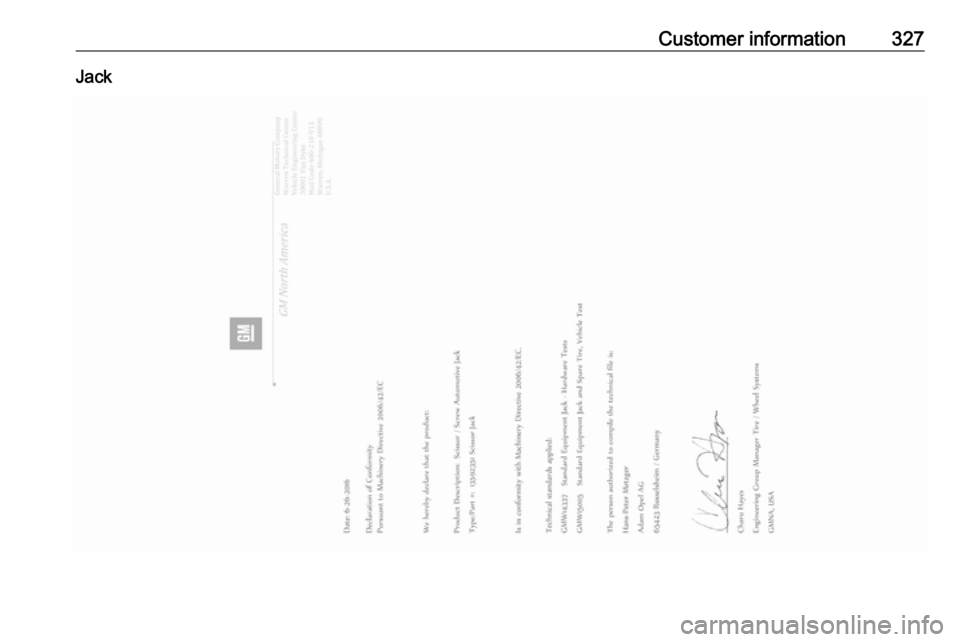

Customer information327Jack
Page 330 of 345

328Customer informationREACHRegistration, Evaluation,
Authorisation and Restriction of
Chemicals (REACH) is a European
Union regulation adopted to improve
the protection of human health and
the environment from the risks that
can be posed by chemicals. Visit
www.opel.com/reach for further
information and for access to the
Article 33 communication.
Collision damage repair
Opel Exclusive paint Note
Differing from standard vehicle
paints, paint thickness may vary over the whole body due to manual
paint operation.
A colour code label with information
about the individual Opel Exclusive
paint formula is placed in the spare
wheel well.
Software acknowledgement Certain OnStar components include
libcurl and unzip software and other
third party software. Below are the
notices and licenses associated with
libcurl and unzip and for other third
party software please see http://
www.lg.com/global/support/
opensource/index.
libcurl
Copyright and permission notice
Copyright (c) 1996 - 2010, Daniel
Stenberg, .
All rights reserved.
Permission to use, copy, modify, and
distribute this software for any
purpose with or without fee is hereby
granted, provided that the above
copyright notice and this permission
notice appear in all copies.
The software is provided "as is",
without warranty of any kind, express
or implied, including but not limited to the warranties of merchantability,fitness for a particular purpose and
noninfringement of third party rights.
In no event shall the authors or
copyright holders be liable for any
claim, damages or other liability,
whether in an action of contract, tort
or otherwise, arising from, out of or in connection with the software or the
use or other dealings in the software.
Except as contained in this notice, the
name of a copyright holder shall not
be used in advertising or otherwise to
promote the sale, use or other
