Page 11 of 345

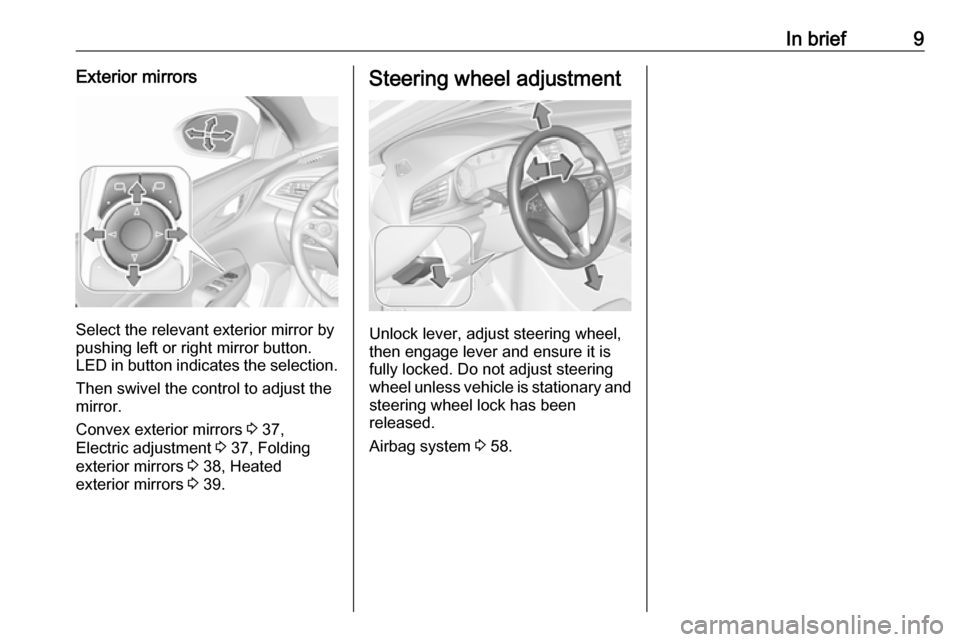

In brief9Exterior mirrors
Select the relevant exterior mirror by
pushing left or right mirror button.
LED in button indicates the selection.
Then swivel the control to adjust the
mirror.
Convex exterior mirrors 3 37,
Electric adjustment 3 37, Folding
exterior mirrors 3 38, Heated
exterior mirrors 3 39.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Airbag system 3 58.
Page 12 of 345

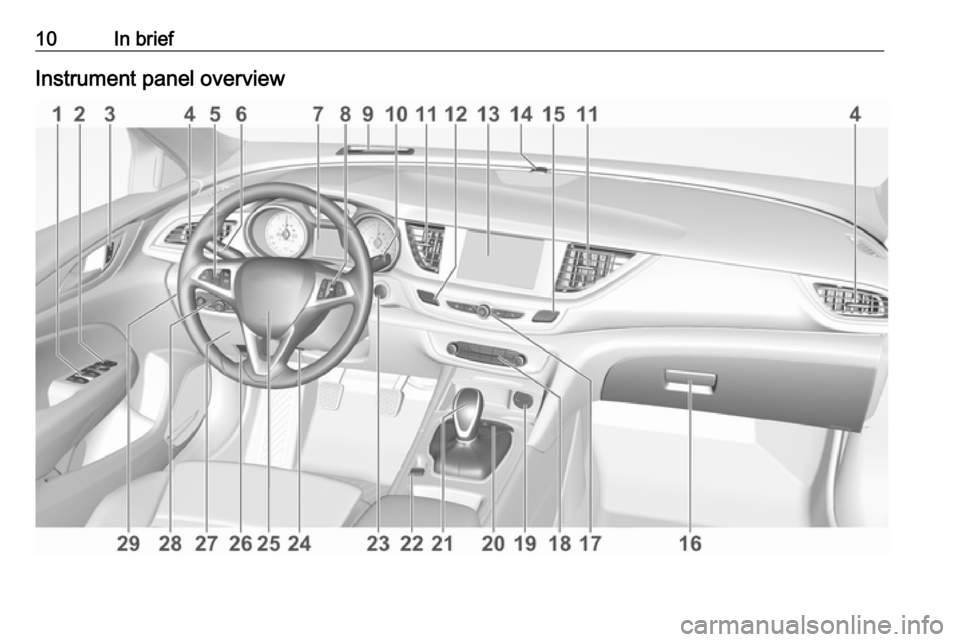

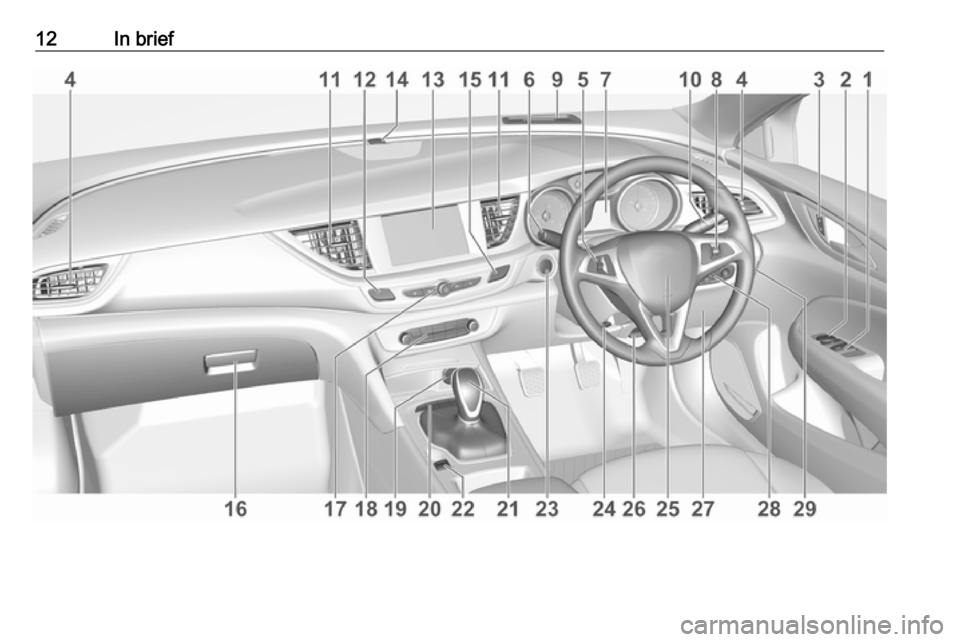

10In briefInstrument panel overview
Page 13 of 345
In brief111Power windows .....................40
2 Exterior mirrors .....................37
3 Central locking system ..........25
4 Side air vents ...................... 172
5 Cruise control .....................201
Speed limiter ....................... 202
Adaptive cruise control .......204
Forward collision alert .........214
6 Turn and lane-change
signals, headlight flash,
low/high beam, high beam
assist ................................... 138
Exit lighting ......................... 141
Parking lights ...................... 139
Buttons for Driver
Information Centre ..............112
7 Instruments ........................ 101
Driver Information Centre .... 112
8 Buttons for Driver
Information Centre ..............112
9 Head-up display ..................11910Windscreen wiper and
washer, headlight washer,
rear wiper and washer .........89
11 Centre air vents .................. 172
12 Hazard warning flashers ....137
13 Info-Display ........................ 118
14 Anti-theft alarm system
status LED ........................... 34
15 Electronic Stability Control . 197
Traction Control system .....196
16 Glovebox .............................. 73
17 Controls for Info-Display
operation ............................. 118
18 Climate control system ........ 163
19 Power outlet .......................... 93
20 Sport/Tour mode ................199
Parking assist/Advanced
parking assist .....................223
Lane keep assist ................242
Eco button for stop-start
system ................................. 180
21 Manual transmission ..........192
Automatic transmission ......18722Electric parking brake .........194
23 Power switch ....................... 177
24 Steering wheel adjustment ..88
25 Horn ..................................... 89
26 Bonnet release lever ..........254
27 Fuse box ............................ 274
28 Light switch ........................ 131
Headlight range
adjustment ......................... 133
Front/rear fog lights ............138
Instrument illumination .......139
29 Head-up display ..................119
Page 14 of 345
12In brief
Page 15 of 345
In brief13Exterior lightingAutomatic light controlAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 132.
Fog lights
>:front fog lightsr:rear fog lightHeadlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 132.
Headlight flash 3 133.
LED headlights 3 134.
High beam assist 3 134.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 138, Parking lights 3 139.
Page 16 of 345
14In briefHazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 137.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping or automatic
wiping with rain sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 89, Wiper
blade replacement 3 259.
Page 17 of 345
In brief15Windscreen washer
Pull lever.
Windscreen and headlight washer
system 3 89, Washer fluid 3 257.
Rear window wiper
Turn outer cap to activate the rear
window wiper:
OFF:offINT:intermittent operationON:continuous operationRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 91.
Page 18 of 345
16In briefClimate control
Heated rear window
Operated by pressing b.
Heated rear window 3 42.
Heated windscreen
Operated by pressing ,.
Heated windscreen 3 43.
Heated exterior mirrors
Pressing b also activates the exterior
mirror heating.
Heated exterior mirrors 3 39.
Demisting and defrosting the
windows, air conditioning system
● Press á: fan automatically
switches to higher speed, the air
distribution is directed towards
the windscreen.
● Set temperature control to warmest level.
● Switch on air conditioning A/C if
required.
● Switch on heated rear window b.
● Open side air vents as required and direct them towards the doorwindows.
Air conditioning system 3 163.
Page 19 of 345
In brief17Demisting and defrosting the
windows, electronic climate
control
● Press à. Temperature and air
distribution are set automatically
and the fan runs at high speed.
● Switch on air conditioning A/C ON in Climate setting menu
by pressing CLIMATE, if
required.
● Switch on heated rear window b.
Electronic climate control system 3 166.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
Manual transmission 3 192.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 187.
Page 20 of 345
18In briefStarting off
Check before starting off ● Tyre pressure and condition 3 277, 3 317.
● Engine oil level and fluid levels 3 255.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 37, 3 47,
3 57.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Manual transmission: operateclutch and brake pedal.
● Automatic transmission: operate brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Press Engine Start/Stop button.
● Release button after starting procedure begins.
Starting the engine 3 178.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
A restart is indicated by the needle at
the idle speed position in the
tachometer.
Stop-start system 3 180.
