OPEL KARL 2018 Manual user

In brief9Exterior mirrorsManual adjustment
Swivel lever in required direction.
Exterior mirrors 3 29, Manual
adjustment 3 29.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Electric adjustment 3 29, Folding
exterior mirrors 3 29.
Heated exterior mirrors 3 29.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 41, Ignition
positions 3 109.

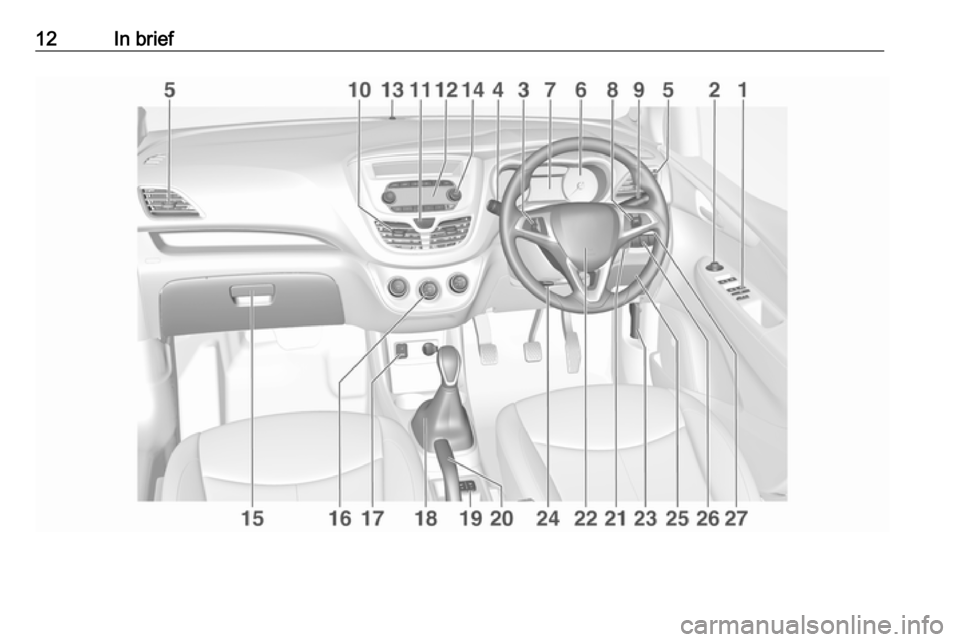

10In briefInstrument panel overview

In brief111Central locking system ..........23
Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................124
Speed limiter ...................... 125
Heated steering wheel ..........61
4 Turn and lane-change
signals, headlight flash,
low beam and high beam ......95
Exit lighting ........................... 97
Parking lights ........................ 96
5 Side air vents ...................... 105
6 Instruments .......................... 65
7 Driver Information Centre ...... 77
8 Steering wheel controls .......61
9 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 62
10 Centre air vents .................. 105
11 Hazard warning flashers ......94
12 Info-Display ........................... 8213Anti-theft alarm system
status LED ........................... 27
14 Infotainment system
15 Glovebox .............................. 53
16 Climate control system .......... 99
17 AUX input, USB input
18 Selector lever, manual
transmission ....................... 115
Selector lever, manual
transmission automated ......116
19 Seat heating .......................... 38
20 Parking brake ......................120
21 Ignition switch with
steering wheel lock ............109
22 Horn ..................................... 62
Driver airbag ........................ 44
23 Bonnet release lever ..........139
24 Steering wheel adjustment ..61
25 Fuse box ............................ 153
26 Traction Control system .....121
City mode ............................ 123
Stop-start system ................111
Fuel selector ......................... 67
Lane departure warning .....128Electronic Stability Control . 122
27 Light switch .......................... 93
Headlight range
adjustment ........................... 94
Front fog light ........................ 95
Rear fog light ........................ 95
Brightness of instrument
panel illumination ..................96

12In brief

In brief131Central locking system ..........23
Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................124
Speed limiter ...................... 125
Heated steering wheel ..........61
4 Turn and lane-change
signals, headlight flash,
low beam and high beam ......95
Exit lighting ........................... 97
Parking lights ........................ 96
5 Side air vents ...................... 105
6 Instruments .......................... 65
7 Driver Information Centre ...... 77
8 Steering wheel controls .......61
9 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 62
10 Centre air vents .................. 105
11 Hazard warning flashers ......94
12 Info-Display ........................... 8213Anti-theft alarm system
status LED ........................... 27
14 Infotainment system
15 Glovebox .............................. 53
16 Climate control system .......... 99
17 AUX input, USB input
18 Selector lever, manual
transmission ....................... 115
Selector lever, manual
transmission automated ......116
19 Seat heating .......................... 38
20 Parking brake ......................120
21 Ignition switch with
steering wheel lock ............109
22 Horn ..................................... 62
Driver airbag ........................ 44
23 Bonnet release lever ..........139
24 Steering wheel adjustment ..61
25 Fuse box ............................ 153
26 Traction Control system .....121
City mode ............................ 123
Stop-start system ................111
Fuel selector ......................... 67
Lane departure warning .....128Electronic Stability Control . 122
27 Light switch .......................... 93
Headlight range
adjustment ........................... 94
Front fog light ........................ 95
Rear fog light ........................ 95
Brightness of instrument
panel illumination ..................96

14In briefExterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlights
Fog lights
Press button in light switch:
>:front fog lightsr:rear fog lightHeadlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 93, Headlight flash
3 93.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 95, Parking lights 3 96.

In brief15Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 94.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowE:interval wipingOFF:off
For single wipe when the wiper is off,press lever down to position 2.
Windscreen wiper 3 62.

16In briefWindscreen washer
Pull lever.
Windscreen washer system 3 62,
Washer fluid 3 141, Wiper blade
replacement 3 144.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch:continuous
operationlower switch:intermittent
operationmiddle position:offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 63.

In brief17Climate control
Heated rear window
The heating is operated by pressing
Ü .
Heated rear window 3 32.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 29.
Demisting and defrosting the
windows
● Set air distribution control to V.
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Electronic climate control system: Press V.
● Switch on heated rear window Ü.
● Open side air vents as required and direct them towards the doorwindows.
Climate control system 3 99.Transmission
Manual transmission
To engage reverse, depress the
clutch pedal and engage the reverse
gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 115.

18In briefManual transmission automatedR:reverse, engage only when
vehicle is stationaryN:neutralD:automatic modeM:manual mode<:upshift in manual mode]:downshift in manual mode
Manual transmission automated
3 116.
Starting off
Check before starting off ● Tyre pressure and condition 3 156,
3 188.
● Engine oil level and fluid levels 3 140.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 29, 3 36,
3 40.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Manual transmission automated:
operate brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Turn key to position 3 and
release.
