technical data OPEL MERIVA 2017 Owners Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............20
Seats, restraints ........................... 35
Storage ........................................ 61
Instruments and controls .............81
Lighting ...................................... 120
Climate control ........................... 129
Driving and operating .................139
Vehicle care ............................... 171
Service and maintenance ..........220
Technical data ........................... 223
Customer information ................238
Index .......................................... 244Contents

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner. For gas
vehicles we recommend an Opel
Repairer authorised for servicing gas
vehicles.
All Opel Service Partners provide first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

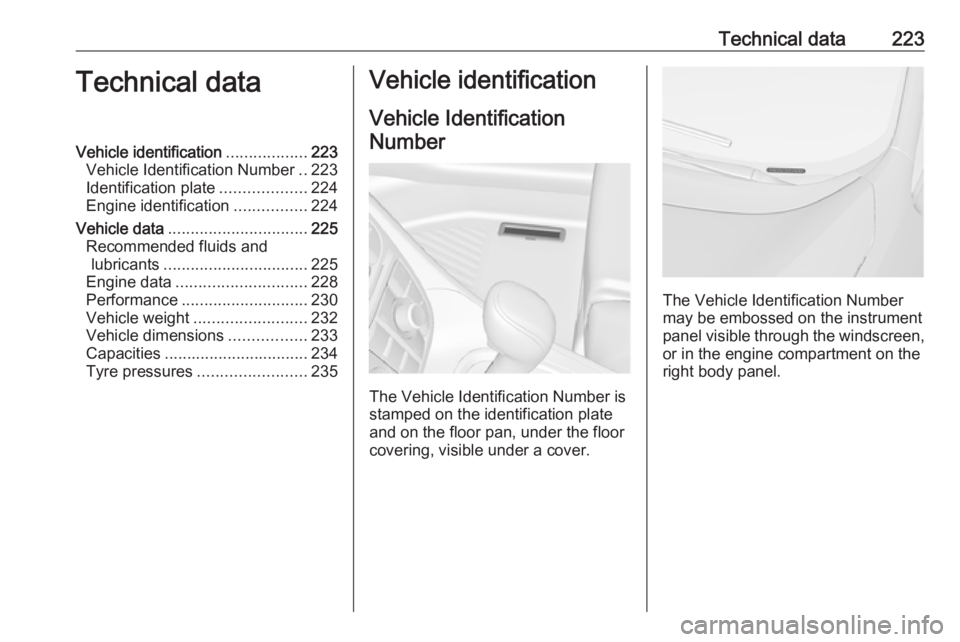

Technical data223Technical dataVehicle identification..................223
Vehicle Identification Number ..223
Identification plate ...................224
Engine identification ................224
Vehicle data ............................... 225
Recommended fluids and lubricants ................................ 225
Engine data ............................. 228
Performance ............................ 230
Vehicle weight ......................... 232
Vehicle dimensions .................233
Capacities ................................ 234
Tyre pressures ........................ 235Vehicle identification
Vehicle IdentificationNumber
The Vehicle Identification Number is
stamped on the identification plate
and on the floor pan, under the floor
covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel visible through the windscreen, or in the engine compartment on theright body panel.

224Technical dataIdentification plate
The identification plate is located on
the rear or front right door frame.
Information on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weight rating in kg5:permissible gross train weight in
kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country- specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 228.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.
The Certificate of Conformity shows
the engine identifier code, other
national publications may show the
engineering code. Check piston
displacement and engine power to
identify the respective engine.

Technical data225Vehicle dataRecommended fluids and lubricants
European service schedule Required engine oil qualityAll European countries with European service interval 3 220Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos 1––dexos 2✔✔
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 once between each oil change.
Engine oil viscosity grades
All European countries with European service interval 3 220Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

226Technical dataInternational service schedule
Required engine oil qualityAll countries with international service interval 3 220Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos 1 (if available)✔–dexos 2✔✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries with international service interval 3 220Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesGM-LL-A-025✔–GM-LL-B-025–✔All countries with international service interval 3 220Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B3✔–ACEA A3/B4✔✔

Technical data227All countries with international service interval 3 220ACEA C3✔✔API SM✔–API SN resource conserving✔–
Engine oil viscosity grades
All countries with international service interval 3 220Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of SAE 5W-30 or SAE 5W-40 with dexos quality is recommended.

228Technical dataEngine dataEngine identifier codeB14XERB14NELB14NELB14NETSales designation1.41.41.4 LPG1.4Engineering codeB14XERB14NELB14NELB14NETPiston displacement [cm3
]1398136413641364Engine power [kW]748888103at rpm60004200-60004800-60004900-6000Torque [Nm]130175/200 2)175200/220 3)at rpm40001750-48001750-48001850-4900Fuel typePetrolPetrolLiquid gas/PetrolPetrolOctane rating RON 4)recommended95959595possible98989898possible91919191Additional fuel type––Liquid gas (LPG)–2)
With six-speed transmission.
3) With overboost function.
4) A country specific label at the fuel filler flap can supersede the engine specific requirement.

Technical data229Engine identifier codeB16DTCB16DTLB16DTHB16DTESales designation1.61.61.61.6Engineering codeB16DTLB16DTLB16DTHB16DTEPiston displacement [cm3
]1598159815981598Engine power [kW]708110081at rpm350035003500-40003500Torque [Nm]280300320300at rpm1500-17501750-200020001750-2000Fuel typeDieselDieselDieselDieselEngine identifier codeA13DTCA13DTEA17DTISales designation1.31.31.7Engineering codeA13DTCA13DTEA17DTIPiston displacement [cm 3
]124812481686Engine power [kW]557081at rpm400040003600

230Technical dataEngine identifier codeA13DTCA13DTEA17DTISales designation1.31.31.7Engineering codeA13DTCA13DTEA17DTITorque [Nm]180180280at rpm1750-25001750-35002300Fuel typeDieselDieselDieselPerformanceEngineB14XERB14NELB14NEL LPGB14NETMaximum speed [km/h]Manual transmission177188188196Automatic transmission–185–193EngineB16DTCB16DTLB16DTHB16DTEMaximum speed [km/h]Manual transmission174185197185Automatic transmission––––
