Page 11 of 255
In brief9Exterior mirrorsManual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 35.
Electric adjustment
Select the relevant exterior mirror and
adjust it by swivelling the control.
Convex exterior mirrors 3 35,
Electric adjustment 3 35, Folding
exterior mirrors 3 36, Heated
exterior mirrors 3 36.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 54, Ignition
positions 3 130.
Page 12 of 255

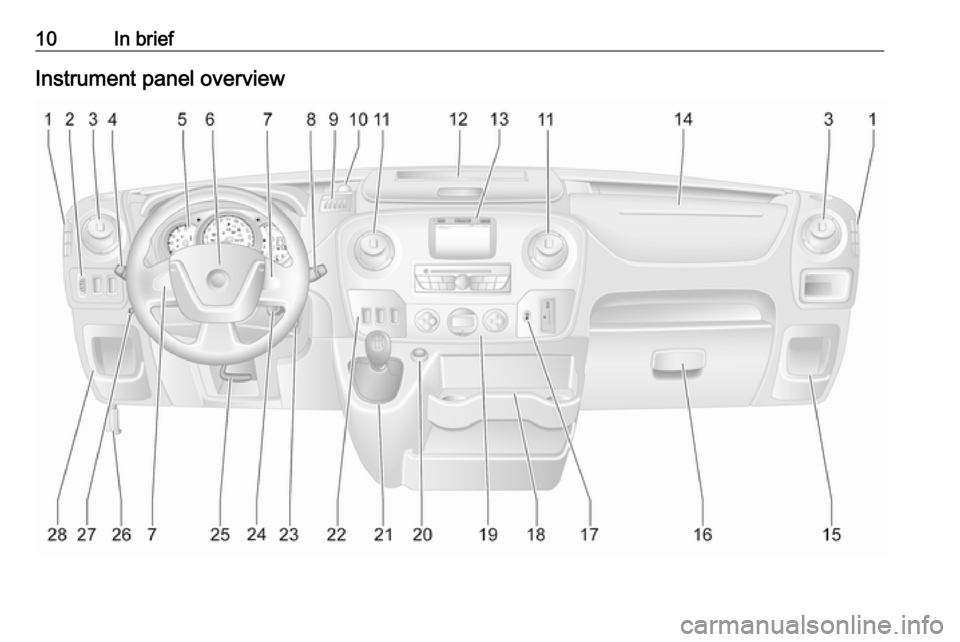

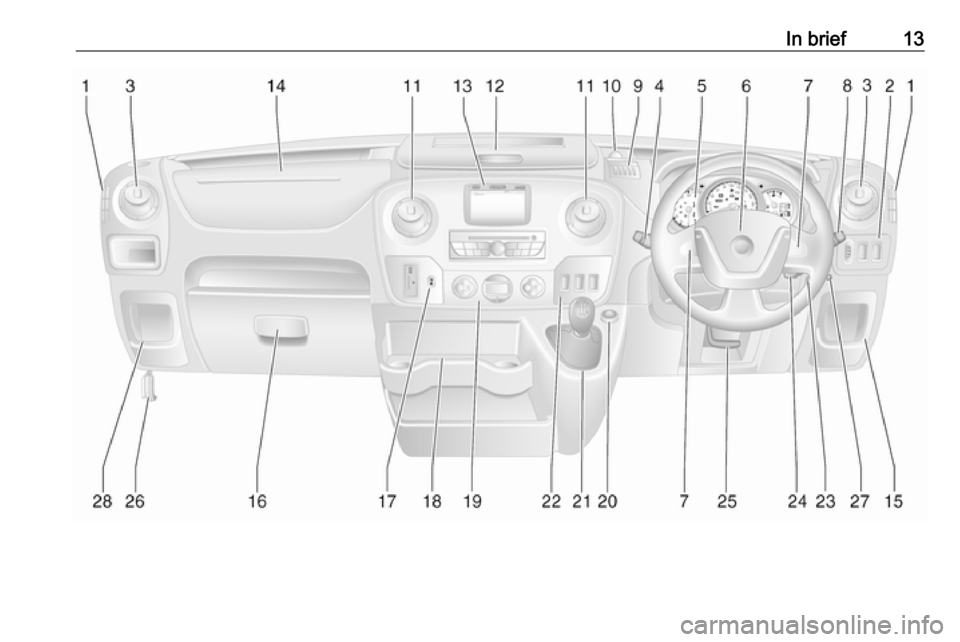

10In briefInstrument panel overview
Page 13 of 255

In brief111Fixed air vents .................... 126
2 Headlight range
adjustment ......................... 106
Ultrasonic parking assist .....158
Traction control system ......151
Electronic Stability
Program ............................. 152
3 Side air vents .....................125
4 Light switch ........................ 104
Turn and lane-change
signals ................................ 107
High beam and low beam,
headlight flash ....................105
Sidelights ............................ 104
Automatic light control .......104
Exit lighting ......................... 111
Front fog lights ...................108
Rear fog light ...................... 108
High beam assist ................105
5 Instruments .......................... 85
Transmission display ............88Driver Information Centre ...... 98
Trip computer ...................... 100
6 Horn ..................................... 80
Driver airbag ........................ 57
7 Remote control on
steering wheel .......................80
Cruise control .....................154
8 Windscreen wiper,
windscreen washer system ..81
Trip computer ...................... 100
9 Coin tray ............................... 70
10 Power outlet, USB slot ..........83
11 Centre air vents .................. 125
12 Storage compartment ...........70
13 Info-display ............................ 98
14 Front passenger airbag .........57
15 Storage compartment ..........70
16 Glovebox .............................. 71
17 Seat belt reminder ................. 92
Front passenger airbag
deactivation ........................... 58
18 Cupholders ........................... 7119Climate control system ....... 112
Electronic climate control
system ................................. 114
20 Cigarette lighter .................... 84
Power outlet ......................... 83
21 Gear lever, Manual
transmission ........................ 145
Manual transmission
automated ........................... 145
22 Cruise control and speed
limiter ................................. 154
Manual transmission
automated,
Winter and Laden modes ....147
Idle speed control ...............131
Stop-start system ................132
ECO mode .......................... 129
23 Ignition switch with
steering wheel lock ............130
24 Steering column controls .....80
25 Steering wheel adjustment ..80
26 Bonnet release lever ..........171
27 Auxiliary heater ...................119
Page 14 of 255
12In brief28Storage compartment ..........70
Fuse box ............................ 189
Page 15 of 255
Page 16 of 255

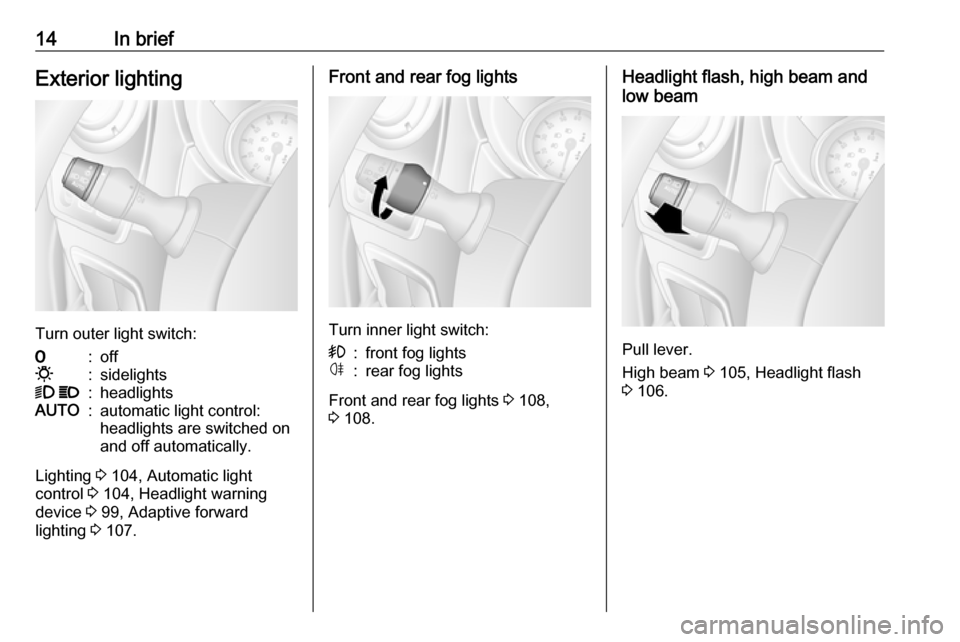

14In briefExterior lighting
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 104, Automatic light
control 3 104, Headlight warning
device 3 99, Adaptive forward
lighting 3 107.
Front and rear fog lights
Turn inner light switch:
>:front fog lightsø:rear fog lights
Front and rear fog lights 3 108,
3 108.
Headlight flash, high beam and
low beam
Pull lever.
High beam 3 105, Headlight flash
3 106.
Page 17 of 255

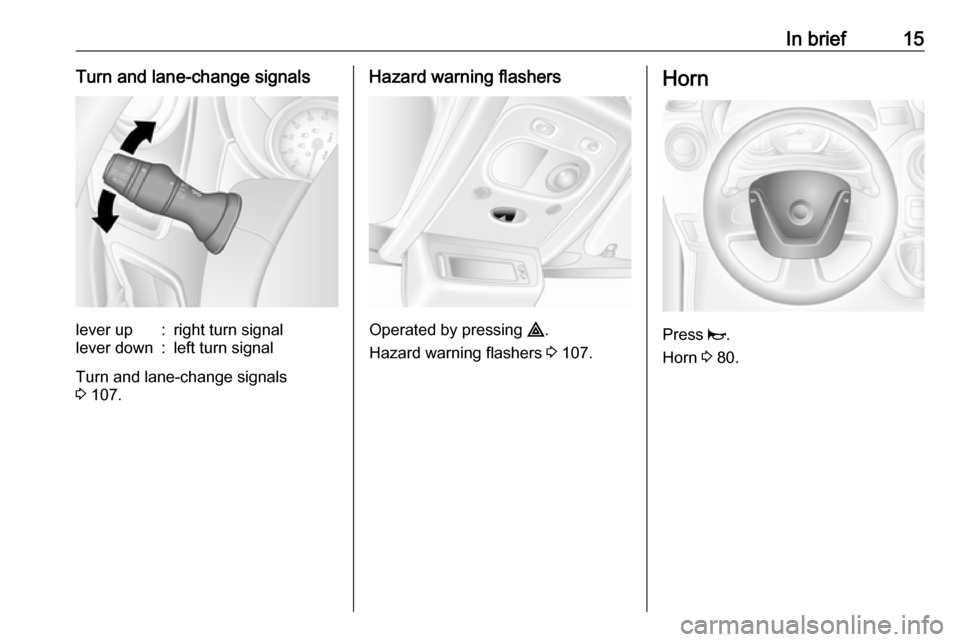

In brief15Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 107.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 107.
Horn
Press j.
Horn 3 80.
Page 18 of 255
16In briefWasher and wiper systems
Windscreen wiper0:offP /AUTO:timed interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 81, Wiper
blade replacement 3 179.
Windscreen washer
Pull lever.
short
pull:wiper swipes once and
washer fluid is sprayed onto
the windscreenlong
pull:wiper swipes for a few strokes and washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 81, Washer
fluid 3 175.
Climate control
Heated rear window
Heating is operated by pressing Ü.
Heated rear window 3 40.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 36.
Page 19 of 255

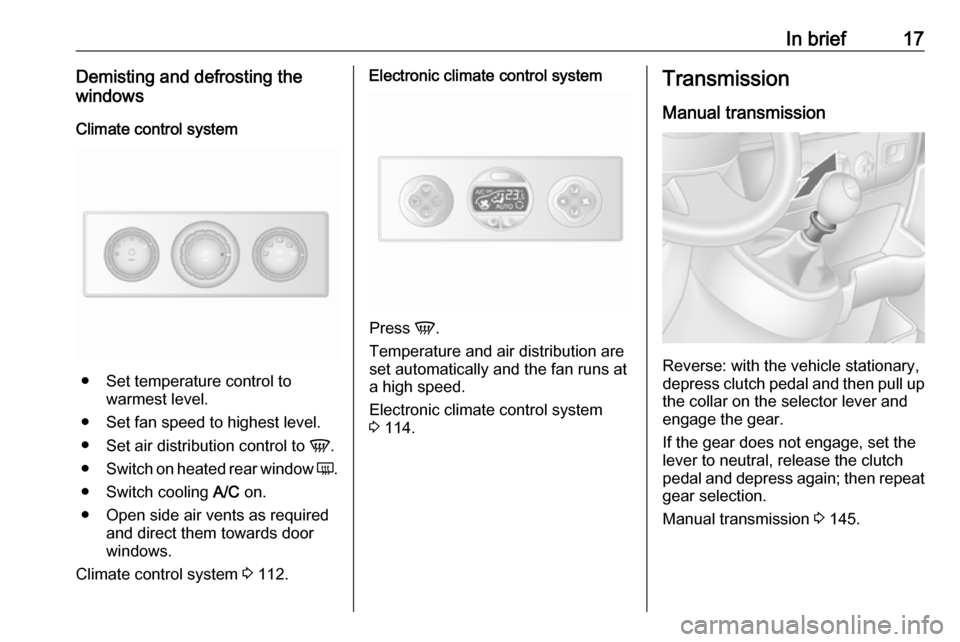

In brief17Demisting and defrosting the
windows
Climate control system
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Set air distribution control to V.
● Switch on heated rear window Ü.
● Switch cooling A/C on.
● Open side air vents as required and direct them towards door
windows.
Climate control system 3 112.
Electronic climate control system
Press V.
Temperature and air distribution are
set automatically and the fan runs at
a high speed.
Electronic climate control system 3 114.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and then pull up
the collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat gear selection.
Manual transmission 3 145.
Page 20 of 255
18In briefManual transmission automatedN:neutralo:drive position+:higher gear-:lower gearA/M:switch between automatic and
manual modeR:reverse gear. Engage only
when vehicle is stationary.
Manual transmission automated
3 145.
Starting off
Check before starting off ● Tyre pressure and condition 3 193, 3 239.
● Engine oil level and fluid levels 3 172.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats and seat belts 3 35, 3 43,
3 52.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Do not operate accelerator pedal.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre.
● Turn key to position 3 and
release.
Starting the engine 3 130.
