cruise control OPEL MOVANO_B 2017 Owner's Manual

In brief111Fixed air vents .................... 126
2 Headlight range
adjustment ......................... 106
Ultrasonic parking assist .....158
Traction control system ......151
Electronic Stability
Program ............................. 152
3 Side air vents .....................125
4 Light switch ........................ 104
Turn and lane-change
signals ................................ 107
High beam and low beam,
headlight flash ....................105
Sidelights ............................ 104
Automatic light control .......104
Exit lighting ......................... 111
Front fog lights ...................108
Rear fog light ...................... 108
High beam assist ................105
5 Instruments .......................... 85
Transmission display ............88Driver Information Centre ...... 98
Trip computer ...................... 100
6 Horn ..................................... 80
Driver airbag ........................ 57
7 Remote control on
steering wheel .......................80
Cruise control .....................154
8 Windscreen wiper,
windscreen washer system ..81
Trip computer ...................... 100
9 Coin tray ............................... 70
10 Power outlet, USB slot ..........83
11 Centre air vents .................. 125
12 Storage compartment ...........70
13 Info-display ............................ 98
14 Front passenger airbag .........57
15 Storage compartment ..........70
16 Glovebox .............................. 71
17 Seat belt reminder ................. 92
Front passenger airbag
deactivation ........................... 58
18 Cupholders ........................... 7119Climate control system ....... 112
Electronic climate control
system ................................. 114
20 Cigarette lighter .................... 84
Power outlet ......................... 83
21 Gear lever, Manual
transmission ........................ 145
Manual transmission
automated ........................... 145
22 Cruise control and speed
limiter ................................. 154
Manual transmission
automated,
Winter and Laden modes ....147
Idle speed control ...............131
Stop-start system ................132
ECO mode .......................... 129
23 Ignition switch with
steering wheel lock ............130
24 Steering column controls .....80
25 Steering wheel adjustment ..80
26 Bonnet release lever ..........171
27 Auxiliary heater ...................119

Instruments and controls79Instruments and
controlsControls ....................................... 80
Steering wheel adjustment ........80
Steering wheel controls .............80
Horn ........................................... 80
Steering column controls ...........80
Windscreen wiper/washer .........81
Outside temperature ..................82
Clock ......................................... 83
Power outlets ............................. 83
Cigarette lighter ......................... 84
Ashtrays .................................... 84
Warning lights, gauges and indi‐
cators ........................................... 85
Instrument cluster ......................85
Speedometer ............................. 85
Odometer .................................. 86
Trip odometer ............................ 86
Tachometer ............................... 86
Fuel gauge ................................ 86
AdBlue gauge ............................ 87
Engine coolant temperature gauge ....................................... 87
Engine oil level monitor .............87
Service display .......................... 88Transmission display .................88
Control indicators ......................89
Turn signal ................................. 92
Seat belt reminder .....................92
Airbag and belt tensioners .........92
Airbag deactivation ....................92
Charging system .......................93
Malfunction indicator light ..........93
Service vehicle soon .................93
Stop engine ............................... 94
Brake system ............................. 94
Antilock brake system (ABS) .....94
Upshift ....................................... 94
Lane departure warning ............94
Electronic Stability Program ......95
Electronic Stability Program off ............................................. 95
Engine coolant temperature ......95
Preheating ................................. 95
AdBlue ....................................... 95
Tyre pressure monitoring system ...................................... 95
Engine oil pressure ....................96
Low fuel ..................................... 96
Stop-start system ......................96
Exterior light .............................. 97
High beam ................................. 97
High beam assist .......................97
Fog light ..................................... 97
Rear fog light ............................. 97Cruise control............................ 97
Tachograph ............................... 97
Door open .................................. 97
Information displays .....................98
Driver Information Centre ..........98
Info display ................................ 98
Vehicle messages ........................99
Warning chimes .........................99
Trip computer ............................. 100
Tachograph ................................ 102

80Instruments and controlsControlsSteering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Steering wheel controls
The cruise control and speed limiter
can be operated via the controls on
the steering wheel.
Cruise control and speed limiter
3 154.
Horn
Press j.
The horn will sound regardless of
ignition switch position.
Steering column controls The Infotainment system can also be
operated via the controls on the
steering column.
Further information is available in the
Infotainment manual.

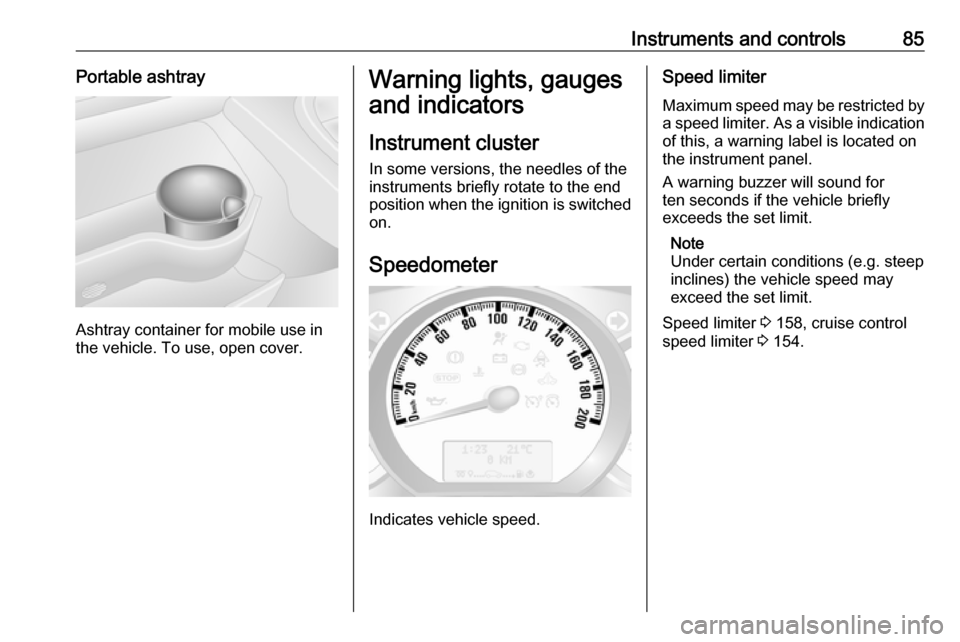

Instruments and controls85Portable ashtray
Ashtray container for mobile use in
the vehicle. To use, open cover.
Warning lights, gauges
and indicators
Instrument cluster
In some versions, the needles of the
instruments briefly rotate to the end
position when the ignition is switched
on.
Speedometer
Indicates vehicle speed.
Speed limiterMaximum speed may be restricted by
a speed limiter. As a visible indication
of this, a warning label is located on
the instrument panel.
A warning buzzer will sound for
ten seconds if the vehicle briefly
exceeds the set limit.
Note
Under certain conditions (e.g. steep
inclines) the vehicle speed may
exceed the set limit.
Speed limiter 3 158, cruise control
speed limiter 3 154.

Instruments and controls91Control indicators in the
instrument panel
Control indicators in the roof
console
OverviewOTurn signal 3 92XSeat belt reminder 3 92vAirbag and belt tensioners
3 92WAirbag deactivation 3 92pCharging system 3 93ZMalfunction indicator light
3 93AService vehicle soon 3 93oService display 3 93CStop engine 3 94RBrake system 3 94uAntilock brake system (ABS)
3 94kjUpshift, downshift 3 94ìLane departure warning 3 94RElectronic Stability Program
3 95ØElectronic Stability Program off
3 95WEngine coolant temperature
3 95!Preheating 3 95YAdBlue 3 95wTyre pressure monitoring
system 3 95IEngine oil pressure 3 96YLow fuel 3 96DAutostop (Stop-start system)
3 96\Autostop inhibited (Stop-start
system) 3 969Exterior light 3 97CHigh beam 3 97íHigh beam assist 3 97>Fog light 3 97øRear fog light 3 97mCruise control 3 97

92Instruments and controlsUCruise control speed limiter
3 97&Tachograph 3 97yDoor open 3 97
Turn signal
O flashes green.
Flashes if a turn signal or the hazard
warning flashers are activated.
Rapid flashing: failure of a turn signal
light or associated fuse.
An audible warning can be heard
when the turn signals are on. When
towing a trailer, the pitch of the
audible warning changes.
Bulb replacement 3 179.
Fuses 3 187.
Turn signals 3 107.
Seat belt reminder
X illuminates or flashes red.
If the seat belt is unfastened, control
indicator X will flash when vehicle
speed exceeds approx. 16 km/h. A warning chime also sounds for
approx. 90 seconds.
If the seat belt is fastened, the
indicator light extinguishes.9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger their fellow occupants and
themselves.
Three-point seat belts 3 52.
Airbag and belt tensioners
v illuminates yellow.
When the ignition is switched on, the control indicator illuminates briefly. If
it does not illuminate or illuminates
whilst driving, there is a fault in the
airbag system. Seek the assistance
of a workshop. The airbags and belt
pretensioners may fail to trigger in the event of an accident.
Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Belt pretensioners, airbag system
3 51, 3 54.
Airbag deactivation
W illuminates yellow when the
ignition is switched on and remains
illuminated when the front passenger
airbag has been deactivated 3 58.

Instruments and controls97Illuminates when an Autostop is
inhibited when certain conditions are
not fulfilled.
Ï illuminates or flashes yellow /
green.
Illuminates
Illuminates green during an Autostop.
If Ï illuminates yellow there is a fault
in the stop-start system. Seek the
assistance of a workshop.
Flashes
Flashes green during an automatic
restart.
Stop-start system 3 132.
Exterior light 9 illuminates green.
Illuminated when the exterior lights
are on 3 104.
High beam P illuminates blue.
Illuminated when high beam is on and
during headlight flash 3 105.High beam assist
í illuminates when the high beam
assist is activated 3 105.
Fog light > illuminates green.
Illuminated when the front fog lights
are on 3 108.
Rear fog light ø illuminates yellow.
Illuminated when the rear fog light is
on 3 108.
Cruise control
m , U illuminates green or yellow.
m illuminates green when a certain
speed is stored.
U illuminates green when the system
is on.
Speed limiter U illuminates yellow.
U illuminates yellow when the
system is on.Cruise control, Speed limiter 3 154.
Tachograph & illuminates when there is a fault
3 102.
Door open y illuminates yellow.
Illuminates with the ignition switched
on when a door or the load
compartment is open.
Depending on version, control
indicator also illuminates in
transmission display, indicating
relevant open door.

Instruments and controls101● average speed
● distance before service 3 88
● clock 3 83
● odometer 3 86, trip odometer
3 86
● cruise control and speed limiter stored speed 3 154
● fault and information messages
Fuel used
Displays the amount of fuel
consumed since the last reset.
The measurement can be restarted at
any time by pressing and holding the
button on the end of the wiper lever.
Average consumption
The value is displayed after driving a
distance of 400 metres.
Average consumption is displayed, taking into consideration the distance
travelled and the fuel used since the
last reset.
The measurement can be restarted at
any time.Instantaneous consumption
The value is displayed after reaching a speed of 30 km/h.
Range The value is displayed after driving adistance of 400 metres.
The range is calculated from the
current contents of the fuel tank and
the average consumption since the
last reset.
The range will not display if control
indicator Y is illuminated in the
instrument cluster 3 96.
The measurement can be restarted at
any time.
Distance travelled
Displays the distance driven since the
last reset.
The measurement can be restarted at
any time.
Average speed
The value is displayed after driving a
distance of 400 metres.The average speed since the last reset is displayed.
The measurement can be restarted at
any time.
Interruptions in the journey with the
ignition off are not included in the
calculations.
Reset trip computer information
To reset the trip computer, select one of its functions then press and hold
button on end of wiper lever.
The following trip computer
information will be reset:
● fuel used
● average consumption
● range
● distance travelled
● average speed
The trip computer will reset
automatically when the maximum
value of any of the parameters is
exceeded.

128Driving and operatingDriving and
operatingDriving hints ............................... 129
Driving economically ...............129
Control of the vehicle ...............129
Steering ................................... 129
Starting and operating ...............130
New vehicle running-in ............130
Ignition switch positions ...........130
Starting the engine ..................130
Idle speed control ....................131
Overrun cut-off ........................ 131
Stop-start system ....................132
Parking .................................... 134
Air suspension ......................... 135
Engine exhaust .......................... 137
Diesel particle filter ..................137
Catalytic converter ...................137
AdBlue ..................................... 138
Manual transmission ..................145
Manual transmission automa‐ ted .............................................. 145
Transmission display ...............145
Starting the engine ..................146
Selector lever .......................... 146Manual mode........................... 147
Electronic driving programmes 147
Fault ........................................ 148
Interruption of power supply ....149
Brakes ........................................ 149
Antilock brake system .............149
Parking brake .......................... 150
Brake assist ............................. 151
Hill start assist ......................... 151
Ride control systems .................151
Traction Control system ..........151
Electronic stability program .....152
Limited-slip rear axle ...............154
Driver assistance systems .........154
Cruise control .......................... 154
Speed limiter ........................... 158
Parking assist .......................... 158
Rear view camera ...................160
Lane departure warning ..........162
Fuel ............................................ 163
Fuel for diesel engines ............163
Refuelling ................................ 164
Fuel consumption - CO 2-
Emissions ............................... 165
Trailer hitch ................................ 166
General information .................166
Driving characteristics and towing tips .............................. 166
Trailer towing ........................... 166Towing equipment ...................167
Trailer stability assist ...............167
Auxiliary features .......................167
Power take-off ......................... 167

154Driving and operatingFault
If the system detects a fault, control indicator b 3 95 illuminates together
with A 3 93 in the instrument cluster
and a corresponding message
appears in the Driver Information
Centre 3 98.
The Electronic Stability Program
(ESP® Plus
) is not operational. Have
the cause of the fault remedied by a
workshop.
Vehicle messages 3 99.
Limited-slip rear axle
Rear-wheel drive vehicles may be
equipped with an automatic locking
rear differential which automatically
controls the torque transmitted to
each rear wheel, enhancing traction
in the event of soft ground, mud or
snow-covered road surfaces.9 Warning
Do not let this special safety
feature tempt you into taking risks
when driving.
Adapt speed to the road
conditions.
When vehicle speed reaches
30 km/h, or once the rear wheels
return to surfaces with normal grip,
e.g. paved roads, the system
automatically deactivates,
sometimes accompanied by a noise
(with no consequence to vehicle
behaviour).
The system can also be deactivated
manually once normal grip conditions have resumed by briefly releasing the
accelerator.
Driver assistance
systems9 Warning
Driver assistance systems are
developed to support the driver
and not to replace the driver's
attention.
The driver accepts full
responsibility when driving the
vehicle.
When using driver assistance
systems, always take care
regarding the current traffic
situation.
Cruise control
The cruise control can store and
maintain speeds of 30 km/h and
above. Deviations from the stored
speeds may occur when driving uphill or downhill. The stored speed will
flash in the Driver Information Centre
3 98.
