Instruments and controls87Instruments and
controlsControls ....................................... 88
Steering wheel adjustment ........88
Steering wheel controls .............88
Horn ........................................... 88
Steering column controls ...........88
Windscreen wiper and washer ..89
Outside temperature ..................90
Clock ......................................... 91
Power outlets ............................. 91
Cigarette lighter ......................... 93
Ashtrays .................................... 93
Warning lights, gauges and indi‐ cators ........................................... 93
Instrument cluster ......................93
Speedometer ............................. 93
Odometer .................................. 94
Trip odometer ............................ 94
Tachometer ............................... 94
Fuel gauge ................................ 95
AdBlue gauge ............................ 95
Engine coolant temperature gauge ....................................... 95
Engine oil level monitor .............96
Service display .......................... 96Transmission display .................97
Control indicators ......................97
Turn lights ................................ 100
Seat belt reminder ...................100
Airbag and belt tensioners .......100
Airbag deactivation ..................100
Charging system .....................101
Malfunction indicator light ........101
Service vehicle soon ...............101
Stop engine ............................. 102
Brake system ........................... 102
Antilock brake system (ABS) ...102
Gear shifting ............................ 102
Lane departure warning ..........103
Electronic Stability Control ......103
Electronic Stability Control off . 103
Engine coolant temperature ....103
Preheating ............................... 103
AdBlue ..................................... 103
Tyre pressure monitoring system .................................... 104
Engine oil pressure ..................104
Low fuel ................................... 104
Drain fuel filter ......................... 105
Stop-start system ....................105
Exterior light ............................ 105
Low beam ................................ 105
High beam ............................... 105
High beam assist .....................105
Front fog lights ......................... 105Rear fog light........................... 105
Cruise control .......................... 105
Active emergency braking .......105
Speed limiter ........................... 106
Tachograph ............................. 106
Door open ................................ 106
Displays ..................................... 106
Driver Information Centre ........106
Info Display .............................. 107
Vehicle messages ......................107
Warning chimes .......................108
Trip computer ............................. 109
Tachograph ................................ 111

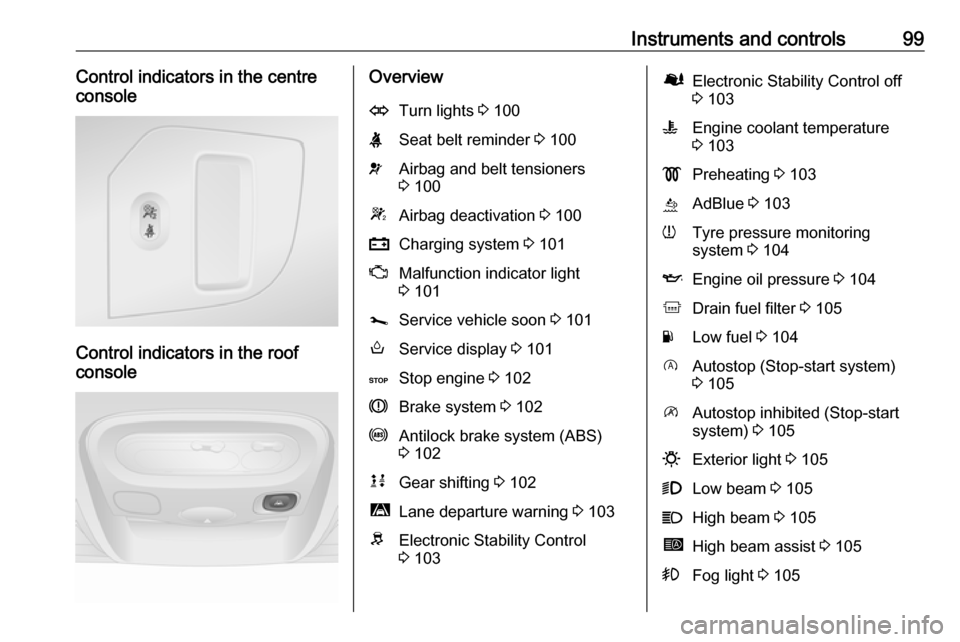

Instruments and controls99Control indicators in the centre
console
Control indicators in the roof
console
OverviewOTurn lights 3 100XSeat belt reminder 3 100vAirbag and belt tensioners
3 100WAirbag deactivation 3 100pCharging system 3 101ZMalfunction indicator light
3 101jService vehicle soon 3 101oService display 3 101CStop engine 3 102RBrake system 3 102uAntilock brake system (ABS)
3 102kjGear shifting 3 102ìLane departure warning 3 103RElectronic Stability Control
3 103ØElectronic Stability Control off
3 103WEngine coolant temperature
3 103!Preheating 3 103úAdBlue 3 103wTyre pressure monitoring
system 3 104IEngine oil pressure 3 104kDrain fuel filter 3 105YLow fuel 3 104DAutostop (Stop-start system)
3 105\Autostop inhibited (Stop-start
system) 3 1050Exterior light 3 1059Low beam 3 105CHigh beam 3 105íHigh beam assist 3 105>Fog light 3 105

Instruments and controls1019Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Airbag system 3 61.
Belt tensioners 3 57.
Airbag deactivation 3 65.
Charging system p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.
Malfunction indicator light
Z illuminates or flashes yellow.
Illuminates briefly when the ignition is
switched on.
Illuminates when the engine is
running
Fault in the emission control system. The permitted emission limits may be exceeded. Seek the assistance of a
workshop immediately.
If Z illuminates in combination with
A , stop vehicle and switch off engine
as soon as possible.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the immediate assistance of a
workshop.
Service vehicle soon
j illuminates yellow.
Illuminates briefly when the ignition is
switched on.
The vehicle needs a service.
May illuminate in combination with
another control indicator or a
message in the Driver Information
Centre 3 106.
Illuminates if cleaning of the diesel particle filter is required and
automatic cleaning does not occur
3 146.

136Driving and operatingDriving and
operatingDriving hints ............................... 137
Driving economically ...............137
Control of the vehicle ...............137
Steering ................................... 137
Starting and operating ...............138
New vehicle running-in ............138
Ignition switch positions ...........138
Starting the engine ..................139
Idle speed control ....................140
Overrun cut-off ........................ 140
Stop-start system ....................140
Parking .................................... 143
Air suspension ......................... 144
Engine exhaust .......................... 146
Diesel particle filter ..................146
Catalytic converter ...................146
AdBlue ..................................... 147
Manual transmission ..................154
Manual transmission automa‐ ted .............................................. 154
Transmission display ...............154
Starting the engine ..................155
Selector lever .......................... 155Manual mode........................... 156
Electronic driving programmes 156
Fault ........................................ 157
Interruption of power supply ....158
Brakes ........................................ 158
Antilock brake system .............158
Parking brake .......................... 159
Brake assist ............................. 160
Hill start assist ......................... 160
Ride control systems .................160
Traction Control system ..........160
Electronic Stability Control ......161
Limited-slip rear axle ...............163
Driver assistance systems .........163
Cruise control .......................... 163
Speed limiter ........................... 165
Active emergency braking .......167
Parking assist .......................... 169
Rear view camera ...................171
Lane departure warning ..........173
Fuel ............................................ 174
Fuel for diesel engines ............174
Refuelling ................................ 175
Trailer hitch ................................ 177
General information .................177
Driving characteristics and towing tips .............................. 177
Trailer towing ........................... 177Towing equipment ...................178
Trailer stability assist ...............178
Auxiliary features .......................178
Power take-off ......................... 178

142Driving and operating9Warning
Switch off engine and ignition
before exiting the vehicle.
Conditions for an Autostop
The stop-start system checks if each
of the following conditions is fulfilled,
otherwise an Autostop will be
inhibited and control indicator \ will
illuminate in the instrument cluster.
● the stop-start system is not manually deactivated
● the bonnet is fully closed
● the vehicle battery is sufficiently charged and in good condition
● the engine is warmed up
● the engine coolant temperature is
not too high
● the ambient temperature is not too low
● the defrosting function is not activated
● the climate control system does not inhibit an Autostop
● the rear air conditioning system is
not activated
● the brake vacuum is sufficient
● the self-cleaning function of the diesel particle filter is not active
3 146
● the vehicle has moved since the last Autostop
Otherwise an Autostop will be
inhibited.
An Autostop may become
unavailable as the ambient
temperature approaches freezing
point.
Certain settings of the climate control
system may also inhibit an Autostop.
See "Climate control" chapter for
further information 3 120.
Immediately after motorway driving
an Autostop may be inhibited.
New vehicle running-in 3 138.
Vehicle battery discharge protection
To ensure reliable engine restarts, several vehicle battery discharge
protection features are implemented
as part of the stop-start system.Restart of the engine by the driverManual transmission
With the selector lever in neutral,
depress the clutch pedal to restart the
engine.
Note
If any gear is selected, the clutch
pedal must be fully depressed to
restart the engine.
If the engine does not restart first
time, depress clutch pedal fully again.Manual transmission automated
With the selector lever in position N
(or A/M ) and the parking brake
released, release the brake pedal to
restart the engine.
Engaging reverse gear or depressing
the accelerator pedal may also restart the engine.
The green control indicator Ï will
extinguish in the instrument cluster
when the engine is restarted. If
certain conditions are not fulfilled, a
restart will not take place. Start using
the ignition key.
Starting the engine 3 139.

180Vehicle careVehicle careGeneral Information...................181
Accessories and vehicle modifications .......................... 181
Vehicle storage ........................181
End-of-life vehicle recovery .....182
Vehicle checks ........................... 182
Performing work ......................182
Bonnet ..................................... 182
Engine oil ................................. 183
Engine coolant ......................... 185
Power steering fluid .................185
Washer fluid ............................ 186
Brakes ..................................... 187
Brake fluid ............................... 187
Vehicle battery ......................... 187
Diesel fuel filter ........................189
Diesel fuel system bleeding .....189
Wiper blade replacement ........190
Bulb replacement .......................191
Headlights ............................... 191
Front fog lights ......................... 194
Front turn lights .......................194
Tail lights ................................. 195
Side turn lights ......................... 196Centre high-mounted brake
light ......................................... 197
Number plate light ...................198
Interior lights ............................ 198
Instrument panel illumination ...199
Electrical system ........................200
Fuses ....................................... 200
Engine compartment fuse box . 201
Instrument panel fuse box .......201
Load compartment fuse box ....202
Vehicle tools .............................. 204
Tools ........................................ 204
Wheels and tyres .......................205
Tyres ....................................... 205
Winter tyres ............................. 206
Tyre designations ....................206
Tyre pressure .......................... 206
Tyre pressure monitoring system .................................... 207
Tread depth ............................. 209
Changing tyre and wheel size . 210 Wheel covers ........................... 210
Tyre chains .............................. 210
Tyre repair kit .......................... 211
Wheel changing .......................214
Spare wheel ............................ 216
Jump starting ............................. 218Towing....................................... 221
Towing the vehicle ...................221
Towing another vehicle ...........222
Appearance care .......................222
Exterior care ............................ 222
Interior care ............................. 224

Vehicle care189● See the Owner's Manual forfurther information.
● Explosive gas may be present in the vicinity of the battery.
Additional battery
Depending on the vehicle's auxiliary
equipment, certain models may have
an additional battery mounted under
the right-hand front seat.
Note
The additional battery is
automatically connected to the main vehicle battery only when the engine
is running. It does not need to be
manually disconnected before
disconnecting the main vehicle
battery or before jump starting the vehicle.
The terminals are designed for
additional electrical consumers up to
a maximum of 50 A.
Jump starting 3 218.
Diesel fuel filter
Drain diesel fuel filter of residual
water at every engine oil change.
Place a container underneath the
filter housing. Loosen the knurled
screws on the filter cover and on the
lower part of the filter by approx. one
turn, to drain off the water.
The filter is drained as soon as diesel fuel emerges from the knurled screw
at the bottom. Retighten the two
screws.
Check diesel fuel filter at shorter
intervals if the vehicle is subjected to
extreme operating conditions.
Diesel fuel system bleeding
If the fuel tank has been run dry, it will be necessary to air vent or bleed the
diesel fuel system.

190Vehicle careFill the tank with fuel and proceed asfollows:

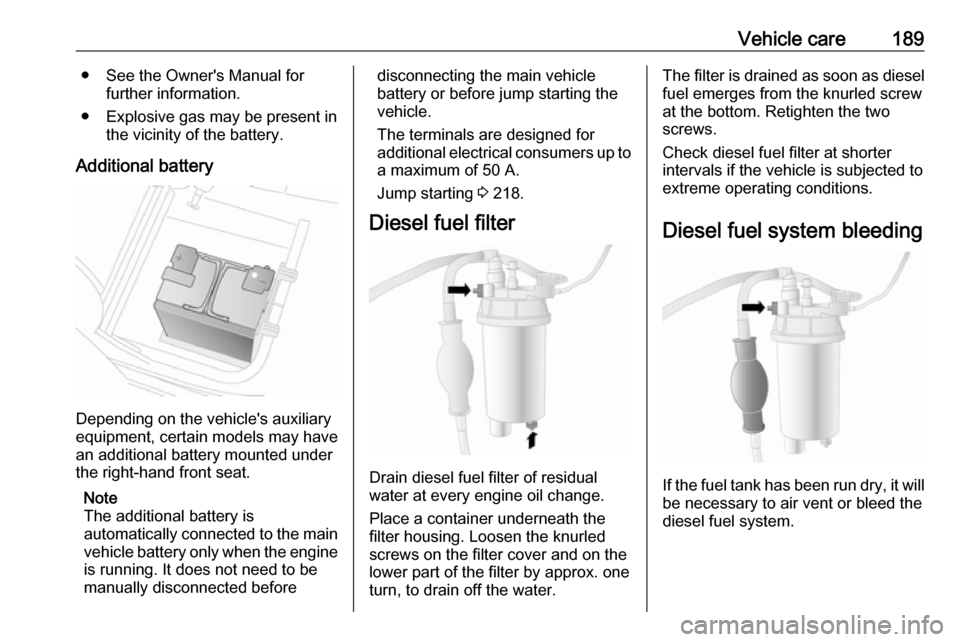

1. Place a suitable container underneath the fuel filter vent
screw to collect fuel.
2. Loosen the vent screw (arrowed) by one turn.
3. Manually operate the in-line supply pump slowly and steadily
until fuel discharging from the
loosened vent screw is free of air
bubbles.
4. Retighten the vent screw.
In vehicles without an in-line supply
pump, fill the tank with fuel and
proceed as follows:Caution
Do not turn ignition key to position 3 before beginning the bleeding
procedure.
Ignition switch positions 3 138.
1. Turn ignition key to position 2 and
hold for 5 seconds.
2. Turn key back to position 1 and
wait for 3 seconds.
3. Repeat Step 1 and 2 multiple times.
4. Turn key to position 3, then return
to 0.
If the engine cannot be started after
several attempts to bleed the diesel
fuel system, seek the assistance of a
workshop.
Wiper blade replacement

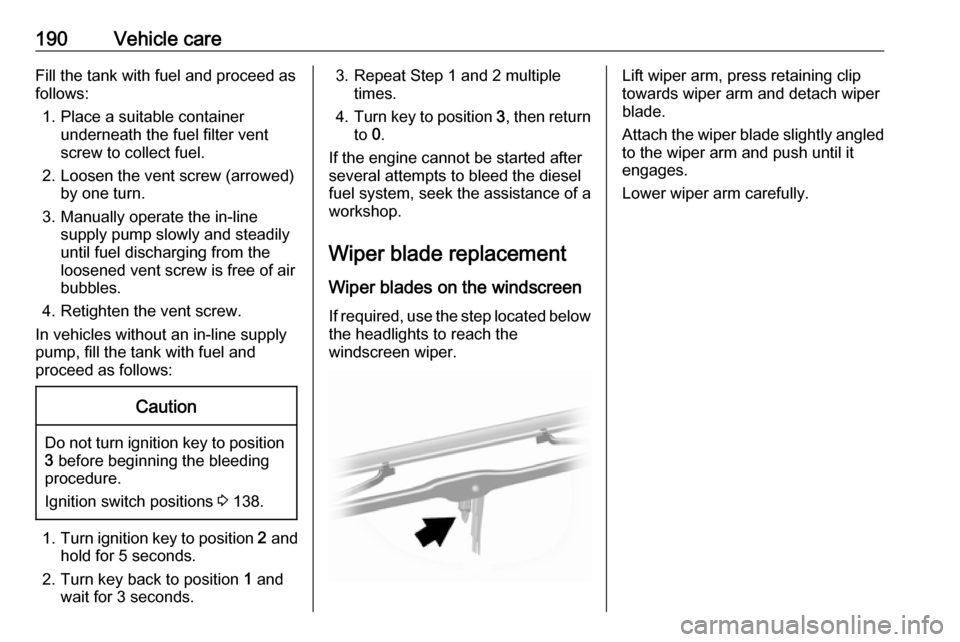

Wiper blades on the windscreen If required, use the step located below
the headlights to reach the
windscreen wiper.Lift wiper arm, press retaining clip
towards wiper arm and detach wiper
blade.
Attach the wiper blade slightly angled
to the wiper arm and push until it
engages.
Lower wiper arm carefully.

202Vehicle careSome circuits may be protected by
several fuses.SymbolCircuitZInfotainment system / Seat
heating / Driver Information
Centre / Audio connec‐
tions / Alarm?Power outletÌCigarette lightereInstrument panelUCentral locking0Interior lightsOTurn lights / Rear fog lights / Body control moduleDIAGDiagnostic connectoruABS / Electronic Stability
ControldInterior lights / Brake lightsZBody control moduleSTOPBrake lightSymbolCircuitIBody control module /
Power windows / Heating
and ventilation system / Air
conditioningmLeft heated rear windownRight heated rear windowRWindscreen washerMElectronic immobiliserUHeated seatsFBLCornering lightlHands-free connection&TachographPTOPower take-offjHornÍPreheating / Diesel fuel filterxClimate control fandHeated exterior mirrorsTLeft-hand side lightSRight-hand side lightSymbolCircuitONavigation systemADPAdditional adaptations,Power windows / Body
control module
Load compartment fuse box
Combi
Located behind the trim panel on the
right-hand side of the load
compartment, beside the rear door.

245Limited-slip rear axle..................163
Load compartment .................26, 79
Load compartment fuse box ......202
Load compartment grille ...............83
Load compartment lighting .........117
Loading information .....................85
Low beam ................................... 105
Low fuel ..................................... 104
Luggage floor net .........................79
M
Malfunction indicator light ..........101
Manual adjustment ......................40
Manual anti-dazzle ......................42
Manual door locks ........................25
Manual mode ............................. 156
Manual transmission............. 18, 154
Manual transmission automated ......................... 18, 154
Manual windows ..........................43
Messages ................................... 107
Mirror adjustment ........................... 9
Mirrors .................................... 40, 42
Misted light covers .....................116
N New vehicle running-in ..............138
Number plate light .....................198O
Object detection systems ...........169
Odometer ..................................... 94
Oil ............................................... 183
Oil, engine .......................... 228, 232
Oil level ......................................... 96
Oil pressure ................................ 104
Outside temperature ....................90
Overcab storage ..........................79
Overhead console .......................78
Overrun cut-off ........................... 140
P Parking ................................ 20, 143
Parking assist ............................ 169
Parking brake ............................ 159
Parking distance control .............169
Parking ticket holder .....................45
Particulate filter ........................... 146
Pedals......................................... 137
Performing work ........................182
Power door locks ..........................30
Power outlets ............................... 91
Power side step ............................ 32
Power sliding door ........................32
Power steering fluid ....................185
Power take-off ............................ 178
Power windows ............................ 43
Preheating ......................... 103, 139
Puncture ............................. 211, 214R
Radio Frequency Identification (RFID) ..................................... 241
Radio remote control ...................23
Rain sensor .................................. 89
REACH ....................................... 238
Reading lights ............................ 118
Rear air conditioning system .....126
Rear bench seat storage ..............78
Rear courtesy light...................... 117
Rear doors ................................... 35
Rear fog light .....................105, 195
Rear fog lights ....................112, 116
Rear heating system .................. 124
Rear reading light .......................118
Rear reversing lens ......................44
Rear seats ................................... 54
Bus ............................................ 54
Installing .................................... 54
Rear seat access ......................54
Removing .................................. 54
Rear storage ................................. 79
Rear view camera ...................... 171
Rear windows .............................. 44
Recommended fluids and lubricants ........................ 228, 232
Refuelling ................................... 175 Registered trademarks ...............238
Remote control ............................. 23
Retractable parking brake ..........159
