fog light OPEL MOVANO_B 2020 Owner's Manual

12In brief1Side air vents ...................... 221
2 Light switch ........................ 110
Turn lights ........................... 113
Front / rear fog lights ..........113
Headlight flash ....................112
High beam ........................... 111
High beam assist ...............111
Exit lighting ......................... 116
3 Horn ..................................... 85
Driver airbag ......................... 62
4 Instruments .......................... 91
Driver Information Centre .... 105
5 Windscreen wiper and
washer, rear wiper and
washer ................................. 86
Buttons for Driver
Information Centre ..............105
6 Air vents ............................. 221
7 Info Display ........................ 105
8 USB socket, AUX socket,
SD card slot .......................... 88
9 Storage ................................. 7310Cupholder ............................. 74
11 Tray ....................................... 73
12 Glovebox .............................. 74
13 Parking assist ...................... 255
Lane departure warning ......261
Electronic Stability Control
and Traction Control ...........247
Hazard warning flashers ....113
Central locking system ..........24
Stop-start system ................228
Side blind spot alert ............257
ECO mode .......................... 225
14 Inductive charging .................90
15 Climate control system ........ 208
16 Power outlet .......................... 88
17 Cruise control .....................249
Speed limiter ....................... 251
18 Manual transmission ..........241
Manual transmission
automated .......................... 241
19 Ignition switch .....................22620Infotainment controls
21 Steering wheel adjustment ..85
22 Bonnet release lever ..........270
23 Fuse box ............................ 287
24 Headlight range
adjustment ......................... 112
25 Power take-off .....................266
Idle speed control ...............228
Laden mode kg ...................243

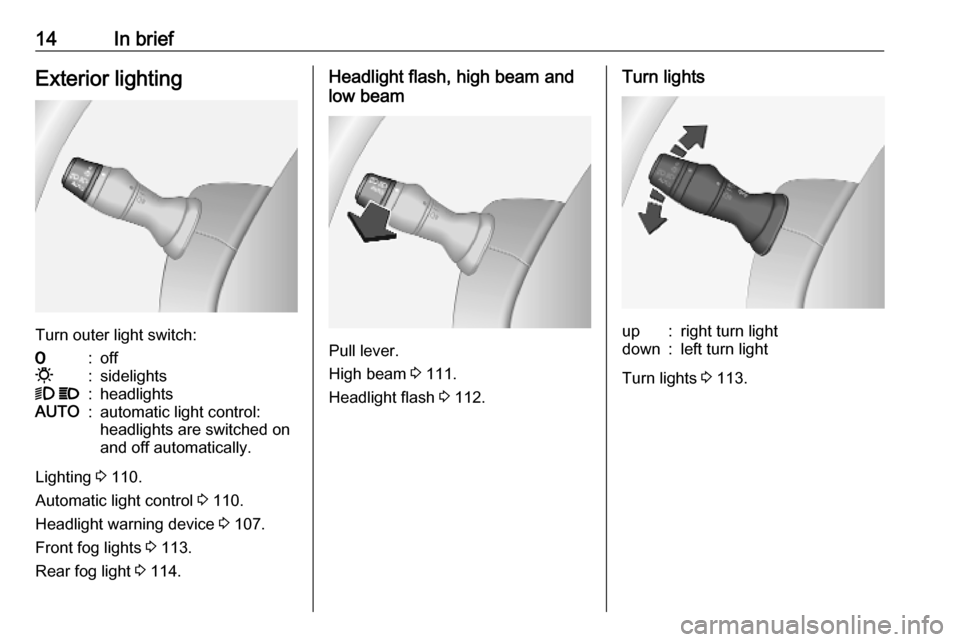

14In briefExterior lighting
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 110.
Automatic light control 3 110.
Headlight warning device 3 107.
Front fog lights 3 113.
Rear fog light 3 114.
Headlight flash, high beam and
low beam
Pull lever.
High beam 3 111.
Headlight flash 3 112.
Turn lightsup:right turn lightdown:left turn light
Turn lights 3 113.

84Instruments and controlsInstruments and
controlsControls ....................................... 85
Steering wheel adjustment ........85
Steering wheel controls .............85
Horn ........................................... 85
Steering column controls ...........85
Windscreen wiper and washer ..86
Outside temperature ..................87
Clock ......................................... 88
Power outlets ............................. 88
Inductive charging .....................90
Cigarette lighter ......................... 91
Ashtrays .................................... 91
Warning lights, gauges and indi‐ cators ........................................... 91
Instrument cluster ......................91
Speedometer ............................. 91
Odometer .................................. 92
Trip odometer ............................ 92
Tachometer ............................... 92
Fuel gauge ................................ 93
AdBlue gauge ............................ 93
Engine coolant temperature gauge ....................................... 93
Service display .......................... 94Transmission display .................94
Control indicators ......................95
Turn lights .................................. 98
Seat belt reminder .....................98
Airbag and belt tensioners .........98
Airbag deactivation ....................98
Charging system .......................99
Malfunction indicator light ..........99
Service vehicle soon .................99
Stop engine ............................. 100
Brake system ........................... 100
Parking brake .......................... 100
Antilock brake system (ABS) ...100
Gear shifting ............................ 100
Variable effort steering ............100
Lane departure warning ..........101
Electronic Stability Control ......101
Engine coolant temperature ....101
Preheating ............................... 101
AdBlue ..................................... 101
Tyre pressure monitoring system .................................... 102
Engine oil pressure ..................102
Low fuel ................................... 103
Stop-start system ....................103
Exterior light ............................ 103
Low beam ................................ 103
High beam ............................... 103
High beam assist .....................103
Front fog lights ......................... 103Rear fog light........................... 103
Cruise control .......................... 103
Active emergency braking .......104
Speed warning ........................ 104
Speed limiter ........................... 104
Tachograph ............................. 104
Door open ................................ 104
Displays ..................................... 105
Driver Information Centre ........105
Info Display .............................. 105
Vehicle messages ......................106
Warning chimes .......................107
Trip computer ............................. 108
Tachograph ................................ 109

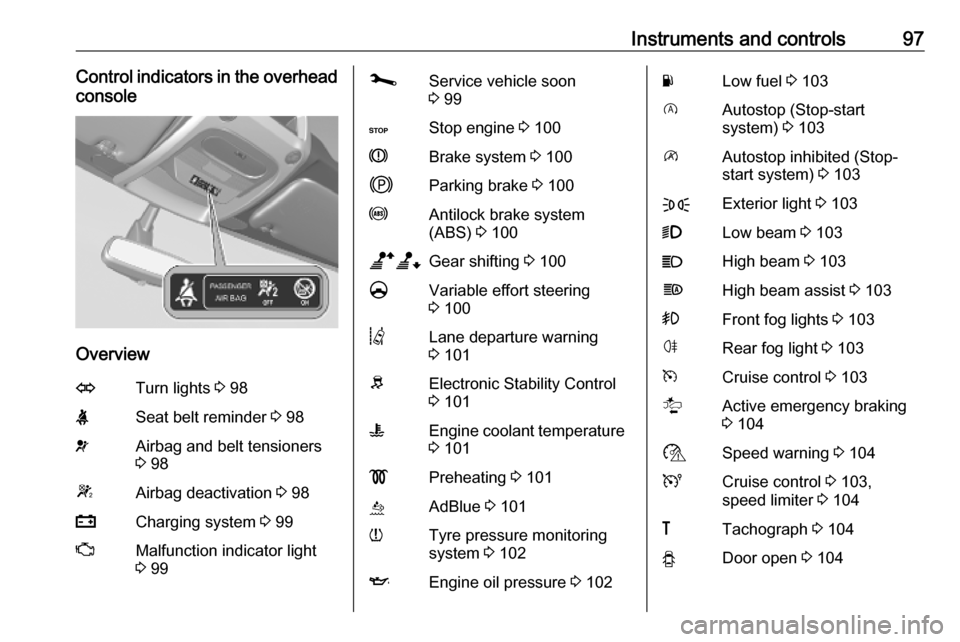

Instruments and controls97Control indicators in the overheadconsole
Overview
OTurn lights 3 98XSeat belt reminder 3 98vAirbag and belt tensioners
3 98WAirbag deactivation 3 98pCharging system 3 99ZMalfunction indicator light
3 99jService vehicle soon
3 99CStop engine 3 100RBrake system 3 100jParking brake 3 100uAntilock brake system
(ABS) 3 100baGear shifting 3 100§Variable effort steering
3 100QLane departure warning
3 101RElectronic Stability Control
3 101WEngine coolant temperature
3 101!Preheating 3 101úAdBlue 3 101wTyre pressure monitoring
system 3 102IEngine oil pressure 3 102YLow fuel 3 103DAutostop (Stop-start
system) 3 103\Autostop inhibited (Stop-
start system) 3 103FExterior light 3 1039Low beam 3 103CHigh beam 3 103fHigh beam assist 3 103>Front fog lights 3 103øRear fog light 3 103mCruise control 3 103lActive emergency braking
3 104$Speed warning 3 104UCruise control 3 103,
speed limiter 3 104&Tachograph 3 104yDoor open 3 104

Instruments and controls1039Warning
When the engine is off,
considerably more force is needed
to brake and steer. During an
Autostop the brake servo unit will still be operational.
Do not remove key until vehicle is stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Check engine oil level 3 271.
Keep engine turned off and let the
vehicle be towed to a workshop.
Low fuel Y illuminates yellow.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Fuel level in the tank is too low. Refuel
immediately.
Never run the tank dry.
Refuelling 3 263.
Catalytic converter 3 234.
Bleeding the diesel fuel system
3 276.
Stop-start system \ illuminates when an Autostop is
inhibited when certain conditions are
not fulfilled.
Ï illuminates during an Autostop.
Ï flashes if the clutch is not released
sufficiently.
Stop-start system 3 228.
Exterior light
F illuminates green.
Illuminated when the side lights are
on 3 110.
Low beam
9 illuminates or flashes green.
Illuminates
Illuminated when the headlights are on 3 110.Flashes
Fault in the lighting.
High beam P illuminates blue.
Illuminated when high beam is on and during headlight flash 3 111.
High beam assist f illuminates when the high beam
assist is activated 3 111.
Front fog lights
> illuminates green.
Illuminated when the front fog lights
are on 3 113.
Rear fog light ø illuminates yellow.
Illuminated when the rear fog light is on 3 114.
Cruise control
U , m illuminate green.

110LightingLightingExterior lighting.......................... 110
Light switch .............................. 110
Automatic light control .............110
High beam ............................... 111
High beam assist .....................111
Headlight flash ......................... 112
Headlight range adjustment ....112
Headlights when driving abroad .................................... 112
Daytime running lights .............113

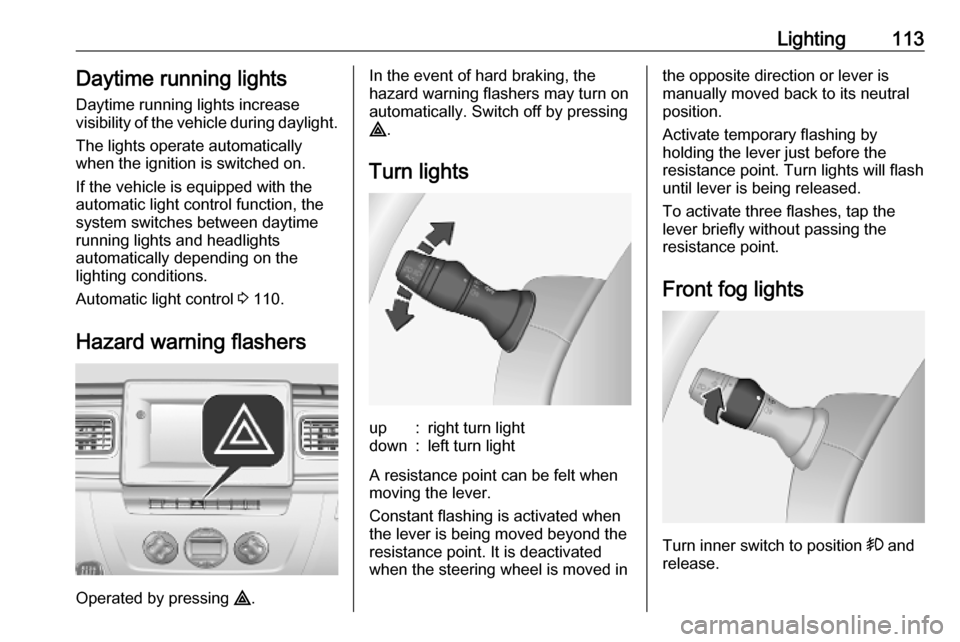

Hazard warning flashers ..........113
Turn lights ................................ 113
Front fog lights ......................... 113
Rear fog light ........................... 114
Reversing lights .......................114
Misted light covers ...................114
Interior lighting ........................... 114
Interior lights ............................ 114
Load compartment lighting ......115
Reading lights .......................... 116
Lighting features ........................116
Exit lighting .............................. 116
Battery discharge protection ....117Exterior lighting

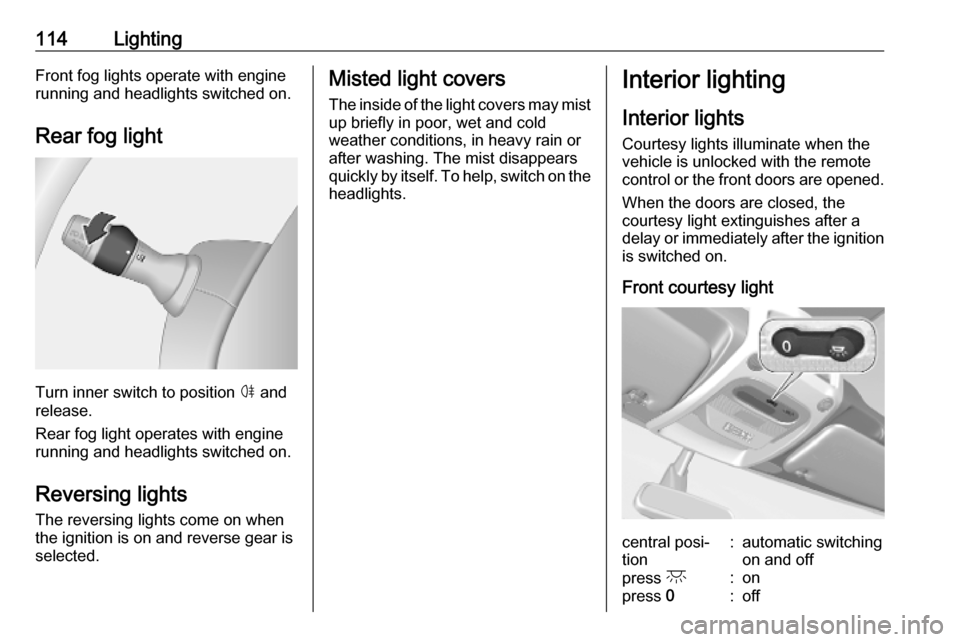

Light switch
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Sidelights control indicator F
3 103.
Low beam control indicator 9 3 103.
High beam control indicator P
3 103.
Side position lights
Side position lights are illuminated
together with sidelights.
Automatic light control
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
lights (where fitted) and headlights,
depending on the lighting conditions.
For reasons of safety, the light switch
should always remain in the AUTO
position.
Daytime running lights 3 113.

Lighting111Automatic headlight activation
During poor lighting conditions the
headlights are switched on.
Additionally, headlights are switched
on if the windscreen wiper has been
activated for several wipes.

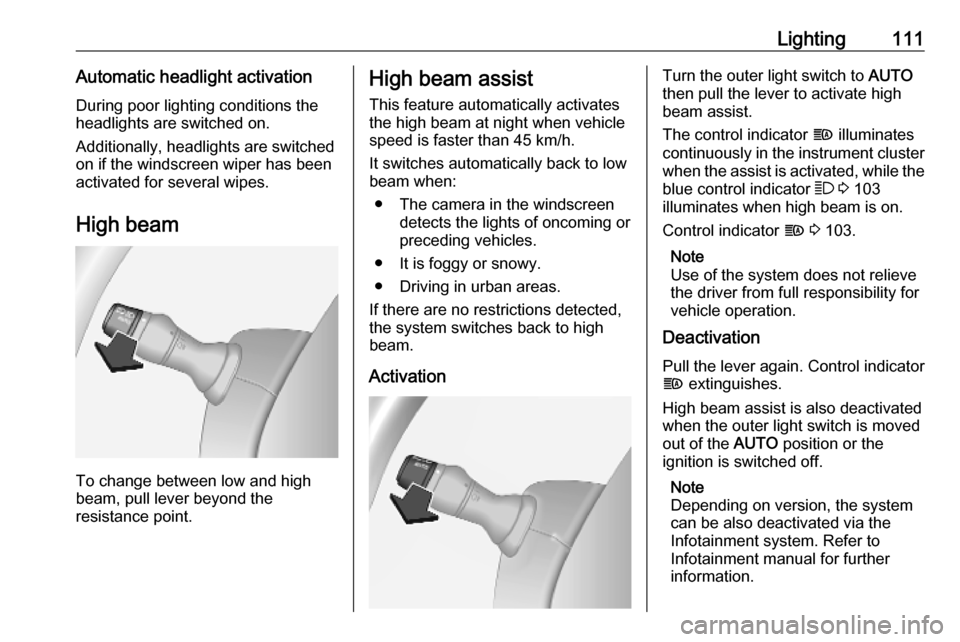

High beam
To change between low and high
beam, pull lever beyond the
resistance point.

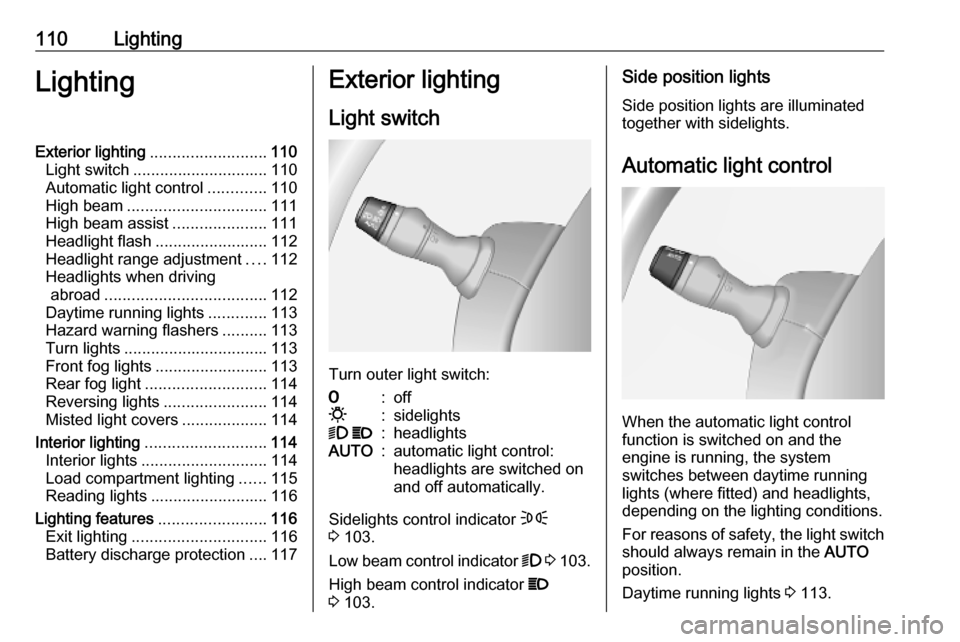

High beam assist
This feature automatically activates
the high beam at night when vehicle
speed is faster than 45 km/h.
It switches automatically back to low
beam when:
● The camera in the windscreen detects the lights of oncoming or
preceding vehicles.
● It is foggy or snowy.
● Driving in urban areas.
If there are no restrictions detected, the system switches back to high
beam.
ActivationTurn the outer light switch to AUTO
then pull the lever to activate high
beam assist.
The control indicator f illuminates
continuously in the instrument cluster when the assist is activated, while the
blue control indicator 7 3 103
illuminates when high beam is on.
Control indicator f 3 103.
Note
Use of the system does not relieve
the driver from full responsibility for
vehicle operation.
Deactivation
Pull the lever again. Control indicator
f extinguishes.
High beam assist is also deactivated when the outer light switch is moved
out of the AUTO position or the
ignition is switched off.
Note
Depending on version, the system
can be also deactivated via the
Infotainment system. Refer to
Infotainment manual for further
information.

112LightingGeneral information
Performance of the system can be
affected due to the following:
● Extreme weather conditions, e.g.
heavy rain, fog or snow.
● The front camera or the windscreen is obstructed, e.g. bya portable navigation system.
● Oncoming or preceding vehicle lights are not detected.
● Headlights are not adjusted correctly.
● Various reflective surfaces may also cause the system to fail to
detect other vehicles.
Headlight flash
To activate the headlight flash, pull
the lever briefly without passing the
resistance point.
High beam 3 111.Headlight range adjustment
Manual headlight range
adjustment
With low beam switched on, adapt the
headlight range to suit the vehicle
load to prevent dazzling of oncoming
traffic.
Turn knurled wheel to proposed
position:
0:driver only2:front seats occupied and loaded
up to permissible maximum
weight3:driver only and loaded up to
permissible maximum weightHeadlights when driving
abroad
The asymmetrical headlight beam
extends visibility at the edge of the
road at the passenger side.
However, when driving in countries
where traffic drives on the opposite
side of the road, adjust the headlights to prevent dazzling of oncoming
traffic.
Open the bonnet and adjust both
headlights with a screwdriver by
turning the screw a quarter turn in -
direction. Adjust to standard position
by turning the screw a quarter turn in
+ direction.

Lighting113Daytime running lightsDaytime running lights increase
visibility of the vehicle during daylight.
The lights operate automatically
when the ignition is switched on.
If the vehicle is equipped with the
automatic light control function, the
system switches between daytime
running lights and headlights
automatically depending on the
lighting conditions.
Automatic light control 3 110.
Hazard warning flashers
Operated by pressing ¨.
In the event of hard braking, the
hazard warning flashers may turn on automatically. Switch off by pressing
¨ .
Turn lightsup:right turn lightdown:left turn light
A resistance point can be felt when
moving the lever.
Constant flashing is activated when
the lever is being moved beyond the
resistance point. It is deactivated
when the steering wheel is moved in
the opposite direction or lever is
manually moved back to its neutral
position.
Activate temporary flashing by
holding the lever just before the
resistance point. Turn lights will flash
until lever is being released.
To activate three flashes, tap the
lever briefly without passing the
resistance point.
Front fog lights
Turn inner switch to position > and
release.

114LightingFront fog lights operate with engine
running and headlights switched on.
Rear fog light
Turn inner switch to position ø
and
release.
Rear fog light operates with engine
running and headlights switched on.
Reversing lights
The reversing lights come on when
the ignition is on and reverse gear is
selected.
Misted light covers
The inside of the light covers may mist up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself. To help, switch on the
headlights.Interior lighting
Interior lights
Courtesy lights illuminate when the vehicle is unlocked with the remote
control or the front doors are opened.
When the doors are closed, the
courtesy light extinguishes after a
delay or immediately after the ignition
is switched on.
Front courtesy lightcentral posi‐
tion:automatic switching
on and offpress c:onpress 0:off
