OPEL VIVARO 2015 User Guide

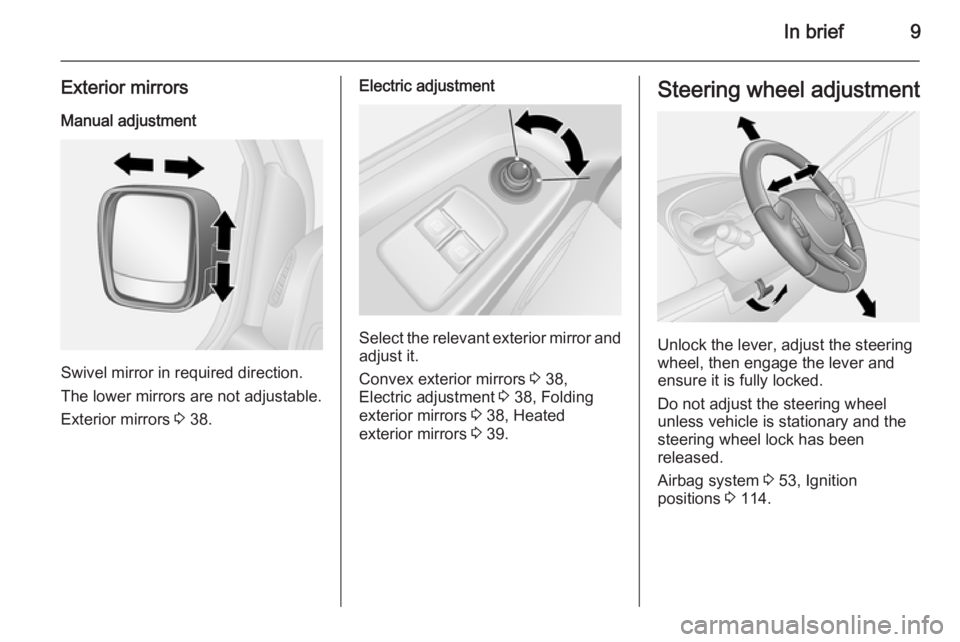

In brief9
Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
The lower mirrors are not adjustable.
Exterior mirrors 3 38.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 38,
Electric adjustment 3 38, Folding
exterior mirrors 3 38, Heated
exterior mirrors 3 39.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 53, Ignition
positions 3 114.

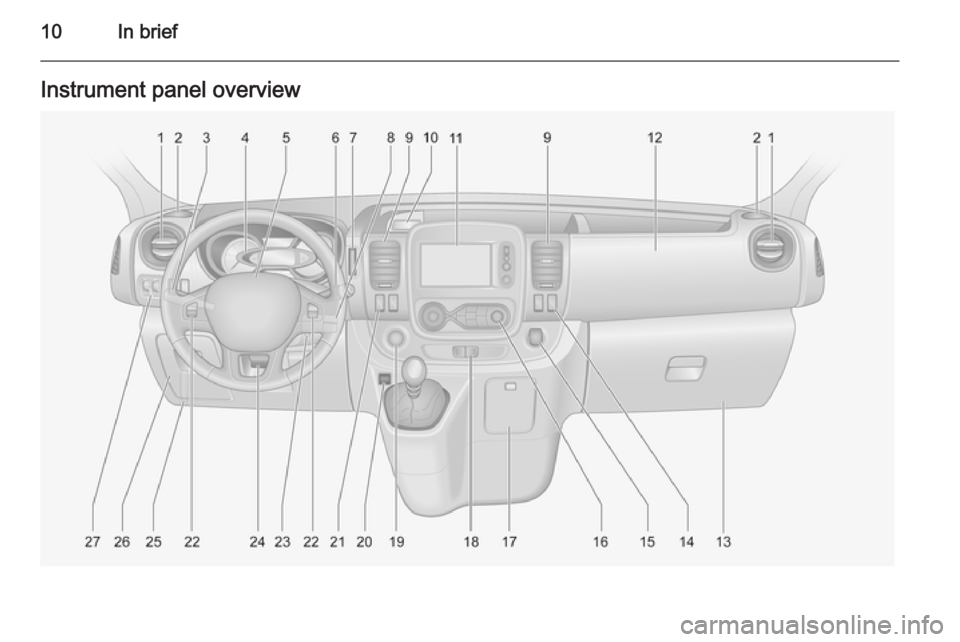

10In briefInstrument panel overview

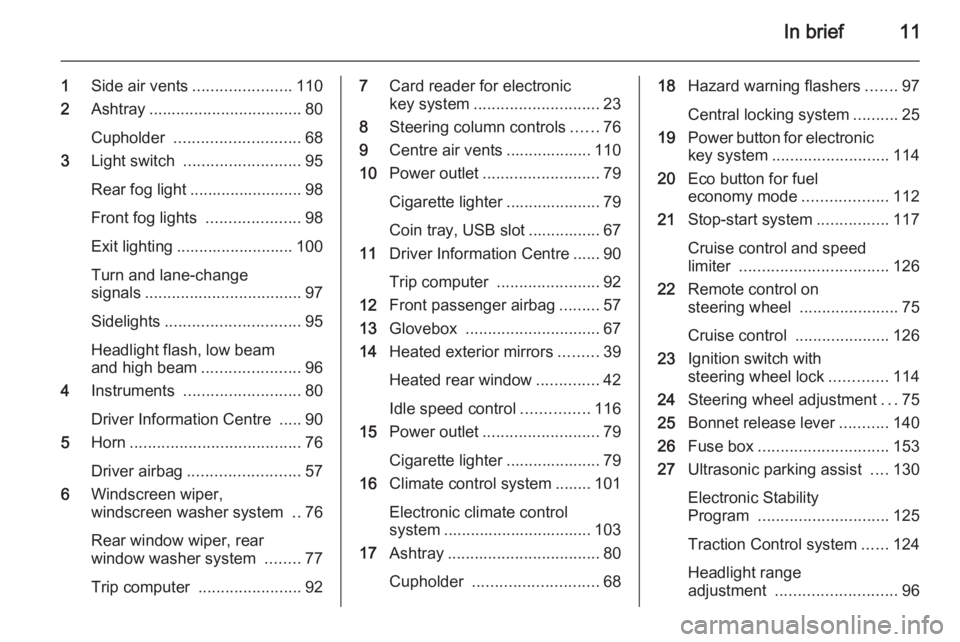

In brief11
1Side air vents ...................... 110
2 Ashtray .................................. 80
Cupholder ............................ 68
3 Light switch .......................... 95
Rear fog light ......................... 98
Front fog lights .....................98
Exit lighting .......................... 100
Turn and lane-change
signals ................................... 97
Sidelights .............................. 95
Headlight flash, low beam
and high beam ......................96
4 Instruments .......................... 80
Driver Information Centre ..... 90
5 Horn ...................................... 76
Driver airbag ......................... 57
6 Windscreen wiper,
windscreen washer system ..76
Rear window wiper, rear
window washer system ........77
Trip computer ....................... 927Card reader for electronic
key system ............................ 23
8 Steering column controls ......76
9 Centre air vents ................... 110
10 Power outlet .......................... 79
Cigarette lighter ..................... 79
Coin tray, USB slot ................ 67
11 Driver Information Centre ...... 90
Trip computer ....................... 92
12 Front passenger airbag .........57
13 Glovebox .............................. 67
14 Heated exterior mirrors .........39
Heated rear window ..............42
Idle speed control ...............116
15 Power outlet .......................... 79
Cigarette lighter ..................... 79
16 Climate control system ........ 101
Electronic climate control
system ................................. 103
17 Ashtray .................................. 80
Cupholder ............................ 6818Hazard warning flashers .......97
Central locking system ..........25
19 Power button for electronic
key system .......................... 114
20 Eco button for fuel
economy mode ...................112
21 Stop-start system ................117
Cruise control and speed
limiter ................................. 126
22 Remote control on
steering wheel ......................75
Cruise control .....................126
23 Ignition switch with
steering wheel lock .............114
24 Steering wheel adjustment ...75
25 Bonnet release lever ...........140
26 Fuse box ............................. 153
27 Ultrasonic parking assist ....130
Electronic Stability
Program ............................. 125
Traction Control system ......124
Headlight range
adjustment ........................... 96

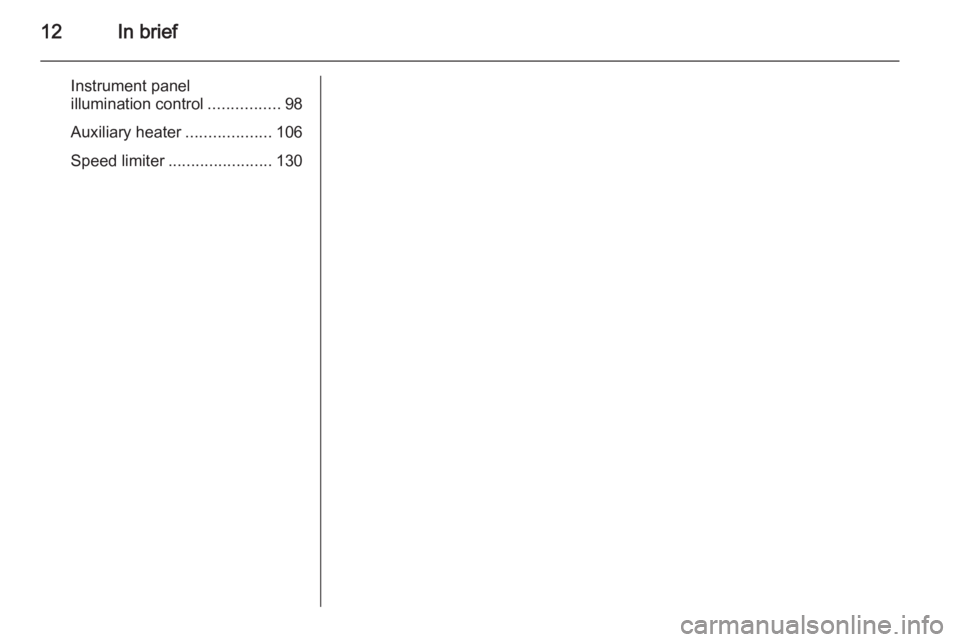

12In brief
Instrument panel
illumination control ................98
Auxiliary heater ...................106
Speed limiter ....................... 130

In brief13

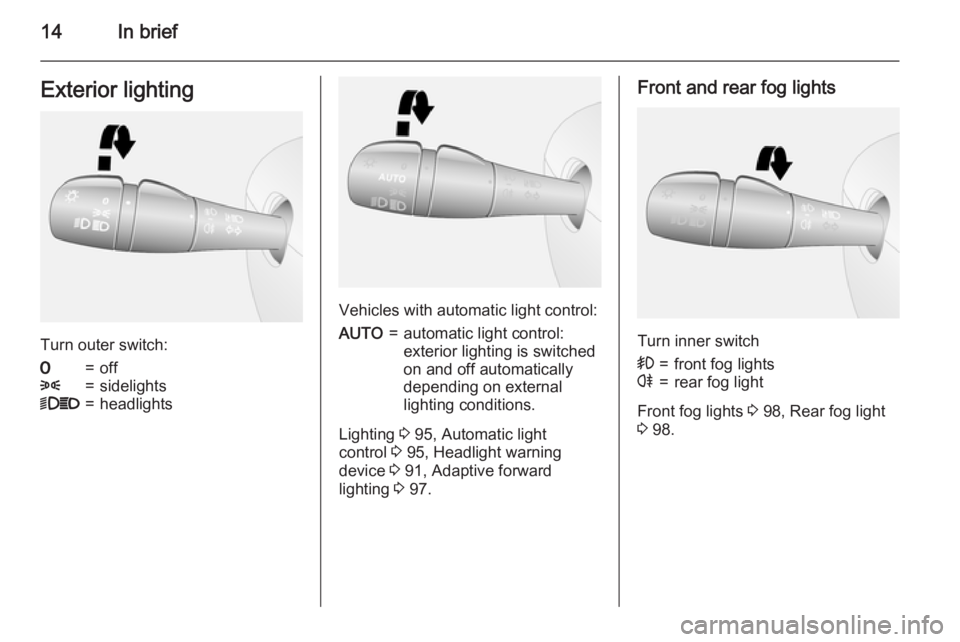

14In briefExterior lighting
Turn outer switch:
7=off8=sidelights9P=headlights
Vehicles with automatic light control:
AUTO=automatic light control:
exterior lighting is switched
on and off automatically
depending on external
lighting conditions.
Lighting 3 95, Automatic light
control 3 95, Headlight warning
device 3 91, Adaptive forward
lighting 3 97.
Front and rear fog lights
Turn inner switch
>=front fog lightsr=rear fog light
Front fog lights 3 98, Rear fog light
3 98.

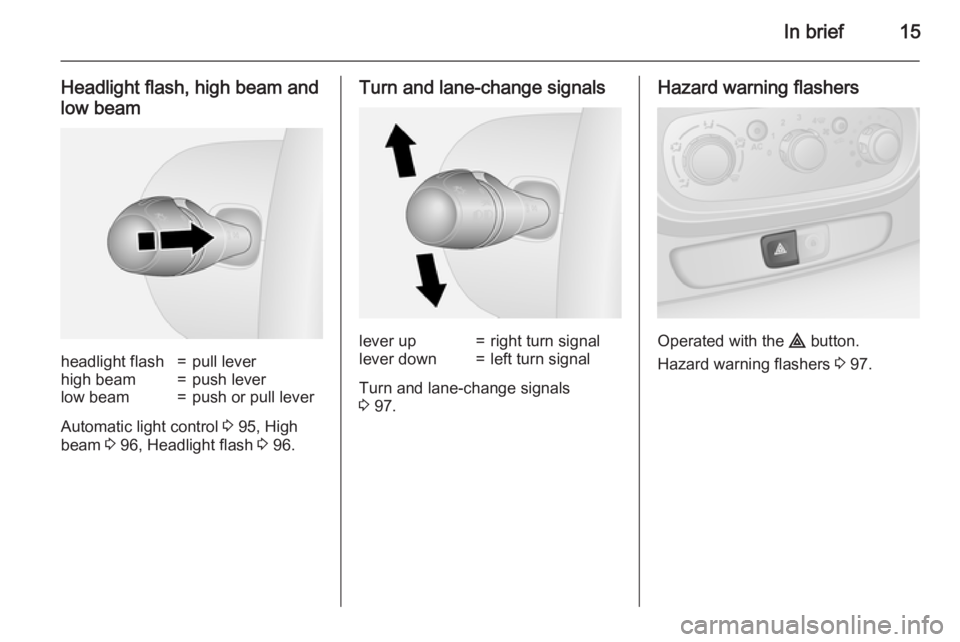

In brief15
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 95, High
beam 3 96, Headlight flash 3 96.
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 97.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 97.

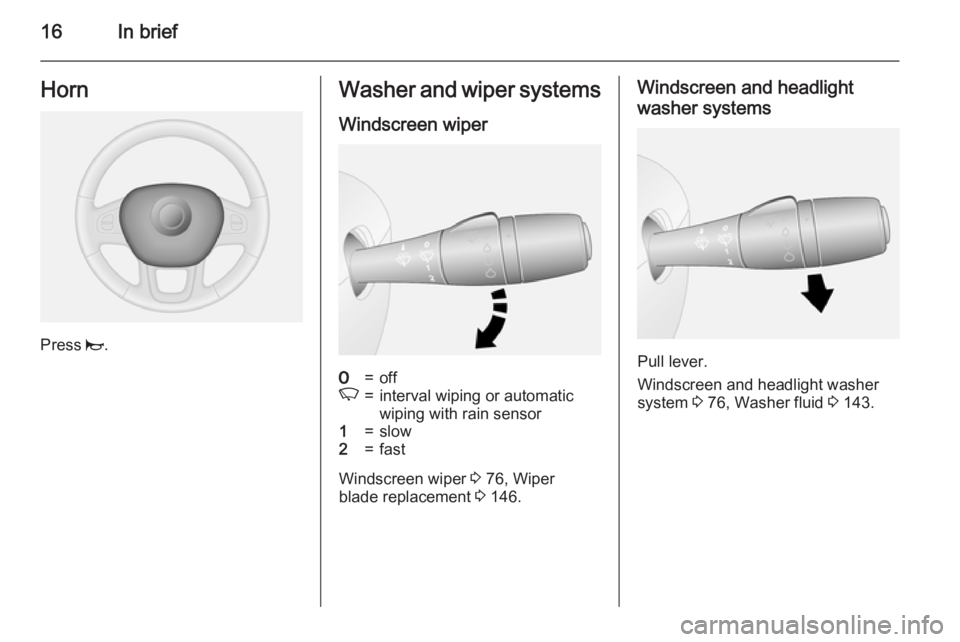

16In briefHorn
Press j.
Washer and wiper systems
Windscreen wiper7=offK=interval wiping or automatic
wiping with rain sensor1=slow2=fast
Windscreen wiper 3 76, Wiper
blade replacement 3 146.
Windscreen and headlight
washer systems
Pull lever.
Windscreen and headlight washer
system 3 76, Washer fluid 3 143.

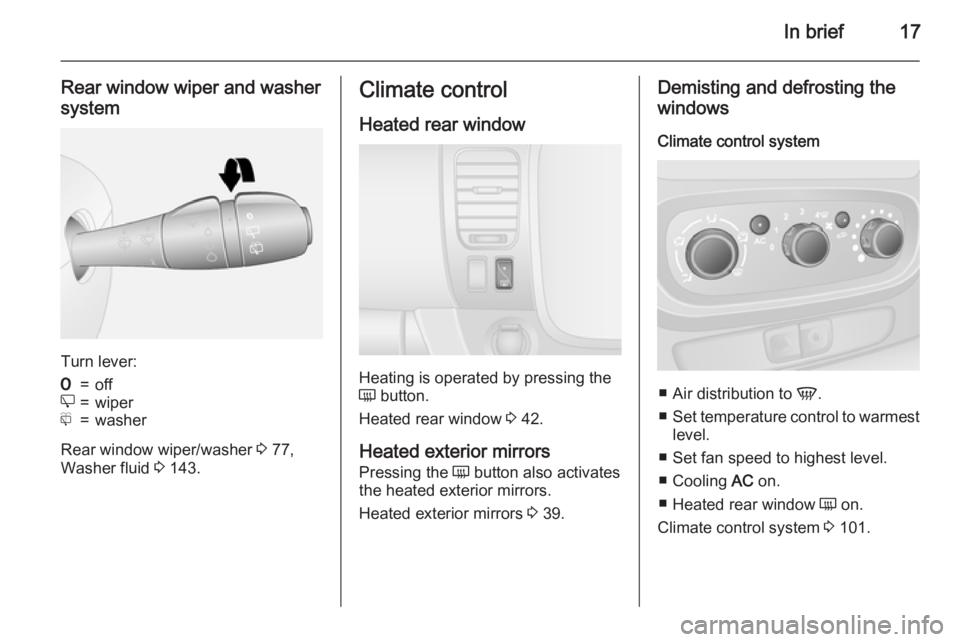

In brief17
Rear window wiper and washer
system
Turn lever:
7=offe=wiperf=washer
Rear window wiper/washer 3 77,
Washer fluid 3 143.
Climate control
Heated rear window
Heating is operated by pressing the
Ü button.
Heated rear window 3 42.
Heated exterior mirrors
Pressing the Ü button also activates
the heated exterior mirrors.
Heated exterior mirrors 3 39.
Demisting and defrosting the
windows
Climate control system
■ Air distribution to V.
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■ Cooling AC on.
■ Heated rear window Ü on.
Climate control system 3 101.

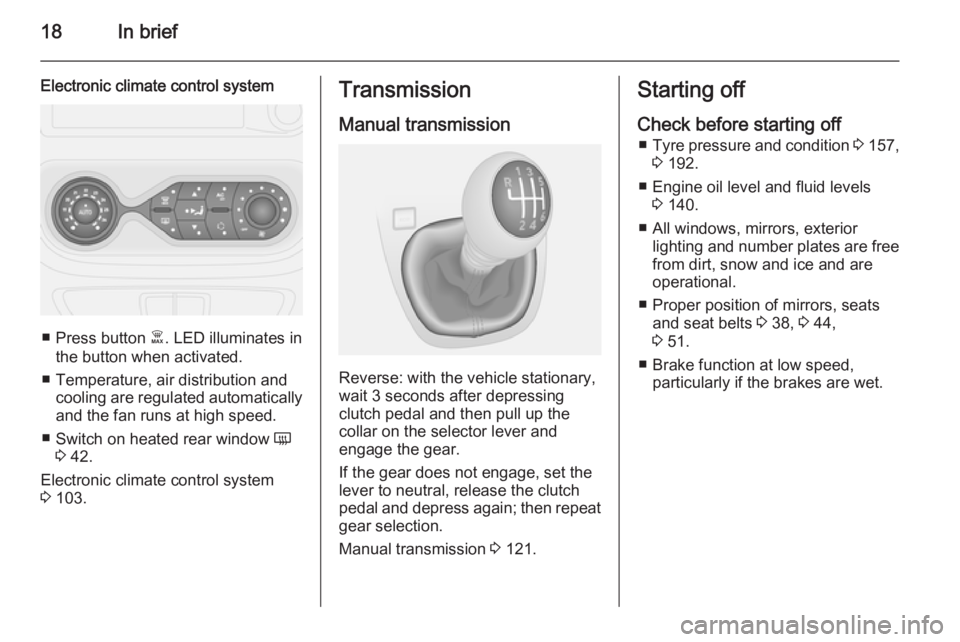

18In brief
Electronic climate control system
■ Press button Ê. LED illuminates in
the button when activated.
■ Temperature, air distribution and cooling are regulated automatically
and the fan runs at high speed.
■ Switch on heated rear window Ü
3 42.
Electronic climate control system
3 103.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
wait 3 seconds after depressing
clutch pedal and then pull up the
collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 121.
Starting off
Check before starting off ■ Tyre pressure and condition 3 157,
3 192.
■ Engine oil level and fluid levels 3 140.
■ All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats and seat belts 3 38, 3 44,
3 51.
■ Brake function at low speed, particularly if the brakes are wet.
