OPEL VIVARO B 2018.5 Manual user

In brief9Exterior mirrorsManual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 40.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 40.
Electric adjustment 3 41.
Folding exterior mirrors 3 41.
Heated exterior mirrors 3 41.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 60.
Ignition positions 3 133.

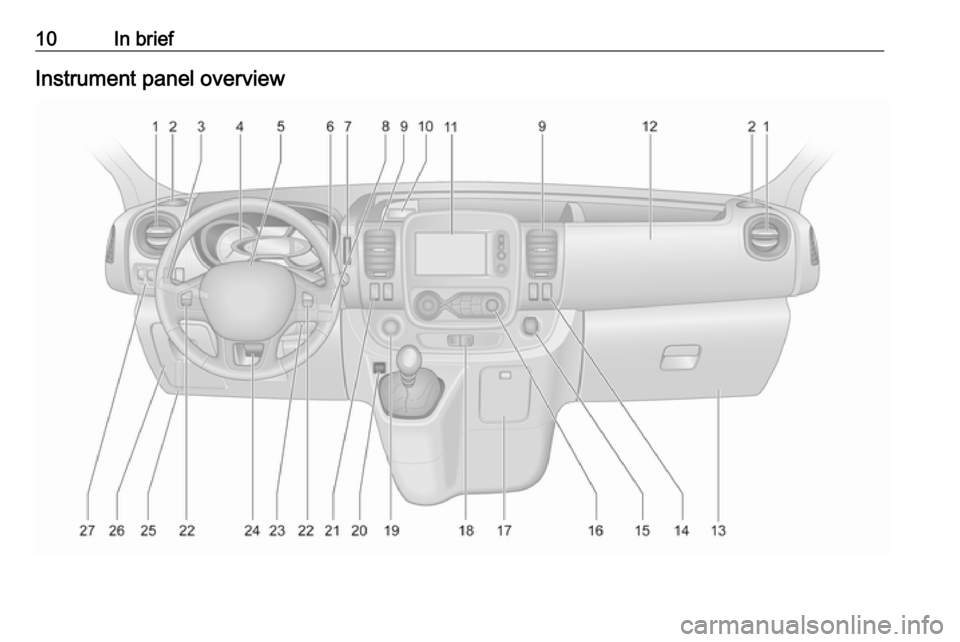

10In briefInstrument panel overview

In brief111Side air vents ...................... 129
2 Ashtray .................................. 90
Cupholder ............................ 75
3 Light switch ........................ 110
Rear fog light ....................... 114
Front fog lights ...................113
Exit lighting .......................... 116
Turn lights ........................... 113
Sidelights ............................ 110
Headlight flash, low beam
and high beam ....................111
4 Instruments .......................... 91
Driver Information Centre .... 103
Trip computer .....................106
5 Horn ...................................... 85
Driver airbag ......................... 63
6 Windscreen wiper,
windscreen washer system ..86
Rear window wiper, rear
window washer system ........87
Trip computer .....................1067Card reader for electronic
key system ............................ 23
8 Steering column controls ......85
9 Centre air vents ................... 129
10 Power outlet .......................... 89
Cigarette lighter ..................... 90
Coin tray, USB slot ................ 73
11 Info Display ......................... 104
12 Front passenger airbag .........63
13 Glovebox .............................. 74
14 Heated exterior mirrors .........41
Heated rear window ..............45
Idle speed control ...............136
15 Power outlet .......................... 89
Cigarette lighter ..................... 90
16 Climate control system ........ 118
Electronic climate control
system ................................. 120
17 Ashtray .................................. 90
Cupholder ............................ 75
18 Hazard warning flashers .....113
Central locking system ..........2619Power button for electronic
key system .......................... 133
20 Eco button for fuel
economy mode ...................131
21 Stop-start system ................137
Cruise control ...................... 153
Speed limiter ....................... 155
22 Remote control on
steering wheel ......................85
Cruise control .....................153
23 Ignition switch with
steering wheel lock .............133
24 Steering wheel adjustment ...85
25 Bonnet release lever ...........167
26 Fuse box ............................. 183
27 Ultrasonic parking assist ....156
Electronic Stability
Program (ESP® Plus
)............ 151
Traction Control system
(TC) ..................................... 150
Headlight range
adjustment ......................... 111

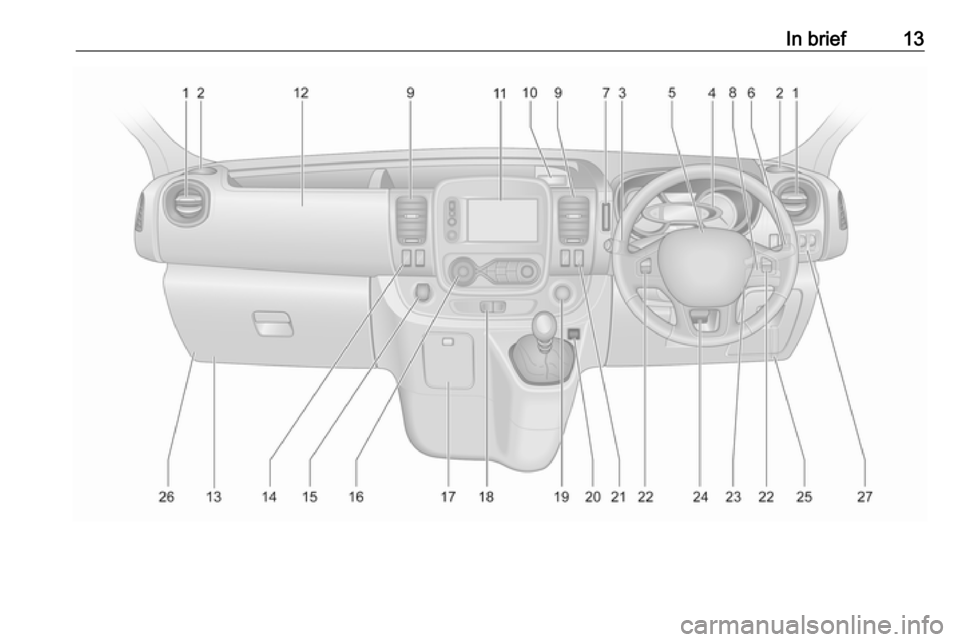

12In briefInstrument panel
illumination control ..............114
Auxiliary heater ...................124
Speed limiter ....................... 155

In brief13

14In briefExterior lighting
Turn outer light switch:
7:off8:sidelights9P:headlights
Vehicles with automatic light control:
AUTO:automatic light control:
exterior lighting is switched
on and off automatically
depending on external
lighting conditions.
Lighting 3 110.
Automatic light control 3 111.
Headlight warning device 3 105.
Front and rear fog lights
Turn inner light switch
>:front fog lightsø:rear fog light
Front fog lights 3 113.
Rear fog light 3 114.

In brief15Headlight flash, high beam and
low beamheadlight flash:pull stalkhigh beam:push stalklow beam:push or pull stalk
Automatic light control 3 111.
High beam 3 111.
Headlight flash 3 111.
Turn lightsstalk up:right turn lightstalk down:left turn light
Turn lights 3 113.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 113.

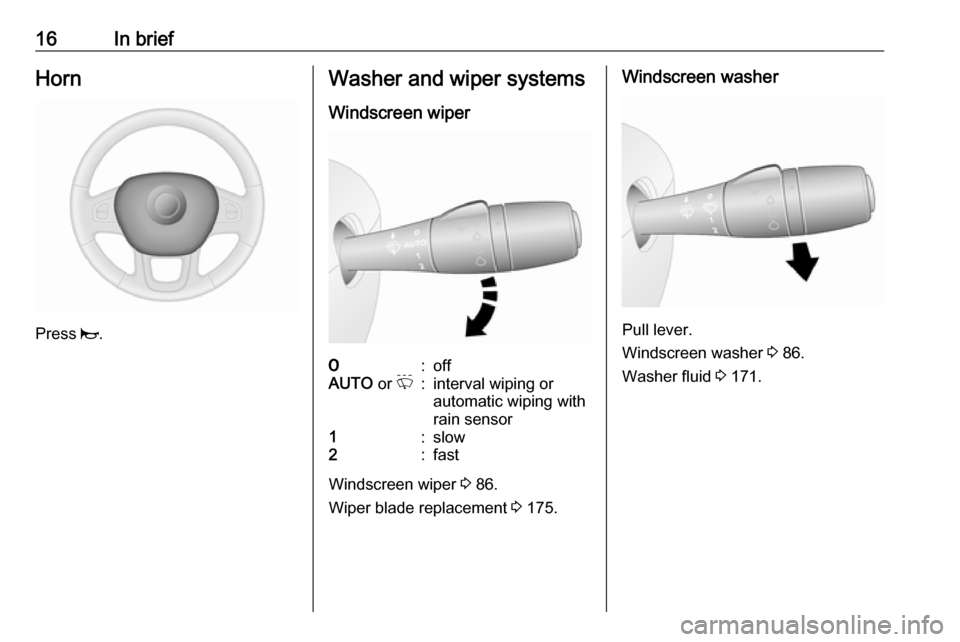

16In briefHorn
Press j.
Washer and wiper systems
Windscreen wiper7:offAUTO or P:interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 86.
Wiper blade replacement 3 175.
Windscreen washer
Pull lever.
Windscreen washer 3 86.
Washer fluid 3 171.

In brief17Rear window wiper and washer
system
Turn lever:
7:offe:wiperf:washer
Rear window wiper and washer 3 87.
Washer fluid 3 171.
Climate control
Heated rear window
Heating is operated by pressing Ü.
Heated rear window 3 45.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 41.
Demisting and defrosting the
windows
Climate control system
● Air distribution to V.
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Cooling A/C on.
● Heated rear window Ü on.
Climate control system 3 118.

18In briefElectronic climate control system
● Press Ê. LED illuminates in the
button when activated.
● Temperature, air distribution and cooling are regulated
automatically and the fan runs at
high speed.
● Switch on heated rear window Ü
3 45.
Electronic climate control system
3 120.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
wait three seconds after depressing
clutch pedal and then pull up the
collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 147.
Starting off
Check before starting off ● Tyre pressure 3 187 and
condition 3 223.
● Engine oil level and fluid levels 3 168.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors 3 41,
seats 3 47 and seat belts
3 56.
● Brake function at low speed, particularly if the brakes are wet.
