OPEL VIVARO B 2018 User Guide

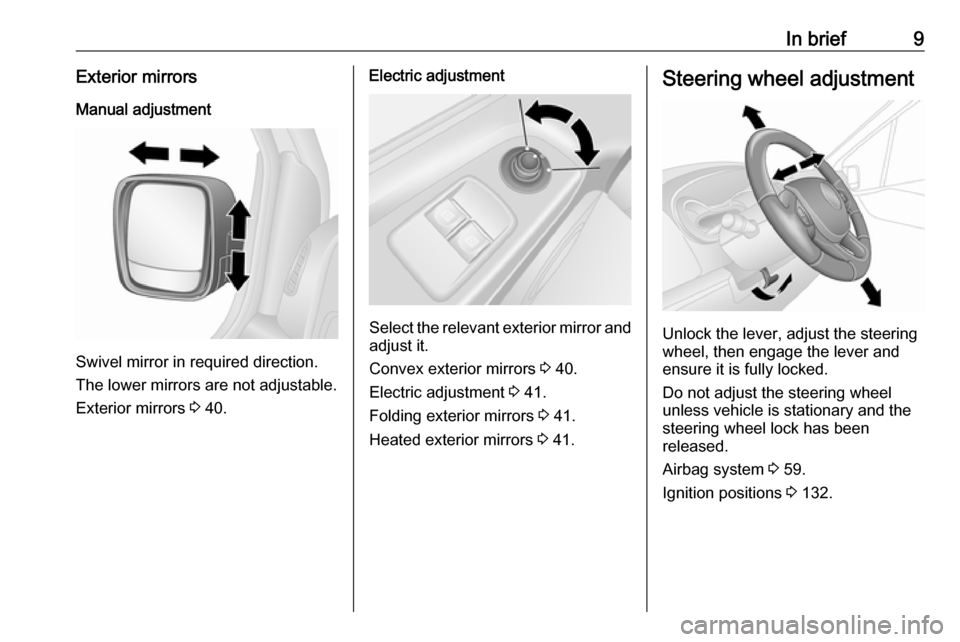

In brief9Exterior mirrorsManual adjustment
Swivel mirror in required direction.
The lower mirrors are not adjustable.
Exterior mirrors 3 40.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 40.
Electric adjustment 3 41.
Folding exterior mirrors 3 41.
Heated exterior mirrors 3 41.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 59.
Ignition positions 3 132.

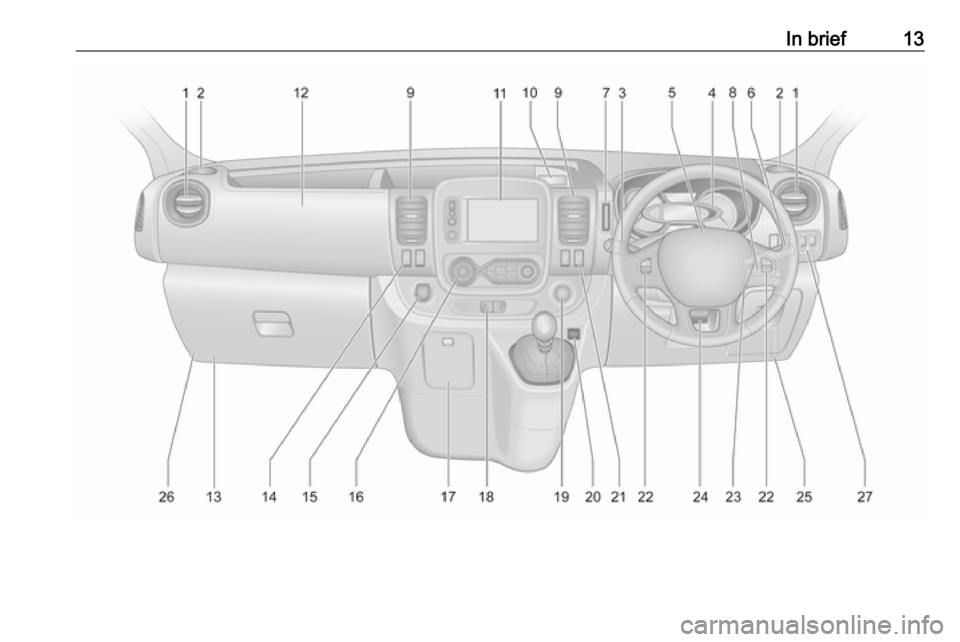

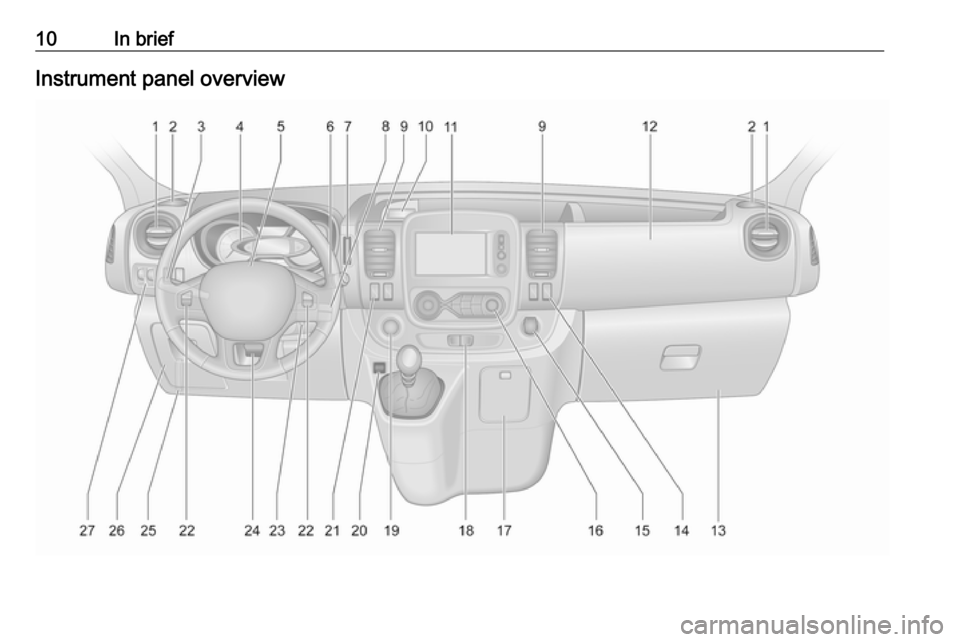

10In briefInstrument panel overview

In brief111Side air vents ...................... 127
2 Ashtray .................................. 90
Cupholder ............................ 75
3 Light switch ........................ 108
Rear fog light ....................... 112
Front fog lights ...................111
Exit lighting .......................... 114
Turn and lane-change
signals ................................. 111
Sidelights ............................ 108
Headlight flash, low beam
and high beam ....................109
4 Instruments .......................... 91
Driver Information Centre .... 102
Trip computer .....................105
5 Horn ...................................... 85
Driver airbag ......................... 636Windscreen wiper,
windscreen washer system ..86
Rear window wiper, rear
window washer system ........87
Trip computer .....................105
7 Card reader for electronic
key system ............................ 24
8 Steering column controls ......85
9 Centre air vents ................... 127
10 Power outlet .......................... 88
Cigarette lighter ..................... 90
Coin tray, USB slot ................ 73
11 Info display .......................... 102
12 Front passenger airbag .........63
13 Glovebox .............................. 74
14 Heated exterior mirrors .........41
Heated rear window ..............45
Idle speed control ...............135
15 Power outlet .......................... 88
Cigarette lighter ..................... 9016 Climate control system ........ 116
Electronic climate control
system ................................. 118
17 Ashtray .................................. 90
Cupholder ............................ 75
18 Hazard warning flashers .....111
Central locking system ..........26
19 Power button for electronic
key system .......................... 132
20 Eco button for fuel
economy mode ...................130
21 Stop-start system ................136
Cruise control and speed
limiter ................................. 152
22 Remote control on
steering wheel ......................85
Cruise control .....................152
23 Ignition switch with
steering wheel lock .............132
24 Steering wheel adjustment ...85
25 Bonnet release lever ...........166
26 Fuse box ............................. 182

12In brief27Ultrasonic parking assist ....155
Electronic Stability
Program (ESP® Plus
)............ 150
Traction Control system
(TC) ..................................... 149
Headlight range
adjustment ......................... 109
Instrument panel
illumination control ..............112
Auxiliary heater ...................122
Speed limiter ....................... 155

In brief13

14In briefExterior lighting
Turn outer light switch:
7:off8:sidelights9P:headlights
Vehicles with automatic light control:
AUTO:automatic light control:
exterior lighting is switched
on and off automatically
depending on external
lighting conditions.
Lighting 3 108.
Automatic light control 3 109.
Headlight warning device 3 104.
Adaptive forward lighting 3 110.
Front and rear fog lights
Turn inner light switch
>:front fog lightsø:rear fog light
Front fog lights 3 111.
Rear fog light 3 112.

In brief15Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
Automatic light control 3 109.
High beam 3 109.
Headlight flash 3 109.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 111.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 111.

16In briefHorn
Press j.
Washer and wiper systems
Windscreen wiper7:offAUTO or P:interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 86.
Wiper blade replacement 3 174.
Windscreen washer
Pull lever.
Windscreen washer 3 86.
Washer fluid 3 170.

In brief17Rear window wiper and washer
system
Turn lever:
7:offe:wiperf:washer
Rear window wiper/washer 3 87.
Washer fluid 3 170.
Climate control
Heated rear window
Heating is operated by pressing Ü.
Heated rear window 3 45.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 41.
Demisting and defrosting the
windows
Climate control system
● Air distribution to V.
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Cooling A/C on.
● Heated rear window Ü on.
Climate control system 3 116.

18In briefElectronic climate control system
● Press Ê. LED illuminates in the
button when activated.
● Temperature, air distribution and cooling are regulated
automatically and the fan runs at
high speed.
● Switch on heated rear window Ü
3 45.
Electronic climate control system
3 118.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
wait three seconds after depressing
clutch pedal and then pull up the
collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 146.
Starting off
Check before starting off ● Tyre pressure and condition 3 186, 3 220.
● Engine oil level and fluid levels 3 167.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats and seat belts 3 41, 3 47,
3 56.
● Brake function at low speed, particularly if the brakes are wet.
