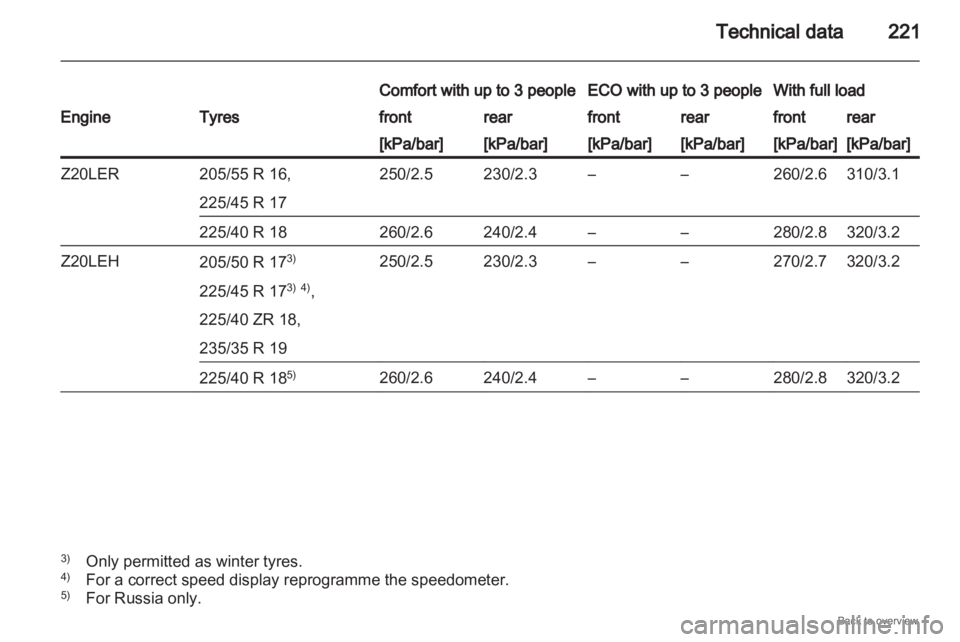

Technical data
221
Comfort with up to 3 people ECO with up to 3 people With full load
Engine Tyres front
rearfrontrearfrontrear
[kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar]
Z20LER 205/55 R 16,
250/2.5 230/2.3 – –260/2.6 310/3.1
225/45 R 17 225/40 R 18 260/2.6 240/2.4 – – 280/2.8 320/3.2
Z20LEH
205/50 R 17
3)
250/2.5 230/2.3 – –270/2.7 320/3.2
225/45 R 17 3)
4)
,
225/40 ZR 18,
235/35 R 19 225/40 R 18
5) 260/2.6 240/2.4 – – 280/2.8 320/3.2
3)
Only permitted as winter tyres.
4) For a correct speed display reprogramme the speedometer.
5) For Russia only.

222

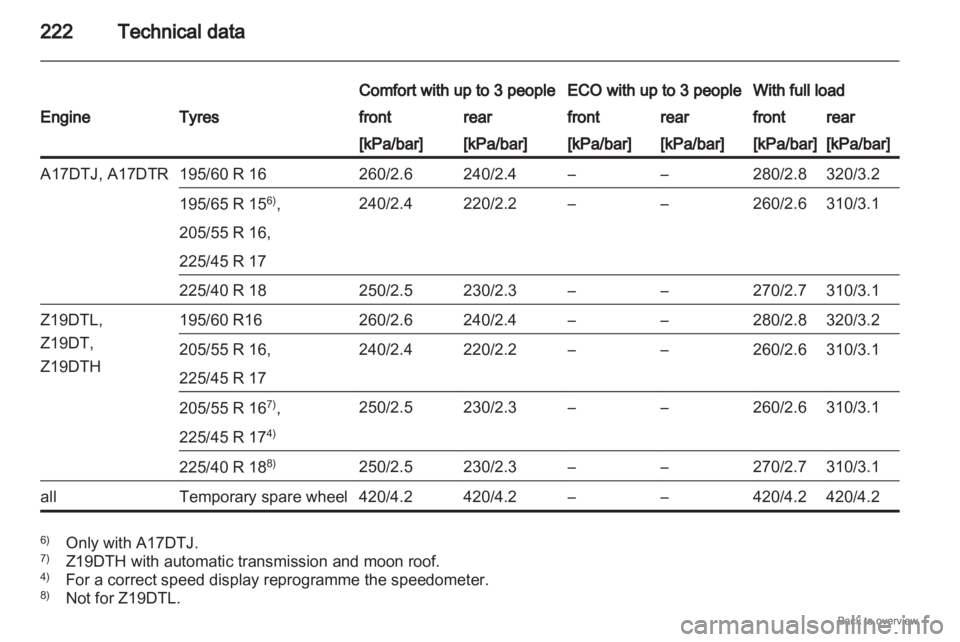

Technical data
Comfort with up to 3 people ECO with up to 3 people With full load
Engine Tyres front
rearfrontrearfrontrear
[kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar]
A17DTJ, A17DTR 195/60 R 16 260/2.6 240/2.4 – – 280/2.8 320/3.2
195/65 R 15
6)
, 240/2.4 220/2.2 –
–260/2.6 310/3.1
205/55 R 16,
225/45 R 17 225/40 R 18 250/2.5 230/2.3 – – 270/2.7 310/3.1
Z19DTL,
Z19DT,
Z19DTH 195/60 R16 260/2.6 240/2.4 – – 280/2.8 320/3.2
205/55 R 16,
240/2.4 220/2.2 – –260/2.6 310/3.1
225/45 R 17 205/55 R 16
7)
, 250/2.5 230/2.3 –
–260/2.6 310/3.1
225/45 R 17 4) 225/40 R 18
8) 250/2.5 230/2.3 – – 270/2.7 310/3.1
all Temporary spare wheel 420/4.2 420/4.2 – – 420/4.2 420/4.2
6)
Only with A17DTJ.
7) Z19DTH with automatic transmission and moon roof.
4) For a correct speed display reprogramme the speedometer.
8) Not for Z19DTL.

Technical data
223

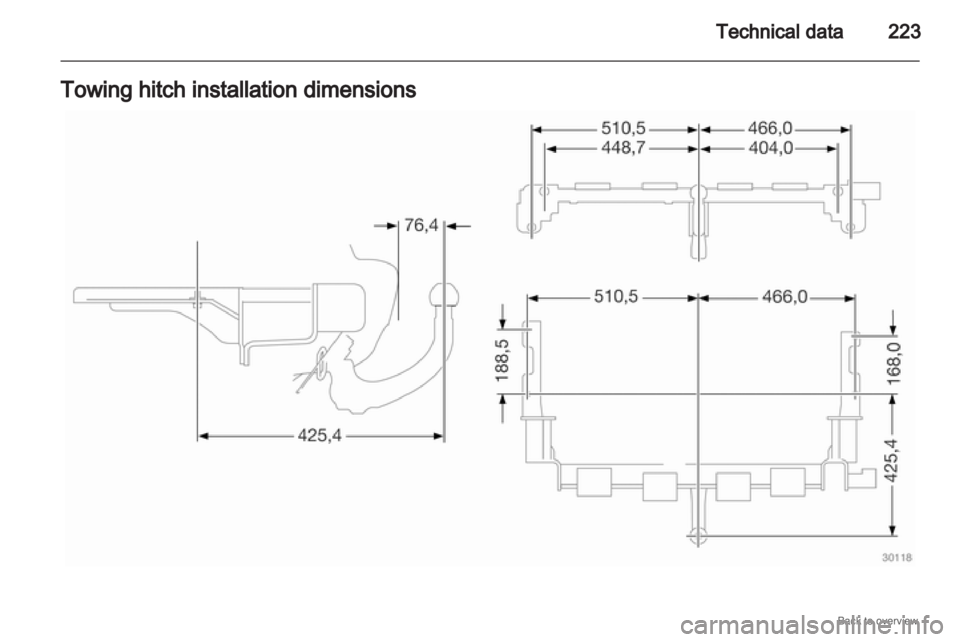

Towing hitch installation dimensions

224
