OPEL ZAFIRA C 2017.5 Instruktionsbog (in Danish)

Tekniske data269DimensionerLængde [mm]4666Bredde med indklappede sidespejle [mm]1928Bredde med to sidespejle [mm]2100Højde (uden antenne) [mm]1620 - 1710Længde af lastrummets gulv med nedklappet tredje sæderække [mm]1094Lastrummets længde med nedklappet anden og tredje sæderække [mm]1842Bagagerumsbredde [mm]1057Lastrummets højde ved bagklappen [mm]840Akselafstand [mm]2760Vendediameter [m]11,9

270Tekniske dataKapaciteter
MotorolieMotorB14NELB14NET,
B14NET LPGB16XNT CNGB16SHL,
B16SHTinkl. filter [l]4,04,04,55,5mellem MIN og MAX [l]1,01,01,01,0MotorB16DTJ,
B16DTHB20DTJB20DTHinkl. filter [l]5,05,255,25mellem MIN og MAX [l]1,01,01,0
Brændstoftank
Benzin/diesel, påfyldningsmængde [l]58Naturgas CNG, påfyldningsmængde [kg] eller [l]
Benzin, genopfyldningsmængde [l]25 kg 4)
eller 144 l
14Flydende gas (LPG), påfyldningsmængde [l]604) Ved 20 MPa/200 bar/2900 psi og 15 °C.

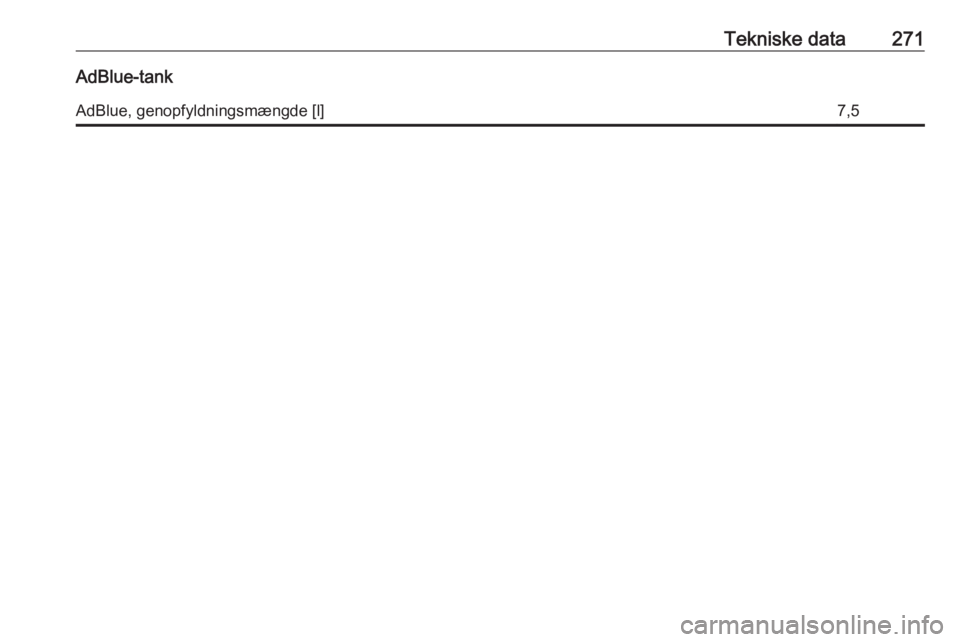

Tekniske data271AdBlue-tankAdBlue, genopfyldningsmængde [l]7,5

272Tekniske dataDæktrykKomfort med op til 3 personerECO med op til 3 personerMed fuld lastMotorDækForBagForBagForBag[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar] ([psi])[kPa/bar] ([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B14NEL,
B14NET215/60 R16,220/2,2 (32)220/2,2 (32)260/2,6 (38)260/2,6 (38)230/2,3 (33)300/3,0 (43)225/50 R17,235/45 R18,235/40 R19B14NET LPG225/50 R17,220/2,2 (32)220/2,2 (32)260/2,6 (38)260/2,6 (38)230/2,3 (33)300/3,0 (43)235/45 R18,235/40 R19B16XNT CNG225/50 R17220/2,2 (32)220/2,2 (32)260/2,6 (38)260/2,6 (38)230/2,3 (33)280/2,8 (41)B16SHL,
B16SHT225/50 R17,260/2,6 (38)240/2,4 (35)280/2,8 (41)280/2,8 (41)270/2,7 (39)320/3,2 (46)235/45 R18,235/40 R19

Tekniske data273Komfort med op til 3 personerECO med op til 3 personerMed fuld lastMotorDækForBagForBagForBag[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar] ([psi])[kPa/bar] ([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B16DTJ,
B16DTH215/60 R16,240/2,4 (35)240/2,4 (35)280/2,8 (41) 5)280/2,8 (41) 5)260/2,6 (38)300/3,0 (43)225/50 R17,235/45 R18,235/40 R19B20DTJ,
B20DTH225/50 R17,260/2,6 (38)240/2,4 (35)280/2,8 (41)280/2,8 (41)280/2,8 (41)320/3,2 (46)235/45 R18,235/40 R19AlleNødhjul
125/70 R17420/4,2 (61)420/4,2 (61)––420/4,2 (61)420/4,2 (61)5) I kombination med dæk med ultralav rullemodstand 300/3,0 (43).

274KundeinformationKundeinformationKundeinformation......................274
Overensstemmelseserklæring . 274
Reparation af kollisionsskader 277
Softwarebekræftelse ...............277
Registrerede varemærker .......280
Bildataregistrering og databe‐ skyttelse ..................................... 281
Registrering af hændelsesdata .......................281
Radiofrekvensidentifikation (RFID) ..................................... 282Kundeinformation
Overensstemmelseserklæ‐ring
Radiotransmissionssystemer
Denne bil er udstyret med systemer,
der sender og/eller modtager radio‐
bølger underlagt EU-direktiv
1999/5/EF eller 2014/53/EU. Disse
systemer er i overensstemmelse med de væsentlige krav og øvrige rele‐
vante bestemmelser i EU-direktiv
1999/5/EF eller 2014/53/EU. Kopier
af de originale overensstemmelses‐
erklæringer kan fås på vores hjem‐
meside.
Radarsystemer Landespecifikke overensstemmel‐
seserklæringer for radarsystemer
vises på følgende side:

Kundeinformation275

276KundeinformationDonkraft

Kundeinformation277Oversættelse af original overens‐
stemmelseserklæring
Overensstemmelseserklæring i
henhold til EF-direktiv 2006/42/EF
Vi erklærer, at produktet:
Produktbetegnelse: Donkraft
Type/GM-reservedelsnummer:
13348505, 13504504
er i overensstemmelse med bestem‐
melserne i direktiv 2006/42/EF.
Anvendte tekniske standarder:GMN9737:løftning med
donkraftGM 14337:standarddonkraft -
materielprøverGMN5127:biens lintegritet -
hejsning og
donkraftløft på
servicestationGMW15005:standarddonkraft
og reservehjul,
biltestISO TS 16949:kvalitetsstyringssy‐ stemerUnderskriveren er bemyndiget til at
udarbejde den tekniske dokumenta‐
tion.
Rüsselsheim, 31. januar 2014
underskrevet af
Hans-Peter Metzger
Engineering Group Manager Chassis & Structure
Adam Opel AG
D-65423 Rüsselsheim
Reparation afkollisionsskader
Laktykkelse Af produktionstekniske grunde kan
lakkens tykkelse variere mellem 50
og 400 µm.
Derfor kan laktykkelsen ikke tages
som et tegn på reparation af en kolli‐
sionsskade.
Softwarebekræftelse
Visse OnStar-komponenter indehol‐
der libcurl- og unzip-software og
anden tredjepartssoftware. Herunderfindes de meddelelser og licenser, der er tilknyttet libcurl og unzip, og for
anden tredjepartssoftware henvises
til http://www.lg.com/global/support/
opensource/index.
Du kan se den oversatte tekst under
den oprindelige tekst.
libcurlCopyright and permission notice
Copyright (c) 1996 - 2010, Daniel
Stenberg, .
All rights reserved.
Permission to use, copy, modify, and
distribute this software for any
purpose with or without fee is hereby
granted, provided that the above
copyright notice and this permission
notice appear in all copies.
The software is provided "as is",
without warranty of any kind, express
or implied, including but not limited to
the warranties of merchantability,
fitness for a particular purpose and
noninfringement of third party rights.
In no event shall the authors or copy‐
right holders be liable for any claim,
damages or other liability, whether in

278Kundeinformationan action of contract, tort or other‐
wise, arising from, out of or in connec‐ tion with the software or the use or
other dealings in the software.
Except as contained in this notice, the
name of a copyright holder shall not
be used in advertising or otherwise to
promote the sale, use or other
dealings in this Software without prior
written authorization of the copyright
holder.
unzip This is version 2005-Feb-10 of theInfo-ZIP copyright and license. The
definitive version of this document
should be available at ftp://ftp.info-
zip.org/pub/infozip/license.html inde‐
finitely.
Copyright (c) 1990-2005 Info-ZIP. All
rights reserved.
For the purposes of this copyright and
license, “Info-ZIP” is defined as the
following set of individuals:
Mark Adler, John Bush, Karl Davis,
Harald Denker, Jean-Michel Dubois,
Jean-loup Gailly, Hunter Goatley, Ed
Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, RobertHeath, Jonathan Hudson, Paul
Kienitz, David Kirschbaum, Johnny
Lee, Onno van der Linden, Igor
Mandrichenko, Steve P. Miller, Sergio Monesi, Keith Owens, George
Petrov, Greg Roelofs, Kai Uwe
Rommel, Steve Salisbury, Dave
Smith, Steven M. Schweda, Christian Spieler, Cosmin Truta, Antoine
Verheijen, Paul von Behren, Rich
Wales, Mike White.
This software is provided “as is,”
without warranty of any kind, express
or implied. In no event shall Info-ZIP
or its contributors be held liable for
any direct, indirect, incidental, special
or consequential damages arising out of the use of or inability to use this
software.
Permission is granted to anyone to
use this software for any purpose,
including commercial applications,
and to alter it and redistribute it freely,
subject to the following restrictions:
1. Redistributions of source code must retain the above copyright
notice, definition, disclaimer, and
this list of conditions.2. Redistributions in binary form (compiled executables) must
reproduce the above copyright
notice, definition, disclaimer, and
this list of conditions in documen‐
tation and/or other materials
provided with the distribution. The sole exception to this condition is
redistribution of a standard
UnZipSFX binary (including
SFXWiz) as part of a self-extrac‐
ting archive; that is permitted
without inclusion of this license,
as long as the normal SFX banner
has not been removed from the
binary or disabled.
3. Altered versions--including, but not limited to, ports to new opera‐ting systems, existing ports with
new graphical interfaces, and
dynamic, shared, or static library
versions--must be plainly marked
as such and must not be misre‐
presented as being the original
source. Such altered versions
also must not be misrepresented
as being Info-ZIP releases--inclu‐
ding, but not limited to, labeling of
the altered versions with the
names “Info-ZIP” (or any variation
