Text messages (SMS)
Receiving text messages
When the buzzer sounds (if the SMS
text messages buzzer option is ac-
tive) and a superimposed screen
announces
"Do you wish to read
the new text message (SMS)?" ,
you can choose to read the text mes-
sage received by selecting and vali-
dating "YES" or postpone reading
it by selecting and validating "NO",
by pressing the "ESC" button or by
waiting until the announcement dis-
appears. The message is read by the
voice synthesiser, if it is active.
Note: the old text messages stored
and the new text messages, the
reading of which you wished to post-
pone, can be consulted. Press the
"MENU" button then validate the
"Telematic" icon, select "Text mes-
sages (SMS)" and validate the func-
tion "Reading of SMS received"
by pressing button G. Then scroll
through the list by turning the button
and press the button to select the
text message to be read (if the voice
synthesiser is active). Sending a text message
In the menu
"Text messages
(SMS)" validate the function "Typing
of an SMS" . Type your text message
using the alphanumeric keypad and
validate it using the "OK" button to
store it or validate the "Send" button
to send it. Validation of the "Send"
button enables you to enter the
number of your recipient or select it
from the directory or from the list of
calls and send the message.
"Duration of calls" menu
Select the "Duration of calls"
function from the "Telephone func-
tions" menu to consult the duration
counters for the calls made. The par-
tial counter totals the duration of the
calls since the last zero reset carried
out using the "Zero reset" button.
"Telephone options" menu
Select the "Call options" function
from the "Telephone functions"
menu to access the functions:
- "Conigure the calls" which per-
mits activation and deactivation of
the "show my number" and "auto-
matic answering after X rings" func-
tions
- "Ringing options" which permits
adjustment of the ringing volume
for voice calls, activation of the text
messages (SMS) receipt buzzer
and selection of a ring tone from
the ive offered
- "Voice call diversion number"
which permits recording of the call
diversion number chosen by the
customer, otherwise the call will be
transferred to the voice mail if the
call diversion box is ticked.
Replying to a text messages
After reading a text messages, you
can:
Reply directly to the sender by se-
lecting "Reply" . A screen appears
automatically to enable you to enter
your message.
Record the number of the sender of
the text message in your current di-
rectory by selecting "Record".

62 -Audio equipment and telematics
01-10-2005
63
-Audio equipment and telematics
01-10-2005
Services*
Press button
E to dis-
play the "Services"
menu and select one of
the following services:
Emergency call*
In an emergency, press but-
ton V until a signal is heard
and a call validation/deletion
screen is displayed (delay
of 6 seconds) or enter 112
directly.
Make an emergency call if
you are involved in a situa-
tion which leads you to fear serious
consequences (injuries, ...) for those
who are exposed to it (if you witness
or are involved in a accident resulting
in injuries, an attack, ...).
Before making a call of this kind, the
audio/telephone must detect a cel-
lular network.
If you have not signed the speciic
PEUGEOT contract, the parameters
of the SOS button are set so that a
call is made to 112 - unique number
made available by the worldwide
GSM network, reserved for emer-
gency calls.
No security mode is required and,
depending on the network or country,
you do not need to insert your SIM
card or enter your PIN.
If you have signed the speciic
PEUGEOT contract, your call will
be located and you will be put in
contact with a PEUGEOT assist-
ance team.
For further details, refer to the gen-
eral conditions of your contract. "PEUGEOT Assistance"/
Emergency call
During a connection to "PEUGOT
Assistance" or an emergency call,
it is not possible to send or receive
calls or SMS text messages; these
will be transferred to your voice
mail.
In this case, a green diode lashes
on the RT3 GPS audio/telephone
panel, when the emergency call or
"PEUGEOT Assistance" call pro-
cedure begins, then lights continu-
ously when the call is taken by the
services concerned.
* If option and service available.
"Customer Contact Centre"
which
enables you to contact the PEUGEOT
Customer Contact Centre directly
and access the services offered (this
type of call is suspended if an emer-
gency or breakown call is made).
"PEUGEOT Assistance" which
enables you to contact the call cen-
tre which controls the PEUGEOT
breakdown service directly and
receive rapid assistance (you have
6 seconds within which to cancel
the call when it is made). During the
breakdown call phase it is not pos-
sible to make any other calls with the
exception of emergency calls. If you
have signed the speciic PEUGEOT
contract, your call will be located.
"Operator services" which gives
access to the list of services spe-
ciic to your operator (e.g.: customer
service, consumption monitoring,
news, stock market, weather, travel,
games, etc) if they are available.

64 -Audio equipment and telematics
01-10-2005
65
-Audio equipment and telematics
01-10-2005
The Directory
General
The directory can contain up to 396
iles divided into 4 independent sub-
directories (
"User 1", "User 2" ,
"User 3" and "User 4" ).
When the system is delivered, the
default current directory is "User 4".
A ile can contain:
- an address,
- 5 telephone numbers,
- 5 e-mails,
- a note,
- a voice description which can be used for a voice command.
The address is entered by indicating
the town and the street.
Note: if you enter the address in the
absence of the navigation CD ROM,
you will not be able to use this ad-
dress for navigation. To modify an existing ile, select it us-
ing the
"Consult or modify a ile"
function of the "Management of di-
rectory iles" menu then make the
modiications.
Note: when the address is entered,
the navigation CD-Rom must be
present in order to obtain guidance
to this destination.

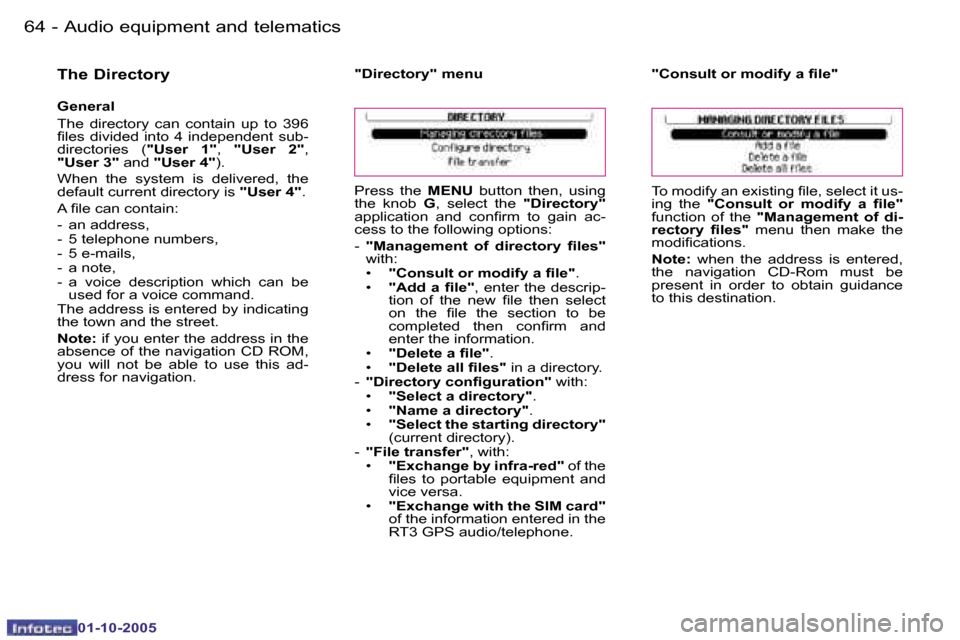

"Directory" menu
Press the
MENU button then, using
the knob G, select the "Directory"
application and conirm to gain ac-
cess to the following options:
- "Management of directory iles"
with:
• "Consult or modify a ile" .
• "Add a ile" , enter the descrip-
tion of the new ile then select
on the ile the section to be
completed then conirm and
enter the information.
• "Delete a ile" .
• "Delete all iles" in a directory.
- "Directory coniguration" with:
• "Select a directory" .
• "Name a directory" .
• "Select the starting directory"
(current directory).
- "File transfer" , with:
• "Exchange by infra-red" of the
iles to portable equipment and
vice versa.
• "Exchange with the SIM card"
of the information entered in the
RT3 GPS audio/telephone.
"Consult or modify a ile"

64 -Audio equipment and telematics
01-10-2005
65
-Audio equipment and telematics
01-10-2005
Description of a directory ile
When a description is linked to a
directory ile, you can record the
description vocally so that it can be
used subsequently for direct access
by voice commands (e.g.:
"Call"
"[Name of the voice description]"
or "Guide to" "[Name of the voice
description]" ).
Select "Consult or modify the ile"
from the "Management of direc-
tory iles" menu to access the screen
which permits entering and recording
of the description.
TMC (Trafic Message Channel)
RDS Trafic Information
You can access information regard-
ing the trafic conditions from the
"Navigation - Trafic Info" menu,
then from the "TMC Trafic Informa-
tion" function (see section "Satellite
navigation system").

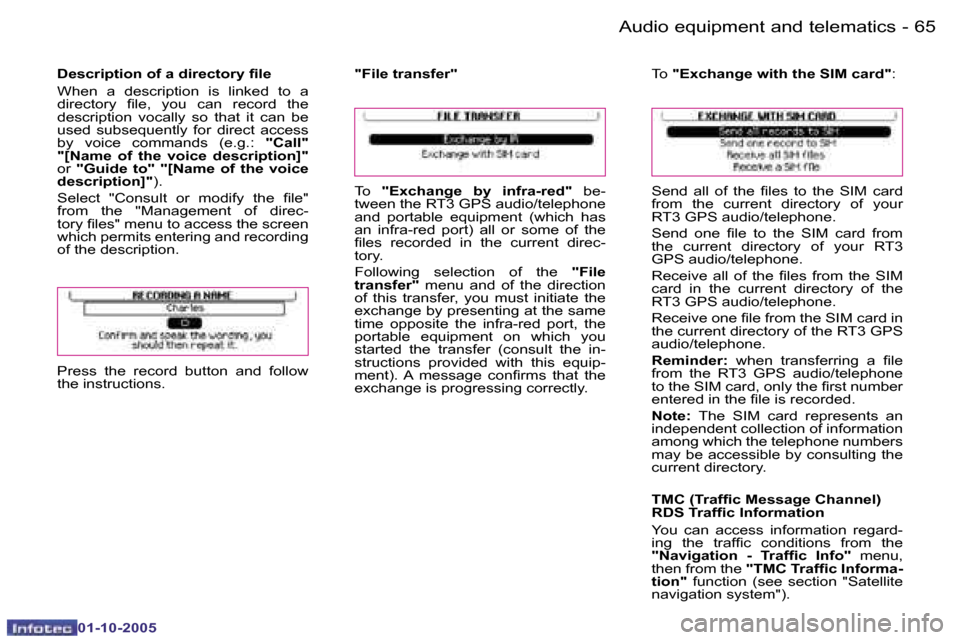

"File transfer"
Press the record button and follow
the instructions. Send all of the iles to the SIM card
from the current directory of your
RT3 GPS audio/telephone.
Send one ile to the SIM card from
the current directory of your RT3
GPS audio/telephone.
Receive all of the iles from the SIM
card in the current directory of the
RT3 GPS audio/telephone.
Receive one ile from the SIM card in
the current directory of the RT3 GPS
audio/telephone.
Reminder:
when transferring a ile
from the RT3 GPS audio/telephone
to the SIM card, only the irst number
entered in the ile is recorded.
Note: The SIM card represents an
independent collection of information
among which the telephone numbers
may be accessible by consulting the
current directory.
To "Exchange by infra-red" be-
tween the RT3 GPS audio/telephone
and portable equipment (which has
an infra-red port) all or some of the
iles recorded in the current direc-
tory.
Following selection of the "File
transfer" menu and of the direction
of this transfer, you must initiate the
exchange by presenting at the same
time opposite the infra-red port, the
portable equipment on which you
started the transfer (consult the in-
structions provided with this equip-
ment). A message conirms that the
exchange is progressing correctly.
To "Exchange with the SIM card" :

66 -Audio equipment and telematics
01-10-2005
67
-Audio equipment and telematics
01-10-2005

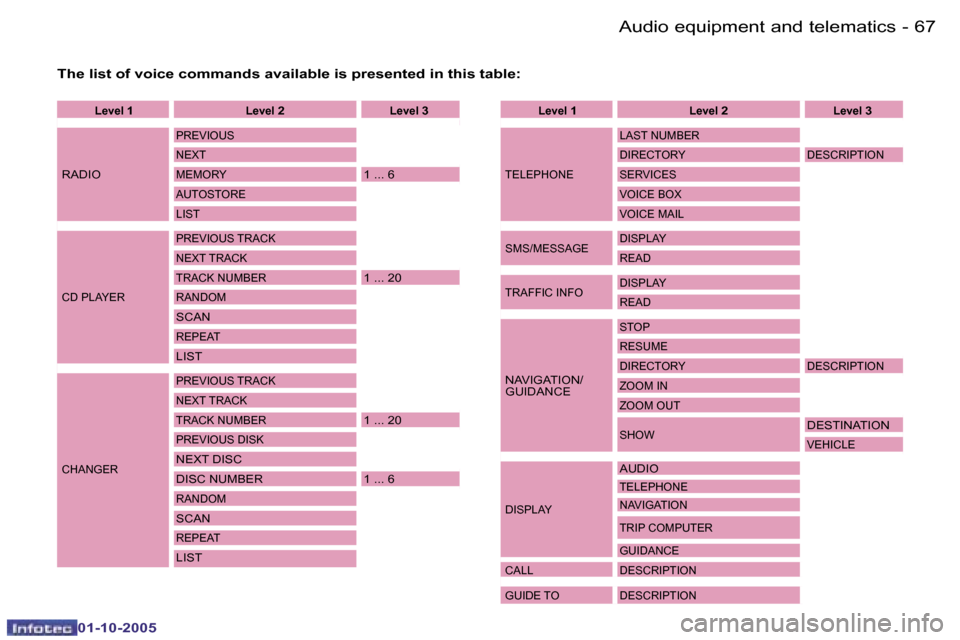

VOICE COMMANDS
The voice commands make it pos-
sible to use pre-recorded words or
phrases to control a certain number
of functions of the RT3 GPS audio/
telephone.
They are organised in three levels
(levels 1, 2 and 3).
When you say a level 1 command,
the system makes the level 2 com-
mands available; when you say a
level 2 command, the system makes
the level 3 commands available.
Pressing the
"MENU" button for
more than 2 seconds permits access
to the "list of voice commands" .

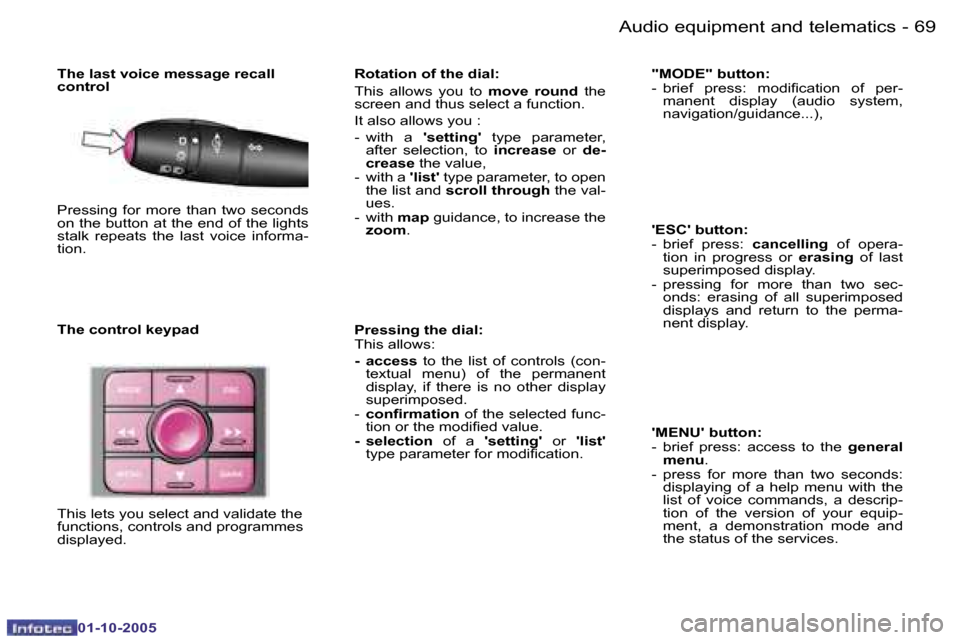

Activation of the voice
commands

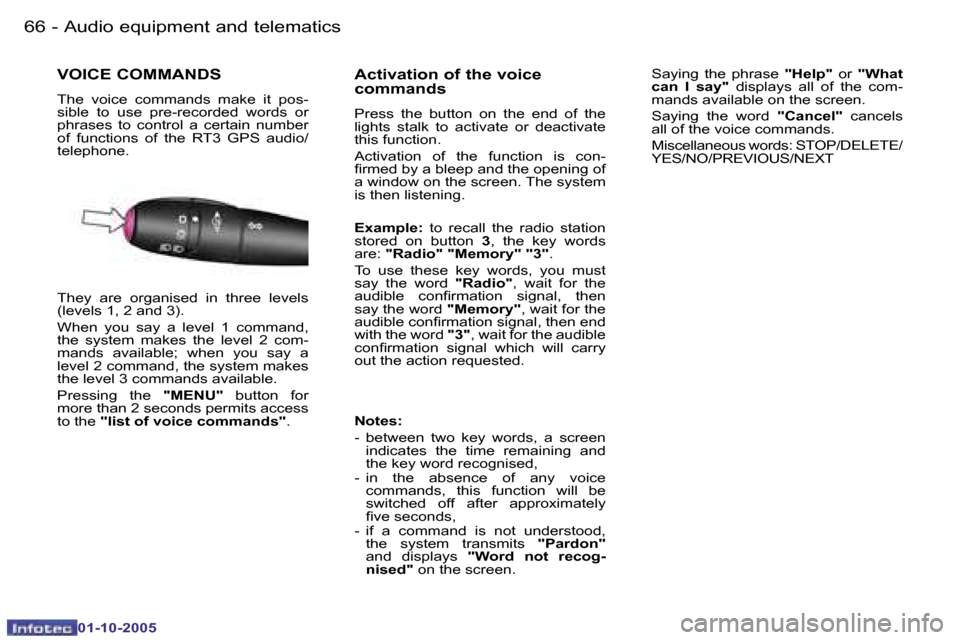

Press the button on the end of the
lights stalk to activate or deactivate
this function.
Activation of the function is con-
irmed by a bleep and the opening of
a window on the screen. The system
is then listening.
Example: to recall the radio station
stored on button 3, the key words
are: "Radio" "Memory" "3" .
To use these key words, you must
say the word "Radio", wait for the
audible conirmation signal, then
say the word "Memory", wait for the
audible conirmation signal, then end
with the word "3", wait for the audible
conirmation signal which will carry
out the action requested. Saying the phrase
"Help" or "What
can I say" displays all of the com-
mands available on the screen.
Saying the word "Cancel" cancels
all of the voice commands.
Miscellaneous words: STOP/DELETE/
YES/NO/PREVIOUS/NEXT
Notes:
- between two key words, a screen indicates the time remaining and
the key word recognised,
- in the absence of any voice commands, this function will be
switched off after approximately
ive seconds,
- if a command is not understood, the system transmits "Pardon"
and displays "Word not recog-
nised" on the screen.

66 -Audio equipment and telematics
01-10-2005
67
-Audio equipment and telematics
01-10-2005
Level 1Level 2Level 3
RADIO
PREVIOUS
NEXT
MEMORY
1 ... 6
AUTOSTORE
LIST
CD PLAYER PREVIOUS TRACK
NEXT TRACK
TRACK NUMBER
1 ... 20
RANDOM
SCAN
REPEAT
LIST
CHANGERPREVIOUS TRACK
NEXT TRACK
TRACK NUMBER
1 ... 20
PREVIOUS DISK
NEXT DISC
DISC NUMBER 1 ... 6
RANDOM
SCAN
REPEAT
LIST
Level 1Level 2Level 3
TELEPHONE
LAST NUMBER
DIRECTORY DESCRIPTION
SERVICES
VOICE BOX
VOICE MAIL
SMS/MESSAGE DISPLAY
READ
TRAFFIC INFO DISPLAY
READ
NAVIGATION/
GUIDANCE
STOP
RESUME
DIRECTORY DESCRIPTION
ZOOM IN
ZOOM OUT
SHOW
DESTINATION
VEHICLE
DISPLAY
AUDIO
TELEPHONE
NAVIGATION
TRIP COMPUTER
GUIDANCE
CALL DESCRIPTION
GUIDE TO DESCRIPTION
The list of voice commands available is presented in th is table:

68 -Audio equipment and telematics
01-10-2005
69
-Audio equipment and telematics
01-10-2005
SATELLITE NAVIGATION
SYSTEM
Initialisation
When the navigation is used for the
irst time, or if the battery is discon-
nected, the navigation system must
be initialised.
To do this, park the vehicle in the
open so that it can make contact with
a satellite then turn the ignition key
to the
Running position for ifteen
minutes.
Certain functions or services de-
scribed may vary depending on the
version of CD ROM or the country
where the vehicle is sold.
For safety reasons, the in-
putting of navigation infor-
mation by the driver must
be carried out when the
vehicle is stationary.The CD ROM drive
This is
part of the RT3 GPS audio/
telephone.
1. CD ROM ejection button.
2. CD ROM drive.
This contains all the map data.
It must be inserted in the drive, print-
ed face upwards.
Use only CD ROMs approved by
PEUGEOT.
The navigation CD ROM
The system uses the following ele-
ments:
- A CD ROM drive.
- A last voice message recall control
- during navigation, a long press on
the end of the lights stalk repeats
the last spoken information.
- Map data in the form of a CD ROM which must be inserted in the drive
printed side up.
- A coniguration CD ROM, required in order to change the voice syn-
thesiser voice (female or male) or
the language used by the system.
- A voice synthesiser which utters the manoeuvre instructions during
navigation.
- A screen.
- A GPS aerial.
- Controls on the panel and at the steering wheel.
Introduction
The satellite navigation system
guides you, by means of vocal and
visual instructions (graphics), to
your chosen destination.
The heart of the system lies in the
use of a map data base and GPS
(Global Positioning System) . With
this system you can ix the position
of your vehicle by means of a satel-
lite network.

68 -Audio equipment and telematics
01-10-2005
69
-Audio equipment and telematics
01-10-2005
The last voice message recall
control
Pressing for more than two seconds
on the button at the end of the lights
stalk repeats the last voice informa-
tion.
The control keypad Rotation of the dial:
This allows you to
move round the
screen and thus select a function.
It also allows you :
- with a 'setting' type parameter,
after selection, to increase or de-
crease the value,
- with a 'list' type parameter, to open
the list and scroll through the val-
ues.
- with map guidance, to increase the
zoom .
Pressing the dial:
This allows:
- access to the list of controls (con-
textual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected func-
tion or the modiied value.
- selection of a 'setting' or 'list'
type parameter for modiication. 'MENU' button:
- brief press: access to the
general
menu .
- press for more than two seconds: displaying of a help menu with the
list of voice commands, a descrip-
tion of the version of your equip-
ment, a demonstration mode and
the status of the services.
"MODE"
button:
- brief press: modiication of per- manent display (audio system,
navigation/guidance...),
'ESC' button:
- brief press: cancelling of opera-
tion in progress or erasing of last
superimposed display.
- pressing for more than two sec- onds: erasing of all superimposed
displays and return to the perma-
nent display.
This lets you select and validate the
functions, controls and programmes
displayed.

70 -Audio equipment and telematics
01-10-2005
71
-Audio equipment and telematics
01-10-2005
General notes on the display
During navigation, if the navigation
CD ROM is present, the screen indi-
cates the manoeuvres to be carried
out:

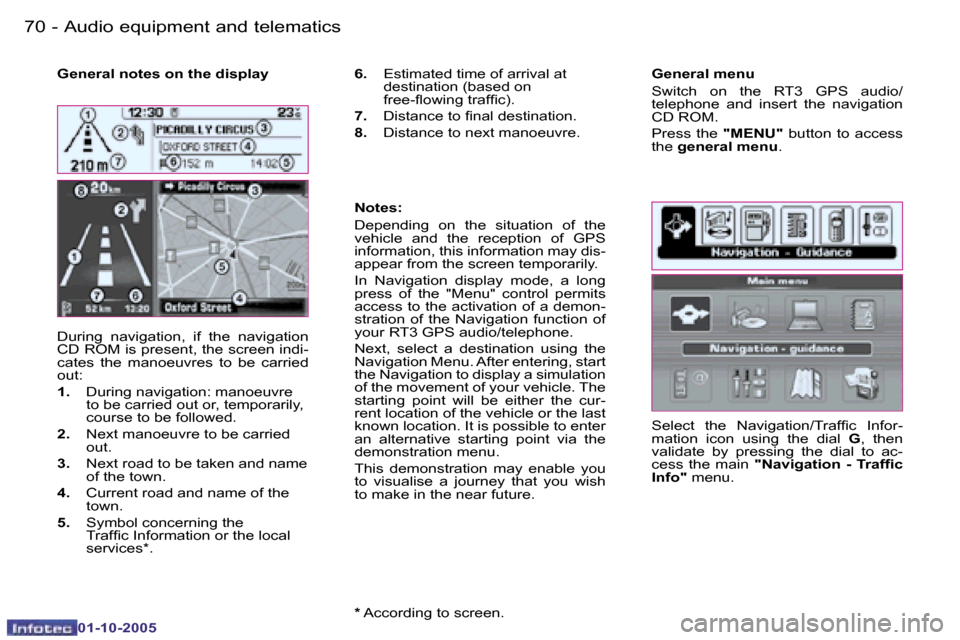

1.
During navigation: manoeuvre
to be carried out or, temporarily,
course to be followed.
2. Next manoeuvre to be carried
out.
3. Next road to be taken and name
of the town.
4. Current road and name of the
town.
5. Symbol concerning the
Trafic Information or the local
services*. General menu
Switch on the RT3 GPS audio/
telephone and insert the navigation
CD ROM.
Press the
"MENU" button to access
the general menu .
Select the Navigation/Trafic Infor-
mation icon using the dial G, then
validate by pressing the dial to ac-
cess the main "Navigation - Trafic
Info" menu.
Notes:
Depending on the situation of the
vehicle and the reception of GPS
information, this information may dis-
appear from the screen temporarily.
In Navigation display mode, a long
press of the "Menu" control permits
access to the activation of a demon-
stration of the Navigation function of
your RT3 GPS audio/telephone.
Next, select a destination using the
Navigation Menu. After entering, start
the Navigation to display a simulation
of the movement of your vehicle. The
starting point will be either the cur-
rent location of the vehicle or the last
known location. It is possible to enter
an alternative starting point via the
demonstration menu.
This demonstration may enable you
to visualise a journey that you wish
to make in the near future.
6.
Estimated time of arrival at
destination (based on
free-lowing trafic).
7. Distance to inal destination.
8. Distance to next manoeuvre.
* According to screen.

70 -Audio equipment and telematics
01-10-2005
71
-Audio equipment and telematics
01-10-2005
The main
"Navigation - Trafic Info"
menu offers various options for acti-
vation or management of guidance:
- "Select a destination".
- "Stages and routes".
- "Guidance options".
- "TMC trafic information".
- "Stop guidance".
Once guidance has been started, a
display warns you about use of the
navigation. If you accept its content,
press G. Observe current road indi-
cations.
Navigation - Trafic Information
The "Select a destination" menu
offers various options for reaching a
destination:
- "Entering an address".
- Select a "service" available in a
town (restaurant, airport, hotel,
cinema, theatre, etc.).
- Select a destination stored in a "di-
rectory".
- Select one of the twenty "previous
destinations".
Selecting a destination
The last guidance address is dis-
played.

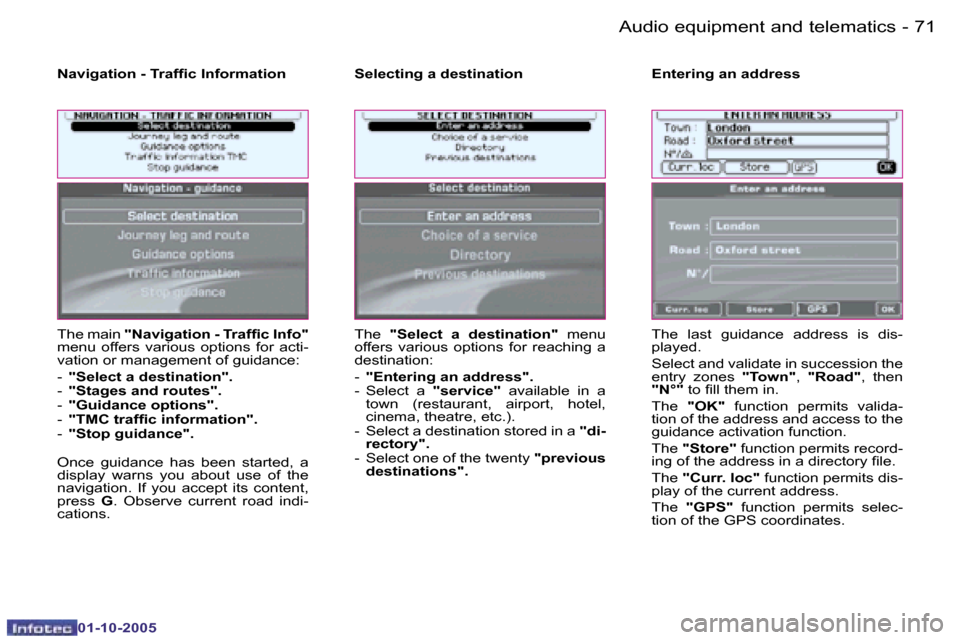

Select and validate in succession the
entry zones "Town", "Road" , then
"N°" to ill them in.
The "OK" function permits valida-
tion of the address and access to the
guidance activation function.
The "Store" function permits record-
ing of the address in a directory ile.
The "Curr. loc" function permits dis-
play of the current address.
The "GPS" function permits selec-
tion of the GPS coordinates.
Entering an address
