Page 15 of 194
1
18
PETROL MANUAL GEARBOX AND "2 TRONIC" GEARBOX INSTRUMENT PANELS
1. Trip distance recorder zero
reset and total/trip distance
recorder display button.
2. Emission control system
warning light.
3. Service warning light.
4. Anti-lock braking system (ABS)
warning light.
5. Electronic stability control
(ESP/ASR) warning light.
6. H a n d b r a k e , b r a k e fl u i d l e v e l
and electronic brake force
distribution warning light.
7. Maximum coolant temperature
warning light.
8. Engine oil pressure warning
light.
9. Punctured wheel warning light.
10. Battery charge warning light.
11. Left direction indicator.
12. Fuel gauge.
13. Low fuel level warning light.
14. Central STOP warning light.
15. Speedometer.
16. Speed limiter/cruise control
indicator light.
17. Service indicator, engine oil
level gauge and total/trip
distance recorder.
18. "2 Tronic" gearbox indicator.
19. Foot on brake warning light
("2 Tronic" gearbox).
20. Rev counter.
21. Right direction indicator.
22. Dipped headlamps indicator
light.
23. Main beam headlamps indicator
light.
24. Front fog lamps indicator light.
25. Rear fog lamp indicator light.
26. Door open warning light.
27. Seat belt not fastened warning
light.
28. Passenger air bag disarmed
warning light.
29. Front, steering column, side and
curtain air bags warning light.
30. Lighting rheostat button.
Page 16 of 194
1
19

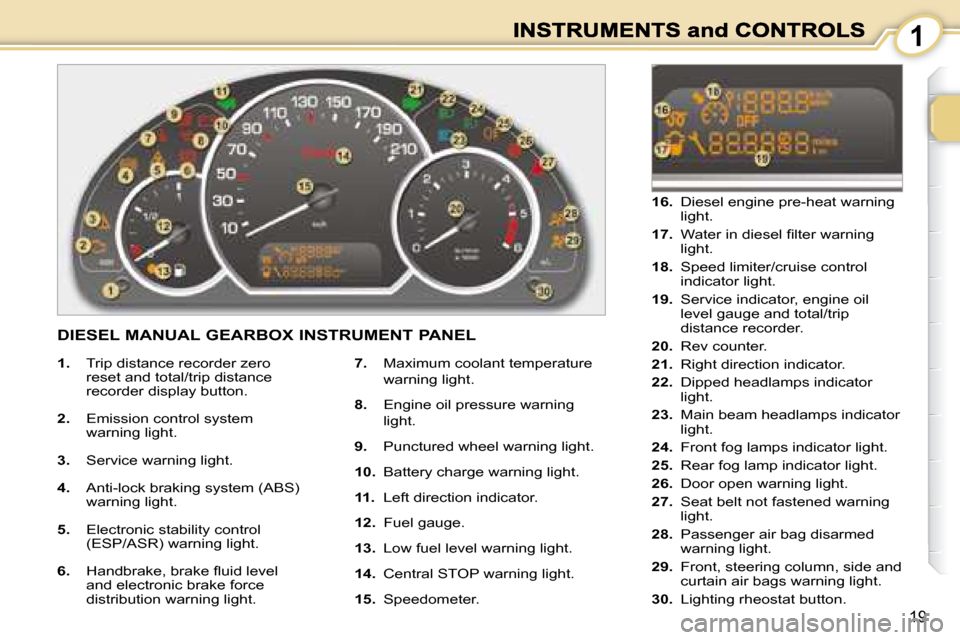

DIESEL MANUAL GEARBOX INSTRUMENT PANEL
1. Trip distance recorder zero
reset and total/trip distance
recorder display button.
2. Emission control system
warning light.
3. Service warning light.
4. Anti-lock braking system (ABS)
warning light.
5. Electronic stability control
(ESP/ASR) warning light.
6. H a n d b r a k e , b r a k e fl u i d l e v e l
and electronic brake force
distribution warning light.
7. Maximum coolant temperature
warning light.
8. Engine oil pressure warning
light.
9. Punctured wheel warning light.
10. Battery charge warning light.
11. Left direction indicator.
12. Fuel gauge.
13. Low fuel level warning light.
14. Central STOP warning light.
15. Speedometer.
16. Diesel engine pre-heat warning
light.
17. W a t e r i n d i e s e l fi l t e r w a r n i n g
light.
18. Speed limiter/cruise control
indicator light.
19. Service indicator, engine oil
level gauge and total/trip
distance recorder.
20. Rev counter.
21. Right direction indicator.
22. Dipped headlamps indicator
light.
23. Main beam headlamps indicator
light.
24. Front fog lamps indicator light.
25. Rear fog lamp indicator light.
26. Door open warning light.
27. Seat belt not fastened warning
light.
28. Passenger air bag disarmed
warning light.
29. Front, steering column, side and
curtain air bags warning light.
30. Lighting rheostat button.
Page 17 of 194
1
20

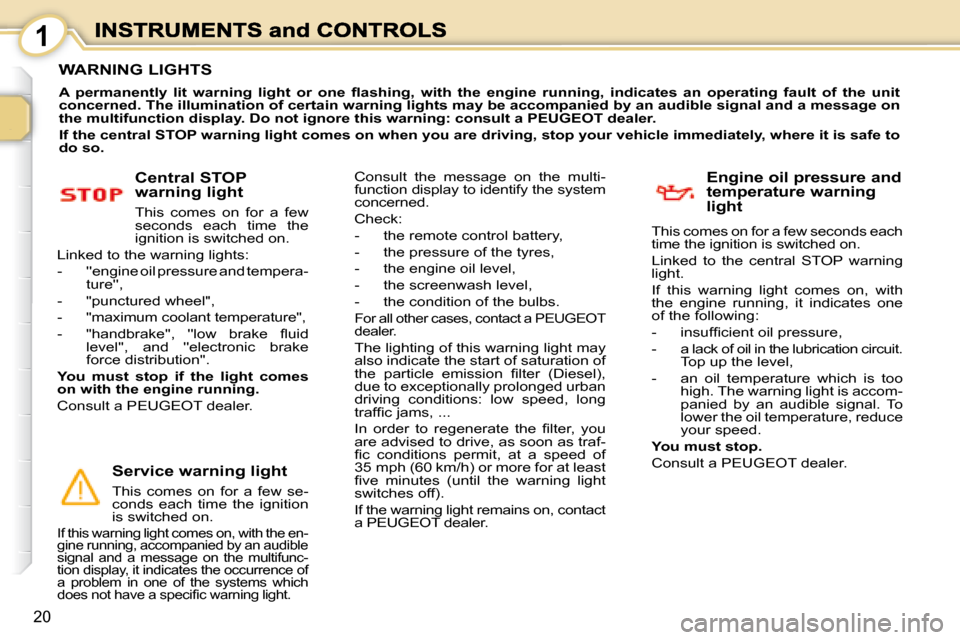

WARNING LIGHTS
A p e r m a n e n t l y l i t w a r n i n g l i g h t o r o n e fl a s h i n g , w i t h t h e e n g i n e r u n n i n g , i n d i c a t e s a n o p e r a t i n g f a u l t o f t h e u n i t
c o n c e r n e d . T h e i l l u m i n a t i o n o f c e r t a i n w a r n i n g l i g h t s m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n
t h e m u l t i f u n c t i o n d i s p l a y . D o n o t i g n o r e t h i s w a r n i n g : c o n s u l t a
PEUGEOT dealer.
I f t h e c e n t r a l S T O P w a r n i n g l i g h t c o m e s o n w h e n y o u a r e d r i v i n g , s t o p y o u r v e h i c l e i m m e d i a t e l y , w h e r e i t i s s a f e t o
d o s o .
Central STOP
warning light
This comes on for a few
seconds each time the
ignition is switched on.
Linked to the warning lights:
- ''engine oil pressure and tempera- ture'',
- "punctured wheel",
- "maximum coolant temperature",
- " h a n d b r a k e ' ' , ' ' l o w b r a k e fl u i d level'', and ''electronic brake
force distribution''.
Y o u m u s t s t o p i f t h e l i g h t c o m e s
o n w i t h t h e e n g i n e r u n n i n g .
Consult a PEUGEOT dealer. E n g i n e o i l p r e s s u r e a n d
t e m p e r a t u r e w a r n i n g
light
This comes on for a few seconds each
time the ignition is switched on.
Linked to the central STOP warning
light.
If this warning light comes on, with
the engine running, it indicates one
of the following:
- i n s u f fi c i e n t o i l p r e s s u r e ,
- a lack of oil in the lubrication circuit. Top up the level,
- an oil temperature which is too high. The warning light is accom-
panied by an audible signal. To
lower the oil temperature, reduce
your speed.
Y o u m u s t s t o p .
Consult a PEUGEOT dealer.
S e r v i c e w a r n i n g l i g h t
This comes on for a few se-
conds each time the ignition
is switched on.
If this warning light comes on, with the en-
gine running, accompanied by an audible
signal and a message on the multifunc-
tion display, it indicates the occurrence of
a problem in one of the systems which
d o e s n o t h a v e a s p e c i fi c w a r n i n g l i g h t .
Consult the message on the multi-
function display to identify the system
concerned.
Check:
- the remote control battery,
- the pressure of the tyres,
- the engine oil level,
- the screenwash level,
- the condition of the bulbs.
For all other cases, contact a PEUGEOT
dealer.
The lighting of this warning light may
also indicate the start of saturation of
t h e p a r t i c l e e m i s s i o n fi l t e r ( D i e s e l ) ,
due to exceptionally prolonged urban
driving conditions: low speed, long
t r a f fi c j a m s , . . .
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive, as soon as traf-
fi c c o n d i t i o n s p e r m i t , a t a s p e e d o f
35 mph (60 km/h) or more for at least
fi v e m i n u t e s ( u n t i l t h e w a r n i n g l i g h t
switches off).
If the warning light remains on, contact
a PEUGEOT dealer.
Page 121 of 194
8
115

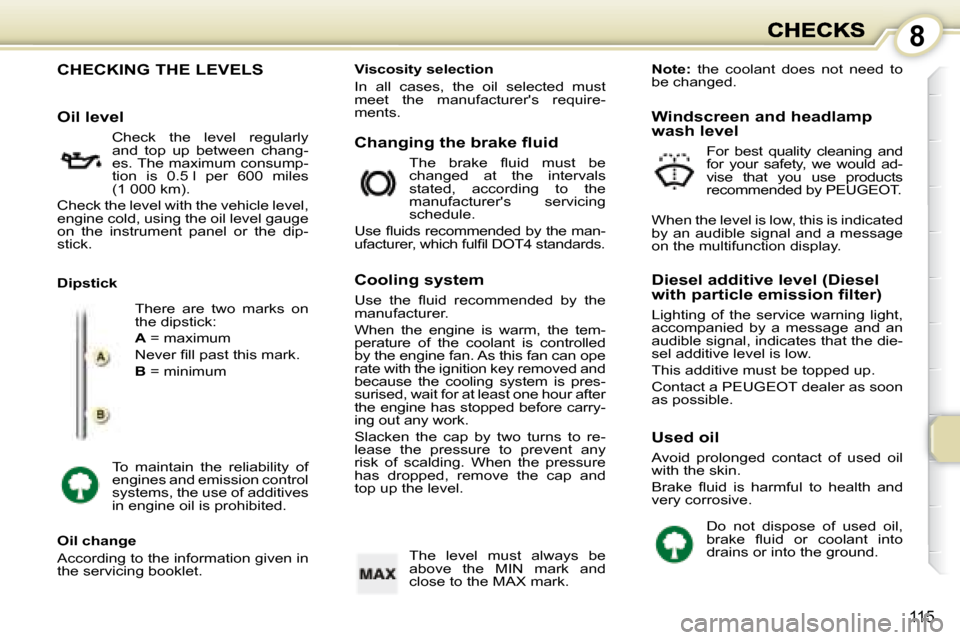

CHECKING THE LEVELS
There are two marks on
the dipstick:
A = maximum
N e v e r fi l l p a s t t h i s m a r k .
B = minimum
Dipstick
Oil change
According to the information given in
the servicing booklet. Changing the brake fluid
T h e b r a k e fl u i d m u s t b e
changed at the intervals
stated, according to the
manufacturer's servicing
schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e m a n -
u f a c t u r e r , w h i c h f u l fi l D O T 4 s t a n d a r d s . Windscreen and headlamp
wash level
For best quality cleaning and
for your safety, we would ad-
vise that you use products
recommended by PEUGEOT .
When the level is low, this is indicated
by an audible signal and a message
on the multifunction display.
Viscosity selection
In all cases, the oil selected must
meet the manufacturer's require-
ments.
Cooling system
U s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
When the engine is warm, the tem-
perature of the coolant is controlled
by the engine fan. As this fan can ope
rate with the ignition key removed and
because the cooling system is pres-
surised, wait for at least one hour after
the engine has stopped before carry-
ing out any work.
Slacken the cap by two turns to re-
lease the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and
top up the level. Diesel additive level (Diesel
with particle emission filter)
Lighting of the service warning light,
accompanied by a message and an
audible signal, indicates that the die-
sel additive level is low.
This additive must be topped up.
Contact a PEUGEOT dealer as soon
as possible.
To maintain the reliability of
engines and emission control
systems, the use of additives
in engine oil is prohibited. Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
Note
: the coolant does not need to
be changed.
The level must always be
above the MIN mark and
close to the MAX mark. Do not dispose of used oil,
b r a k e fl u i d o r c o o l a n t i n t o
drains or into the ground.
Oil level
Check the level regularly
and top up between chang-
es. The maximum consump-
tion is 0.5 l per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the oil level gauge
on the instrument panel or the dip-
stick.
Page 122 of 194
8
116

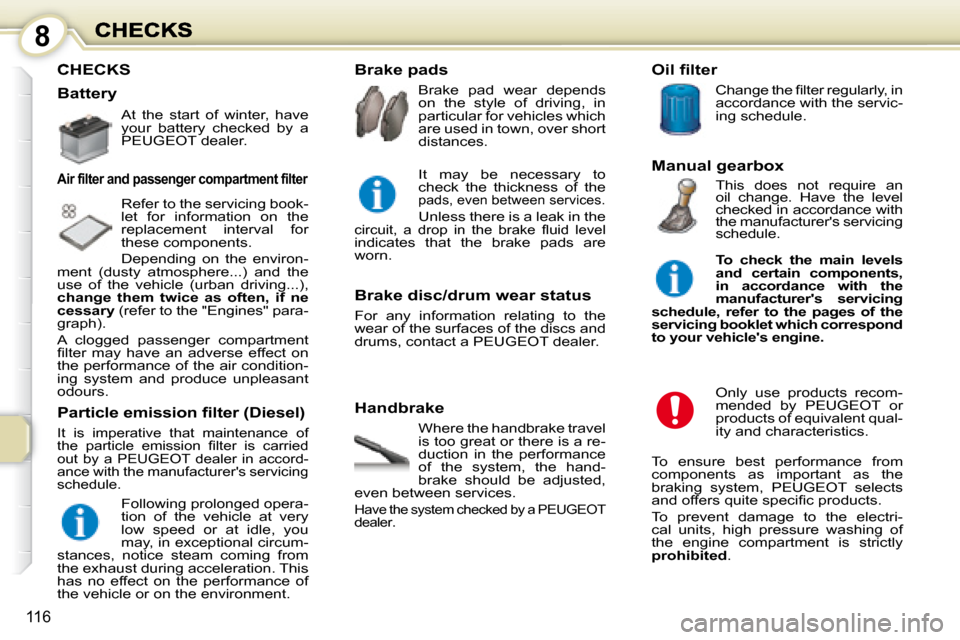

CHECKS
Handbrake Where the handbrake travel
is too great or there is a re-
duction in the performance
of the system, the hand-
brake should be adjusted,
even between services.
H a v e t h e s y s t e m c h e c k e d b y a P E U G E O T
dealer.
Air filter and passenger compartment filter
Particle emission filter (Diesel)
It is imperative that maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d
out by a PEUGEOT dealer in accord-
ance with the manufacturer's servicing
schedule.
Brake pads
Brake pad wear depends
on the style of driving, in
particular for vehicles which
are used in town, over short
distances.
Brake disc/drum wear status
For any information relating to the
wear of the surfaces of the discs and
drums, contact a PEUGEOT dealer. Oil filter
C h a n g e t h e fi l t e r r e g u l a r l y , i n
accordance with the servic-
ing schedule.
It may be necessary to
check the thickness of the
pads, even between services.
Unless there is a leak in the c i r c u i t , a d r o p i n t h e b r a k e fl u i d l e v e l
indicates that the brake pads are
worn.
At the start of winter, have
your battery checked by a
PEUGEOT dealer.
Refer to the servicing book-
let for information on the
replacement interval for
these components.
Depending on the environ-
ment (dusty atmosphere...) and the
use of the vehicle (urban driving...),
change them twice as often, if ne
cessary (refer to the "Engines" para-
graph).
A clogged passenger compartment
fi l t e r m a y h a v e a n a d v e r s e e f f e c t o n
the performance of the air condition-
ing system and produce unpleasant
odours.
Following prolonged opera-
tion of the vehicle at very
low speed or at idle, you
may, in exceptional circum-
stances, notice steam coming from
the exhaust during acceleration. This
has no effect on the performance of
the vehicle or on the environment.
Battery
Manual gearboxThis does not require an
o i l c h a n g e . H a v e t h e l e v e l
checked in accordance with
the manufacturer's servicing
schedule.
Only use products recom-
mended by PEUGEOT or
products of equivalent qual-
ity and characteristics.
To ensure best performance from
components as important as the
braking system, PEUGEOT selects
a n d o f f e r s q u i t e s p e c i fi c p r o d u c t s .
To prevent damage to the electri-
cal units, high pressure washing of
the engine compartment is strictly
prohibited .
To check the main levels
and certain components,
in accordance with the
manufacturer's servicing
schedule, refer to the pages of the
servicing booklet which correspond
to your vehicle's engine.
Page 133 of 194
9
126

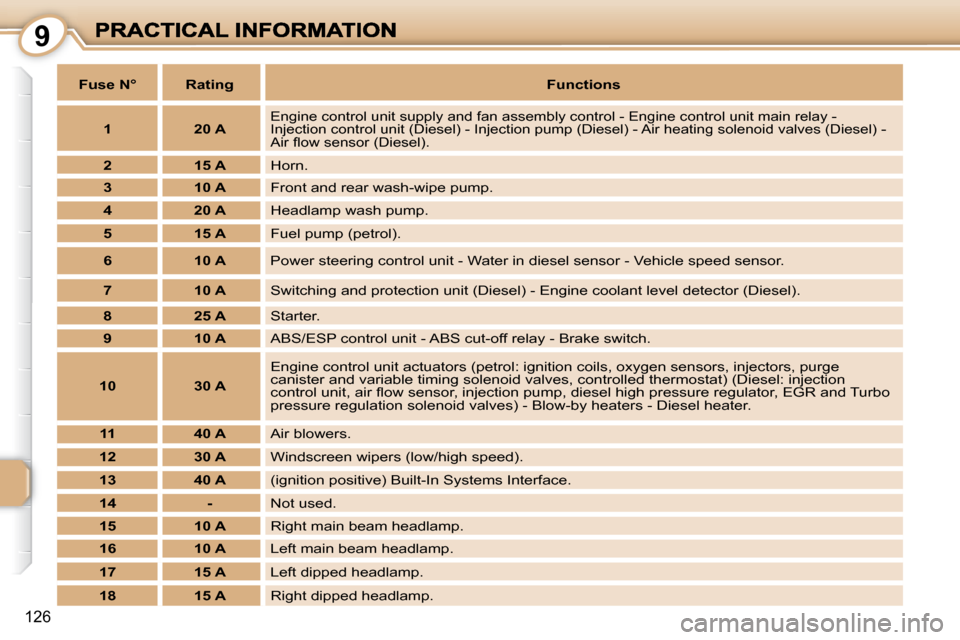

Fuse N°RatingFunctions
120 AEngine control unit supply and fan assembly control - Engine control unit main relay - Injection control unit (Diesel) - Injection pump (Diesel) - Air heating solenoid valves (Diesel) - A i r fl o w s e n s o r ( D i e s e l ) .
215 AHorn.
310 AFront and rear wash-wipe pump.
420 AHeadlamp wash pump.
515 AFuel pump (petrol).
610 APower steering control unit - Water in diesel sensor - Vehicle spe ed sensor.
710 ASwitching and protection unit (Diesel) - Engine coolant level detector (Diesel).
825 AStarter.
910 AABS/ESP control unit - ABS cut-off relay - Brake switch.
1030 A
Engine control unit actuators (petrol: ignition coils, oxygen se nsors, injectors, purge canister and variable timing solenoid valves, controlled thermosta t) (Diesel: injection c o n t r o l u n i t , a i r fl o w s e n s o r , i n j e c t i o n p u m p , d i e s e l h i g h p r e s s u r e r e g u l a t o r , E G R a n d T u r b o pressure regulation solenoid valves) - Blow-by heaters - Diesel heate r.
1140 AAir blowers.
1230 AWindscreen wipers (low/high speed).
1340 A(ignition positive) Built-In Systems Interface.
14-Not used.
1510 ARight main beam headlamp.
1610 ALeft main beam headlamp.
1715 ALeft dipped headlamp.
1815 ARight dipped headlamp.
