PEUGEOT 106 2001 Owners Manual

TECHNICAL DATA94
PETROL
Models model codes 1CHFF
1AHFF 1CKFW 1CNFXF
1SHFF 1AKFW
Engines HFX KFW NFX
Capacity (cm 3
)1 124 1360 1587
Bore x stroke (mm) 72 x 69 75 x 77 78,5 x 82 Maximum power EU standard (Kw) 44,1 55 87
Maximum power at (rpm) 5500 5500 6600
Maximum power EU standard (Nm) 94 120 145
Maximum torque at (rpm) 3500 3400 5200
Fuel Unleaded Unleaded UnleadedCatalytic converter YES YES YES
GearboxManual (5 gears) Manual (5 gears) Manual (5 gears)
Unit capacities (in litres)
Engine (with/without Þlter change) 2,9 / 3,0 2,9 / 3,0 2,9 / 3,2Gearbox - Þnal drive 2 2 2
Fuel tank 45 45 45
Data
06-05-2002

TECHNICAL DATA95
DIESEL
Models 1CVJXF
model codes 1AVJXF
1SVJXF
Engines VJX
Capacity (cm 3
) 1527
Bore x stroke (mm) 77 x 82
Maximum power EU standard (Kw) 42
Maximum power at (rpm) 5000
Maximum power EU standard (Nm) 95
Maximum torque at (rpm) 2250
Fuel Diesel
Catalytic converter (1)
GearboxManual(5 gears)
Unit capacities (in litres) Engine (with/without Þlter change) 4,25 / 4,50
Gearbox - Þnal drive 2,4
Fuel tank 45
Data
(1) According to country
06-05-2002

TECHNICAL DATA96
According to current directive. MPG (litres/100km)
Engine Gearbox Model code Urban Out-of-town Mixed CO21C..., 1A..., 1S...driving driving drivingemission weight
1124 cm 3
MA/5 HFX 35.3 (8.0) 56.5 (5.0) 46.3 (6.1) 145
1360 cm3
MA/5 KFWF 34.4 (8.2) 56.5 (5.0) 45.6 (6.2) 148
1360 cm3
(spo rt) MA/5 KFWU 33.6 (8.4) 54.3 (5.2) 44.1 (6.4) 152
MA/5 NFXF 22.4 (12.6) 45.6 (6.2) 33.2 (8.5) 201
1527 cm3
Diesel MA/5 VJX 41.5 (6.8) 65.7 (4.3) 54.3 (5.2) 138
Fuel consumption
1587 cm3
16 valves
Fuel consumption Þgures correct at the time of printing.
06-05-2002

TECHNICAL DATA97
3 DOOR HATCHBACK
Model codes: 1 C... HFF KFW NFXF VJXF
¥ Kerb weight 815 815 950 875
¥ Maximum vehicle weight 1295 1315 1386 1375
¥ Gross train weight (GTW) 1945 2015 1886 2075
¥ Unbraked trailer 400 400 400 400
¥ Braked trailer (within the GTW limit) 650 700 700 700
Loads and towing weights (in kg)
5 DOOR HATCHBACK
Model codes: 1 A... HFF KFW VJXF
¥ Kerb weight 835 835 895
¥ Maximum vehicle weight 1315 1335 1395
¥ Gross train weight (GTW) 1965 2035 2095
¥ Unbraked trailer 400 400 400
¥ Braked trailer (within the GTW limit) 650 700 700
VA N
Model codes: 1 S... HFF VJXF
¥ Kerb weight 800 860
¥ Maximum vehicle weight 1295 1375
¥ Gross train weight (GTW) 1945 2075
¥ Unbraked trailer 400 400
¥ Braked trailer (within the GTW limit) 650 700
06-05-2002

TECHNICAL DATA98
1370
23853678
563
730
1588
5 door
Dimensions and sizes (3 and 5 door)
1305
1376
3 door
06-05-2002

TECHNICAL DATA99

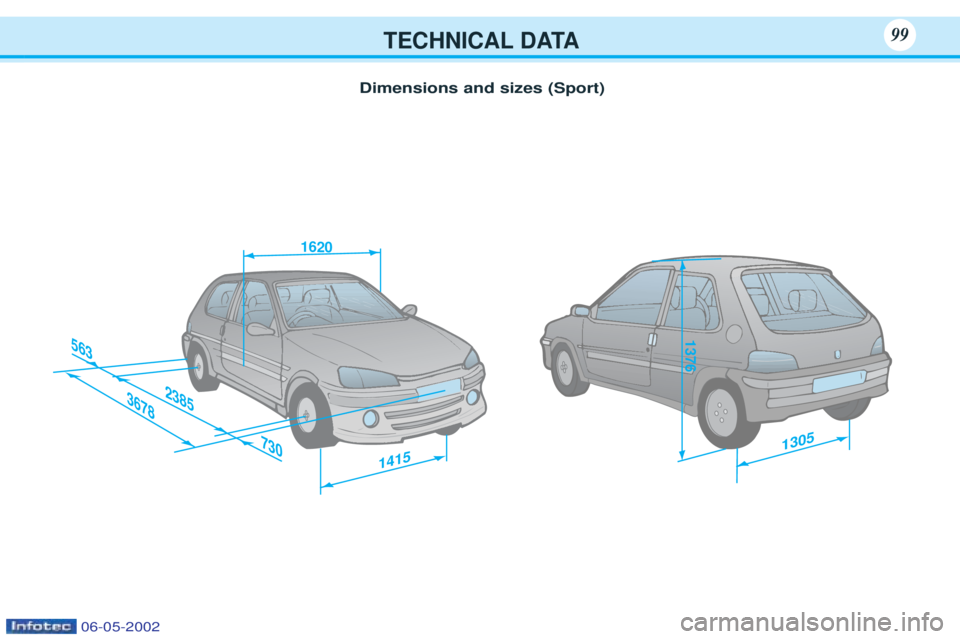

Dimensions and sizes (Sport)
1415
23853678
563
730
1620
1305
1376
06-05-2002

TECHNICAL DATA100

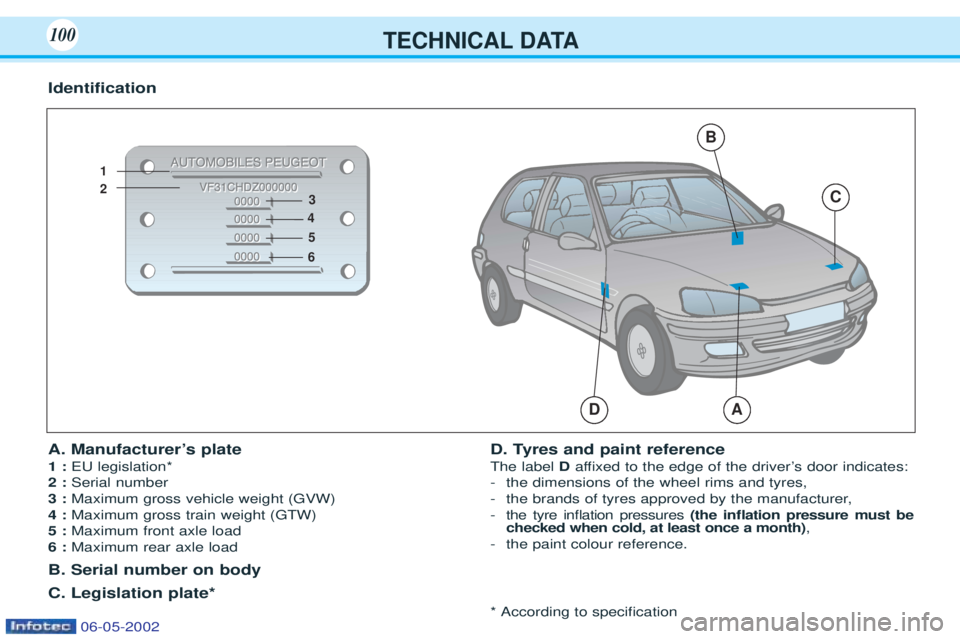

A. Manufacturer’s plate 1 : EU legislation*
2 : Serial number
3 : Maximum gross vehicle weight (GVW)
4 : Maximum gross train weight (GTW)
5 : Maximum front axle load
6 : Maximum rear axle load
B. Serial number on body C. Legislation plate* D. Tyres and paint reference The label
DafÞxed to the edge of the driverÕs door indicates:
- the dimensions of the wheel rims and tyres,
- the brands of tyres approved by the manufacturer,
- the tyre inßation pressures (the inflation pressure must be
checked when cold, at least once a month) ,
- the paint colour reference.
* According to speciÞcation
Identi
fication
1
23
4
5
6C
DA
B
