CHECKS

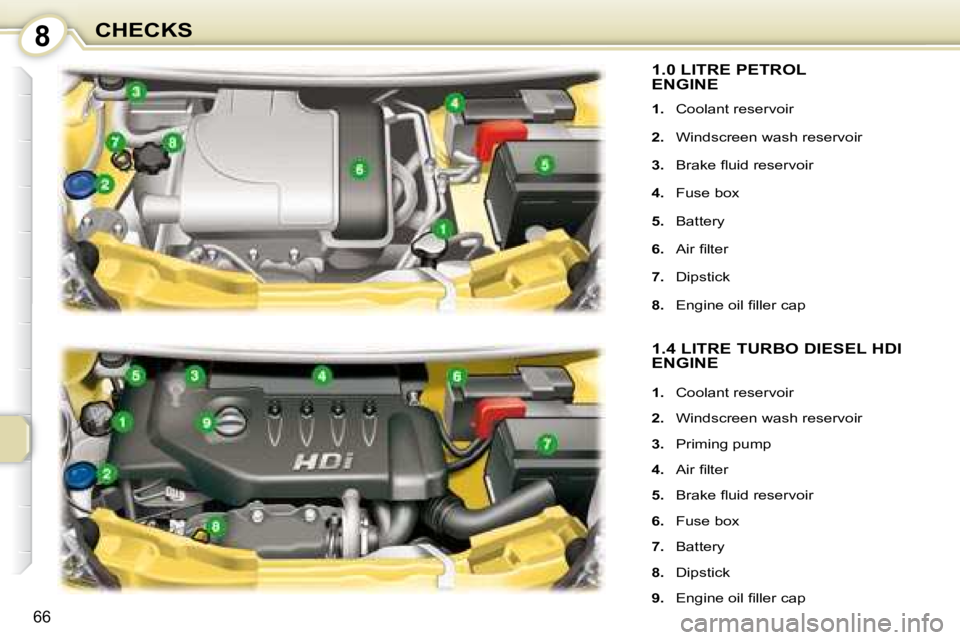

1.0 LITRE PETROL
ENGINE

1. Coolant reservoir

2. Windscreen wash reservoir

3. Brake fl uid reservoir

4. Fuse box

5. Battery

6. Air fi lter

7. Dipstick

8. Engine oil fi ller cap
1.4 LITRE TURBO DIESEL HDI
ENGINE

1. Coolant reservoir

2. Windscreen wash reservoir

3. Priming pump

4. Air fi lter

5. Brake fl uid reservoir

6. Fuse box

7. Battery

8. Dipstick

9. Engine oil fi ller cap

8
67
CHECKS

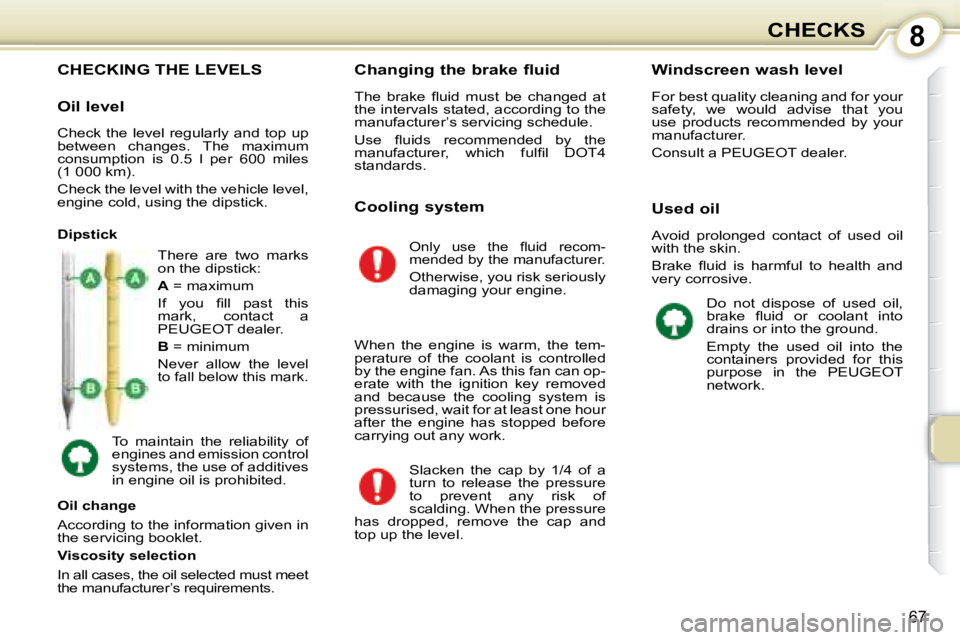

CHECKING THE LEVELS
There are two marks
on the dipstick:

A = maximum
If you fi ll past this
mark, contact a
PEUGEOT dealer.

B = minimum

Never allow the level
to fall below this mark.
Dipstick
Oil change
According to the information given in
the servicing booklet. Changing the brake fluid
The brake fl uid must be changed at
the intervals stated, according to the
manufacturer’s servicing schedule.
Use fl uids recommended by the
manufacturer, which fulfi l DOT4
standards.
Windscreen wash level
For best quality cleaning and for your
safety, we would advise that you
use products recommended by your
manufacturer.
Consult a PEUGEOT dealer.
Viscosity selection
In all cases, the oil selected must meet
the manufacturer’s requirements. Cooling system
Used oil
Avoid prolonged contact of used oil
with the skin.
Brake fl uid is harmful to health and
very corrosive.
To maintain the reliability of
engines and emission control
systems, the use of additives
in engine oil is prohibited. Slacken the cap by 1/4 of a
turn to release the pressure
to prevent any risk of
scalding. When the pressure
has dropped, remove the cap and
top up the level. Only use the fl uid recom-
mended by the manufacturer.
Otherwise, you risk seriously
damaging your engine.
Do not dispose of used oil,
brake fl uid or coolant into
drains or into the ground.
Empty the used oil into the
containers provided for this
purpose in the PEUGEOT
network.
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 l per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
When the engine is warm, the tem-
perature of the coolant is controlled
by the engine fan. As this fan can op-
erate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.

8
68
CHECKS

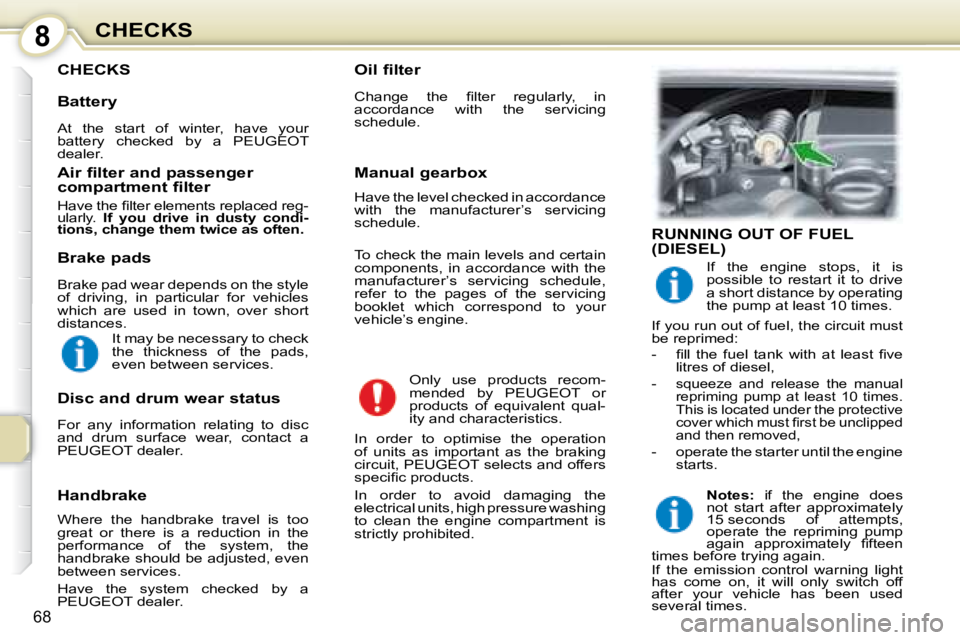

CHECKS Oil filter
Change the fi lter regularly, in
accordance with the servicing
schedule. Only use products recom-
mended by PEUGEOT or
products of equivalent qual-
ity and characteristics.
In order to optimise the operation
of units as important as the braking
circuit, PEUGEOT selects and offers
specifi c products.
In order to avoid damaging the
electrical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
To check the main levels and certain
components, in accordance with the
manufacturer’s servicing schedule,
refer to the pages of the servicing
booklet which correspond to your
vehicle’s engine.
Battery
At the start of winter, have your
battery checked by a PEUGEOT
dealer.
Air filter and passenger
compartment filter
Have the fi lter elements replaced reg-
ularly.
If you drive in dusty condi-
tions, change them twice as often.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances.
Disc and drum wear status
For any information relating to disc
and drum surface wear, contact a
PEUGEOT dealer. Manual gearbox
Have the level checked in accordance
with the manufacturer’s servicing
schedule.
RUNNING OUT OF FUEL
(DIESEL)
It may be necessary to check
the thickness of the pads,
even between services.
If the engine stops, it is
possible to restart it to drive
a short distance by operating
the pump at least 10 times.
If you run out of fuel, the circuit must
be reprimed:
- fi ll the fuel tank with at least fi ve litres of diesel,
-
squeeze and release the manual
repriming pump at least 10 times.
This is located under the protective
cover which must fi rst be unclipped
and then removed,
- operate the starter until the engine starts.

Notes: if the engine does
not start after approximately
15 seconds of attempts,
operate the repriming pump
again approximately fi fteen
times before trying again.
If the emission control warning light
has come on, it will only switch off
after your vehicle has been used
several times.
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer.

9
69
PRACTICAL INFORMATION

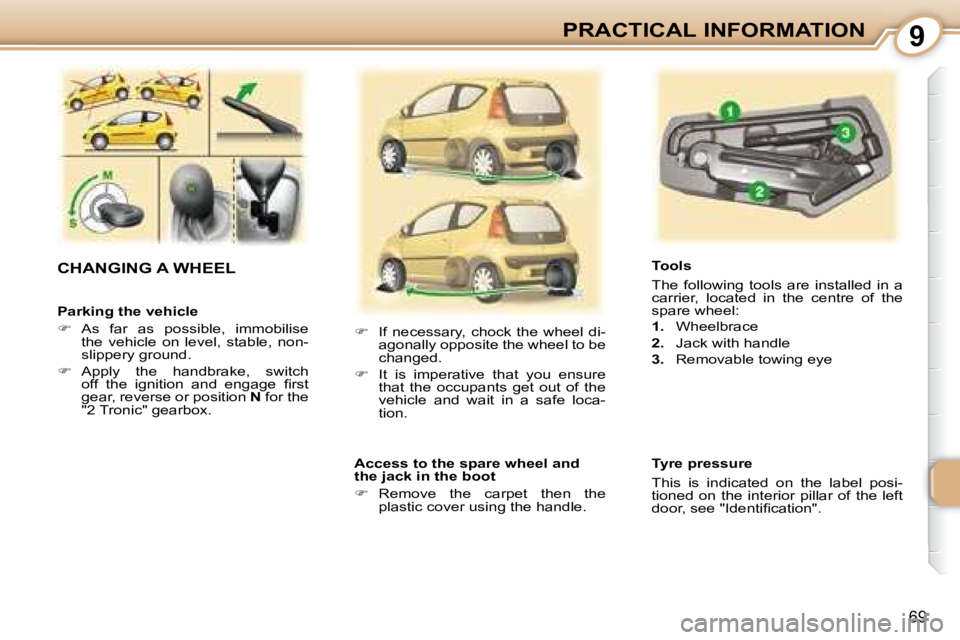

Parking the vehicle

 As far as possible, immobilise
the vehicle on level, stable, non-
slippery ground.

 Apply the handbrake, switch
off the ignition and engage fi rst
gear, reverse or position N for the
"2 Tronic" gearbox. Tools
The following tools are installed in a
carrier, located in the centre of the
spare wheel:

1. Wheelbrace

2. Jack with handle

3. Removable towing eye
Access to the spare wheel and
the jack in the boot

 Remove the carpet then the
plastic cover using the handle. Tyre pressure
This is indicated on the label posi-
tioned on the interior pillar of the left
door, see "Identifi cation".
CHANGING A WHEEL

 If necessary, chock the wheel di-
agonally opposite the wheel to be
changed.

 It is imperative that you ensure
that the occupants get out of the
vehicle and wait in a safe loca-
tion.

9
70

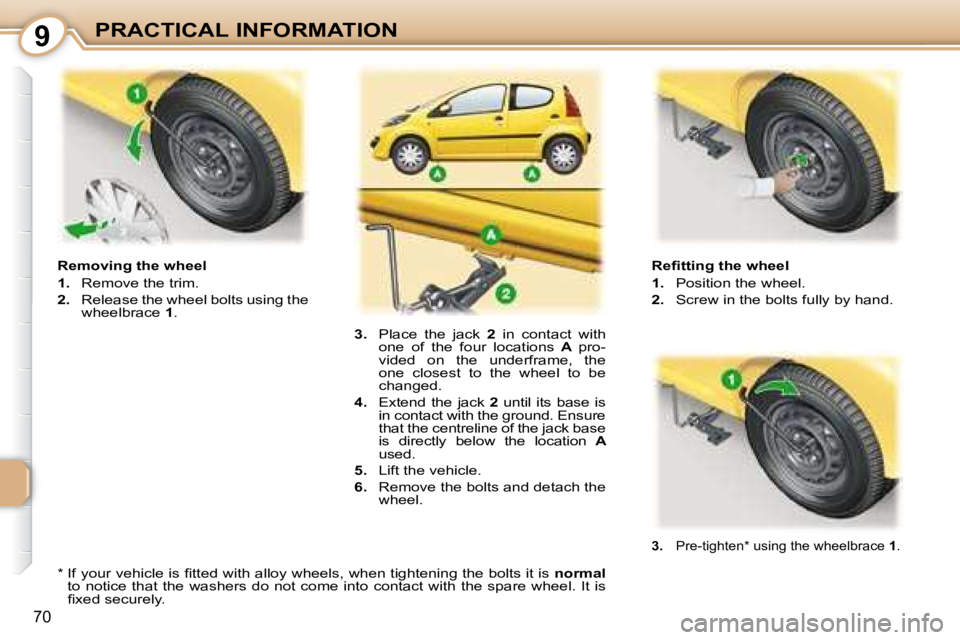

PRACTICAL INFORMATION Refi tting the wheel

1. Position the wheel.

2. Screw in the bolts fully by hand.
Removing the wheel

1. Remove the trim.

2. Release the wheel bolts using the
wheelbrace 1 .

3. Place the jack 2 in contact with
one of the four locations A pro-
vided on the underframe, the
one closest to the wheel to be
changed.

4. Extend the jack 2 until its base is
in contact with the ground. Ensure
that the centreline of the jack base
is directly below the location A
used.

5. Lift the vehicle.

6. Remove the bolts and detach the
wheel.

3. Pre-tighten * using the wheelbrace 1 .
* If your vehicle is fi tted with alloy wheels, when t ightening the bolts it is normal
to notice that the washers do not come into contact with t he spare wheel. It is
fi xed securely.

9
71
PRACTICAL INFORMATION
CHANGING A BULB
1. Side lights (W 5 W)

 Turn the bulb holder A one quarter
of a turn and remove it.

 Remove the bulb and change it.
2. Direction indicators (PY 21 W amber)

 Turn the bulb holder B one quarter
of a turn and remove it.

 Turn the bulb one quarter of a turn.

 Remove the bulb and change it.
If you encounter any diffi culties,
contact a PEUGEOT dealer.

Note: in certain climatic con-
ditions (low temperatures,
humidity), the presence of
condensation on the in-
ternal face of the headlamps is
normal ; it disappears a few minutes
after the lights are switched on.
Never go underneath a vehi-
cle supported only by a jack
(use an axle stand).

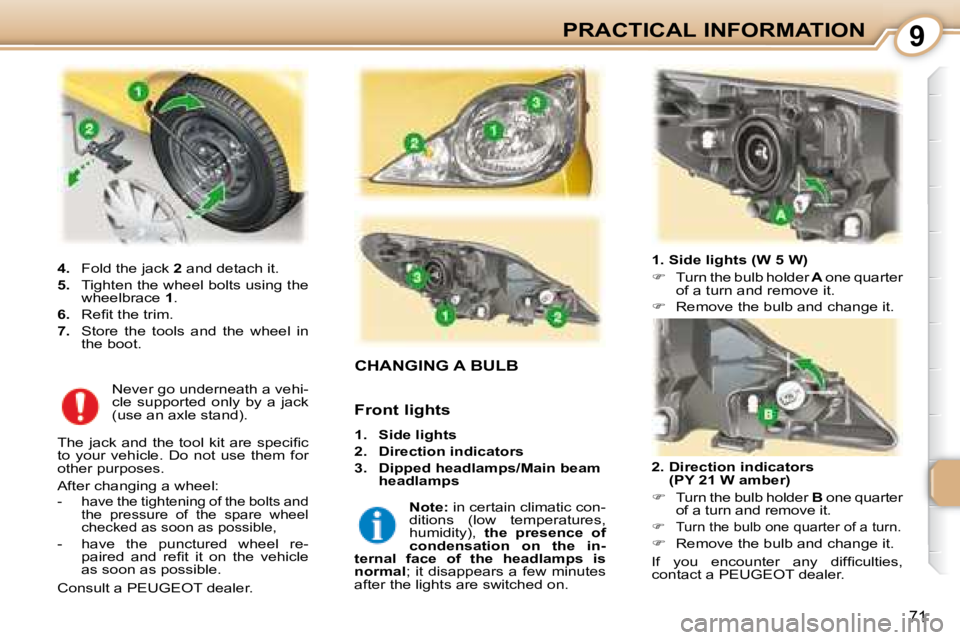

4. Fold the jack 2 and detach it.

5. Tighten the wheel bolts using the
wheelbrace 1 .

6. Refi t the trim.

7. Store the tools and the wheel in
the boot.
The jack and the tool kit are specifi c
to your vehicle. Do not use them for
other purposes.
After changing a wheel:
- have the tightening of the bolts and the pressure of the spare wheel
checked as soon as possible,
- have the punctured wheel re-paired and refi t it on the vehicle
as soon as possible.
Consult a PEUGEOT dealer. Front lights

1. Side lights

2. Direction indicators

3. Dipped headlamps/Main beam
headlamps

9
71
PRACTICAL INFORMATION
CHANGING A BULB
1. Side lights (W 5 W)

 Turn the bulb holder A one quarter
of a turn and remove it.

 Remove the bulb and change it.
2. Direction indicators (PY 21 W amber)

 Turn the bulb holder B one quarter
of a turn and remove it.

 Turn the bulb one quarter of a turn.

 Remove the bulb and change it.
If you encounter any diffi culties,
contact a PEUGEOT dealer.

Note: in certain climatic con-
ditions (low temperatures,
humidity), the presence of
condensation on the in-
ternal face of the headlamps is
normal ; it disappears a few minutes
after the lights are switched on.
Never go underneath a vehi-
cle supported only by a jack
(use an axle stand).

4. Fold the jack 2 and detach it.

5. Tighten the wheel bolts using the
wheelbrace 1 .

6. Refi t the trim.

7. Store the tools and the wheel in
the boot.
The jack and the tool kit are specifi c
to your vehicle. Do not use them for
other purposes.
After changing a wheel:
- have the tightening of the bolts and the pressure of the spare wheel
checked as soon as possible,
- have the punctured wheel re-paired and refi t it on the vehicle
as soon as possible.
Consult a PEUGEOT dealer. Front lights

1. Side lights

2. Direction indicators

3. Dipped headlamps/Main beam
headlamps

9
72
PRACTICAL INFORMATION
3. Dipped headlamps/Main beam headlamps (H4 - 60/55 W)

 Disconnect the connector.

 Remove the rubber C .

 Push the tab D on the side.

 Remove the bulb holder and
change the bulb.

 Refi t the bulb holder, the tab then
the rubber.
If you encounter any diffi culties, con-
tact a PEUGEOT dealer.
Rear lights

1. Brake/side lights
(P21/5 W)

2. Direction indicators
(P21 W)

3. Reversing light (P21 W),
left-hand side
Fog lamp (P21 W),
right-hand side These 3 bulbs are changed by re-
moving the light:

 open the boot,

 unscrew the two light fi xing nuts A ,

 remove the light unit by pulling
outwards,

9
72
PRACTICAL INFORMATION

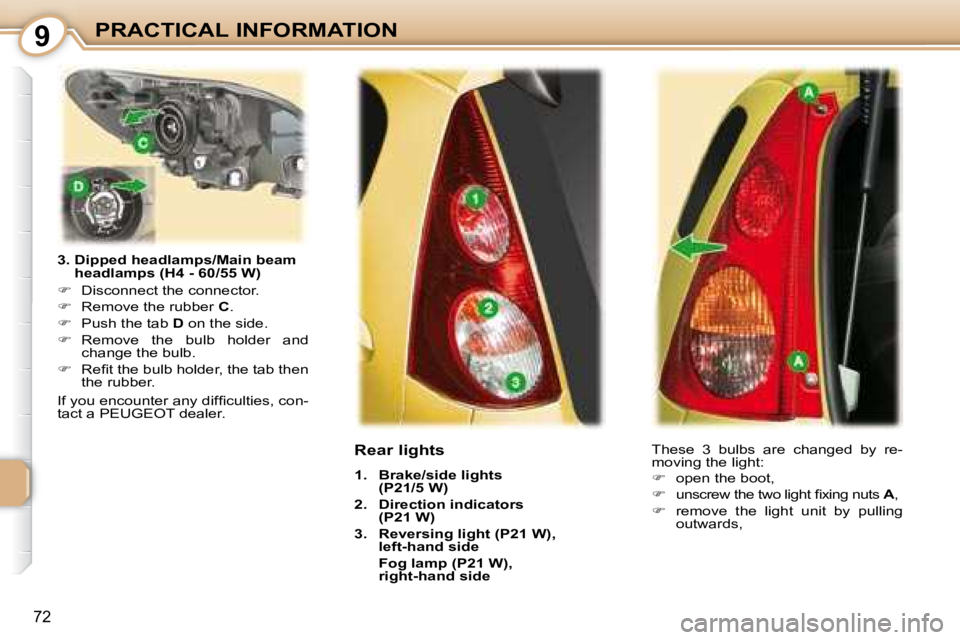

3. Dipped headlamps/Main beam headlamps (H4 - 60/55 W)

 Disconnect the connector.

 Remove the rubber C .

 Push the tab D on the side.

 Remove the bulb holder and
change the bulb.

 Refi t the bulb holder, the tab then
the rubber.
If you encounter any diffi culties, con-
tact a PEUGEOT dealer.
Rear lights

1. Brake/side lights
(P21/5 W)

2. Direction indicators
(P21 W)

3. Reversing light (P21 W),
left-hand side
Fog lamp (P21 W),
right-hand side These 3 bulbs are changed by re-
moving the light:

 open the boot,

 unscrew the two light fi xing nuts A ,

 remove the light unit by pulling
outwards,

9
73

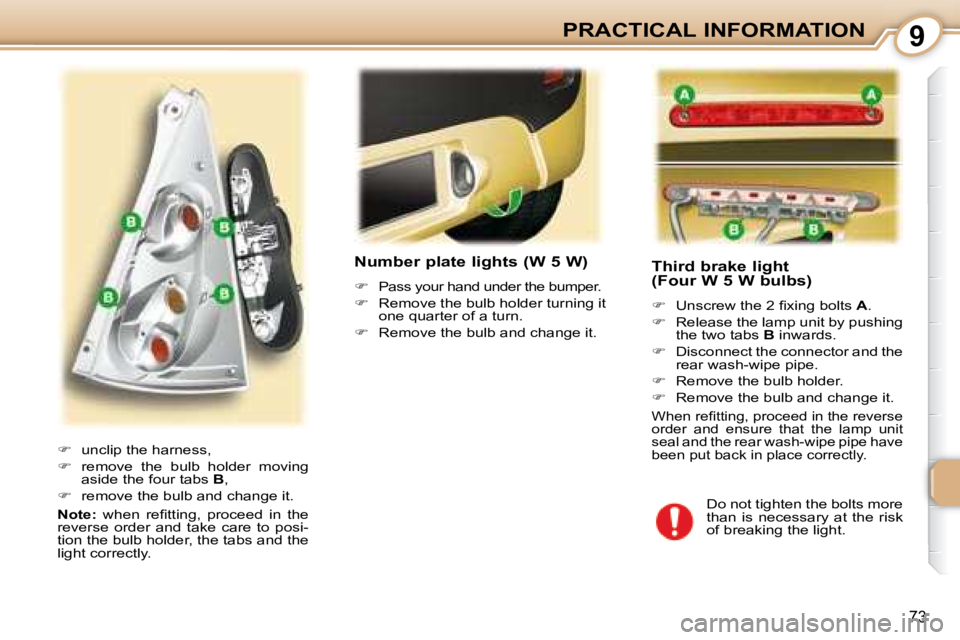

PRACTICAL INFORMATION Third brake light
(Four W 5 W bulbs)

 Unscrew the 2 fi xing bolts A .

 Release the lamp unit by pushing
the two tabs B inwards.

 Disconnect the connector and the
rear wash-wipe pipe.

 Remove the bulb holder.

 Remove the bulb and change it.
When refi tting, proceed in the reverse
order and ensure that the lamp unit
seal and the rear wash-wipe pipe have
been put back in place correctly.
Do not tighten the bolts more
than is necessary at the risk
of breaking the light.
Number plate lights (W 5 W)

 Pass your hand under the bumper.

 Remove the bulb holder turning it
one quarter of a turn.

 Remove the bulb and change it.

 unclip the harness,

 remove the bulb holder moving
aside the four tabs B ,

 remove the bulb and change it.

Note: when refi tting, proceed in the
reverse order and take care to posi-
tion the bulb holder, the tabs and the
light correctly.
