2
25
AUDIO EQUIPMENT
On/Off
With the ignition key in
the accessories posi-
tion or with the ignition
on, press this button to
switch the audio equipment on or off.

After the engine has been switched
off, the audio equipment can only ope-
rate for approximately 30 minutes, to
prevent discharging of the battery.
Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
Volume adjustment
Setting the clock Press this button seve-
ral times in succes-
sion to gain access
to the bass (BASS) ,
treble (TREB) , front/rear balance

(FAD) and left/right balance (BAL)
settings.
Audio settings
Press this button for
more than 2 seconds,
the clock display
fl ashes: Auxiliary socket
An auxiliary socket

"AUX" is provided for
the connection of por-
table equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the au-
dio settings.
To exit from the AUX source, press

AM/FM .

When using an MP3 player: increase
the volume of the radio signifi cantly
(between 30 and 60) to obtain a satis-
factory playing volume.
- to adjust the hours, press this button,
-
to adjust the minutes,
press this button.
You exit from this mode automati-
cally after a few seconds without any
action.

2
27
AUDIO EQUIPMENT
Stereo reception
When the audio equipment receives
a station broadcasting in stereo it au-
tomatically transmits stereo sound
and the screen displays "ST" . If the
reception conditions deteriorate, the
audio equipment returns to mono
transmission and "ST" is no longer
displayed. Press one of these
two buttons briefl y to
increase or decrease
the frequency dis-
played respectively.
If you maintain the
pressure on the button
in the chosen direc-
tion, the frequency will be scanned
continuously.
The scan stops when you release the
button.
Manual station search
Automatic station search
Manual station storing
Selection of the radio source
Selection of a waveband
Press this button.
Press this button twice to
select the next station.

Press this button brief-
ly to listen to each sta-
tion available on the FM waveband
for three seconds. To stop the station
scan, press this button again.
If the traffi c information programme

TA is selected, only stations which
broadcast this type of programme
are selected.
Press the button suc-
cessively to select
the wavebands FM1,
FM2, FM3 and AM. Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds.
An audible signal confi rms that the
station has been stored.

2
28
AUDIO EQUIPMENT Radio reception
Your audio equipment will
be subjected to phenomena
which do not affect domestic radio
sets. Both MW/LW and FM reception
are subject to various forms of inter-
ference. This is no refl ection on the
quality of the equipment but is due to
the nature of the signals and the way
in which they are transmitted.
On MW/LW, interference may be no-
ticed when passing under high voltage
power lines or bridges, or in tunnels.
On FM, interference may be the re-
sult of increasing distance from the
transmitter, defl ection of the signal
by obstacles (mountains, hills, buil-
dings, etc) or of being in an area
which is not covered by a transmitter.
Automatic storing of FM
stations (autostore)
Press this button.
Your audio equipment
automatically stores
the six best transmit-
ters received on AM and FM in your
current location. These stations are
stored on the AM and FM3 wave-
bands. The end of the search is sig-
nalled by two audible signals. Recalling stored stations
On each waveband, a brief press on
one of the buttons
"1" to "6" recalls
the corresponding stored station.
If it was not possible to fi nd
six transmitters, the remain-
ing memories remain empty:
three dashes are displayed
on the audio equipment screen for
each empty memory.

2
31
AUDIO EQUIPMENT
Press this button to
select the next track.

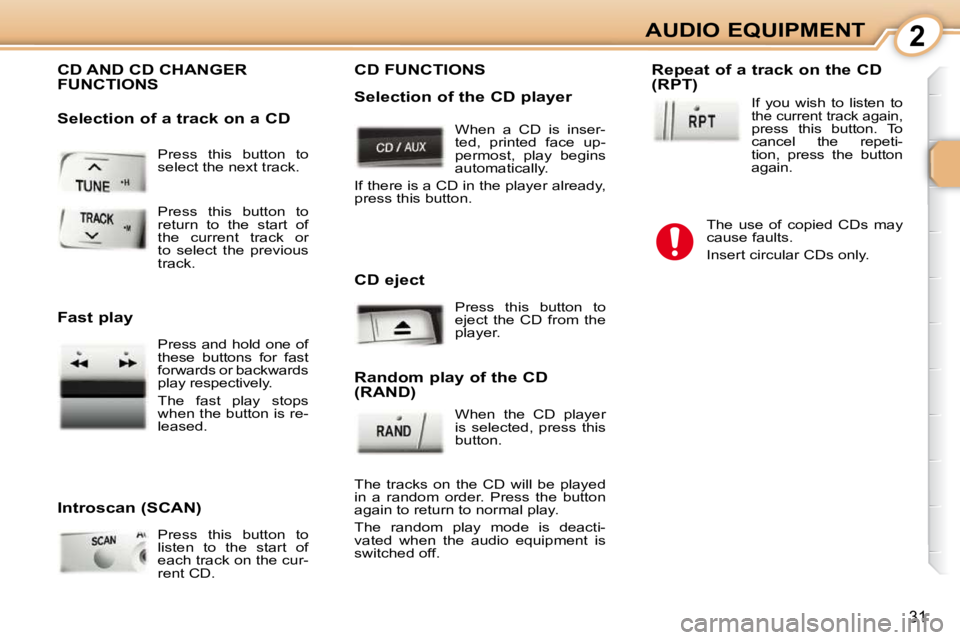

CD AND CD CHANGER FUNCTIONS
Introscan (SCAN) Press this button to
listen to the start of
each track on the cur-
rent CD.
Fast play
Press and hold one of
these buttons for fast
forwards or backwards
play respectively.
The fast play stops
when the button is re-
leased. When a CD is inser-
ted, printed face up-
permost, play begins
automatically.
If there is a CD in the player already,
press this button.
CD FUNCTIONS Repeat of a track on the CD
(RPT)
Random play of the CD
(RAND) When the CD player
is selected, press this
button. If you wish to listen to
the current track again, press this button. To
cancel the repeti-
tion, press the button
again.
CD eject Press this button to
eject the CD from the
player.
The tracks on the CD will be played
in a random order. Press the button
again to return to normal play.
The random play mode is deacti-
vated when the audio equipment is
switched off. The use of copied CDs may
cause faults.
Insert circular CDs only.
Selection of a track on a CD
Press this button to
return to the start of
the current track or
to select the previous
track. Selection of the CD player

2
32
AUDIO EQUIPMENT Press this button.
CD CHANGER FUNCTIONS Random play of a CD
(RAND) When the CD changer
is selected, press this
button for 2 seconds.
The tracks of the cur-
rent CD will be played
in a random order.
Press the button again for 2 seconds
to return to normal play.
Selection of a CD Press one of these
buttons on the audio
equipment to select
the previous or next
CD respectively. Repeat of a CD (RPT)
If you wish to listen to
the current CD again,
press and hold this
button.
The use of copied CDs may
cause faults.
Insert circular CDs only.
To cancel the repetition, press the
button again.
Selection of the CD
changer

4
49
ACCESS

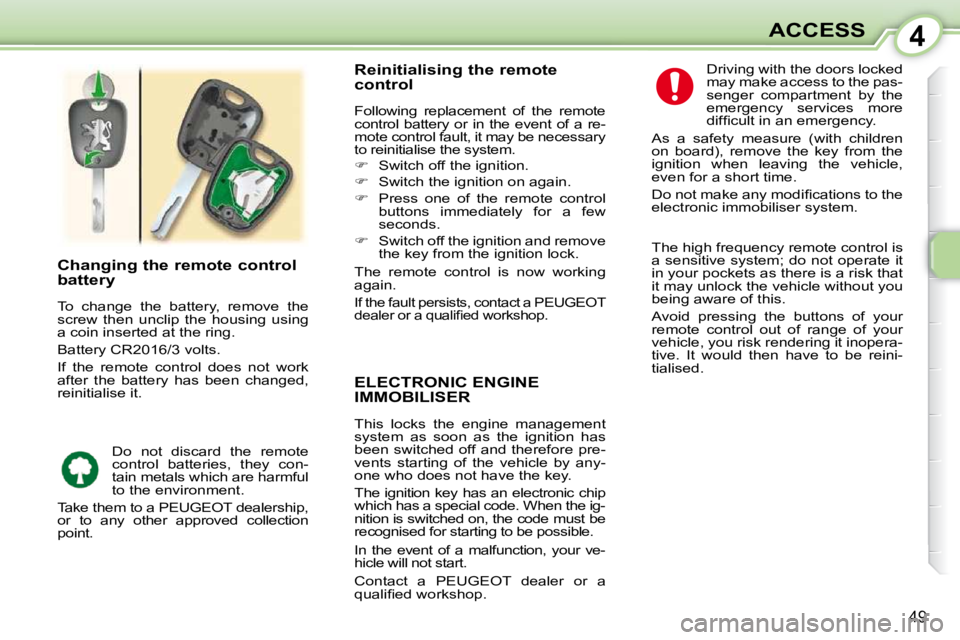

ELECTRONIC ENGINE IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore pre-
vents starting of the vehicle by any-
one who does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
In the event of a malfunction, your ve-
hicle will not start.
Contact a PEUGEOT dealer or a
qualifi ed workshop.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control fault, it may be necessary
to reinitialise the system.

 Switch off the ignition.

 Switch the ignition on again.

 Press one of the remote control
buttons immediately for a few
seconds.

 Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the fault persists, contact a PEUGEOT
dealer or a qualifi ed workshop.
Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
diffi cult in an emergency.
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
Do not make any modifi cations to the
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harmful
to the environment.
Take them to a PEUGEOT dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.

4
49
ACCESS
ELECTRONIC ENGINE IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore pre-
vents starting of the vehicle by any-
one who does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
In the event of a malfunction, your ve-
hicle will not start.
Contact a PEUGEOT dealer or a
qualifi ed workshop.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control fault, it may be necessary
to reinitialise the system.

 Switch off the ignition.

 Switch the ignition on again.

 Press one of the remote control
buttons immediately for a few
seconds.

 Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the fault persists, contact a PEUGEOT
dealer or a qualifi ed workshop.
Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
diffi cult in an emergency.
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
Do not make any modifi cations to the
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harmful
to the environment.
Take them to a PEUGEOT dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.

4
51
ACCESS

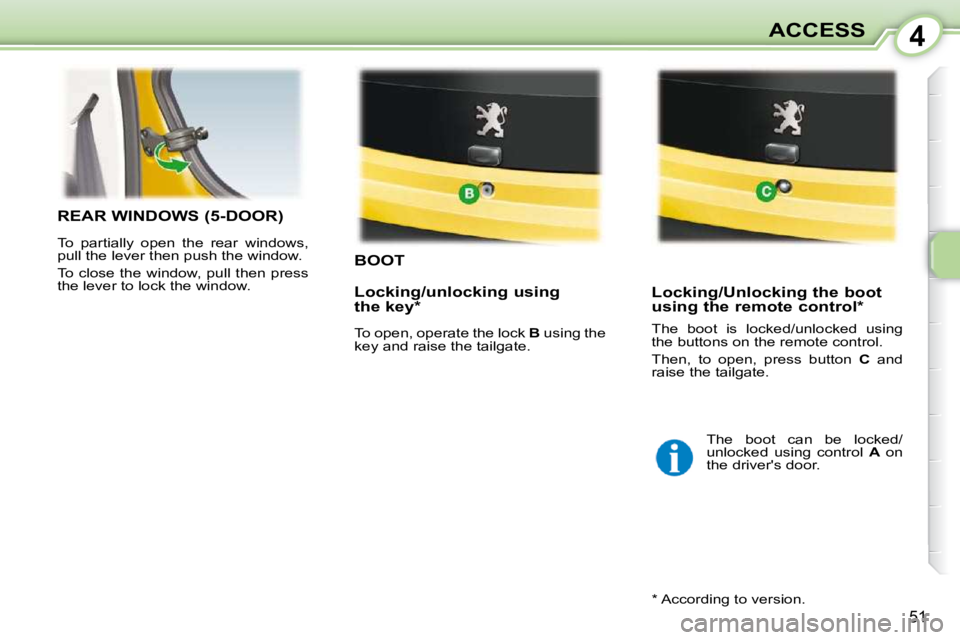

BOOT
Locking/Unlocking the boot
using the remote control *
REAR WINDOWS (5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window. * According to version.
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button
C and
raise the tailgate.
The boot can be locked/
unlocked using control A on
the driver's door.
Locking/unlocking using
the key *
To open, operate the lock
B using the
key and raise the tailgate.

4
51
ACCESS
BOOT
Locking/Unlocking the boot
using the remote control *
REAR WINDOWS (5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window. * According to version.
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button
C and
raise the tailgate.
The boot can be locked/
unlocked using control A on
the driver's door.
Locking/unlocking using
the key *
To open, operate the lock
B using the
key and raise the tailgate.
