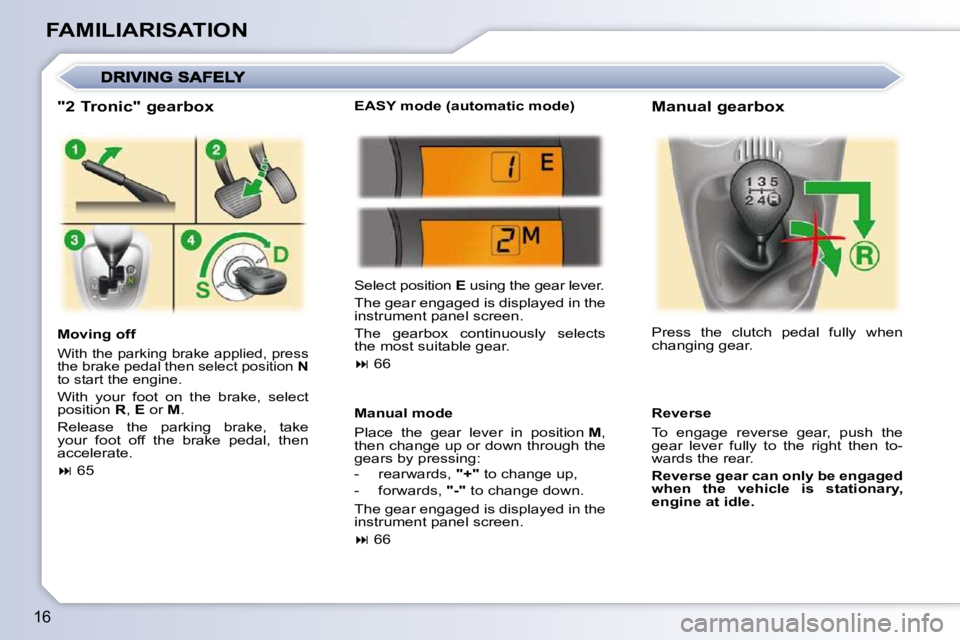

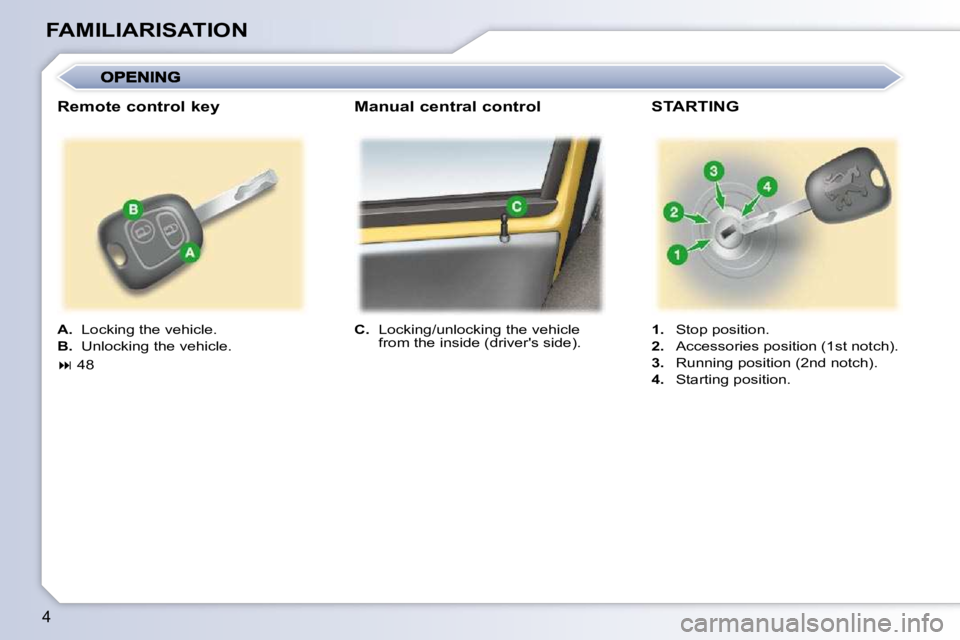

FAMILIARISATION "2 Tronic" gearbox
Moving off
With the parking brake applied, press
the brake pedal then select position N
to start the engine.
With your foot on the brake, select
position R , E or M .
Release the parking brake, take
your foot off the brake pedal, then
accelerate.

 65 Select position
E using the gear lever.
The gear engaged is displayed in the
instrument panel screen.
The gearbox continuously selects
the most suitable gear.

 66
Manual mode
Place the gear lever in position M ,
then change up or down through the
gears by pressing:
- rearwards, "+" to change up,
- forwards, "-" to change down.
The gear engaged is displayed in the
instrument panel screen.

 66 Press the clutch pedal fully when
changing gear.
Reverse
To engage reverse gear, push the
gear lever fully to the right then to-
wards the rear.

Reverse gear can only be engaged
when the vehicle is stationary,
engine at idle.
EASY mode (automatic mode)
Manual gearbox

1
17

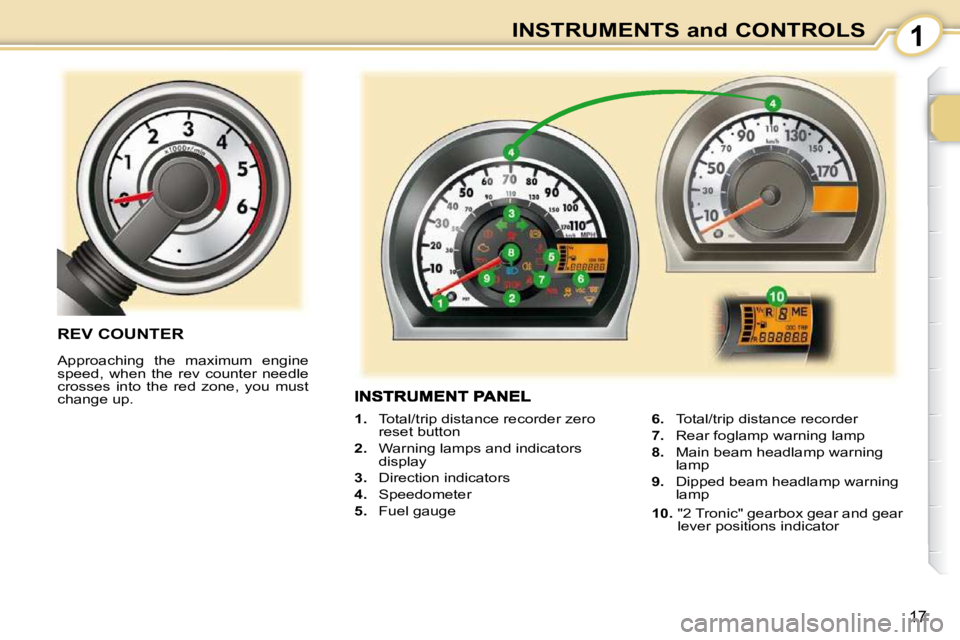

INSTRUMENTS and CONTROLS

1. Total/trip distance recorder zero
reset button

2. Warning lamps and indicators
display

3. Direction indicators

4. Speedometer

5. Fuel gauge
6. Total/trip distance recorder

7. Rear foglamp warning lamp

8. Main beam headlamp warning
lamp

9. Dipped beam headlamp warning
lamp
REV COUNTER
Approaching the maximum engine
speed, when the rev counter needle
crosses into the red zone, you must
change up.

10. "2 Tronic" gearbox gear and gear
lever positions indicator

1
22
INSTRUMENTS and CONTROLS

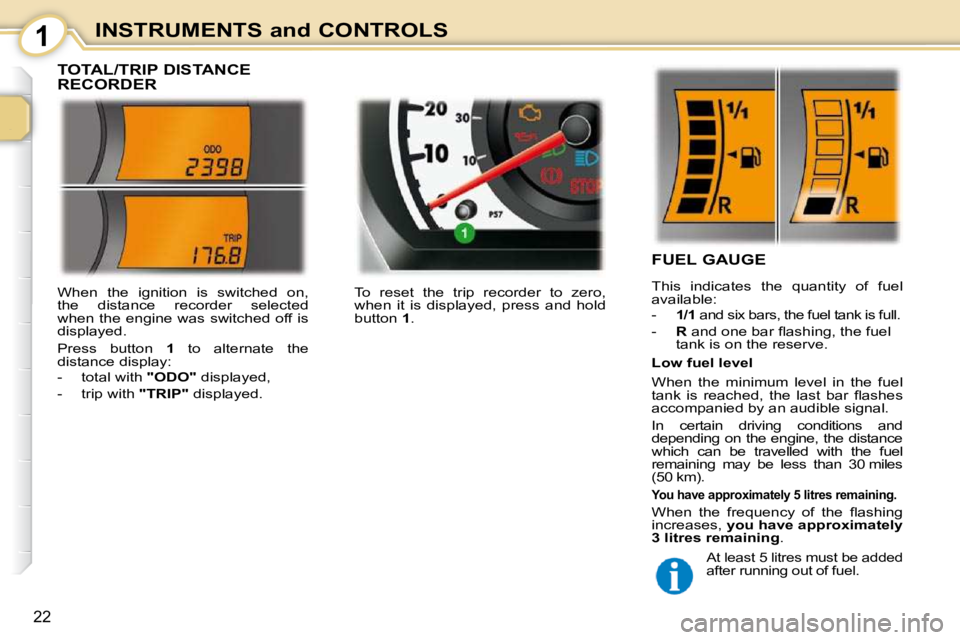

TOTAL/TRIP DISTANCE
RECORDER
FUEL GAUGE
This indicates the quantity of fuel
available:
- 1/1 and six bars, the fuel tank is full.
- R and one bar fl ashing, the fuel
tank is on the reserve.
Low fuel level
When the minimum level in the fuel
tank is reached, the last bar fl ashes
accompanied by an audible signal.
In certain driving conditions and
depending on the engine, the distance
which can be travelled with the fuel
remaining may be less than 30 miles
(50 km).

You have approximately 5 litres remaining.
When the frequency of the fl ashing
increases, you have approximately
3 litres remaining .
At least 5 litres must be added
after running out of fuel.
When the ignition is switched on,
the distance recorder selected
when the engine was switched off is
displayed.
Press button 1 to alternate the
distance display:
- total with "ODO" displayed,
- trip with "TRIP" displayed. To reset the trip recorder to zero,
when it is displayed, press and hold
button
1 .

1
22
INSTRUMENTS and CONTROLS
TOTAL/TRIP DISTANCE
RECORDER
FUEL GAUGE
This indicates the quantity of fuel
available:
- 1/1 and six bars, the fuel tank is full.
- R and one bar fl ashing, the fuel
tank is on the reserve.
Low fuel level
When the minimum level in the fuel
tank is reached, the last bar fl ashes
accompanied by an audible signal.
In certain driving conditions and
depending on the engine, the distance
which can be travelled with the fuel
remaining may be less than 30 miles
(50 km).

You have approximately 5 litres remaining.
When the frequency of the fl ashing
increases, you have approximately
3 litres remaining .
At least 5 litres must be added
after running out of fuel.
When the ignition is switched on,
the distance recorder selected
when the engine was switched off is
displayed.
Press button 1 to alternate the
distance display:
- total with "ODO" displayed,
- trip with "TRIP" displayed. To reset the trip recorder to zero,
when it is displayed, press and hold
button
1 .

1
23
INSTRUMENTS and CONTROLS

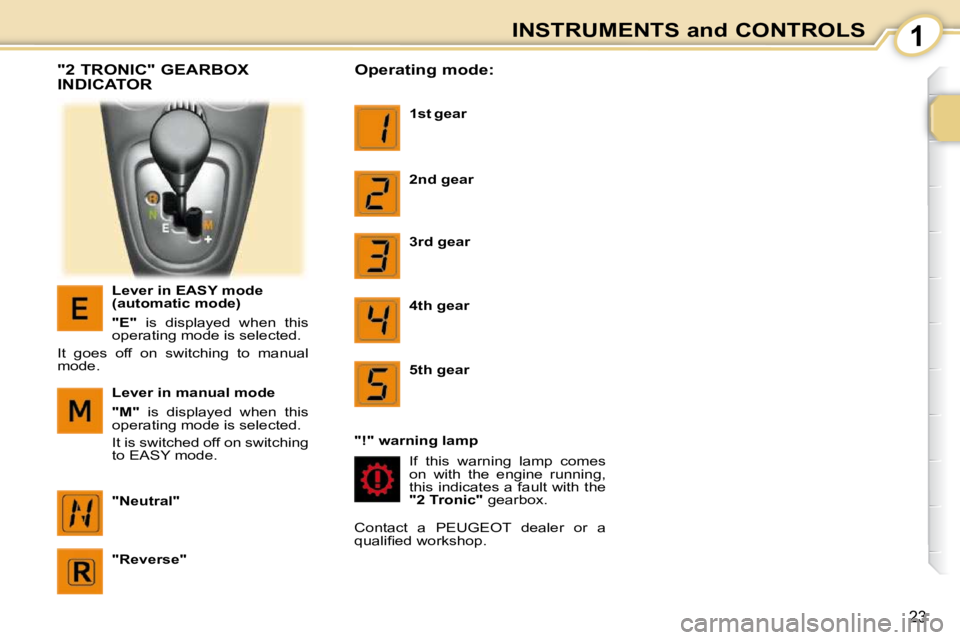

"2 TRONIC" GEARBOX
INDICATOR
Lever in EASY mode
(automatic mode)

"E" is displayed when this
operating mode is selected.
It goes off on switching to manual
mode.
Lever in manual mode

"M" is displayed when this
operating mode is selected.
It is switched off on switching
to EASY mode.

"Neutral"

"Reverse"
Operating mode:

1st

gear
2nd gear
3rd
gear
4th gear
5th
gear

If this warning lamp comes
on with the engine running,
this indicates a fault with the

" 2 Tronic " gearbox.

"!" warning lamp
Contact a PEUGEOT dealer or a
qualifi ed workshop.

2
25

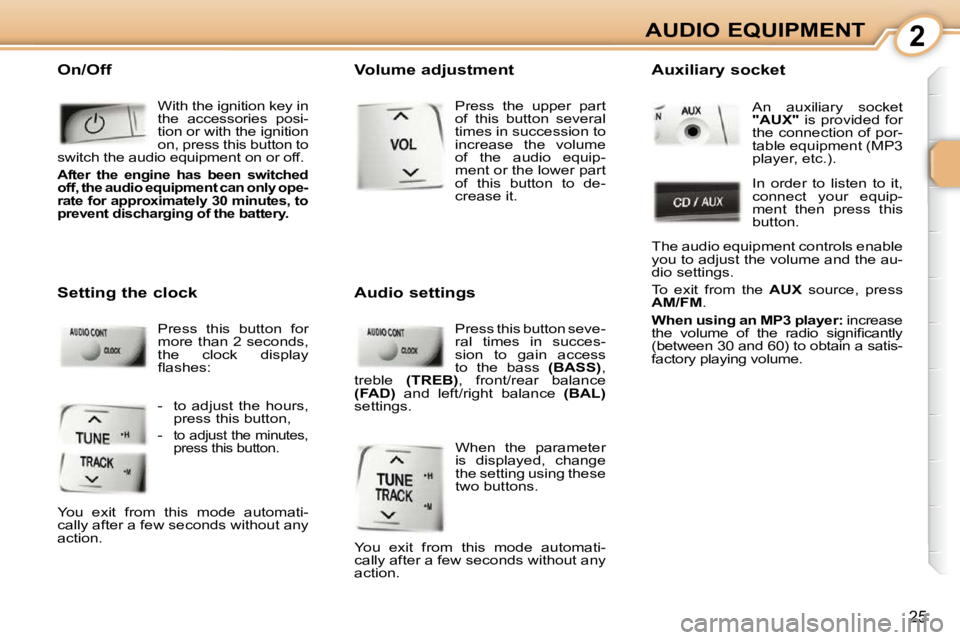

AUDIO EQUIPMENT
On/Off
With the ignition key in
the accessories posi-
tion or with the ignition
on, press this button to
switch the audio equipment on or off.

After the engine has been switched
off, the audio equipment can only ope-
rate for approximately 30 minutes, to
prevent discharging of the battery.
Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
Volume adjustment
Setting the clock Press this button seve-
ral times in succes-
sion to gain access
to the bass (BASS) ,
treble (TREB) , front/rear balance

(FAD) and left/right balance (BAL)
settings.
Audio settings
Press this button for
more than 2 seconds,
the clock display
fl ashes: Auxiliary socket
An auxiliary socket

"AUX" is provided for
the connection of por-
table equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the au-
dio settings.
To exit from the AUX source, press

AM/FM .

When using an MP3 player: increase
the volume of the radio signifi cantly
(between 30 and 60) to obtain a satis-
factory playing volume.
- to adjust the hours, press this button,
-
to adjust the minutes,
press this button.
You exit from this mode automati-
cally after a few seconds without any
action.

2
27
AUDIO EQUIPMENT

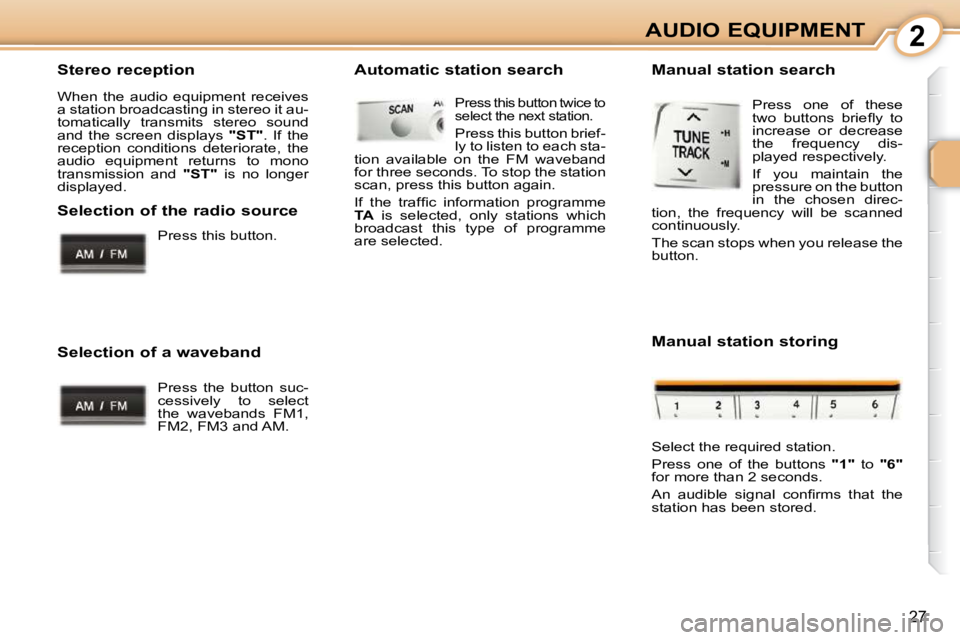

Stereo reception
When the audio equipment receives
a station broadcasting in stereo it au-
tomatically transmits stereo sound
and the screen displays "ST" . If the
reception conditions deteriorate, the
audio equipment returns to mono
transmission and "ST" is no longer
displayed. Press one of these
two buttons briefl y to
increase or decrease
the frequency dis-
played respectively.
If you maintain the
pressure on the button
in the chosen direc-
tion, the frequency will be scanned
continuously.
The scan stops when you release the
button.
Manual station search
Automatic station search
Manual station storing
Selection of the radio source
Selection of a waveband
Press this button.
Press this button twice to
select the next station.

Press this button brief-
ly to listen to each sta-
tion available on the FM waveband
for three seconds. To stop the station
scan, press this button again.
If the traffi c information programme

TA is selected, only stations which
broadcast this type of programme
are selected.
Press the button suc-
cessively to select
the wavebands FM1,
FM2, FM3 and AM. Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds.
An audible signal confi rms that the
station has been stored.

2
28
AUDIO EQUIPMENT Radio reception
Your audio equipment will
be subjected to phenomena
which do not affect domestic radio
sets. Both MW/LW and FM reception
are subject to various forms of inter-
ference. This is no refl ection on the
quality of the equipment but is due to
the nature of the signals and the way
in which they are transmitted.
On MW/LW, interference may be no-
ticed when passing under high voltage
power lines or bridges, or in tunnels.
On FM, interference may be the re-
sult of increasing distance from the
transmitter, defl ection of the signal
by obstacles (mountains, hills, buil-
dings, etc) or of being in an area
which is not covered by a transmitter.

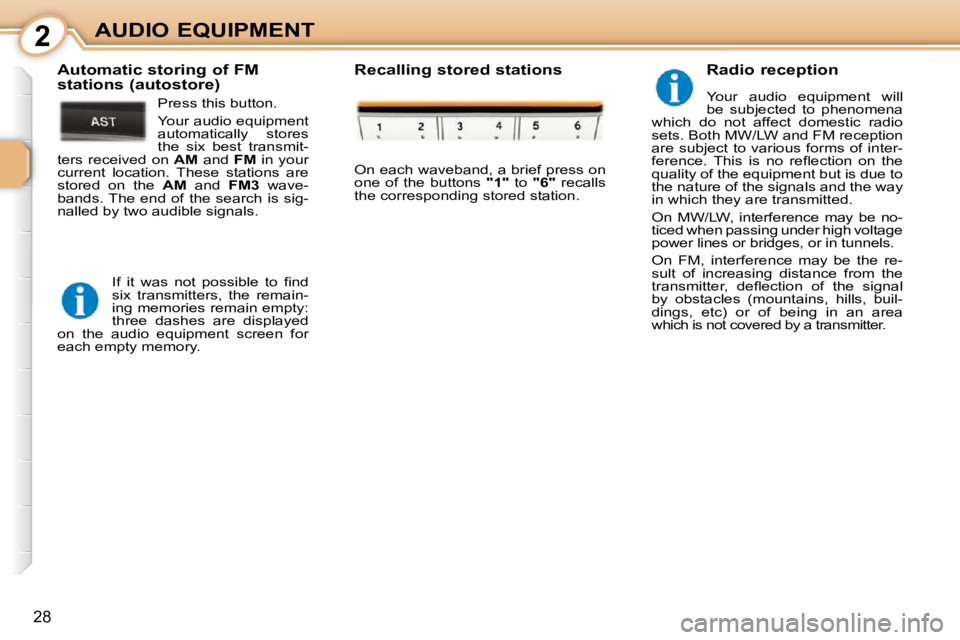

Automatic storing of FM
stations (autostore)
Press this button.
Your audio equipment
automatically stores
the six best transmit-
ters received on AM and FM in your
current location. These stations are
stored on the AM and FM3 wave-
bands. The end of the search is sig-
nalled by two audible signals. Recalling stored stations
On each waveband, a brief press on
one of the buttons
"1" to "6" recalls
the corresponding stored station.
If it was not possible to fi nd
six transmitters, the remain-
ing memories remain empty:
three dashes are displayed
on the audio equipment screen for
each empty memory.

2
29

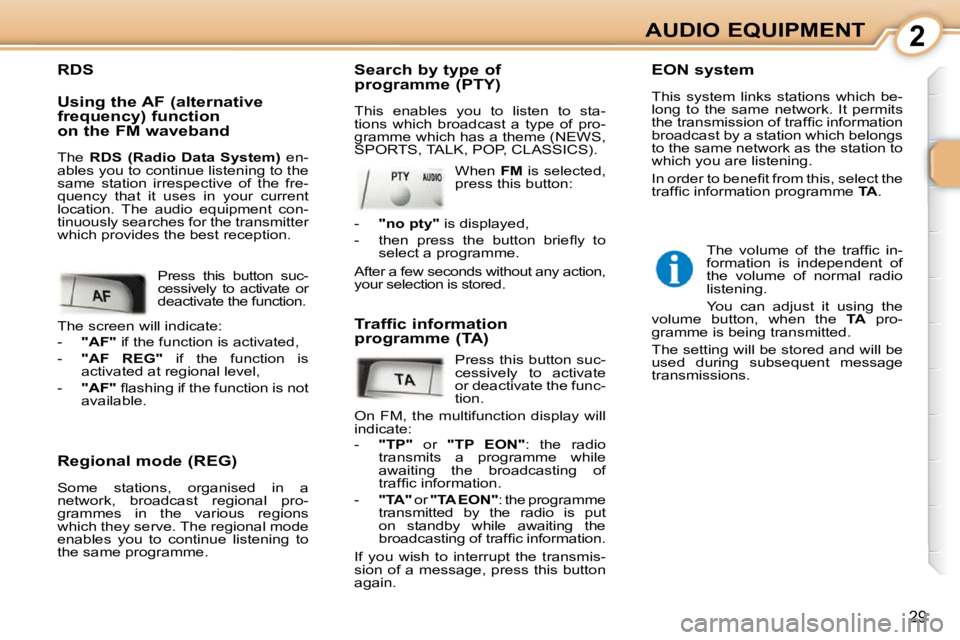

AUDIO EQUIPMENT
Regional mode (REG)
Some stations, organised in a
network, broadcast regional pro-
grammes in the various regions
which they serve. The regional mode
enables you to continue listening to
the same programme. Search by type of
programme (PTY)
This enables you to listen to sta-
tions which broadcast a type of pro-
gramme which has a theme (NEWS,
SPORTS, TALK, POP, CLASSICS).
EON system
This system links stations which be-
long to the same network. It permits
the transmission of traffi c information
broadcast by a station which belongs
to the same network as the station to
which you are listening.
In order to benefi t from this, select the
traffi c information programme
TA .
Using the AF (alternative
frequency) function
on the FM waveband
The
RDS (Radio Data System) en-
ables you to continue listening to the
same station irrespective of the fre-
quency that it uses in your current
location. The audio equipment con-
tinuously searches for the transmitter
which provides the best reception.
Press this button suc-
cessively to activate
or deactivate the func-
tion.
On FM, the multifunction display will
indicate:
- "TP" or "TP EON" : the radio
transmits a programme while
awaiting the broadcasting of
traffi c information.
- "TA" or "TA EON" : the programme
transmitted by the radio is put
on standby while awaiting the
broadcasting of traffi c information.
If you wish to interrupt the transmis-
sion of a message, press this button
again.
Traffic information
programme (TA)
Press this button suc-
cessively to activate or
deactivate the function.
The screen will indicate:
- "AF" if the function is activated,
- "AF REG" if the function is
activated at regional level,
- "AF" fl ashing if the function is not
available. When
FM is selected,
press this button:
The volume of the traffi c in-
formation is independent of
the volume of normal radio
listening.
You can adjust it using the
volume button, when the TA pro-
gramme is being transmitted.
The setting will be stored and will be
used during subsequent message
transmissions.
RDS
- "no pty" is displayed,
- then press the button briefl y to select a programme.
After a few seconds without any action,
your selection is stored.

5
55
VISIBILITY

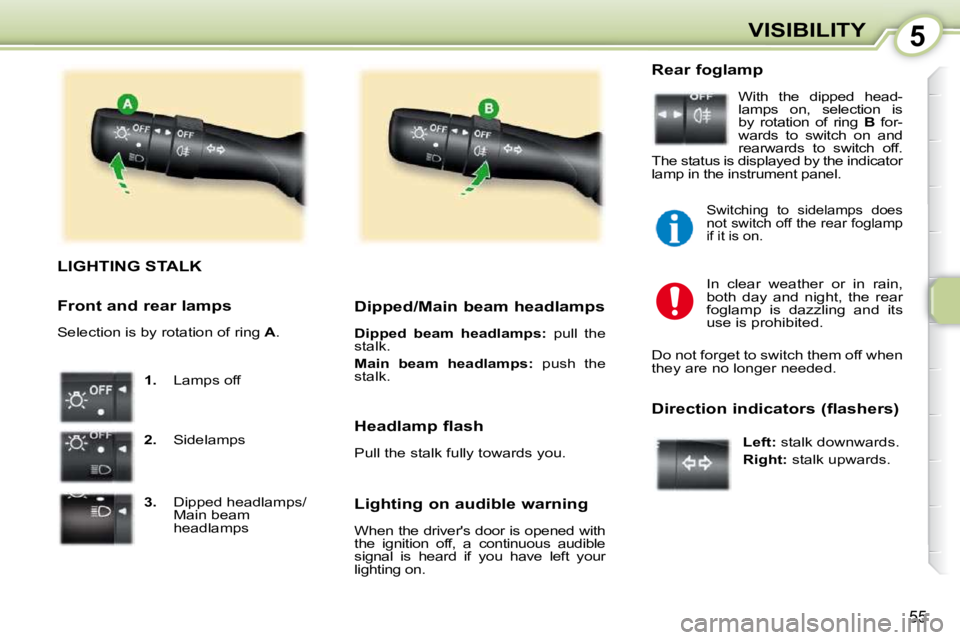

LIGHTING STALK

1. Lamps off

2. Sidelamps

3. Dipped headlamps/
Main beam
headlamps Dipped/Main beam headlamps

Dipped beam headlamps: pull the
stalk.

Main beam headlamps: push the
stalk.
Lighting on audible warning
When the driver's door is opened with
the ignition off, a continuous audible
signal is heard if you have left your
lighting on. Rear foglamp
With the dipped head-
lamps on, selection is
by rotation of ring B for-
wards to switch on and
rearwards to switch off.
The status is displayed by the indicator
lamp in the instrument panel.
In clear weather or in rain,
both day and night, the rear
foglamp is dazzling and its
use is prohibited.
Direction indicators (flashers)
Left: stalk downwards.

Right: stalk upwards.
Headlamp flash
Pull the stalk fully towards you.
Front and rear lamps
Selection is by rotation of ring
A .
Switching to sidelamps does
not switch off the rear foglamp
if it is on.
Do not forget to switch them off when
they are no longer needed.
