15

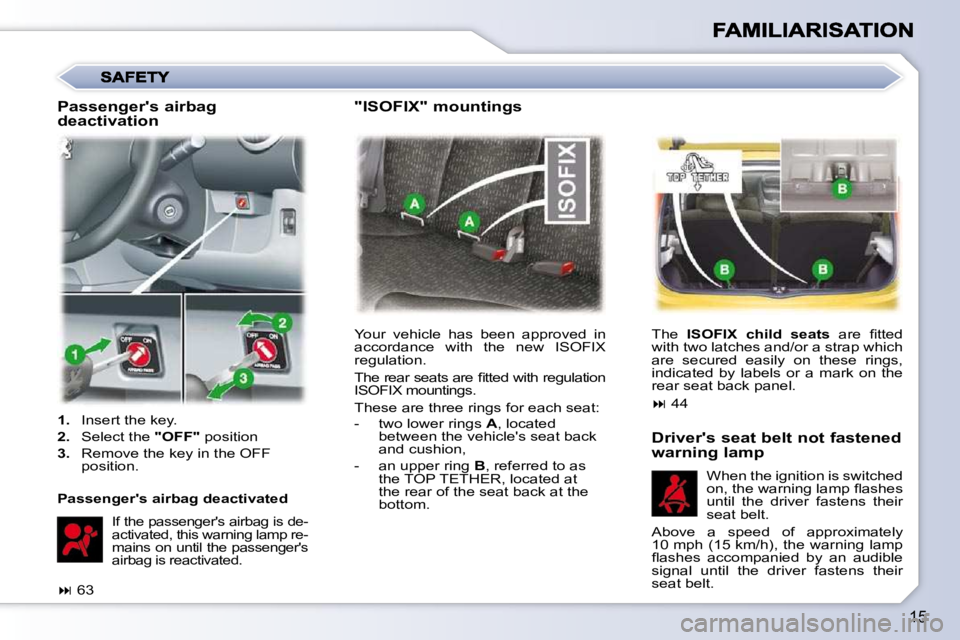

Your vehicle has been approved in
accordance with the new ISOFIX
regulation.
T h e r e a r s e a t s a r e fi t t e d w i t h r e g u l a t i o n
ISOFIX mountings.
These are three rings for each seat:
- t w o l o w e r r i n g s A , l o c a t e d
between the vehicle's seat back
a n d c u s h i o n ,
- a n u p p e r r i n g B , r e f e r r e d t o a s
t h e T O P T E T H E R , l o c a t e d a t
the rear of the seat back at the
bottom. The
ISOFIX child seats a r e fi t t e d
with two latches and/or a strap which
a r e s e c u r e d e a s i l y o n t h e s e r i n g s ,
indicated by labels or a mark on the
rear seat back panel.
44
Passenger's airbag deactivated
63
I f t h e p a s s e n g e r ' s a i r b a g i s d e -
a c t i v a t e d , t h i s w a r n i n g l a m p r e -
mains on until the passenger's
airbag is reactivated.
Driver's seat belt not fastened
warning lamp
1. Insert the key.
2. Select the "OFF" position
3. Remove the key in the OFF
position. When the ignition is switched
o n , t h e w a r n i n g l a m p fl a s h e s
until the driver fastens their
seat belt.
Above a speed of approximately
1 0 m p h ( 1 5 k m / h ) , t h e w a r n i n g l a m p
fl a s h e s a c c o m p a n i e d b y a n a u d i b l e
signal until the driver fastens their
seat belt.
Passenger's airbag
deactivation "ISOFIX" mountings
Page 44 of 97
3
44
COMFORT

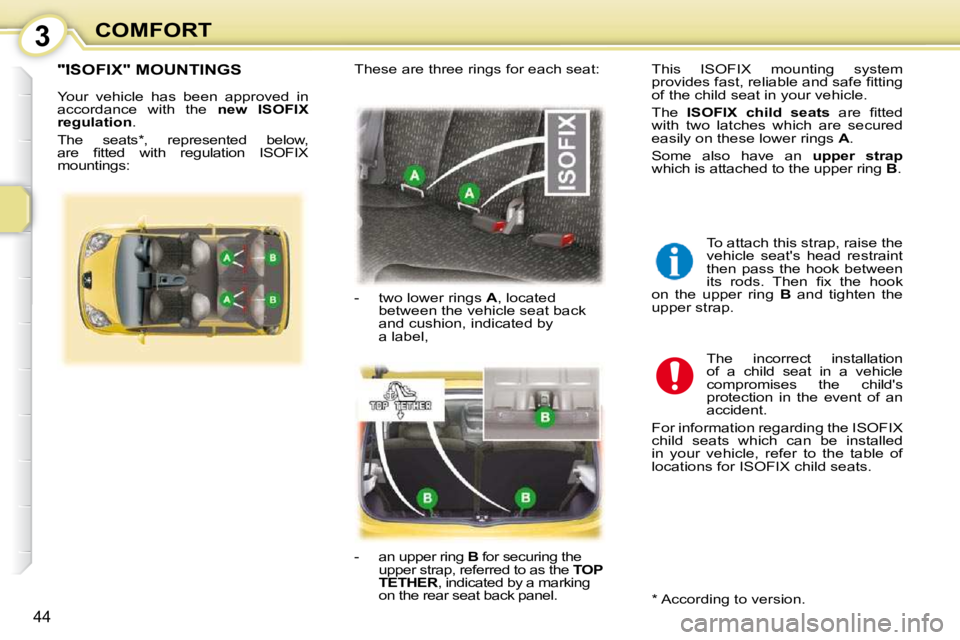

"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the n e w I S O F I X
r e g u l a t i o n .
The seats * , represented below,
a r e fi t t e d w i t h r e g u l a t i o n I S O F I X
mountings: These are three rings for each seat:
T h i s I S O F I X m o u n t i n g s y s t e m
p r o v i d e s f a s t , r e l i a b l e a n d s a f e fi t t i n g
of the child seat in your vehicle.
The I S O F I X c h i l d s e a t s a r e fi t t e d
with two latches which are secured
easily on these lower rings A .
Some also have an upper strap
which is attached to the upper ring B .
- two lower rings A , located
between the vehicle seat back
and cushion, indicated by
a label,
* According to version.
- an upper ring
B for securing the
upper strap, referred to as the TOP
TETHER , indicated by a marking
on the rear seat back panel. To attach this strap, raise the
vehicle seat's head restraint
then pass the hook between
i t s r o d s . T h e n fi x t h e h o o k
on the upper ring B and tighten the
upper strap.
The incorrect installation
of a child seat in a vehicle
compromises the child's
protection in the event of an
accident.
F o r i n f o r m a t i o n r e g a r d i n g t h e I S O F I X
child seats which can be installed
in your vehicle, refer to the table of
l o c a t i o n s f o r I S O F I X c h i l d s e a t s .
Page 45 of 97
3
45
COMFORT
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t m u s t b e a t t a c h e d
to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .

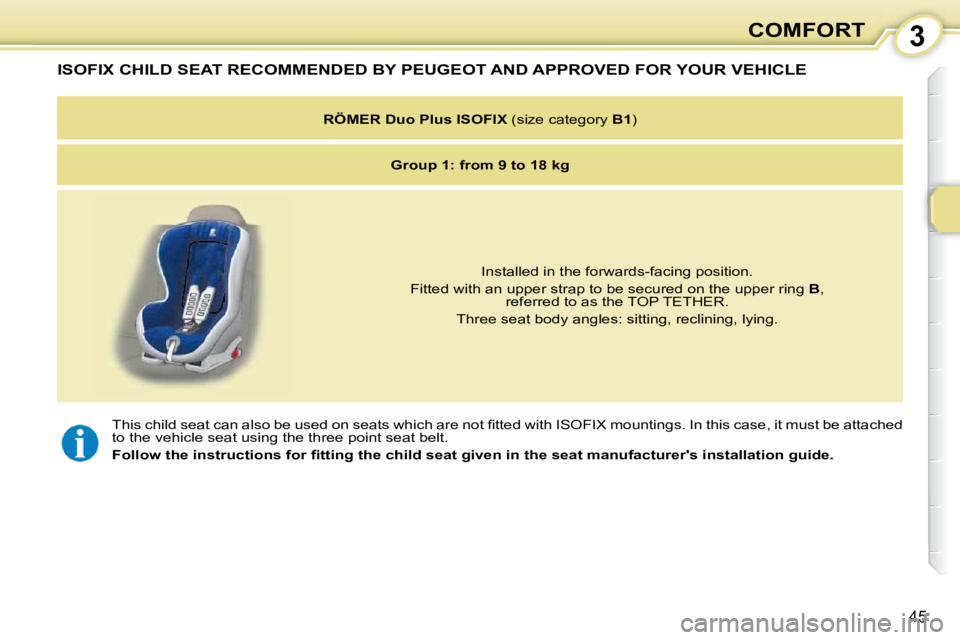

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
R Ö M E R D u o P l u s I S O F I X (size category B1 )
G r o u p 1 : f r o m 9 t o 1 8 k g
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B ,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Page 46 of 97
3
46
COMFORT

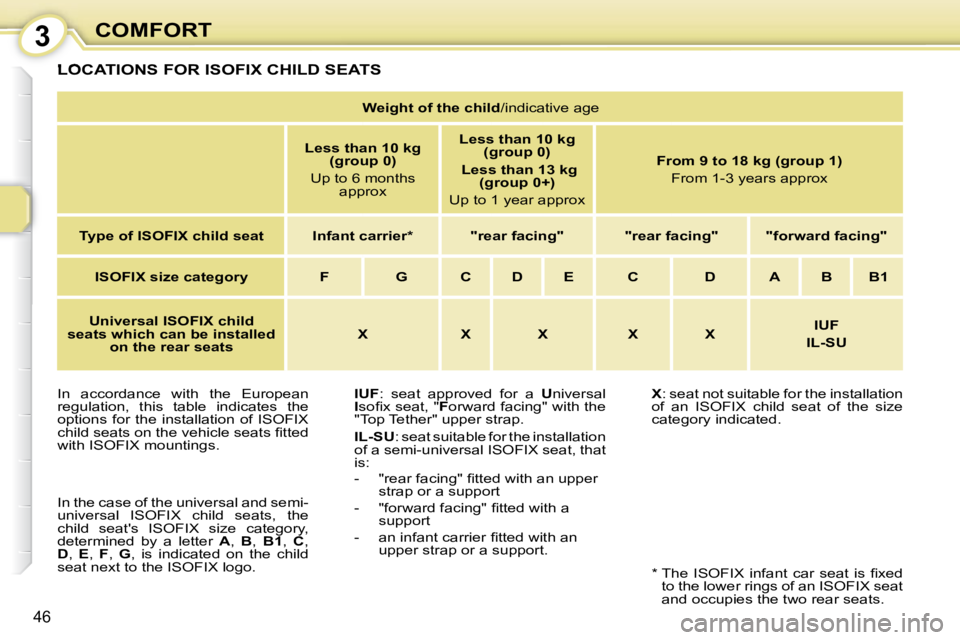

LOCATIONS FOR ISOFIX CHILD SEATS
IUF : seat approved for a U niversal
I s o fi x s e a t , " F orward facing" with the
"Top Tether" upper strap.
I L - S U : seat suitable for the installation
o f a s e m i - u n i v e r s a l I S O F I X s e a t , t h a t
is:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r strap or a support
- " f o r w a r d f a c i n g " fi t t e d w i t h a support
- a n i n f a n t c a r r i e r fi t t e d w i t h a n upper strap or a support.
* T h e I S O F I X i n f a n t c a r s e a t i s fi x e d t o t h e l o w e r r i n g s o f a n I S O F I X s e a t
and occupies the two rear seats.
X : seat not suitable for the installation
o f a n I S O F I X c h i l d s e a t o f t h e s i z e
category indicated.
In accordance with the European
regulation, this table indicates the
o p t i o n s f o r t h e i n s t a l l a t i o n o f I S O F I X
c h i l d s e a t s o n t h e v e h i c l e s e a t s fi t t e d
w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-
u n i v e r s a l I S O F I X c h i l d s e a t s , t h e
c h i l d s e a t ' s I S O F I X s i z e c a t e g o r y ,
determined by a letter
A , B , B1 , C ,
D , E , F , G , is indicated on the child
s e a t n e x t t o t h e I S O F I X l o g o .
W e i g h t o f t h e c h i l d /indicative age
L e s s t h a n 1 0 k g
(group 0)
Up to 6 months approx
L e s s t h a n 1 0 k g
(group 0)
L e s s t h a n 1 3 k g (group 0+)
Up to 1 year approx
F r o m 9 t o 1 8 k g ( g r o u p 1 )
From 1-3 years approx
T y p e o f I S O F I X c h i l d s e a t Infant carrier * "rear facing" "rear facing" " f o r w a r d f a c i n g "
ISOFIX size category F G C D E C D A B B1
U n i v e r s a l I S O F I X c h i l d
s e a t s w h i c h c a n b e i n s t a l l e d on the rear seats
X X X X X
IUF
I L - S U
