Peugeot 107 Dag 2008 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 107 Dag, Model: Peugeot 107 Dag 2008Pages: 97, PDF Size: 3.1 MB
Page 91 of 97
9
82
PRACTICAL INFORMATION

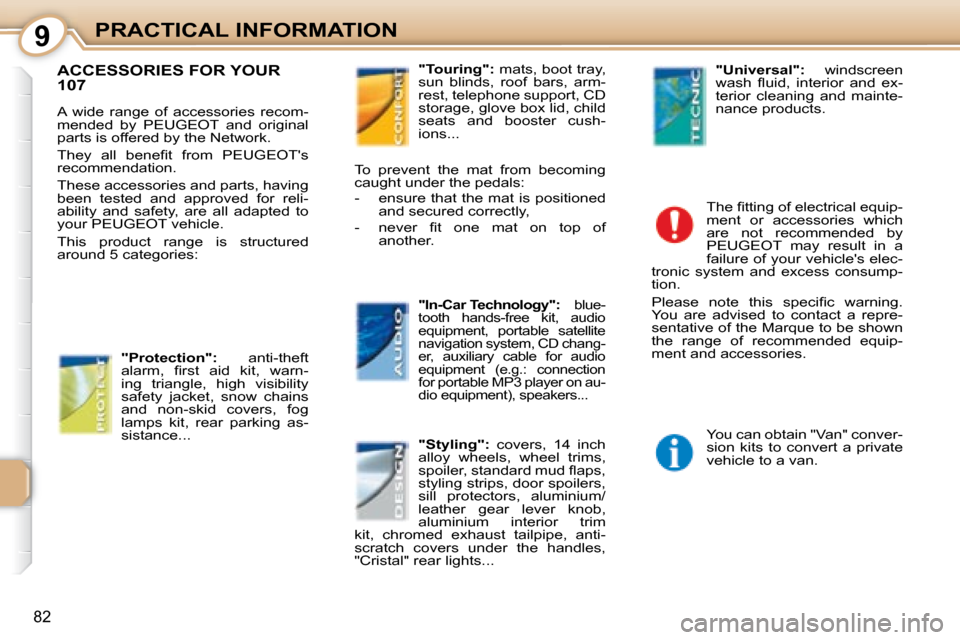

ACCESSORIES FOR YOUR
107
A wide range of accessories recom-
mended by PEUGEOT and original
parts is offered by the Network.
T h e y a l l b e n e fi t f r o m P E U G E O T ' s
recommendation.
These accessories and parts, having
been tested and approved for reli-
ability and safety, are all adapted to
your PEUGEOT vehicle.
This product range is structured
around 5 categories: T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which
are not recommended by
PEUGEOT may result in a
failure of your vehicle's elec-
tronic system and excess consump-
tion.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
"Protection": anti-theft
a l a r m , fi r s t a i d k i t , w a r n -
ing triangle, high visibility
safety jacket, snow chains
and non-skid covers, fog
lamps kit, rear parking as-
sistance...
"Touring": mats, boot tray,
sun blinds, roof bars, arm-
rest, telephone support, CD
storage, glove box lid, child
seats and booster cush-
ions...
"In-Car Technology": blue-
tooth hands-free kit, audio
equipment, portable satellite
navigation system, CD chang-
er, auxiliary cable for audio
equipment (e.g.: connection
for portable MP3 player on au-
dio equipment), speakers...
"Styling": covers, 14 inch
alloy wheels, wheel trims,
s p o i l e r , s t a n d a r d m u d fl a p s ,
styling strips, door spoilers,
sill protectors, aluminium/
leather gear lever knob,
aluminium interior trim
kit, chromed exhaust tailpipe, anti-
scratch covers under the handles,
"Cristal" rear lights...
"Universal": windscreen
w a s h fl u i d , i n t e r i o r a n d e x -
terior cleaning and mainte-
nance products.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f another.
You can obtain "Van" conver-
sion kits to convert a private
vehicle to a van.
Page 92 of 97
10
83
TECHNICAL DATA

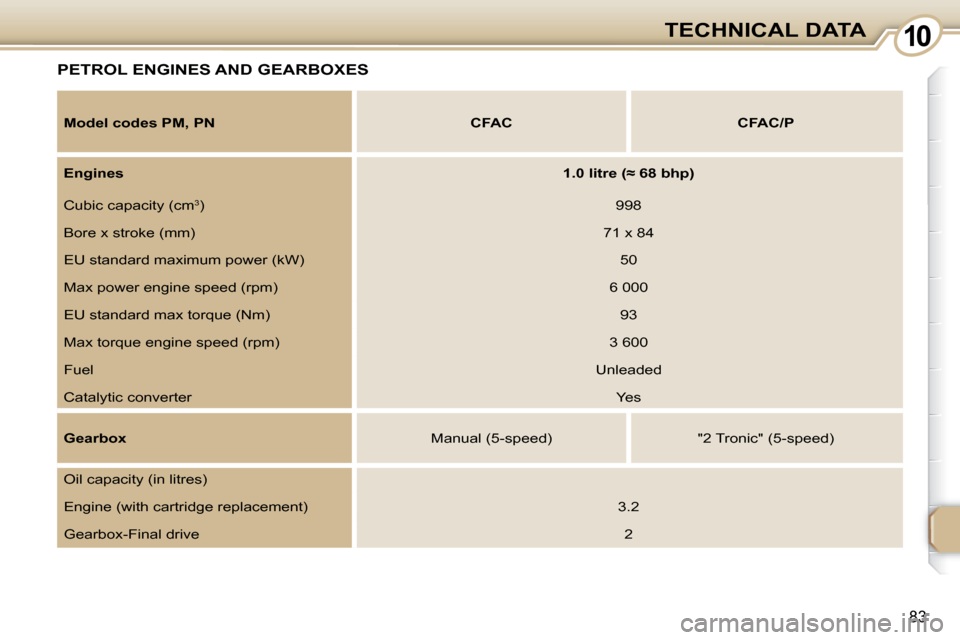

PETROL ENGINES AND GEARBOXES
Model codes PM, PN CFAC CFAC/P
Engines
1 . 0 l i t r e ( ≈ 6 8 b h p )
Cubic capacity (cm 3
) 998
Bore x stroke (mm) 71 x 84
EU standard maximum power (kW) 50
Max power engine speed (rpm) 6 000
EU standard max torque (Nm) 93
Max torque engine speed (rpm) 3 600
Fuel Unleaded
Catalytic converter Yes
G e a r b o x Manual (5-speed) "2 Tronic" (5-speed)
Oil capacity (in litres)
Engine (with cartridge replacement) 3.2
Gearbox-Final drive 2
Page 93 of 97
10
84
TECHNICAL DATA
Fuel consumption values correct at time of printing. These consu mption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of accessories.

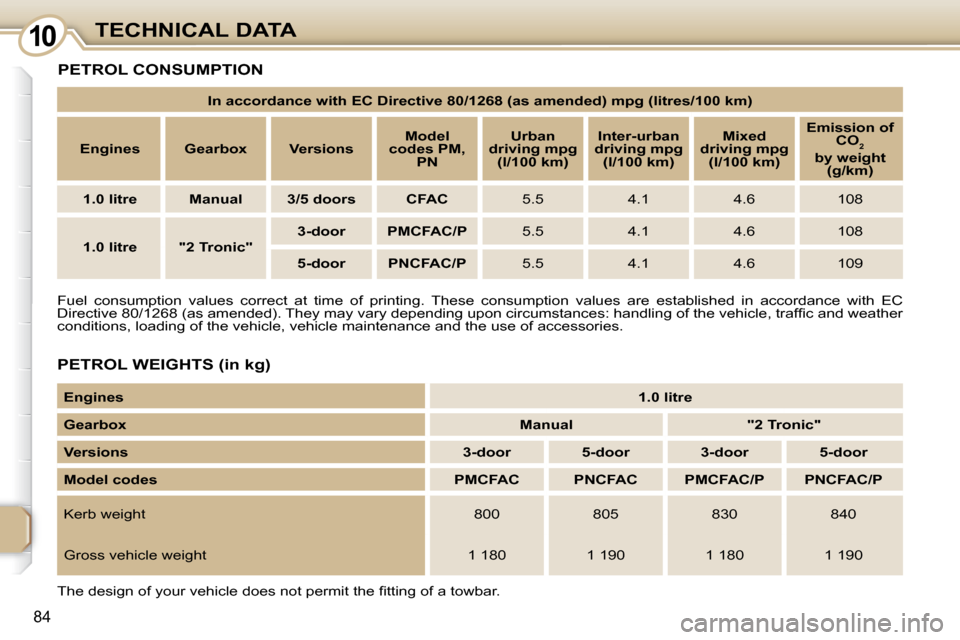

PETROL CONSUMPTION
P E T R O L W E I G H T S ( i n k g )
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) m p g ( l i t r e s / 1 0 0 k m )
Engines G e a r b o x Versions
Model
codes PM, PN
U r b a n
d r i v i n g m p g ( l / 1 0 0 k m )
I n t e r - u r b a n
d r i v i n g m p g ( l / 1 0 0 k m )
M i x e d
d r i v i n g m p g ( l / 1 0 0 k m )
E m i s s i o n o f
CO 2
b y w e i g h t ( g / k m )
1.0 litre Manual 3/5 doors CFAC 5.5 4.1 4.6 108
1.0 litre " 2 T r o n i c "
3-door PMCFAC/P 5.5 4.1 4.6 108
5-door PNCFAC/P 5.5 4.1 4.6 109
Engines
1.0 litre
G e a r b o x
Manual " 2 T r o n i c "
Versions
3-door 5-door 3-door 5-door
Model codes
PMCFAC PNCFAC PMCFAC/P PNCFAC/P
Kerb weight 800 805 830 840
Gross vehicle weight 1 180 1 190 1 180 1 190
Page 94 of 97
10
85
TECHNICAL DATA

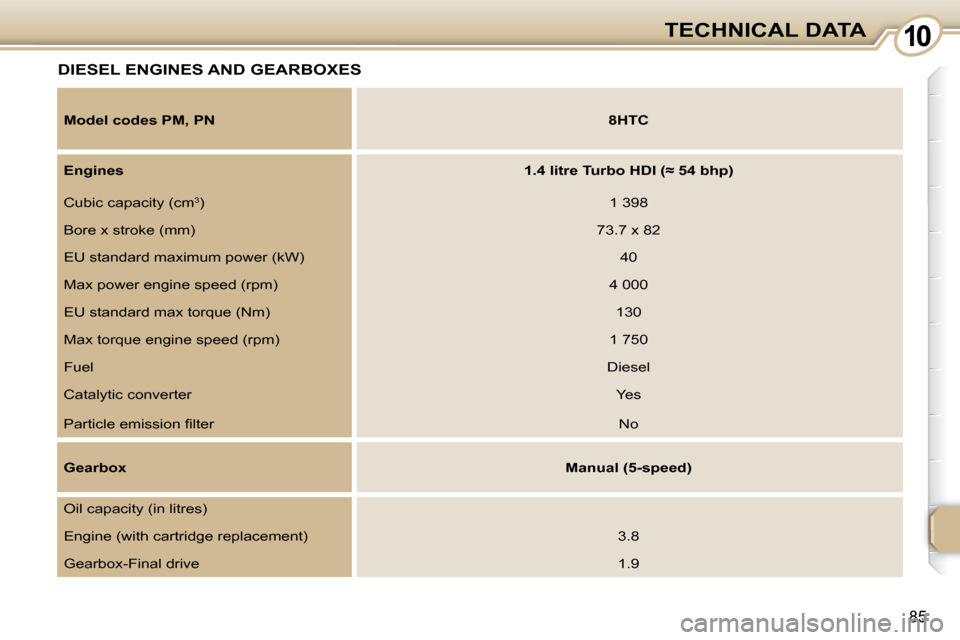

DIESEL ENGINES AND GEARBOXES
Model codes PM, PN
8 H T C
Engines
1 . 4 l i t r e T u r b o H D I ( ≈ 5 4 b h p )
Cubic capacity (cm 3
) 1 398
Bore x stroke (mm) 73.7 x 82
EU standard maximum power (kW) 40
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 130
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
P a r t i c l e e m i s s i o n fi l t e r No
G e a r b o x
M a n u a l ( 5 - s p e e d )
Oil capacity (in litres)
Engine (with cartridge replacement) 3.8
Gearbox-Final drive 1.9
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) m p g
( l i t r e s / 1 0 0 k m )
G e a r b o x U r b a n
d r i v i n g m p g ( l / 1 0 0 k m ) I n t e r - u r b a n
d r i v i n g m p g ( l / 1 0 0 k m ) M i x e d
d r i v i n g m p g ( l / 1 0 0 k m ) E m i s s i o n o f
2
b y w e i g h t ( g / k m )
" 2 T r o n i c "
Page 95 of 97
10
86
TECHNICAL DATA

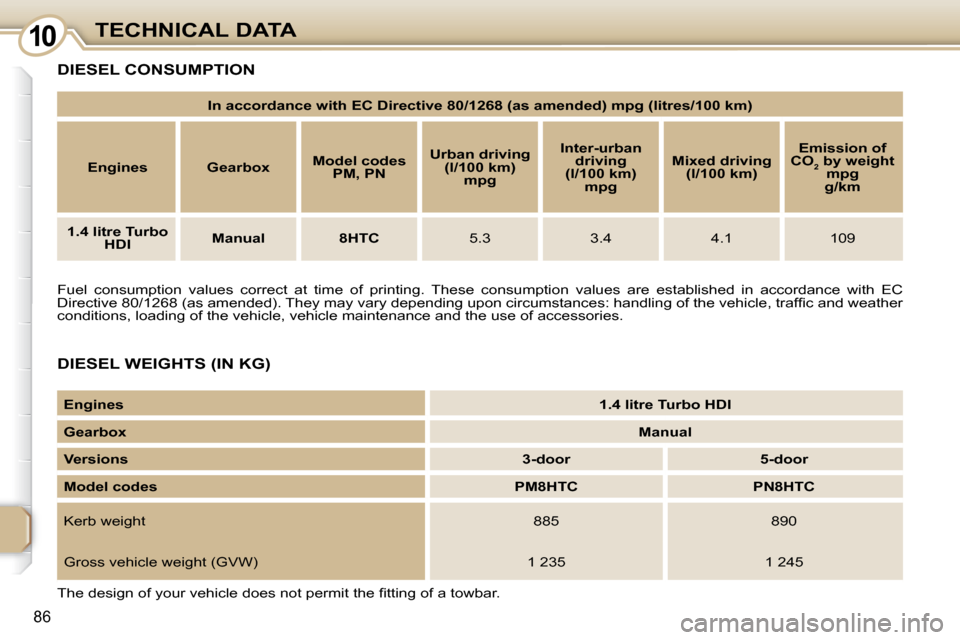

D I E S E L W E I G H T S ( I N K G )
DIESEL CONSUMPTION
Fuel consumption values correct at time of printing. These consu
mption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of accessories.
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) m p g ( l i t r e s / 1 0 0 k m )
Engines G e a r b o x
Model codes
PM, PN
U r b a n d r i v i n g
( l / 1 0 0 k m ) m p g
I n t e r - u r b a n
d r i v i n g
( l / 1 0 0 k m ) m p g
M i x e d d r i v i n g
( l / 1 0 0 k m )
E m i s s i o n o f
CO 2 b y w e i g h t
m p g
g / k m
1 . 4 l i t r e T u r b o
HDI
Manual 8 H T C 5.3 3.4 4.1 109
Engines
1 . 4 l i t r e T u r b o H D I
G e a r b o x
Manual
Versions
3-door 5-door
Model codes
P M 8 H T C P N 8 H T C
Kerb weight 885 890
Gross vehicle weight (GVW) 1 235 1 245
Page 96 of 97
10
87
TECHNICAL DATA

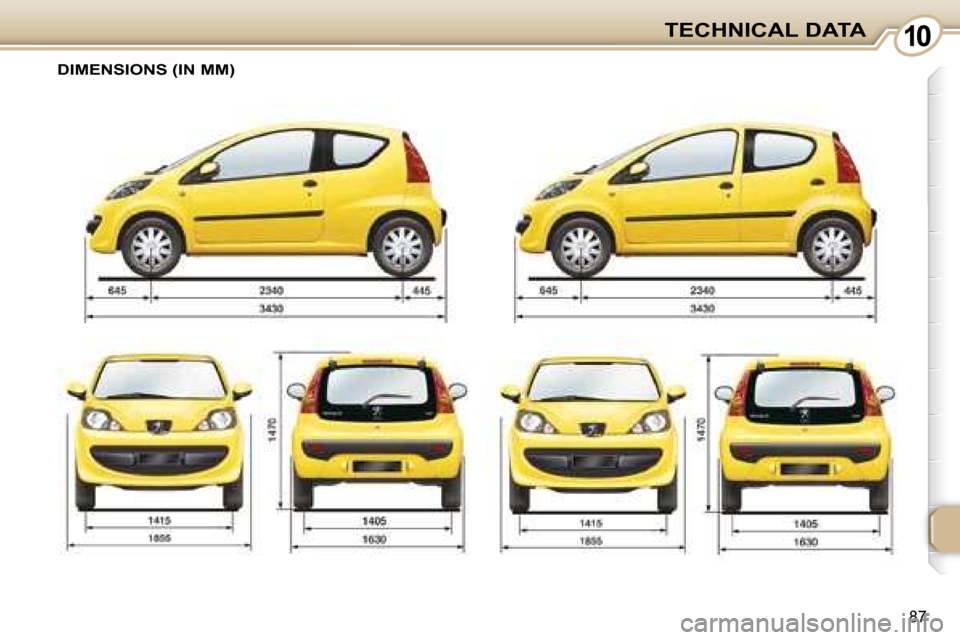

D I M E N S I O N S ( I N M M )
Page 97 of 97
10
88
TECHNICAL DATA

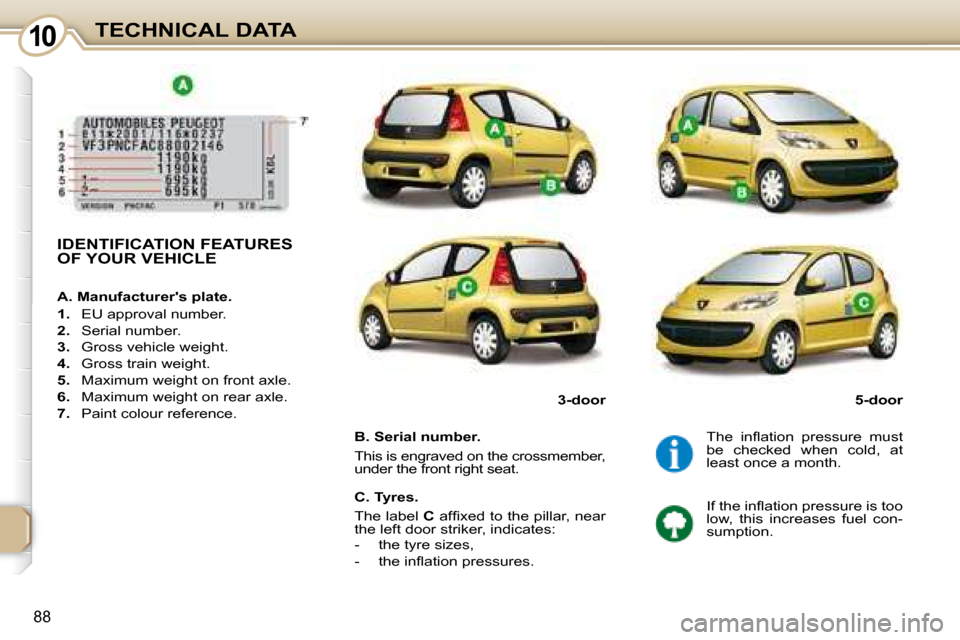

IDENTIFICATION FEATURES
OF YOUR VEHICLE
B . S e r i a l n u m b e r .
This is engraved on the crossmember,
under the front right seat. T h e i n fl a t i o n p r e s s u r e m u s t
be checked when cold, at
least once a month.
A . M a n u f a c t u r e r ' s p l a t e .
1. EU approval number.
2 . Serial number.
3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front axle.
6 . Maximum weight on rear axle.
7. Paint colour reference. 5-door
3-door
I f t h e i n fl a t i o n p r e s s u r e i s t o o
low, this increases fuel con-
sumption.
C . T y r e s .
The label
C a f fi x e d t o t h e p i l l a r , n e a r
the left door striker, indicates:
- the tyre sizes,
- t h e i n fl a t i o n p r e s s u r e s .
