fuel cap PEUGEOT 107 DAG 2010 Owners Manual

5

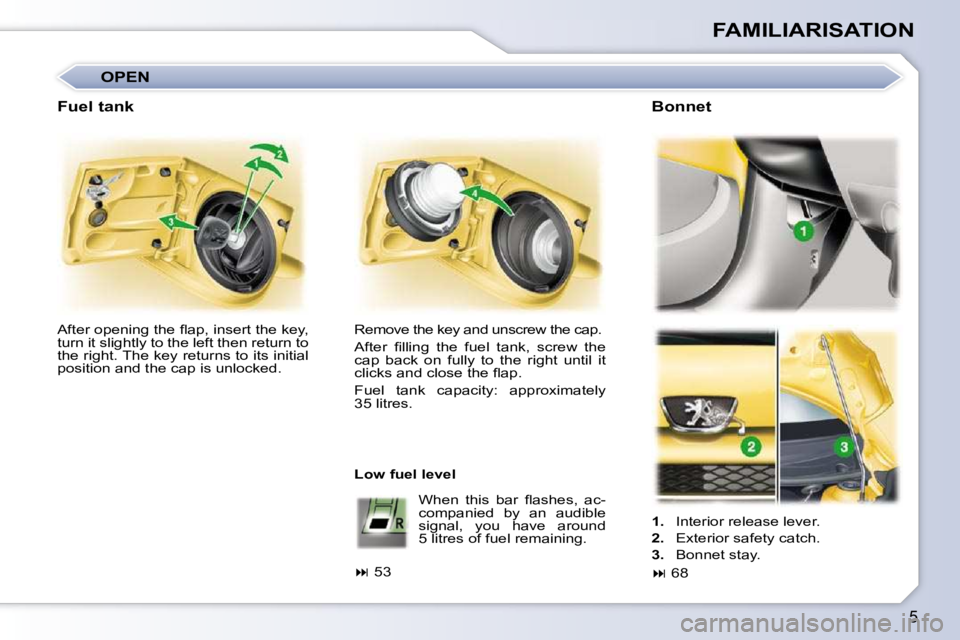

FAMILIARISATION
When this bar fl ashes, ac-
companied by an audible
signal, you have around
5 litres of fuel remaining.
1. Interior release lever.

2. Exterior safety catch.

3. Bonnet stay.

 68

 53
Low fuel level
Remove the key and unscrew the cap.
After fi lling the fuel tank, screw the
cap back on fully to the right until it
clicks and close the fl ap.
Fuel tank capacity: approximately
35 litres.
After opening the fl ap, insert the key,
turn it slightly to the left then return to
the right. The key returns to its initial
position and the cap is unlocked. OPEN
Fuel tank Bonnet

4
48

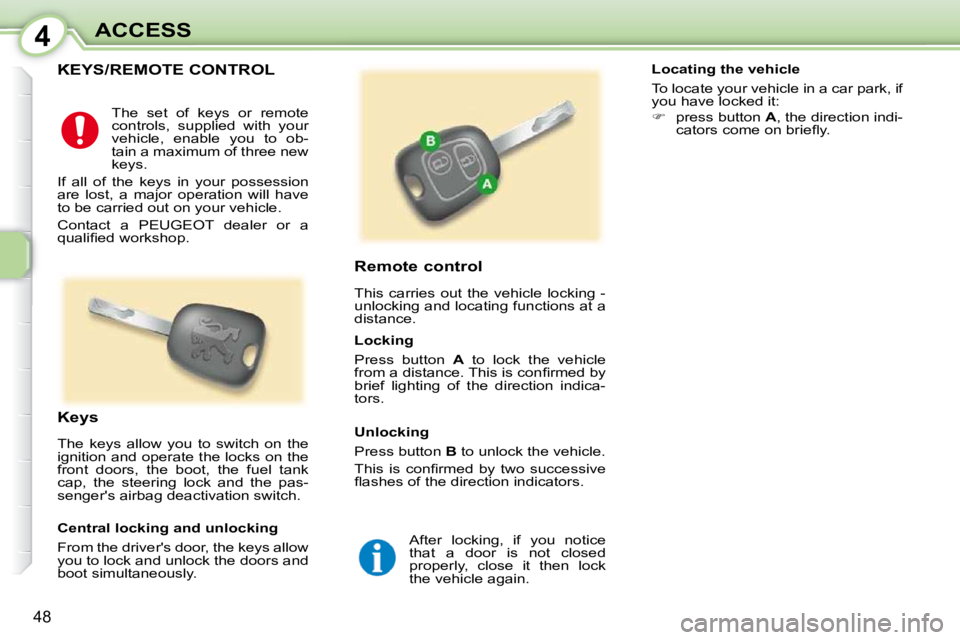

ACCESS
KEYS/REMOTE CONTROL
Remote control
This carries out the vehicle locking -
unlocking and locating functions at a
distance.
Keys
The keys allow you to switch on the
ignition and operate the locks on the
front doors, the boot, the fuel tank
cap, the steering lock and the pas-
senger's airbag deactivation switch. Locking
Press button
A to lock the vehicle
from a distance. This is confi rmed by
brief lighting of the direction indica-
tors.
Central locking and unlocking
From the driver's door, the keys allow
you to lock and unlock the doors and
boot simultaneously. Unlocking
Press button
B to unlock the vehicle.
This is confi rmed by two successive
fl ashes of the direction indicators. Locating the vehicle
To locate your vehicle in a car park, if
you have locked it:

 press button A , the direction indi-
cators come on briefl y.
After locking, if you notice
that a door is not closed
properly, close it then lock
the vehicle again.
The set of keys or remote
controls, supplied with your
vehicle, enable you to ob-
tain a maximum of three new
keys.
If all of the keys in your possession
are lost, a major operation will have
to be carried out on your vehicle.
Contact a PEUGEOT dealer or a
qualifi ed workshop.

4
53
ACCESS

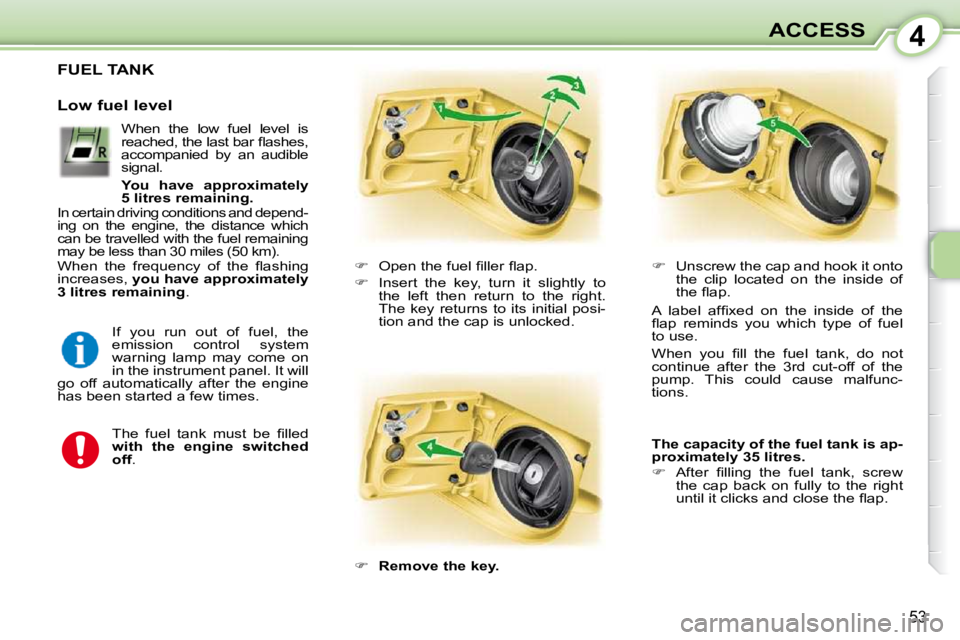

FUEL TANK

 Open the fuel fi ller fl ap.

 Insert the key, turn it slightly to
the left then return to the right.
The key returns to its initial posi-
tion and the cap is unlocked.
Low fuel level
When the low fuel level is
reached, the last bar fl ashes,
accompanied by an audible
signal.

You have approximately
5 litres remaining.
In certain driving conditions and depend-
ing on the engine, the distance which
can be travelled with the fuel remaining
may be less than 30 miles (50 km).
When the frequency of the fl ashing
increases, you have approximately
3 litres remaining .
 Unscrew the cap and hook it onto
the clip located on the inside of
the fl ap.
A label affi xed on the inside of the
fl ap reminds you which type of fuel
to use.
When you fi ll the fuel tank, do not
continue after the 3rd cut-off of the
pump. This could cause malfunc-
tions.

 Remove the key.
If you run out of fuel, the
emission control system
warning lamp may come on
in the instrument panel. It will
go off automatically after the engine
has been started a few times.
The fuel tank must be fi lled

with the engine switched
off .
The capacity of the fuel tank is ap-
proximately 35 litres.

 After fi lling the fuel tank, screw
the cap back on fully to the right
until it clicks and close the fl ap.

1010
86

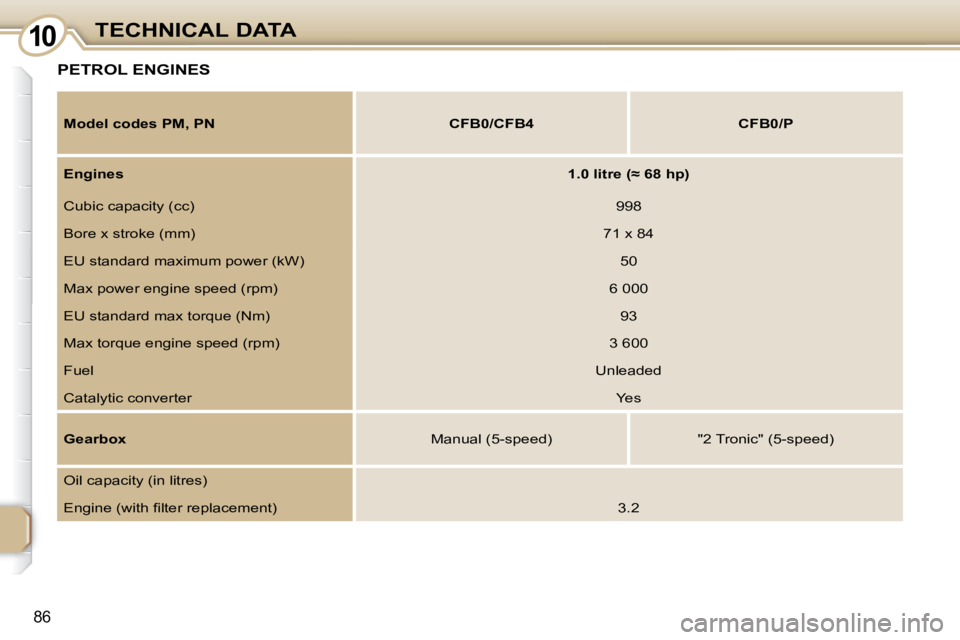

TECHNICAL DATA
PETROL ENGINES

Model codes PM, PN CFB0/CFB4 CFB0/P

Engines
1.0 litre (≈ 68 hp)
Cubic capacity (cc) 998
Bore x stroke (mm) 71 x 84
EU standard maximum power (kW) 50
Max power engine speed (rpm) 6 000
EU standard max torque (Nm) 93
Max torque engine speed (rpm) 3 600
Fuel Unleaded
Catalytic converter Yes

Gearbox Manual (5-speed) "2 Tronic" (5-speed)
Oil capacity (in litres)

Engine (with fi lter replacement) 3.2
