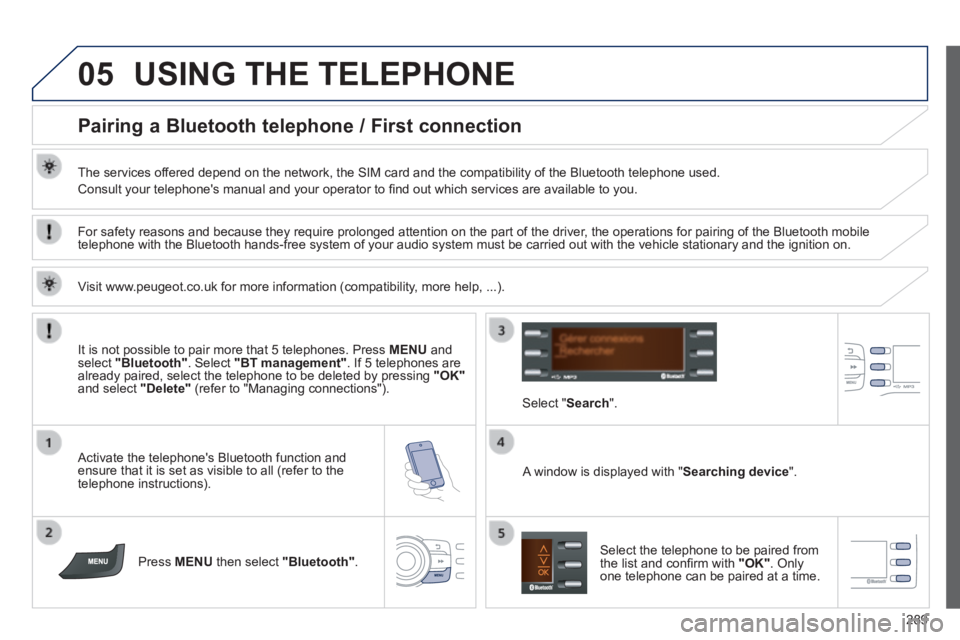

PEUGEOT 2008 2013.5 Owners Manual

05
289
USING THE TELEPHONE
Pairing a Bluetooth telephone / First connection
The services offered depend on the network, the SIM card and the compatibility of the B\
luetooth telephone used.
Consult your telephone's manual and your operator to fi nd out which services are available to you.
Activate the telephone's Bluetooth function and ensure that it is set as visible to all (refer to the telephone instructions).
Press MENU then select "Bluetooth" .
A window is displayed with " Searching device ".
Select the telephone to be paired from the list and confi rm with "OK" . Only one telephone can be paired at a time.
Select " Search ".
For safety reasons and because they require prolonged attention on the p\
art of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your audio system must\
be carried out with the vehicle stationary and the ignition on.
It is not possible to pair more that 5 telephones. Press MENU and select "Bluetooth" . Select "BT management" . If 5 telephones are already paired, select the telephone to be deleted by pressing "OK"and select "Delete" (refer to "Managing connections").
Visit www.peugeot.co.uk for more information (compatibility, more help, ...).

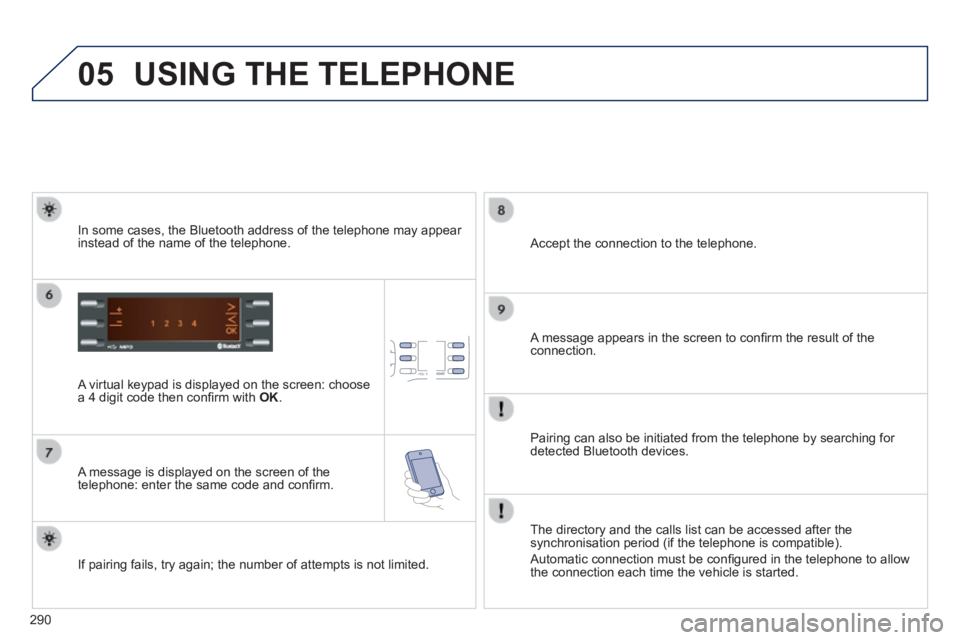

05
290
USING THE TELEPHONE
A virtual keypad is displayed on the screen: choose a 4 digit code then confi rm with OK .
A message is displayed on the screen of the telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the connection.
Pairing can also be initiated from the telephone by searching for detected Bluetooth devices.
Accept the connection to the telephone.
If pairing fails, try again; the number of attempts is not limited.
The directory and the calls list can be accessed after the synchronisation period (if the telephone is compatible).
Automatic connection must be confi gured in the telephone to allow the connection each time the vehicle is started.
In some cases, the Bluetooth address of the telephone may appear instead of the name of the telephone.

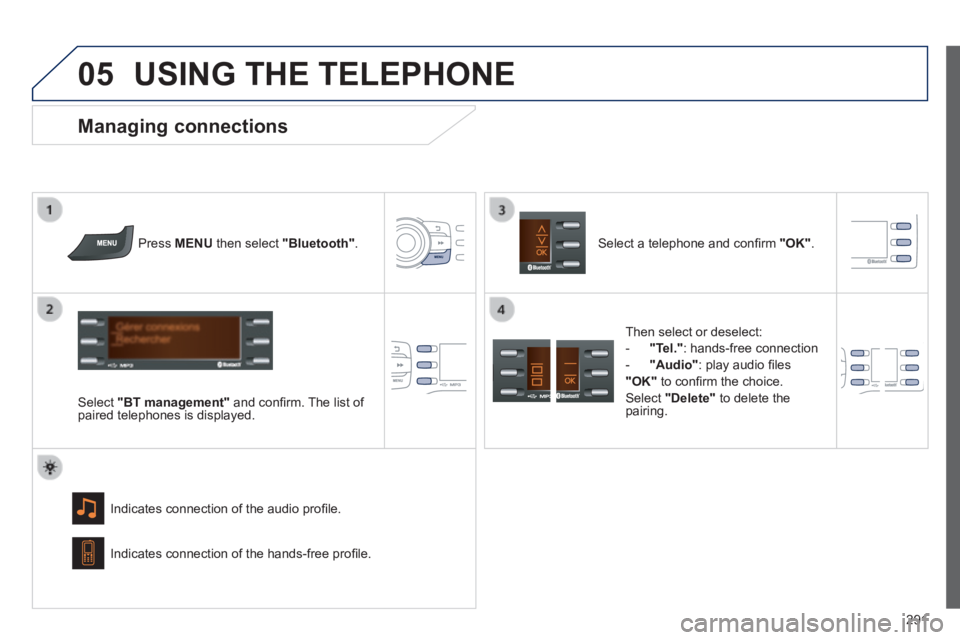

05
291
USING THE TELEPHONE
Press MENU then select "Bluetooth" .
Select "BT management" and confi rm. The list of paired telephones is displayed.
Indicates connection of the audio profi le.
Managing connections
Select a telephone and confi rm "OK" .
Indicates connection of the hands-free profi le.
Then select or deselect:
- "Tel." : hands-free connection
- "Audio" : play audio fi les
"OK" to confi rm the choice.
Select "Delete" to delete the pairing.

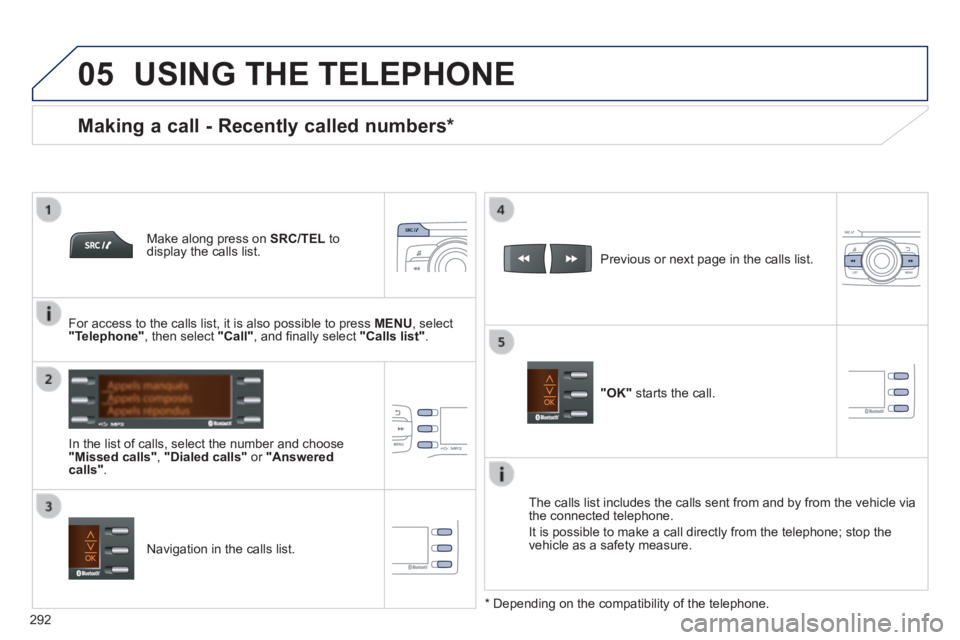

05
292
USING THE TELEPHONE
Make along press on SRC/TEL to display the calls list.
In the list of calls, select the number and choose "Missed calls", "Dialed calls" or "Answered calls" .
Previous or next page in the calls list.
"OK" starts the call.
Making a call - Recently called numbers *
Navigation in the calls list.
The calls list includes the calls sent from and by from the vehicle via \
the connected telephone.
It is possible to make a call directly from the telephone; stop the vehicle as a safety measure.
* Depending on the compatibility of the telephone.
For access to the calls list, it is also possible to press MENU , select "Telephone" , then select "Call" , and fi nally select "Calls list".

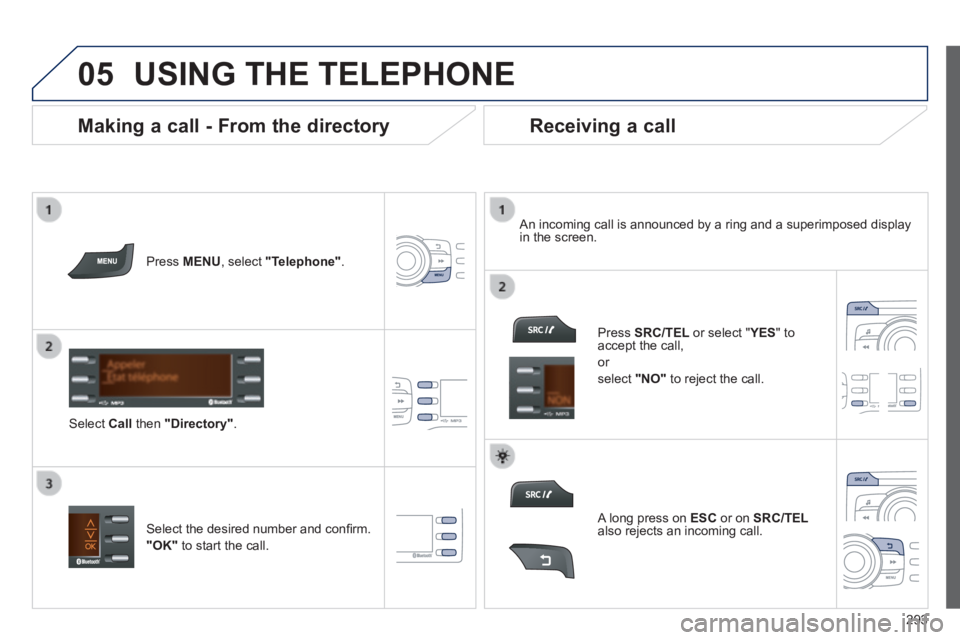

05
293
USING THE TELEPHONE
Press MENU , select "Telephone" .
Select Call then "Directory" .
An incoming call is announced by a ring and a superimposed display in the screen.
Select the desired number and confi rm.
"OK" to start the call.
Press SRC/TEL or select " YES or select " YES or select " " to accept the call,
or
select "NO" to reject the call.
Making a call - From the directory Receiving a call
A long press on ESC or on SRC/TELalso rejects an incoming call.

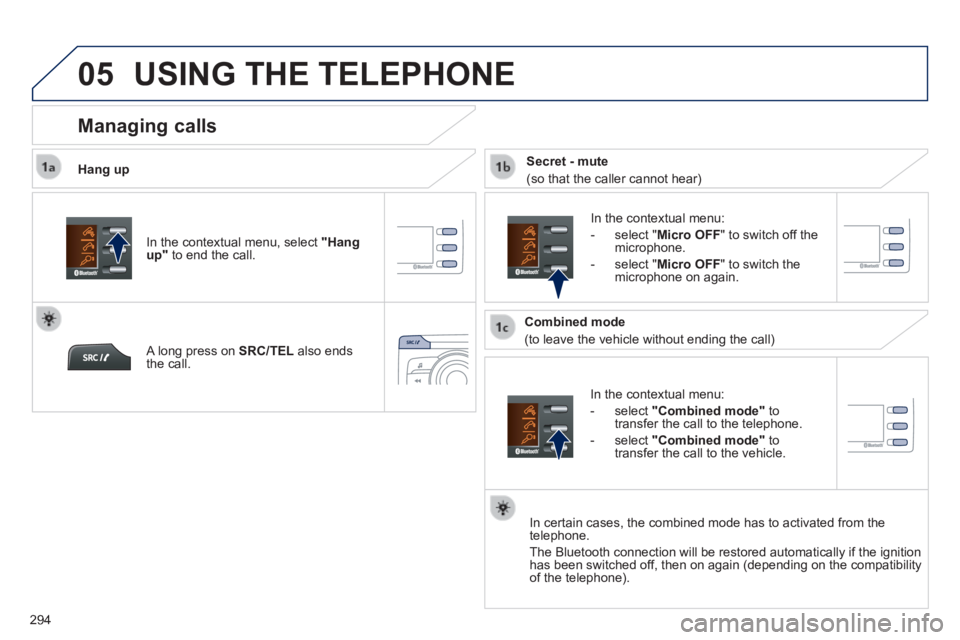

05
294
USING THE TELEPHONE
Hang up
In the contextual menu:
- select "Combined mode" to transfer the call to the telephone.
- select "Combined mode" to transfer the call to the vehicle.
In the contextual menu:
- select " Micro OFF " to switch off the microphone.
- select " Micro OFF " to switch the microphone on again.
In certain cases, the combined mode has to activated from the telephone.
The Bluetooth connection will be restored automatically if the ignition \
has been switched off, then on again (depending on the compatibility of the telephone).
Managing calls
A long press on SRC/TEL also ends the call.
In the contextual menu, select "Hang up" to end the call.
Secret - mute
(so that the caller cannot hear)
Combined mode
(to leave the vehicle without ending the call)

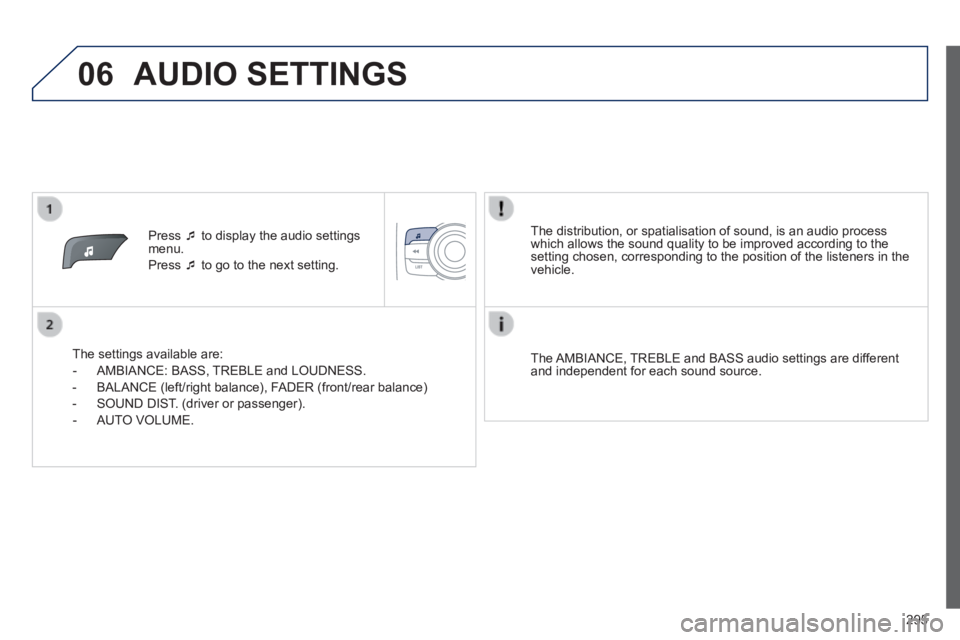

06
295
Press  to display the audio settings menu.
Press  to go to the next setting.
The settings available are:
- AMBIANCE: BASS, TREBLE and LOUDNESS.
- BALANCE (left/right balance), FADER (front/rear balance)
- SOUND DIST. (driver or passenger).
- AUTO VOLUME.
The distribution, or spatialisation of sound, is an audio process which allows the sound quality to be improved according to the setting chosen, corresponding to the position of the listeners in the vehicle.
The AMBIANCE, TREBLE and BASS audio settings are different and independent for each sound source.
AUDIO SETTINGS

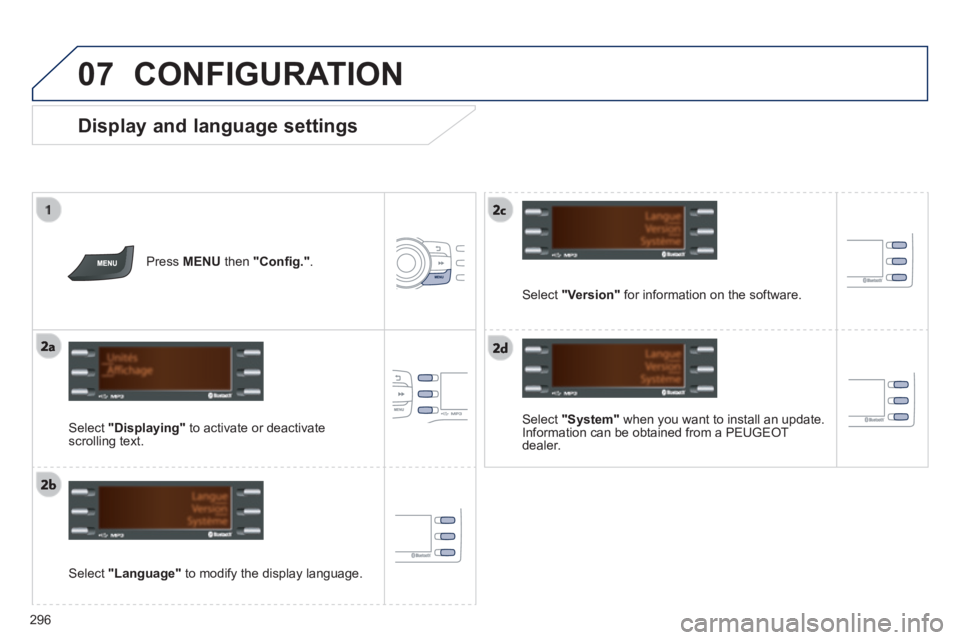

07
296
Display and language settings
Select "System" when you want to install an update. Information can be obtained from a PEUGEOT dealer.
Select "Language" to modify the display language.
Press MENU then "Confi g." .
Select "Displaying" to activate or deactivate scrolling text.
Select "Version" for information on the software.
CONFIGURATION

08
297
SCREEN MENU MAP(S)
1
2
2
2
2
1
2
2
2
1
2
2
2
2
3
3
1
2
2
4
4
4
1
2
3
2
3
3
3
3
3
3
3
2
2
3
3
3
MENU
Radio
TA
RDS
TXT
Write freq.
Media
Normal
Random
Random all
Telephone
Call
Repeat
TA
Phone status
Directory
Calls list
Bluetooth
BT management
Search
Missed calls
Dialed calls
Answered calls
Confi g.
Displaying
Scrolling text
Language
Deutsch
English
Español
Français
Italiano
Nederlands
Português
Version
System
Português-Brasil
Русский
Türkçe
2 Time

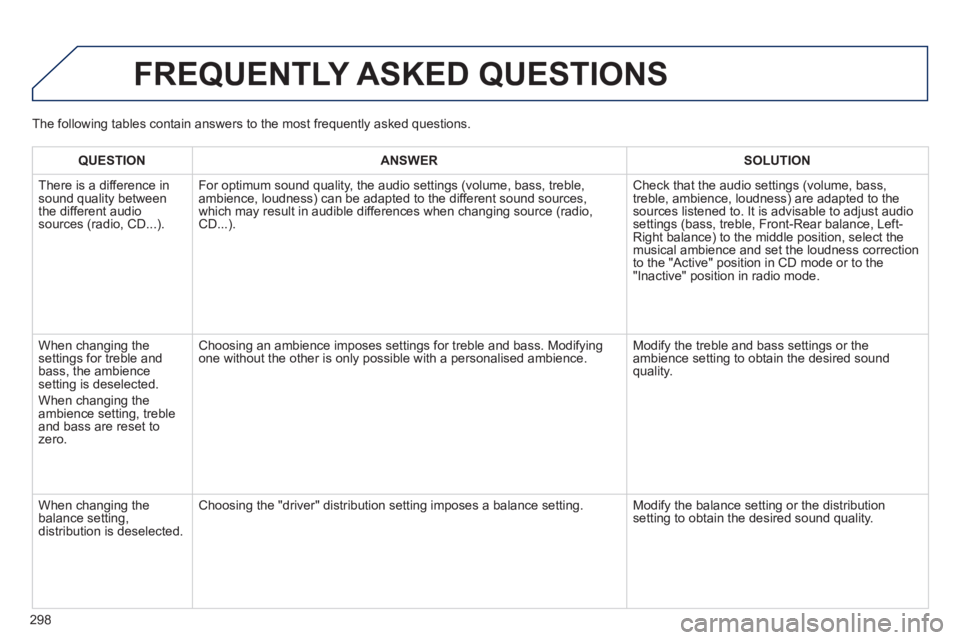

298
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (volume, bass, treble, ambience, loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (volume, bass, treble, ambience, loudness) are adapted to the sources listened to. It is advisable to adjust audio settings (bass, treble, Front-Rear balance, Left-Right balance) to the middle position, select the musical ambience and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
When changing the settings for treble and bass, the ambience setting is deselected.
When changing the ambience setting, treble and bass are reset to zero.
Choosing an ambience imposes settings for treble and bass. Modifying one without the other is only possible with a personalised ambience. Modify the treble and bass settings or the ambience setting to obtain the desired sound quality.
When changing the balance setting, distribution is deselected.
Choosing the "driver" distribution setting imposes a balance setting. Modify the balance setting or the distribution setting to obtain the desired sound quality.
The following tables contain answers to the most frequently asked questi\
ons.
