PEUGEOT 2008 2013.5 Repair Manual

59
3
Comfort

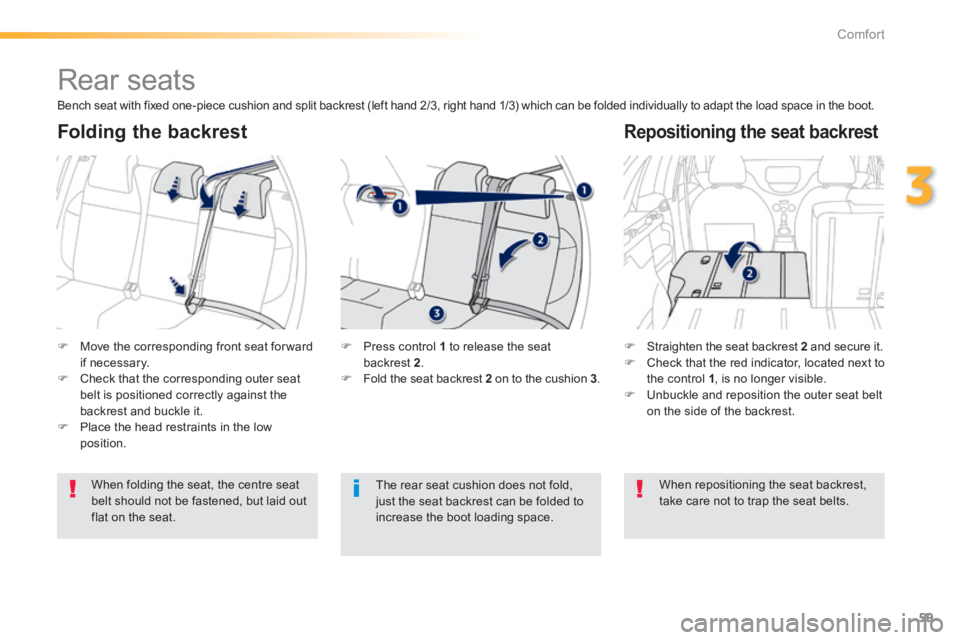

Rear seats
 Move the corresponding front seat for ward if necessary.  Check that the corresponding outer seat belt is positioned correctly against the backrest and buckle it.  Place the head restraints in the low position.
 Straighten the seat backrest 2 and secure it.  Check that the red indicator, located next to the control 1 , is no longer visible.  Unbuckle and reposition the outer seat belt on the side of the backrest.
When folding the seat, the centre seat belt should not be fastened, but laid out flat on the seat .
 Press control 1 to release the seat backrest 2 .  Fold the seat backrest 2 on to the cushion 3 .
Folding the backrest Repositioning the seat backrest
Bench seat with fixed one-piece cushion and split backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.
When repositioning the seat backrest, take care not to trap the seat belts. The rear seat cushion does not fold, just the seat backrest can be folded to increase the boot loading space.

60
Comfort

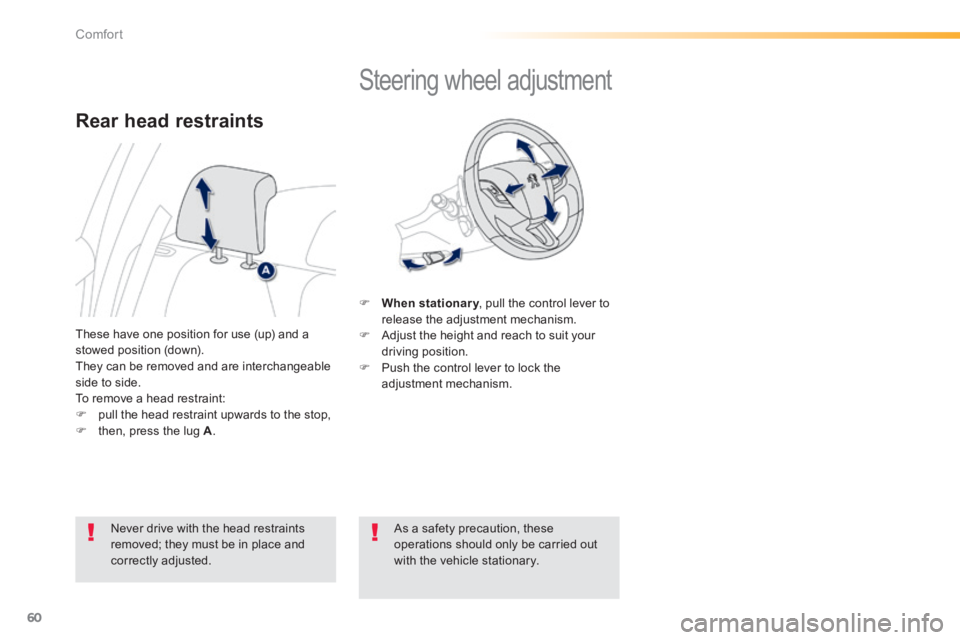

Steering wheel adjustment
 When stationary , pull the control lever to When stationary , pull the control lever to When stationaryrelease the adjustment mechanism.  Adjust the height and reach to suit your driving position.  Push the control lever to lock the adjustment mechanism.
As a safety precaution, these operations should only be carried out with the vehicle stationary.
These have one position for use (up) and a stowed position (down). They can be removed and are interchangeable side to side. To remove a head restraint:  pull the head restraint upwards to the stop,
 then, press the lug A .
Rear head restraints
Never drive with the head restraints removed; they must be in place and correctly adjusted.

61
3
Comfort

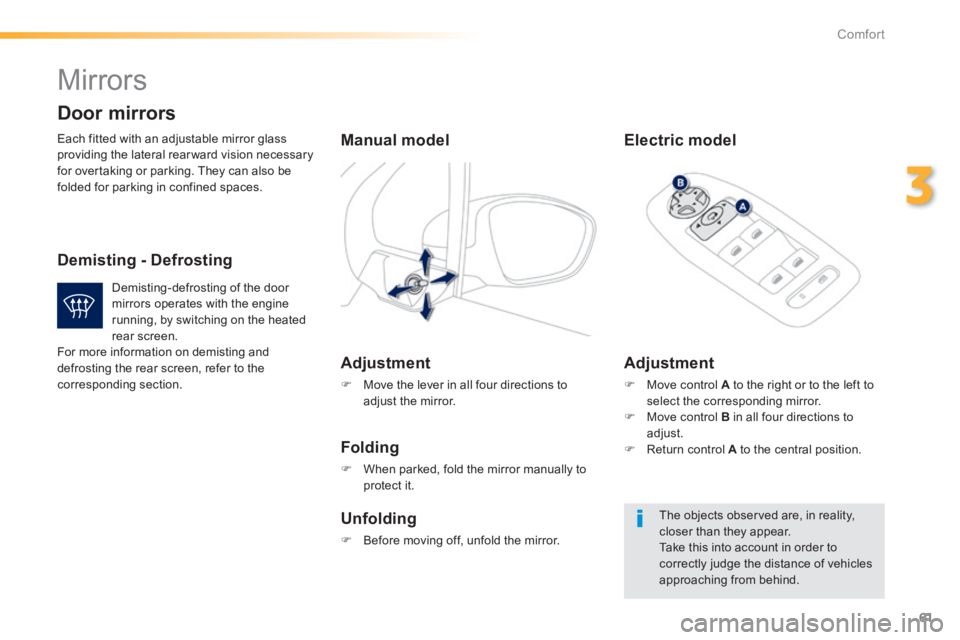

Mirrors
Each fitted with an adjustable mirror glass providing the lateral rear ward vision necessary for overtaking or parking. They can also be folded for parking in confined spaces.
Door mirrors
The objects observed are, in reality, closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.
Demisting - Defrosting
Adjustment Adjustment
Manual model
Folding
 When parked, fold the mirror manually to protect it.
Unfolding
 Before moving off, unfold the mirror.
Electric model
 Move the lever in all four directions to adjust the mirror.  Move control A to the right or to the left to select the corresponding mirror.  Move control B in all four directions to
adjust.  Return control A to the central position.
Demisting-defrosting of the door mirrors operates with the engine running, by switching on the heated rear screen. For more information on demisting and defrosting the rear screen, refer to the corresponding section.

62
!

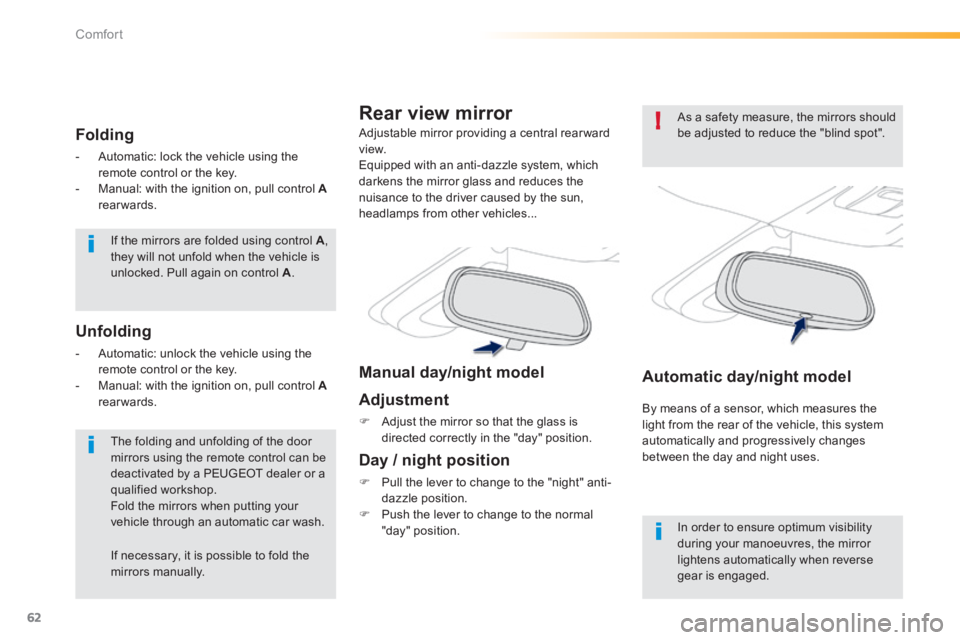

Comfort
If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A .
The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop. Fold the mirrors when putting your vehicle through an automatic car wash.
Folding
- Automatic: lock the vehicle using the remote control or the key. - Manual: with the ignition on, pull control Arearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key. - Manual: with the ignition on, pull control Arearwards.
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system
automatically and progressively changes between the day and night uses.
Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles...
Rear view mirror
Manual day/night model
Adjustment
 Adjust the mirror so that the glass is directed correctly in the "day" position.
Day / night position
 Pull the lever to change to the "night" anti-dazzle position.  Push the lever to change to the normal "day" position. In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".
If necessary, it is possible to fold the mirrors manually.

63
3
Comfort

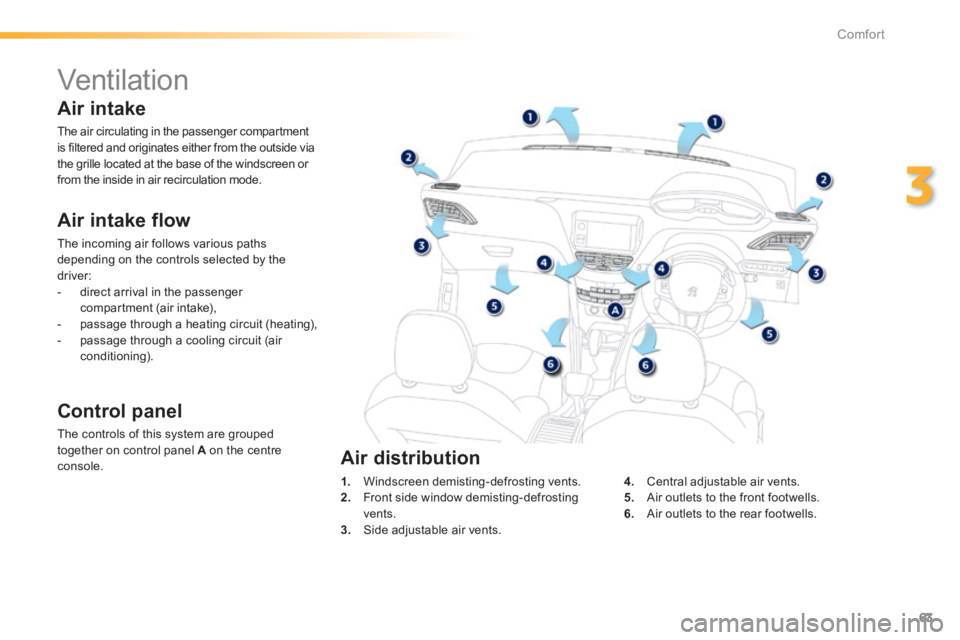

Ventilation
Air intake flow
The incoming air follows various paths depending on the controls selected by the driver: - direct arrival in the passenger compartment (air intake), - passage through a heating circuit (heating), - passage through a cooling circuit (air conditioning).
Control panel
The controls of this system are grouped together on control panel A on the centre console. 1. Windscreen demisting-defrosting vents. 2. Front side window demisting-defrosting vents. 3. Side adjustable air vents.
4. Central adjustable air vents. 5. Air outlets to the front footwells. 6. Air outlets to the rear footwells.
Air distribution
Air intake
The air circulating in the passenger compartment is filtered and originates either from the outside via the grille located at the base of the windscreen or from the inside in air recirculation mode.

64
Comfort
In order for these systems to be fully effective, follow the operation and maintenance guidelines below:  To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as well as the air extractor located in the boot.  Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the air conditioning system.  Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month to keep it in per fect working order.  Ensure that the passenger compartment filter is in good condition and have the filter elements replaced regularly. We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).  To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the warranty and maintenance record.  If the system does not produce cold air, switch it off and contact a PEUGEOT dealer or a qualified workshop. When towing the maximum load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power and so improves the towing ability.

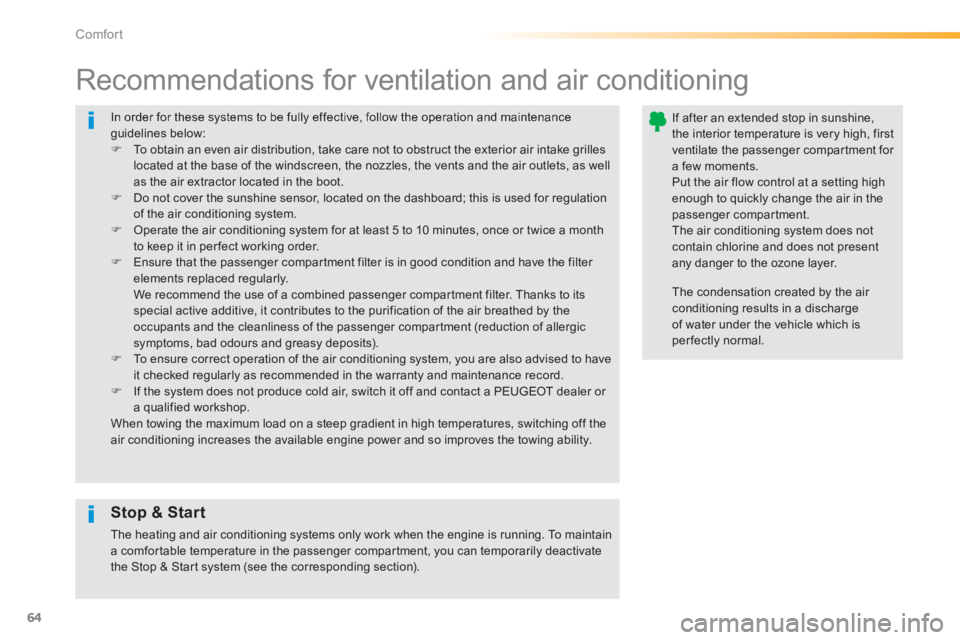

Recommendations for ventilation and air conditioning
If after an extended stop in sunshine, the interior temperature is very high, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does not contain chlorine and does not present any danger to the ozone layer.
The condensation created by the air conditioning results in a discharge of water under the vehicle which is per fectly normal.
Stop & Start
The heating and air conditioning systems only work when the engine is running. To maintain a comfortable temperature in the passenger compartment, you can temporarily deactivate the Stop & Start system (see the corresponding section).

65
3
Comfort

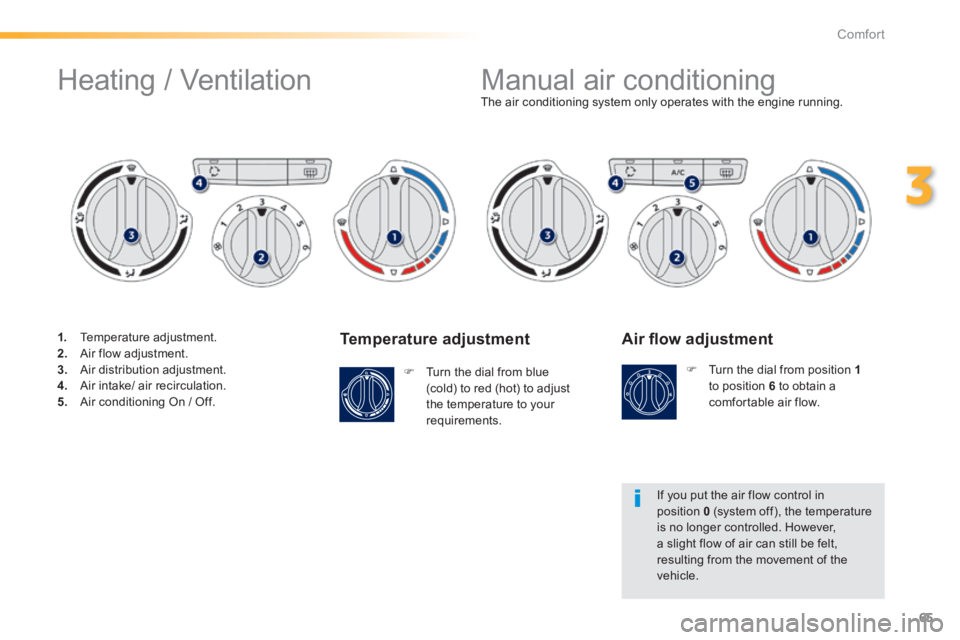

Temperature adjustment
 Turn the dial from blue (cold) to red (hot) to adjust the temperature to your requirements.
The air conditioning system only operates with the engine running.
Air fl ow adjustment
 Turn the dial from position 1to position 6 to obtain a comfortable air flow.
If you put the air flow control in position 0 (system off), the temperature is no longer controlled. However, a slight flow of air can still be felt, resulting from the movement of the vehicle.
Manual air conditioning
Heating / Ventilation
1. Temperature adjustment. 2. Air flow adjustment. 3. Air distribution adjustment. 4. Air intake/ air recirculation. 5. Air conditioning On / Off.

66
Comfort
Air conditioning On / Off
It enables you to: - lower the temperature, in summer, - increase the effectiveness of the demisting in winter, above 3 °C.
Switching on
 Press the "A /C " button, the button's indicator lamp comes on.
Switching off
 Press the "A /C " button again, the button's indicator lamp goes off. Switching off may affect comfort levels (humidity, condensation).
The air conditioning is designed to operate effectively in all seasons, with the windows closed.
The air conditioning does not operate when the air flow adjustment control 2is in position " 0 ".
To obtain cooled air more quickly, you can use recirculation of interior air for a few moments. Then return to fresh air intake.

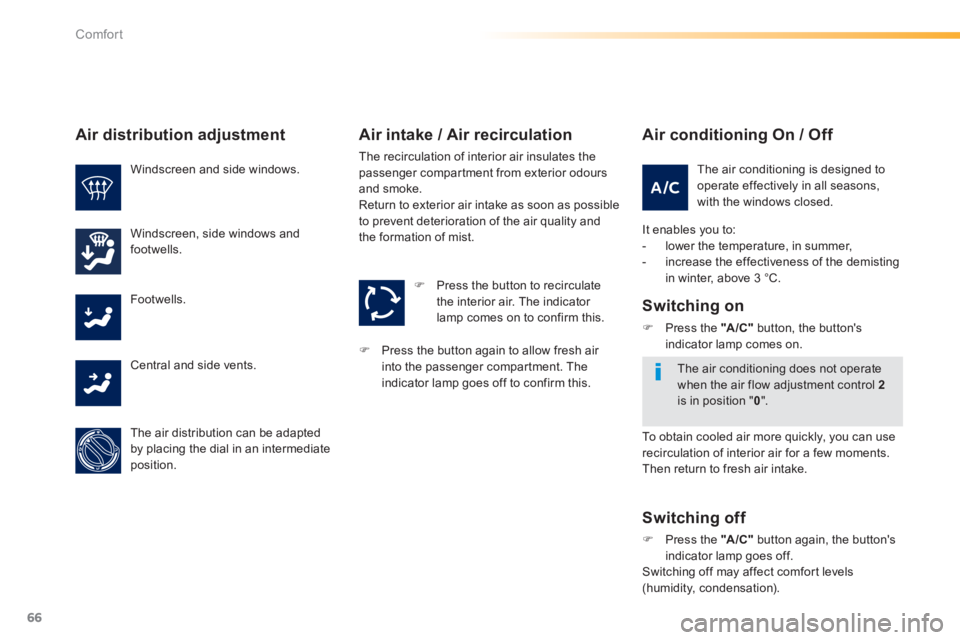

Air distribution adjustment
Windscreen and side windows.
Windscreen, side windows and footwells.
Footwells.
Central and side vents.
The air distribution can be adapted by placing the dial in an intermediate position.
 Press the button to recirculate the interior air. The indicator lamp comes on to confirm this.
Air intake / Air recirculation
The recirculation of interior air insulates the passenger compartment from exterior odours and smoke. Return to exterior air intake as soon as possible to prevent deterioration of the air quality and the formation of mist.
 Press the button again to allow fresh air into the passenger compartment. The indicator lamp goes off to confirm this.

67
3
Comfort

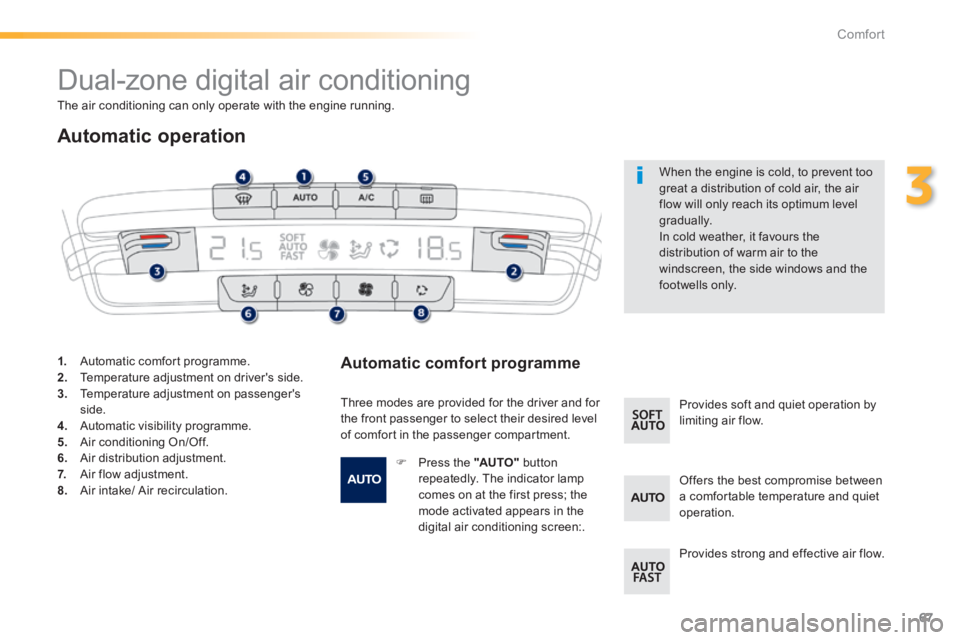

Dual-zone digital air conditioning
Automatic operation
Automatic comfort programme
Three modes are provided for the driver and for the front passenger to select their desired level
of comfort in the passenger compartment.
When the engine is cold, to prevent too great a distribution of cold air, the air flow will only reach its optimum level gradually.
In cold weather, it favours the distribution of warm air to the windscreen, the side windows and the footwells only.
Offers the best compromise between a comfortable temperature and quiet operation.
Provides soft and quiet operation by limiting air flow.
Provides strong and effective air flow.
 Press the "AUTO" button repeatedly. The indicator lamp comes on at the first press; the mode activated appears in the digital air conditioning screen:.
1. Automatic comfort programme. 2. Temperature adjustment on driver's side. 3. Temperature adjustment on passenger's side. 4. Automatic visibility programme. 5. Air conditioning On/Off. 6. Air distribution adjustment. 7. Air flow adjustment. 8. Air intake/ Air recirculation.
The air conditioning can only operate with the engine running.

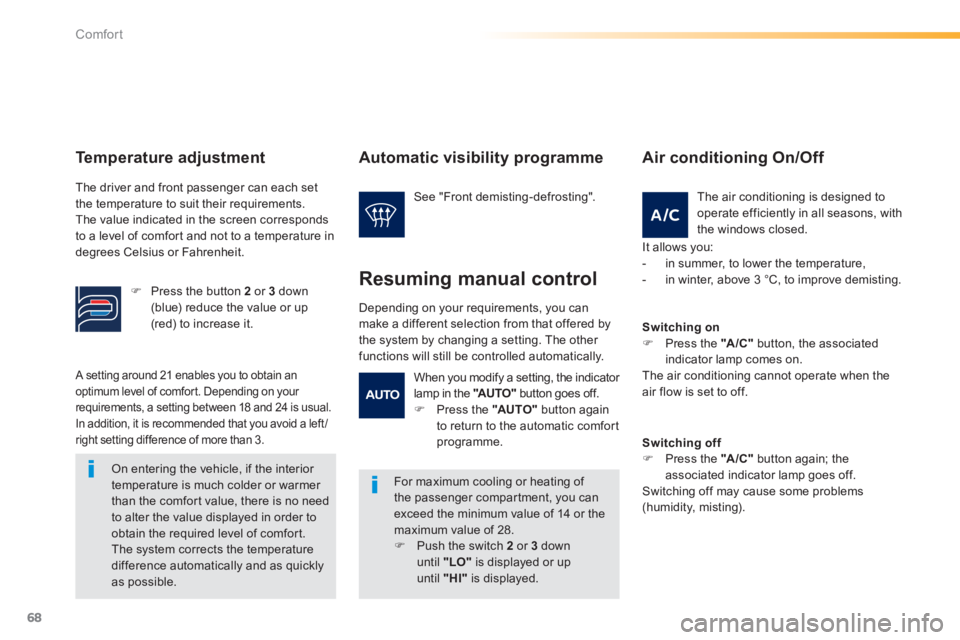

68
Comfort
A setting around 21 enables you to obtain an optimum level of comfort. Depending on your requirements, a setting between 18 and 24 is usual. In addition, it is recommended that you avoid a left /right setting difference of more than 3.
On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is no need to alter the value displayed in order to obtain the required level of comfort. The system corrects the temperature difference automatically and as quickly as possible.
Automatic visibility programme
For maximum cooling or heating of the passenger compartment, you can exceed the minimum value of 14 or the maximum value of 28.  Push the switch 2 or 3 down until "LO" is displayed or up until "HI" is displayed.
See "Front demisting-defrosting".
Depending on your requirements, you can make a different selection from that offered by the system by changing a setting. The other functions will still be controlled automatically.
Resuming manual control
The air conditioning is designed to operate efficiently in all seasons, with the windows closed.
Air conditioning On/Off
It allows you: - in summer, to lower the temperature, - in winter, above 3 °C, to improve demisting.
Switching on Press the "A/C" button, the associated indicator lamp comes on. The air conditioning cannot operate when the air flow is set to off.
Switching off Press the "A /C " button again; the associated indicator lamp goes off. Switching off may cause some problems (humidity, misting).
When you modify a setting, the indicator lamp in the "AUTO" button goes off.  Press the "AUTO" button again to return to the automatic comfort programme.
Temperature adjustment
The driver and front passenger can each set the temperature to suit their requirements. The value indicated in the screen corresponds to a level of comfort and not to a temperature in degrees Celsius or Fahrenheit.
 Press the button 2 or 3 down (blue) reduce the value or up (red) to increase it.
