fuel filter PEUGEOT 2008 2014 Owners Manual

20

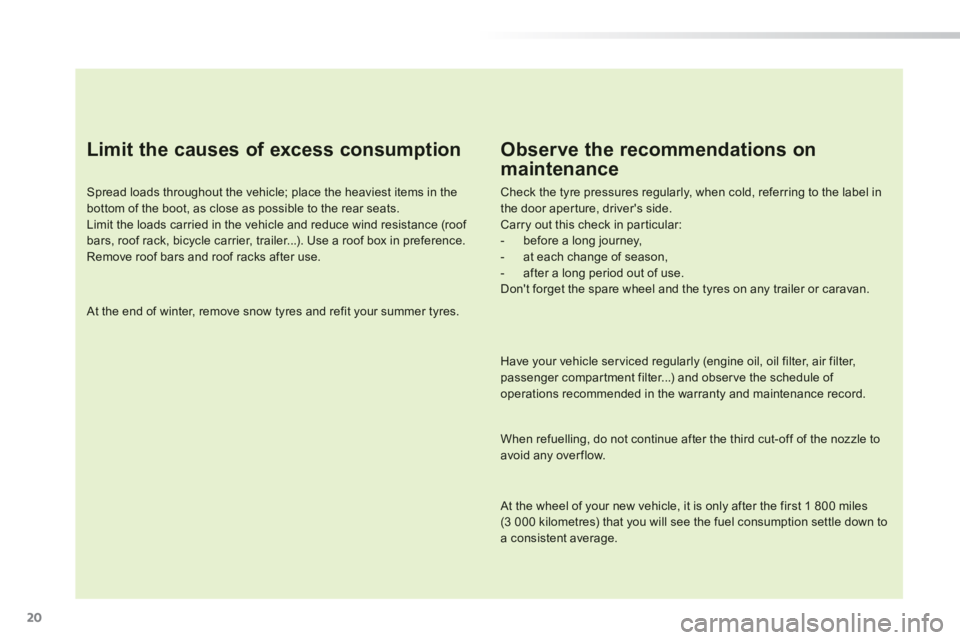

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle and reduce wind resistance (roof bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in the door aperture, driver's side. Carry out this check in particular: - before a long journey, - at each change of season, - after a long period out of use. Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter, passenger compartment filter...) and observe the schedule of operations recommended in the warranty and maintenance record.
When refuelling, do not continue after the third cut-off of the nozzle to avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settle down to a consistent average.

28
Monitoring
Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on the part of the driver. Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the screen. If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations
STOP fixed, associated with another warning lamp. Major faults have occurred. Stop as soon as it is safe to do so. Park, switch off the ignition and call a PEUGEOT dealer or qualified workshop.
Service fixed, associated with another warning lamp. Major faults have occurred. Refer to the section on this warning lamp and you must then contact a PEUGEOT dealer or qualified workshop.
fixed associated with a message (if a display screen is fitted).
Faults have occurred for which there is no specific warning lamp. Identify the fault by reading the message shown in the screen (if a display screen is fitted) and refer to the corresponding section: - engine oil level alert, - risk of blockage of the particle emissions filter (Diesel). - Diesel fuel additive level (Diesel with particle emissions filter). You must contact a PEUGEOT dealer or a qualified workshop.

193
8
Checks
The various caps and covers allow access for checking the levels of the various fluids, for replacing certain components and for priming the fuel system.

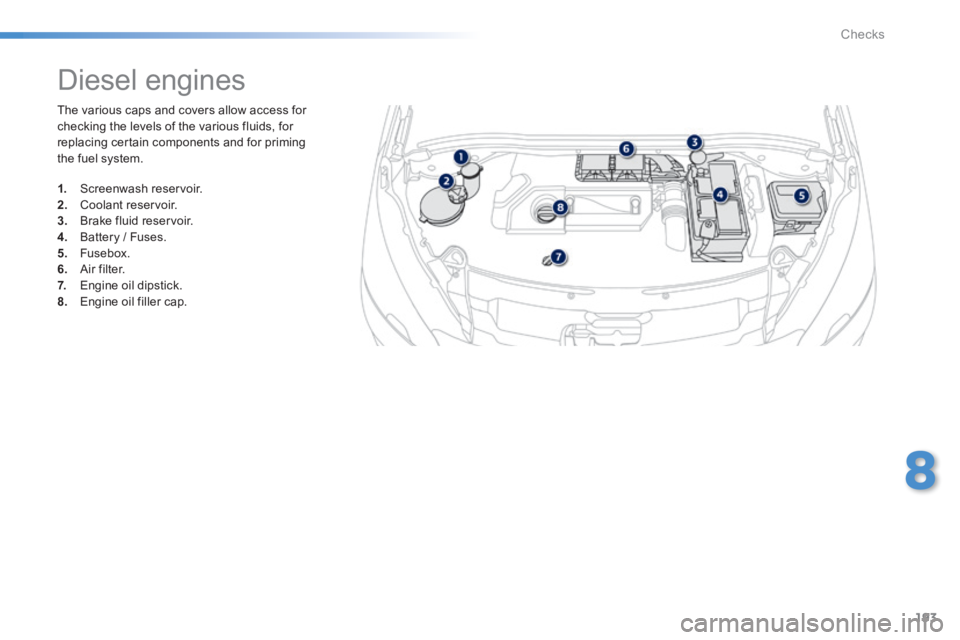

Diesel engines
1. Screenwash reservoir. 2. Coolant reservoir. 3. Brake fluid reservoir.
4. Battery / Fuses. 5. Fusebox. 6. Air filter. 7. Engine oil dipstick. 8. Engine oil filler cap.

204
Technical data
Petrol engines and gearboxes
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
Engines1.2 litre VTi 82 hp1.6 litre VTi 120 hp
Gearboxes Manual (5-speed) Electronic (5-speed) Manual (5-speed) Automatic (4-speed)
Cubic capacity (cc) 1 199 1 598
Bore x stroke (mm) 75 x 90.5 77 x 85.8
Max power: EU standard (kW) * 60 88
Max power engine speed (rpm) 5 750 6 000
Max torque: EU standard (Nm) 118 160
Max torque engine speed (rpm) 2 750 4 250
Fuel Unleaded Unleaded
Catalytic converter Ye s Ye s
Oil capacities (in litres)
Engine (with filter replacement) 3.2 4.25

206
Technical data
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
Diesel engines and gearboxes
Engine s 1.4 litre HDi 68 hp1.6 litre e- HDi 92 hp
Gearboxes Manual (5-speed) Manual (5-speed)
Cubic capacity (cc) 1 398 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3
Max power: EU standard (kW) * 50 68
Max power engine speed (rpm) 4 000 4 000
Max torque: EU standard (Nm) 160 230
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter Ye s Ye s
Particle emission filter Ye s Ye s
Oil capacities (in litres)
Engine (with filter replacement) 3.75 3.75

9
207
Technical data
Engines1.6 litre e-HDi 92 hp1.6 litre e- HDi 115 h p
Gearboxes Electronic (6-speed) Manual (6-speed)
Cubic capacity (cc) 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88.3
Max power: EU standard (kW) * 68 84
Max power engine speed (rpm) 4 000 3 600
Max torque: EU standard (Nm) 230 270
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter Ye s Ye s
Particle emission filter Ye s Ye s
Oil capacities (in litres)
Engine (with filter replacement) - 3.75
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
Diesel engines and gearboxes

.
323
Visual search

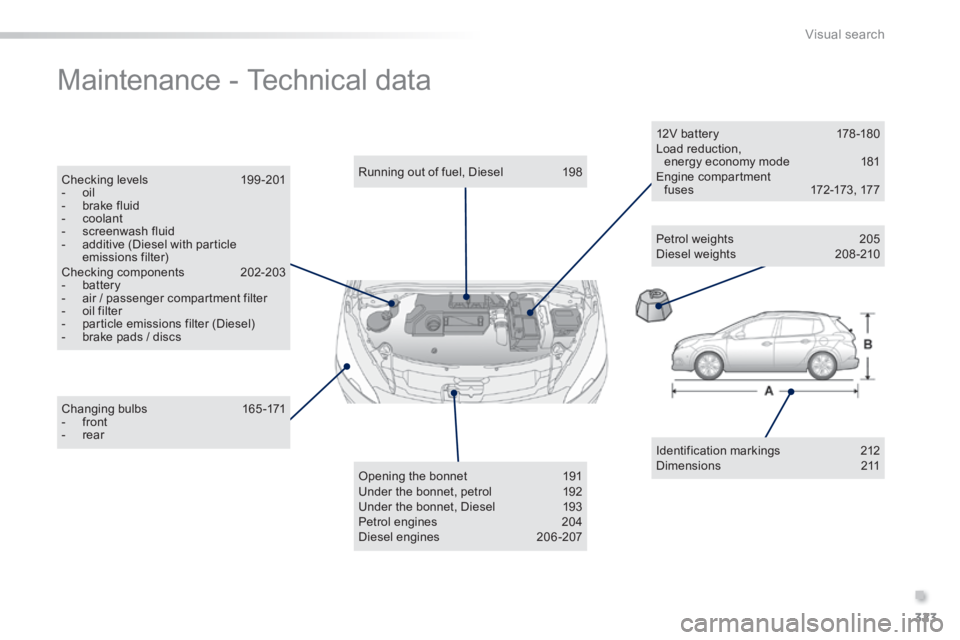

Maintenance - Technical data
Identification markings 212 Dimensions 211
Changing bulbs 165-171 - front - rear
Running out of fuel, Diesel 198
Opening the bonnet 191 Under the bonnet, petrol 192 Under the bonnet, Diesel 193 Petrol engines 204 Diesel engines 206-207
12V battery 178 -180 Load reduction, energy economy mode 181 Engine compartment f u s e s 172-173 , 17 7
Petrol weights 205 Diesel weights 208 -210
Checking levels 199 -201 - oil - brake fluid - coolant - screenwash fluid - additive (Diesel with particle emissions filter) Checking components 202-203 - battery - air / passenger compartment filter - oil filter - particle emissions filter (Diesel) - brake pads / discs

324
Alphabetical index
Accessories ..................................................188Accessory socket, 12V ...................................72Adjusting headlamps ....................................115Adjusting head restraints ................................58Adjusting seat belt height .............................13 0Adjusting the steering wheel ..........................60Advice on care and maintenance ...............................................187Airbags ....................................................32, 13 3Airbags, curtain .....................................13 5, 13 6Airbags, front.........................................13 3, 13 6Airbags, lateral ......................................13 5, 13 6Air conditioning .........................................14, 19Air conditioning, digital .................14, 64, 67, 70Air conditioning, manual ...............14, 64, 65, 70Air distribution adjustment ........................66, 69Air filter ..........................................................Air filter ..........................................................Air filter202Air flow ............................................................19Air flow adjustment ...................................66, 69Air intake ...................................................66, 69Air recirculation .........................................66, 69Air vents ..........................................................63Alarm ...............................................................51Anti-lock braking system (ABS) ..............................................125Anti-theft .........................................................47Assistance call ..............................124, 213, 214Assistance, emergency braking ...................125Audible warning ............................................124Audio cable ...................................252, 287, 312Audio streaming (Bluetooth) ..........................................2 51, 2 8 8Audio system .................................215, 277, 303Automatic illumination of headlamps ......................................1 0 9 , 114Automatic operation of hazard warning lamps ............................124Automatic rain sensitive windscreen wipers ..................................................117, 11 9Auxiliary sockets .............73, 248, 252, 287, 312
Capacity, fuel tank ........................................19 4CD .................................................248, 284, 310CD MP3 .........................................248, 284, 310Central locking ..........................................44, 45Changing a bulb .....................................16 5 -171Changing a fuse .....................................172-17 7Changing a wheel ..................................157-16 3Changing a wiper blade ........................120, 182Changing the date ...........................................43Changing the remote control battery ...........................................................49Changing the time ...........................................43Checking levels .....................................19 9 -201Checking the engine oil level ..................3 7, 1 9 9Checking tyre pressures (using the kit) ..............................................15 6Checks ..................................................198 -203Child lock .......................................................150Children ..................................132, 13 4, 137-15 0Child seats ............................................137-14 9Child seats, conventional ..............................142Cleaning (advice) ..........................................187
AB
C
Closing the boot ..............................................55Closing the doors ............................................45Colour screen ................................................216Connectors, audio ...................73, 248, 252, 312Coolant level ..........................................33, 200Coolant temperature indicator ........................................................indicator ........................................................indicator33Courtesy lamps .............................................121Cruise control ..........................................99, 101Cup holder .......................................................Cup holder .......................................................Cup holder71
Battery ............................................178 -18 0, 2 0 2Battery, charging ...........................................180Battery, remote control .............................49, 50Bluetooth (hands-free) .........................258, 289Bluetooth (telephone) ...........................258, 289Bonnet ...........................................................191Bonnet stay ...................................................191Boot .................................................................55Brake discs ....................................................203Brake lamps ..........................................16 9, 170Brake pads ....................................................203Braking assistance system ...........................125
D
DAB (Digital Audio Broadcasting)...............246, 247Date (setting) ...................................................43Daytime running lamps .................................112Deactivating the passenger airbag ...............13 4Defrosting ........................................................70Demisting ........................................................70Dials and gauges ......................................21, 2 2Diesel additive level ......................................201Digital Audio Broadcasting (DA B) ..................................................246, 247Dimensions ...................................................2 11Dipped beam .........................................108, 166Dipstick ....................................................3 7, 1 9 9Directional lighting ........................................11 6Direction indicators .......113, 123, 166, 169, 170Door pockets ...................................................71Driving economically ......................................19Dynamic stability control (DSC) ....................................29, 125, 127, 128

326
Alphabetical index
Main beam ............................................108, 166Maintenance ...................................................19Maintenance (advice) ....................................187Map reading lamps .......................................121Markings, identification .................................212Mat ..................................................................74Menu ............................................220, 222, 238240, 254, 256, 264, 297, 315Mirror, rear view ..............................................62Mirrors, door....................................................61Misfuel prevention .........................................19 6Motorway function (direction indicators) ...................................123Mountings for ISOFIX seats ...................................................146, 148MP3 CD .........................................248, 284, 310
Oil filter ..........................................................Oil filter ..........................................................Oil filter202Oil level....................................................3 7, 1 9 9Opening the bonnet ......................................191Opening the boot ............................................55Opening the doors ..........................................44Opening the fuel filler flap .............................19 4Opening the panoramic sunroof blind ............56Operation indicator lamps ........................23-32
Paint colour code ..........................................212Panoramic sunroof ..........................................Panoramic sunroof ..........................................Panoramic sunroof56Park Assist ....................................................104Parking brake ..........................................80, 203Parking lamps ...............................................113Parking sensors, front ...................................103Parking sensors, rear....................................102Particle emission filter ..........................Particle emission filter ..........................Particle emission filter200-202Passenger compartment filter ......................Passenger compartment filter ......................Passenger compartment filter202PEUGEOT CONNECT APPS .......................219PEUGEOT Connect Assistance ...................214PEUGEOT Connect SOS .............................214Player, CD MP3 .............................248, 284, 310Port, USB ................................................73, 286Priming the fuel system ................................198Protecting children ................................132, 13 4, 137-15 0Puncture ........................................................151
Radio ............................................242, 280, 306RDS ...............................................245, 281, 307Rear screen (demisting) ..................................70Recharging the battery .................................180Reduction of electrical load .............................................................181Regeneration of the particle emissions filter ............................................emissions filter ............................................emissions filter202Reinitialising the remote control ...........................................................49Remote control ..........................................44-50Removing a wheel ........................................160Removing the mat ...........................................74Repair kit, puncture .......................................151Replacing bulbs .....................................16 5 -17 7Replacing fuses .....................................172-17 7Replacing the air filter ...................................Replacing the air filter ...................................Replacing the air filter202Replacing the oil filter ...................................Replacing the oil filter ...................................Replacing the oil filter202Replacing the passenger compartment filter ......................................compartment filter ......................................compartment filter202Replacing wiper blades.........................120, 182Resetting the service indicator .......................Resetting the service indicator .......................Resetting the service indicator36Reversing lamp .....................................16 9, 171Risk areas (update) .......................................228Roof bars .......................................................187Roof blind ........................................................56Routine checks .....................................202, 203Running out of fuel (Diesel) ..........................198
M
N
O
P
Safety for children ..................132, 13 4, 137-15 0Screen, instrument panel .......................................................38, 40Screen menu map ...............220, 222, 238, 240, 254, 256, 264, 297, 315Screenwash ..................................................117
R
S
Labels, identification .....................................212Lamps, warning and indicator ..................Lamps, warning and indicator ..................Lamps, warning and indicator23-32LED daytime running lamps .................112 , 1 6 7Level, brake fluid ...........................................19 9Levels and checks .................................191-203Lighting bulbs (replacement) .................16 5 -171Lighting control stalk .............................1 0 8 , 113Lighting, guide-me home .................47, 113 , 114Lighting, interior ....................................Lighting, interior ....................................Lighting, interior121, 12 2Lighting on reminder .....................................Lighting on reminder .....................................Lighting on reminder111Loading ...................................................19, 187Load reduction mode ....................................181Load space cover ............................................Load space cover ............................................Load space cover76Locating your vehicle ......................................46Locking the boot..............................................55Low fuel level ................................................19 4Luggage retaining strap ..................................75
L
Number plate lamps ......................................171
