PEUGEOT 206 2006 Owners Manual

Accesses104 -
The lighting is activated on open-ing the tailgate or the rear screen.
Notes: the tailgate and the rear screen lock automatically while driving (above 6 mph (10 km/h)) and unlock when one of the doors is opened.
When the rear windscreen wiper is in a wiping position, the rear screen can only be opened at the end of the cycle.
Close the rear screen using the wind-screen wiper arm or by pressing the centre of the glass.
While driving, if the tail-gate or the rear screen is not properly closed, the courtesy light flashes if the button is in this position.
TAILGATE RELEASE (saloon)
This enables the tailgate to be un-locked in the event of a central lock-ing fault:
- Fold back the rear seats to gain access to the boot from inside the vehicle,- Pull the tailgate trim to release it,- Pull the opening catch 1 upwards.
SUNROOF (saloon)
To open
Press part B of the switch. The roof will open in the intermediate (comfort) position.
To open the roof completely, press part Bpartpart again.
Panoramic sunroof screen
To move it to your chosen position, press part A or B of the switch.
"Tailgate/rear screen open" warning
With the engine running, if the tail-gate or the rear screen is not properly closed, you are warned by an audible signal and a message or a diagram on the multifunction display.
To close
Press part A of the switch, the roof AAwill close in the intermediate (comfort) position.
To close the roof completely, press part Apartpart again. A A

Accesses104 -
The lighting is activated on open-ing the tailgate or the rear screen.
Notes: the tailgate and the rear screen lock automatically while driving (above 6 mph (10 km/h)) and unlock when one of the doors is opened.
When the rear windscreen wiper is in a wiping position, the rear screen can only be opened at the end of the cycle.
Close the rear screen using the wind-screen wiper arm or by pressing the centre of the glass.
While driving, if the tail-gate or the rear screen is not properly closed, the courtesy light flashes if the button is in this position.
TAILGATE RELEASE (saloon)
This enables the tailgate to be un-locked in the event of a central lock-ing fault:
- Fold back the rear seats to gain access to the boot from inside the vehicle,- Pull the tailgate trim to release it,- Pull the opening catch 1 upwards.
SUNROOF (saloon)
To open
Press part B of the switch. The roof will open in the intermediate (comfort) position.
To open the roof completely, press part Bpartpart again.
Panoramic sunroof screen
To move it to your chosen position, press part A or B of the switch.
"Tailgate/rear screen open" warning
With the engine running, if the tail-gate or the rear screen is not properly closed, you are warned by an audible signal and a message or a diagram on the multifunction display.
To close
Press part A of the switch, the roof AAwill close in the intermediate (comfort) position.
To close the roof completely, press part Apartpart again. A A

105Accesses-

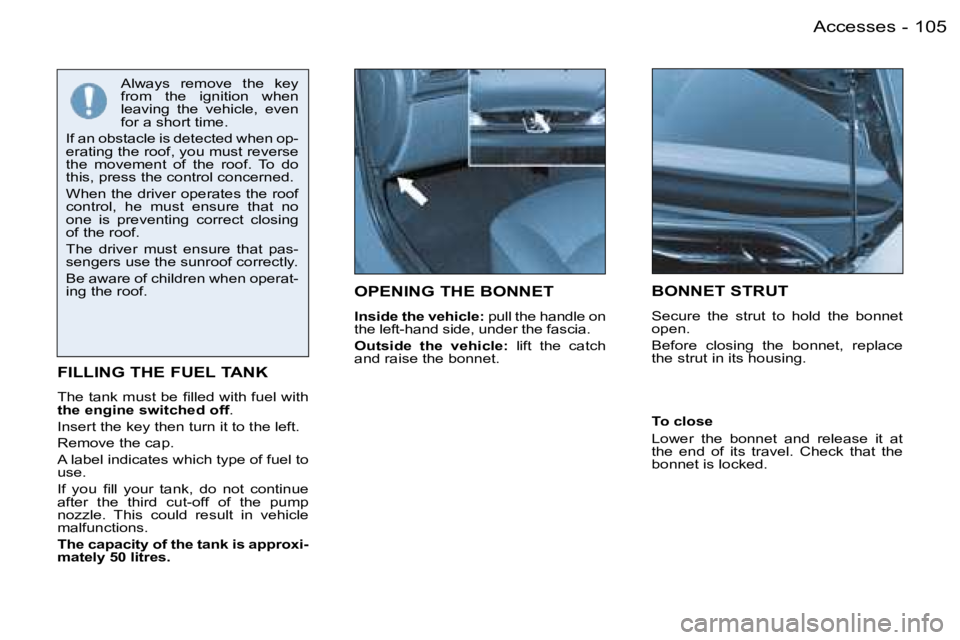

OPENING THE BONNET
Inside the vehicle: pull the handle on the left-hand side, under the fascia.
Outside the vehicle: lift the catch and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet open.
Before closing the bonnet, replace the strut in its housing.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
If an obstacle is detected when op-erating the roof, you must reverse the movement of the roof. To do this, press the control concerned.
When the driver operates the roof control, he must ensure that no one is preventing correct closing of the roof.
The driver must ensure that pas-sengers use the sunroof correctly.
Be aware of children when operat-ing the roof.
FILLING THE FUEL TANK
The tank must be filled with fuel with the engine switched off.
Insert the key then turn it to the left.
Remove the cap.
A label indicates which type of fuel to use.
If you fill your tank, do not continue after the third cut-off of the pump nozzle. This could result in vehicle malfunctions.
The capacity of the tank is approxi-mately 50 litres.
To close
Lower the bonnet and release it at the end of its travel. Check that the bonnet is locked.

105Accesses-
OPENING THE BONNET
Inside the vehicle: pull the handle on the left-hand side, under the fascia.
Outside the vehicle: lift the catch and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet open.
Before closing the bonnet, replace the strut in its housing.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
If an obstacle is detected when op-erating the roof, you must reverse the movement of the roof. To do this, press the control concerned.
When the driver operates the roof control, he must ensure that no one is preventing correct closing of the roof.
The driver must ensure that pas-sengers use the sunroof correctly.
Be aware of children when operat-ing the roof.
FILLING THE FUEL TANK
The tank must be filled with fuel with the engine switched off.
Insert the key then turn it to the left.
Remove the cap.
A label indicates which type of fuel to use.
If you fill your tank, do not continue after the third cut-off of the pump nozzle. This could result in vehicle malfunctions.
The capacity of the tank is approxi-mately 50 litres.
To close
Lower the bonnet and release it at the end of its travel. Check that the bonnet is locked.

Visibility106 -
THE LIGHTS STALK
Front and rear lights
Selection is by turning ring A.
Dipped/Main beam change
Pull the stalk towards you.
Vehicles fitted with front fog lamps and a rear fog lamp (ring C)
Side lights
Dipped/Main beam headlamps
Automatic switching on of lights
Rear fog lamp
Front fog lamps (first rotation of the ring forwards)
Front and rear fog lamps (2nd rotation of the ring forwards).
Note: to switch off the rear fog lamp and the front fog lamps, turn the ring backwards twice in succession.
Note: when the lights are switched off automatically or when the dipped headlamps are switched off manu-ally, the front fog lamps, the rear fog lamp and the side lights remain on (turn the ring backwards to switch off the front fog lamps. The side lights then switch off).
Vehicles fitted with a rear fog lamp (ring B)
This only operates with the dipped/ main beam headlamps.
Note: when the lights are switched off automatically, the rear fog lamp and the dipped headlamps remain on (turn the ring backwards to switch off the rear fog lamp. The dipped head-lamps and side lights then switch off).
The front fog lamps operate with the side lights and the dipped headlamps.
Lights off
Front fog lamps and rear fog lamp
Rotate the ring forwards to switch on and backwards to switch off. The sta-tus is confirmed by the indicator light on the instrument panel.
Lights on reminder
With the ignition off and the auto-matic lighting function switched off, when the driver’s door is opened, a buzzer sounds if you have left your lights on.

107Visibility-
"Follow me home" lighting
When you leave your vehicle, the side lights and dipped headlamps can be left on for approximately 30 seconds.
To do this:
- place the key in the STOP position,- place the lights stalk in the 0 position,- flash the headlamps,- get out of the vehicle and lock it.
AUTOMATIC SWITCHING ON
OF LIGHTS
The side lights and dipped beam headlamps switch on automatically if the light is poor and when the wind-screen wipers operate continuously and switch off when the light be-comes bright enough or the wind-screen wipers are switched off.
In foggy weather or in snow, the brightness sensor can detect suf-ficient light, the lights will not come on automatically.
This function is active when the vehi-cle is suppliedto the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),- Place the lights stalk in the AUTO/0position,- Press the end of the lights stalk for more than four seconds.
Do not cover the brightness sen-sor, coupled with the rain sensor, located in the centre of the wind-screen, behind the interior mirror. It is used for automatic switching on of the lights.
Operating check
Activation
The activated function is accompa-nied by an audible signal and a mes-sage on the multifunction display.
In good or rainy weather, both day and night, the front fog lamps and the rear fog lamp are dazzling and are prohibited.
Do not forget to switch them off when they are no longer needed.
Direction indicators (flashers)
Left: downwards.
Right: upwards.
Disarming
The disarmed function is accompa-nied by an audible signal.
When the driver uses the manual lighting controls, the function is temporarily disarmed.
If the brightness sensor does not function correctly, the lights come on accompanied byan audible signal and a message on the multifunction display.
Contact a PEUGEOT dealer.

107Visibility-
"Follow me home" lighting
When you leave your vehicle, the side lights and dipped headlamps can be left on for approximately 30 seconds.
To do this:
- place the key in the STOP position,- place the lights stalk in the 0 position,- flash the headlamps,- get out of the vehicle and lock it.
AUTOMATIC SWITCHING ON
OF LIGHTS
The side lights and dipped beam headlamps switch on automatically if the light is poor and when the wind-screen wipers operate continuously and switch off when the light be-comes bright enough or the wind-screen wipers are switched off.
In foggy weather or in snow, the brightness sensor can detect suf-ficient light, the lights will not come on automatically.
This function is active when the vehi-cle is suppliedto the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),- Place the lights stalk in the AUTO/0position,- Press the end of the lights stalk for more than four seconds.
Do not cover the brightness sen-sor, coupled with the rain sensor, located in the centre of the wind-screen, behind the interior mirror. It is used for automatic switching on of the lights.
Operating check
Activation
The activated function is accompa-nied by an audible signal and a mes-sage on the multifunction display.
In good or rainy weather, both day and night, the front fog lamps and the rear fog lamp are dazzling and are prohibited.
Do not forget to switch them off when they are no longer needed.
Direction indicators (flashers)
Left: downwards.
Right: upwards.
Disarming
The disarmed function is accompa-nied by an audible signal.
When the driver uses the manual lighting controls, the function is temporarily disarmed.
If the brightness sensor does not function correctly, the lights come on accompanied byan audible signal and a message on the multifunction display.
Contact a PEUGEOT dealer.

Visibility108 -
WINDSCREEN WIPER STALK
Front windscreen wiper with intermittent wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
 Single wipe (press downwards).
In the Intermittent position, the wip-ing speed is in proportion to the ve-hicle speed.
Front windscreen wiper with automatic wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
 Single wipe (press downwards).
In the AUTO position, the wiping speed is in proportion to the intensity of the rainfall.
The command must be reactivat-ed whenever the ignition has been switched off for more than one minute:
- move the stalk to any position, - then move it back to the required position.
Windscreen wash
Pull the wiper stalk towards you. The windscreen wash, then the wind-screen wipers, operate for a speci-fied time.

109Visibility-
Automatic windscreen wipers
In the AUTO position, the wind-screen wipers operate automatically and adapt their speed to the inten-sity of the rainfall.
Do not cover the rain sen-sor located on the wind-screen behind the interior mirror.
When using an automatic car wash, switch off the ignition or check that the wiper stalk is not in the AUTO position.
In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.
Rear screen wiper
Rear screen wash
Turn ring A to the first notch for intermittent wiping.
If the ignition is switched off, it is necessary to reac-tivate the control each time. To do this, move the stalk to any position, then move it back to the required position.
Turn ring A past the first notch; the screen wash then the wiper operate for a fixed period.
206 SW: the rear screen wiper and rear screen wash functions are dis-armed automatically when the rear screen is open.
Operating check
Activation
Activation of the function is accom-panied by a message on the multi-function display.
In the event of malfunction, the driv-er is informed by an audible signal.
In the AUTO position, the wind-screen wiper will operate in intermit-tent mode.
Contact a PEUGEOT dealer to have the system checked.
Automatic rear screen wiper
When the windscreen wipers control is activated and you engage reverse gear, the rear screen wiper operates intermittently.
Note: if you use a bicycle carrier, consult a PEUGEOT dealer to have this function deactivated or install a specific bicycle carrier approved by PEUGEOT.

Visibility110 -
TRIP COMPUTER
Pressing the button on the end of the wash/wipe stalk enables the following data to be displayed:
Display B
- the range- the distance travelled- the average consumption- the current consumption- the average speed
Monochrome screen CT
-the "vehicle" tab with:• range, current consumptionand the distance still to be driven,- tab "1" (route "1") with:• the distance driven, the average consumption and the average speed calculated over route "1"-tab "2" (route "2") with the same features.
It also permits access to the warning log information.
Zero reset
Press the stalk for more than two seconds.
Zero re-set
When the required route is displayed, press the button for more than two seconds.
