INSTRUMENTS AND CONTROLS
28
Handbrake, low brake fluid level and fault inElectronic Brake ForceDistribution systemwarning light
Linked with the central STOP warning light. Indicates either:
Ð that the handbrake is on or has not been released correctly,
Ð an excessive drop in the brake fluid level (if the light remains lit even with the handbrake released),
Ð a fault in the Electronic Brake Force Distribution system if lit simultane-
ously with the ABS warning light.
Stop immediately.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
A permantly lit warning light or one that flashes, with the engine run-ning, indicates an operating fault inthe relevant unit. Some warninglights may be accompanied by anaudible signal and a message onthe multifunction screen. Do notignore this warning: contact a PEUGEOT dealer as soon as possi-
ble. If the Central STOP warninglight comes on when you are dri-ving, stop immediately where it issafe to do so.
Anti-lock brake system (ABS) warning light This comes on for 3 seconds
each time the ignition is switched on. If the warning light remains on or comes on above 12 km/h, this indi-
cates an ABS malfunction.
However, the vehicle retains conven- tional servo-assisted braking. Lighting of this warning light is accom- panied by an audible signal and themessage "ABS fault" on the multi-
function display.
Contact a PEUGEOT dealer.
Engine oil pressure warning light
Linked with the central STOP
warning light.
Stop immediately.This warning light indicates either:
Ð insufficient oil pressure,
Ð lack of oil in the lubrication circuit. Top up the oil level.
Ð oil temperature which is too high. Switching on of the warning light is accompanied by an audible signal.
To lower the oil temperature, reduceyour speed.
Contact a PEUGEOT dealer.
Coolant temperature and low level warninglight
Linked with the central STOP warning light.
Stop immediately.Allow the engine to cool before top- ping up. The cooling system is pressurised.In the event of breakdown and to pre-
vent the risk of scalding , turn the
cap twice to allow the pressure to drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Central STOP warning light Linked with the warning
light for the "engine oil pressure", the "coolant temperature and low levelgauge", the "handbrake", the "brakefluid low level" and ''electronic brakingsystem fault''. Stop immediately if the light is flashing with the engine running.
Contact a PEUGEOT dealer.
07-10-2002

07-10-2002
YOUR 206 CC IN DETAIL
88
The normal operation of the ABS may make itself felt by slight vibra-tions of the brake pedal. In emergency braking, press very firmly without releasing thepressure.
THE ABS ANTI-LOCK BRAKING SYSTEM
The ABS system with Electronic Brake Force Distribution (EBFD) increasesthe stability and manoeuvrabilty ofyour vehicle, particularly on poor orslippery road surfaces. Note:
when replacing wheels (tyres
and rims), ensure that they are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
Lighting of this warninglamp, accompanied by anaudible signal and the mes-sage "Braking fault" on the
multifunction display, indicates amalfunction of the electronic brakeforce distribution which could result in
loss of control of the vehicle whenbraking.
Stop immediately.
Contact a PEUGEOT dealer.
HANDBRAKE Applying When parking, pull the handbrake to immobilise your vehicle. Releasing Pull the handle and press the button to release the handbrake.
Illumination of this warninglight and of the STOPwarning
light, accompanied by anaudible signal (at 10 km/h)
and the message "handbrake on"on
the multifunction display, indicates thatthe handbrake is still applied or has
not been released fully. EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables the optimum braking pressure to be
reached more quickly, thus reducingthe stopping distance. It is triggered by the speed at which
the brake pedal is activated. The effectof this is a reduction in the resistanceof the pedal and an increase in braking
efficiency.

07-10-2002
PRACTICAL INFORMATION107

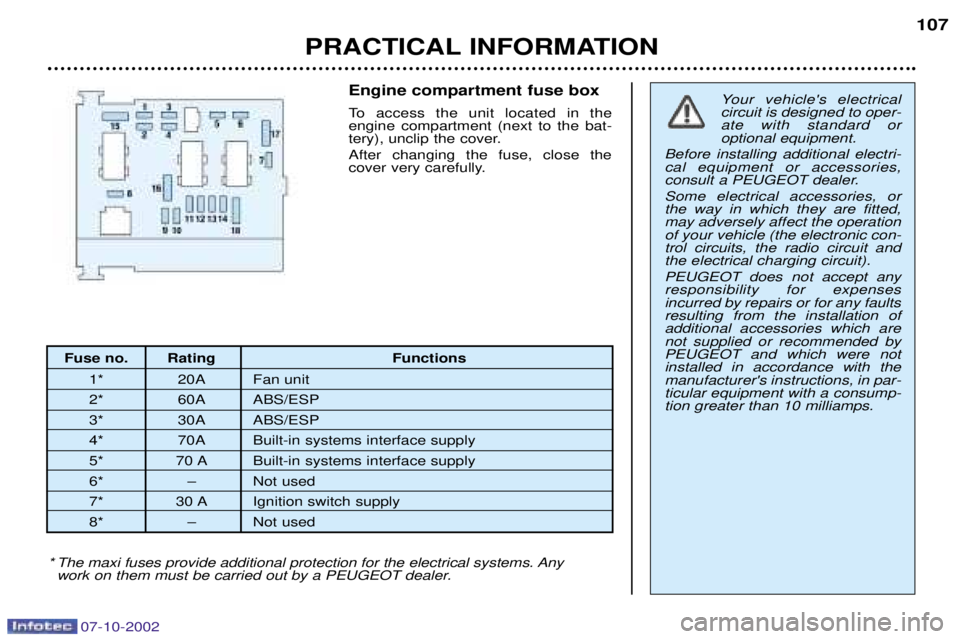

Fuse no. Rating Functions
1* 20A Fan unit
2* 60A ABS/ESP
3* 30A ABS/ESP
4* 70A Built-in systems interface supply
5* 70 A Built-in systems interface supply
6* Ð Not used
7* 30 A Ignition switch supply
8* Ð Not used Engine compartment fuse box
To access the unit located in the engine compartment (next to the bat-
tery), unclip the cover. After changing the fuse, close the
cover very carefully.
Your vehicle's electrical circuit is designed to oper-ate with standard oroptional equipment.
Before installing additional electri-cal equipment or accessories,
consult a PEUGEOT dealer. Some electrical accessories, or the way in which they are fitted,may adversely affect the operationof your vehicle (the electronic con-trol circuits, the radio circuit andthe electrical charging circuit). PEUGEOT does not accept any responsibility for expensesincurred by repairs or for any faultsresulting from the installation ofadditional accessories which arenot supplied or recommended byPEUGEOT and which were notinstalled in accordance with themanufacturer's instructions, in par-ticular equipment with a consump-tion greater than 10 milliamps.
* The maxi fuses provide additional protection for the electrical systems. Any work on them must be carried out by a PEUGEOT dealer.
