PEUGEOT 206 CC DAG 2001 User Guide

12YOUR AT A GLANCE12
No. Symbol Function
1 Air distribution adjustment.
2 Air intake control.
3 Temperature adjustment.
4 Demisting the rearscreen and the mirrors.
5 Air flow adjustment.
6 Air conditioningcontrol
HEATING/AIR CONDITIONING
56
58

13
No. Symbol Function1 Air flow adjustment.
2 Air distribution adjustment.
3 Air intake control.
4 Air conditioningcontrol.
5 Demisting the rearscreen and the mir-rors.
6 Stopping the system.
7
Temperature adjustment.
8 Automatic comfort programme.
9 Automatic visibilityprogramme.
Note: in the cabriolet version,
system performance may be reduced.
60
L'AIR CONDITIONNƒ AUTOMATIQUE
YOUR AT A GLANCE

14THE AUTOADAPTIVE GEARBOX Starting the engine
To start the vehicle,position the gear lever
at Nor P.
Press the brake pedal to change from
position P, when selecting forwards or rever-
se gears.
P. Parking
R. Reverse
N. Neutral
D. Driving: automatic changes of the four gears in this position.
3. Automatic changes of the first three gears only.
2. Automatic changes of the first two gears only.
A. Sport programme.
B. Snow programme.
Position of the selector lever This is displayed by an indicator on the instrument panel.YOUR AT A GLANCE
85

PEUGEOT SERVICING
18
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals, every 20,000 miles (30,000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal.
It is for this reason that the PEUGEOT network invites you to an intermediate visit between each regular service. The service indicator does not show when this service is due. It must be carried out every 10,000 miles (15,000 km).
A PEUGEOT dealer will carry out a quick check, and will top up the levels if necessary (oil, coolant, screen-wash up to 2 litres). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every 2000 miles (3000 km) or 3000 miles (5000 km), depending on the conditions of use. This extended service intervals have been made possible by technical modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.

PEUGEOT SERVICING19
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The air bags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).Note:
The coolant does not need to be replaced.

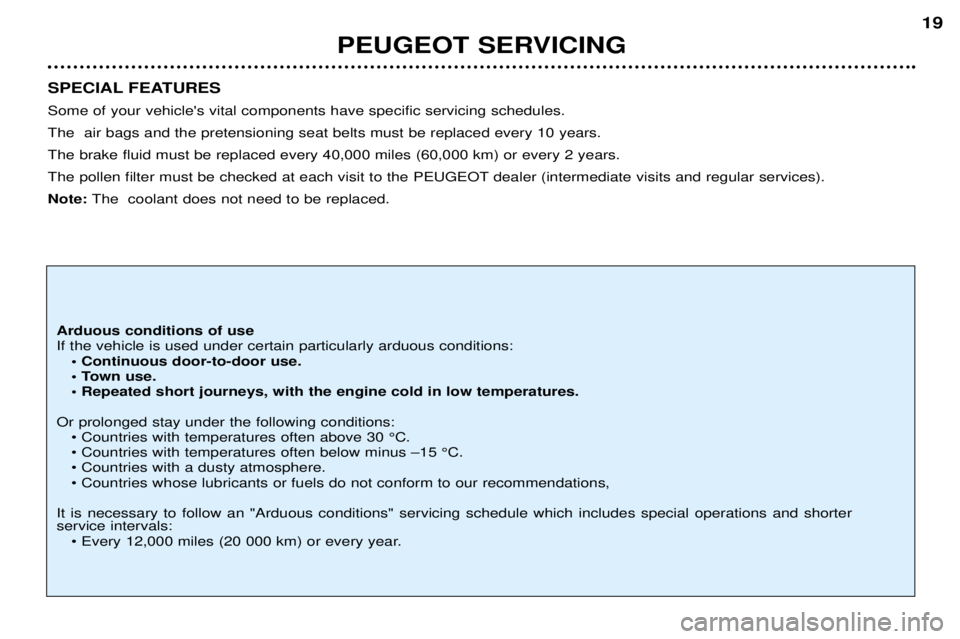

Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥ Continuous door-to-door use.
¥ Town use.¥ Repeated short journeys, with the engine cold in low temperatures.
Or prolonged stay under the following conditions: ¥ Countries with temperatures often above 30 ¡C.¥ Countries with temperatures often below minus Ð15 ¡C.¥ Countries with a dusty atmosphere.¥ Countries whose lubricants or fuels do not conform to our recommendations,
It is necessary to follow an "Arduous conditions" servicing schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.

PEUGEOT SERVICING
20

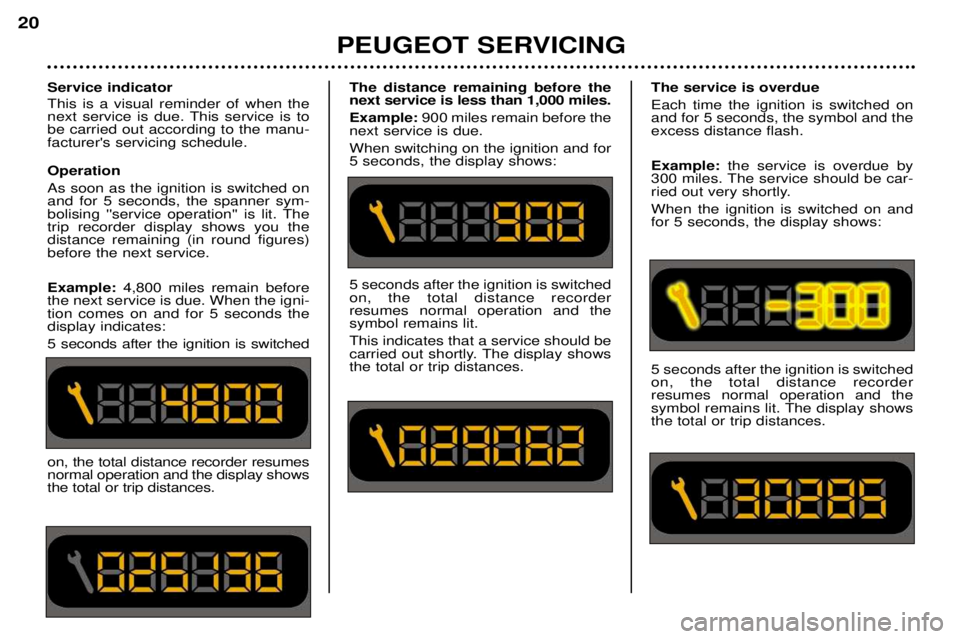

Service indicator This is a visual reminder of when the
next service is due. This service is tobe carried out according to the manu-facturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spanner sym-
bolising ''service operation'' is lit. Thetrip recorder display shows you thedistance remaining (in round figures)before the next service. Example: 4,800 miles remain before
the next service is due. When the igni- tion comes on and for 5 seconds thedisplay indicates: 5 seconds after the ignition is switched The distance remaining before the next service is less than 1,000 miles. Example:
900 miles remain before the
next service is due.When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distance recorderresumes normal operation and thesymbol remains lit. This indicates that a service should be
carried out shortly. The display showsthe total or trip distances.
on, the total distance recorder resumesnormal operation and the display showsthe total or trip distances.
5 seconds after the ignition is switched on, the total distance recorderresumes normal operation and the
symbol remains lit. The display showsthe total or trip distances.
The service is overdue Each time the ignition is switched on and for 5 seconds, the symbol and theexcess distance flash. Example: the service is overdue by
300 miles. The service should be car-
ried out very shortly. When the ignition is switched on and for 5 seconds, the display shows:

PEUGEOT SERVICING21
Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the reset procedure is as fol-lows:  Switch off the ignition.
Ð Press and hold button 1.
Ð Switch on the ignition.The display begins a 10 second count- down.
Ð Keep button 1pressed for 10 sec-
onds.
Ð The display shows [=0]and the
service symbol disappears.

PEUGEOT SERVICING
22
SERVICING LEVELS Each vehicle possesses its servicing cycle, defined by the manufacturer in terms of the technical features.
This cycle consists in alternating beteen 2 levels A and C, intermediate visits and a few additional operations specific to your vehicle; they correspond to key stages in the life of your 206 CC. Service level B concerns servicing of less recent vehicles.At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
Intermediate top-up visit incorporated in the ServicingSchedule.Automatic gearbox oil level every 40,000 miles (60,000 km).
Replacement of brake fluid every 2 years or 40,000 miles (60,000 km).
These fixed operations are carried out with synthetically based oil. Fuel Economy oil or
synthetic oil may also be used.
THE MAINTENANCE CYCLE FOR YOUR 206 CC
Service every 20,000 miles (30,000 km) or 2 years .
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000) 80,000 (120,000)
1st service at 6,000 miles
(10,000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000) 180,000 (270,000)
+ replacement of timing belt
+ replacement of timing belt
* Whichever is first.

PEUGEOT SERVICING23
- Engine oil
Level
Operations Operation descriptions 1st
service
AC
Intermediate visit
- Oil filter- Fuel filter- Air filter element- Spark plugs
- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if removable cap- Coolant level (check + top-up)- Front windscreen wash (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top-up according to specification)
- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Condition of wiper blades- Windscreen jets- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers) and check for leaks- Condition of rubber boots and gaiters- Brake pad wear o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers: check for leaks- Rear drum brake lining wear- Condition and pressure of tyres (including spare tyre)- Emission control check according to current legislation- Pollen filter (according to specification)o- Visual check of the whole vehicle by a PEUGEOT dealer
- Courtesy vehicle

All driving conditions. oIf there are specific conditions.
DRAIN AND REFILL
REPLACE
LEVELS
CHECK
SERVICE
ROAD TEST
TYPE A AND C SERVICES AND THE INTERMEDIATE VISIT

PEUGEOT SERVICING
24
PETROL
PETROL

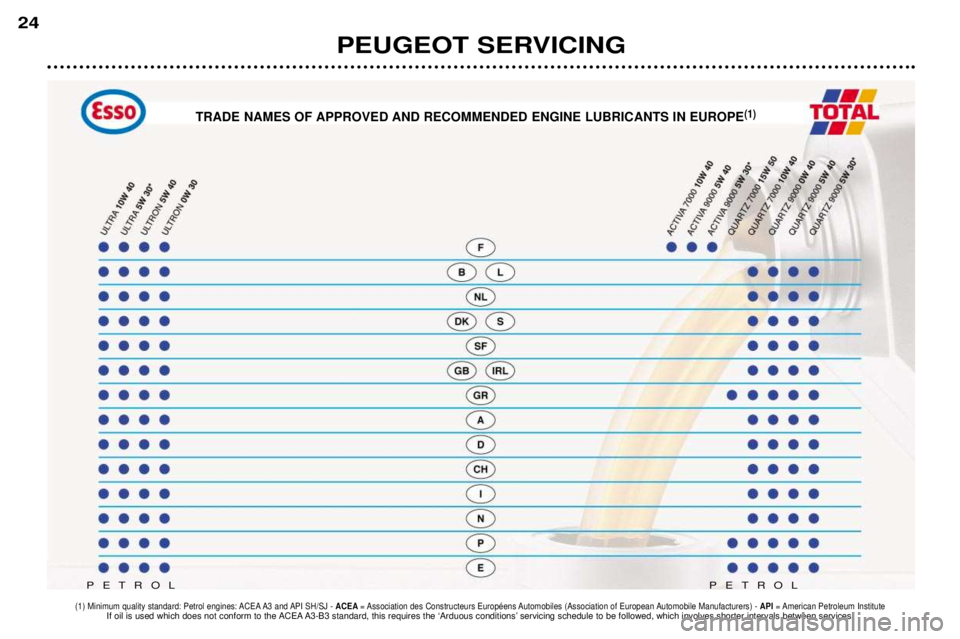

(1) Minimum quality standard: Petrol engines: ACEA A3 and API SH/SJ - ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) - API = American Petroleum InstituteIf oil is used which does not conform to the ACEA A3-B3 standard, this requires the ÔArduous conditionsÕ servicing schedule to be followed, which involves shorter intervals between services. TRADE NAMES OF APPROVED AND RECOMMENDED ENGINE LUBRICANTS IN EUROPE
(1)
