Peugeot 206 CC Dag 2002.5 User Guide

1212
YOUR AT A GLANCE
No. Symbol Function
1 Air distribution adjustment.
2 Air intake control.
3 Temperature adjustment.
4 Demisting the rearscreen and the mirrors.
5 Air flow adjustment.
6 Air conditioningcontrol.
HEATING/AIR CONDITIONING
07-10-2002
56
58

13
No. Symbol Function 1 Air flow adjustment.
2 Air distribution adjustment.
3 Air intake control.
4 Air conditioningcontrol.
5 Demisting the rearscreen and themirrors.
6 Stopping the system.
7
Temperatureadjustment.
8 Automatic comfort programme.
9 Automatic visibilityprogramme.
Note: in the cabriolet version, system performance may bereduced.
AUTOMATIC AIR CONDITIONING
YOUR AT
A GLANCE
6007-10-2002

14THE AUTOMATIC AUTOADAPTIVE GEARBOX Starting
To start the vehicle, position the gear lever at Nor P.
Press the brake pedal to change fromposition P and when selecting forwards or
reverse gears.
P. Parking.
R. Reverse.
N. Neutral.
D. Driving: automatic changes of the four gears in this position.
3. Automatic changes of the first three gears only.
2. Automatic changes of the first two gears only.
A. Sport programme.
B. Snow programme.YOUR AT A GLANCE
07-10-200286

PEUGEOT SERVICING
18
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals, every 20,000 miles (30,000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal.
It is for this reason that the PEUGEOT network invites you to an intermediate visit between each regular Service. The service indicator does not show when this service is due. It must be carried out every 10,000 miles (15,000 km) maximum.
A PEUGEOT dealer will carry out a quick check, and will top up the levels if necessary (oil, coolant, screen-wash up to 2 litres). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every 2,000 to 3,000 miles (3,000 to 5,000 km), depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.
07-10-2002

PEUGEOT SERVICING19
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The air bags and the pretensioning seat belts must be checked replaced every 10 years.
The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visitto the PEUGEOT dealer (intermediate visits and regular services).
The timing belt: contact the PEUGEOT network.
Note: The engine coolant does not need to be replaced.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥ Continuous door-to-door use.
¥ Town use.¥ Repeated short journeys, with the engine cold in low temperatures.
Or prolonged stay under the following conditions: ¥ Countries with temperatures often above 30 ¡C.¥ Countries with temperatures often below minus 15 ¡C.¥ Countries with a dusty atmosphere.¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous conditions" servicing schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20,000 km) or every year.
07-10-2002

PEUGEOT SERVICING
20
SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is tobe carried out according to the manu-facturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spanner sym-
bolising ''service operation'' is lit. Thetrip recorder display shows you the dis-tance remaining (in round figures)before the next service. Example:
4,800 km remain before the
next service is due. When the ignition comes on and for 5 seconds the dis-play indicates: 5 seconds after the ignition is switched on, the total distance recorder resumesnormal operation and the display showsthe total or trip distances. The distance remaining before thenext service is less than 1,000 km. Example:
900 km remain before the
next service is due.When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distance recorderresumes normal operation and thesymbol remains lit. This indicates that a service should be
carried out shortly. The display showsthe total or trip distances. The service is overdue Each time the ignition is switched on and for 5 seconds, the symbol and theexcess distance flash. Example:
the service is overdue by
300 km. The service should be carried
out very shortly. When the ignition is switched on and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distance recorderresumes normal operation and the
symbol remains lit. The display showsthe total or trip distances.
07-10-2002

PEUGEOT SERVICING21
Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the reset procedure is asfollows:  Ð Switch off the ignition.
Ð Press and hold button 1.
Ð Switch on the ignition. The dis- play begins a 10 second count- down.
Ð Keep button 1pressed for 10
seconds.
The display shows [= 0]and the ser-
vice symbol disappears.
07-10-2002

PEUGEOT SERVICING
22
SERVICING LEVELS Each vehicle possesses its servicing cycle, defined by the manufacturer in terms of the technical features.
This cycle consists in alternating between 2 levels A and C, intermediate visits and a few additional operations specific to you r
vehicle; they correspond to key stages in the life of your 206 CC.At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
Intermediate top-up visit incorporated in the ServicingSchedule.
Automatic gearbox oil level every 40,000 miles (60,000 km). These fixed operations are carried out with synthetically based oil. Fuel Economy oil or synthetic oil may
also be used.
THE MAINTENANCE CYCLE FOR YOUR 206 CC
Service every 20,000 miles (30,000 km) or 2 years
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000) 80,000 (120,000)
1st service at 6,000 miles
(10,000 km) or 6 months*. This is necessary in order to benefit from the warranty.
100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000) 180,000 (270,000)
* Whichever is first.
07-10-2002

PEUGEOT SERVICING23
- Engine oil
Level
Operations Operation descriptions 1st service
AC
Intermediate visit
- Oil filter- Fuel filter- Air filter element- Spark plugs
- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if removable cap- Coolant level (check + top-up)- Front windscreen wash (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top-up according to specification)
- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Condition of wiper blades- Windscreen jets- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers) and check for leaks- Condition of rubber boots and gaiters- Brake pad wear o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers: check for leaks- Rear drum brake lining wear- Condition and pressure of tyres (including spare tyre)- Emission control check according to current legislation- Pollen filter (according to specification)o- Visual check of the whole vehicle by a PEUGEOT dealer
- Courtesy vehicle

All driving conditions. oIf there are specific conditions. * According to country.
DRAIN AND REFILL
REPLACE
LEVELS
CHECK
SERVICE
ROAD TEST
TYPE A AND C SERVICES AND THE INTERMEDIATE VISIT
07-10-2002

PEUGEOT SERVICING
24
PETROL PETROL
(1) Minimum quality standard: Petrol engines: ACEA A3 and API SH/SJ - ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) - API = American Petroleum InstituteIf oil is used which does not conform to the ACEA A3-B3 standard, this requires the 'Arduous conditions' servicing schedule to be followed, which involves shorter intervals between services.
*This Fuel Economy oil can only be used in engines designed for its use.

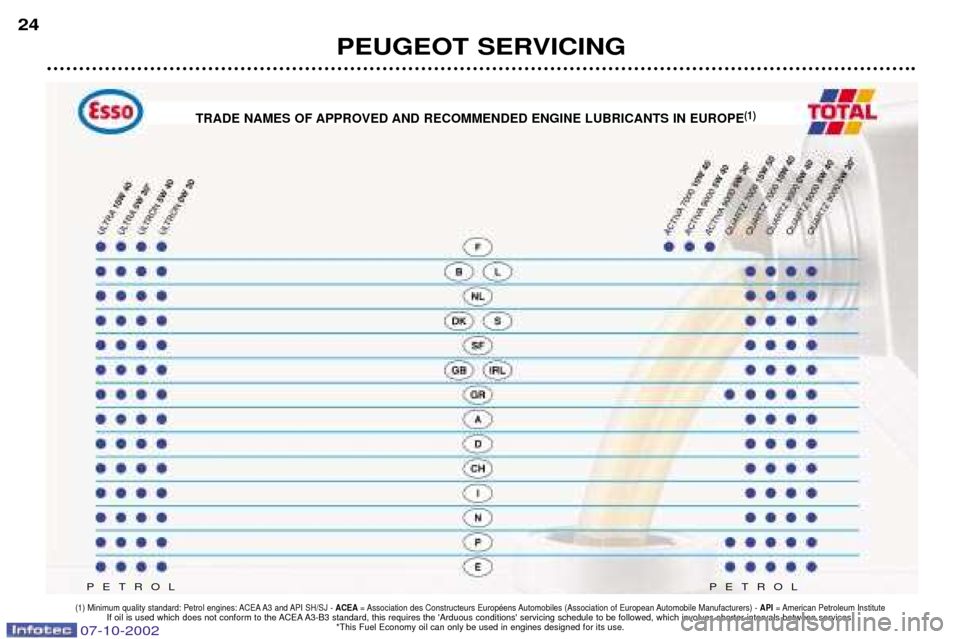

TRADE NAMES OF APPROVED AND RECOMMENDED ENGINE LUBRICANTS IN EUROPE
(1)
