Page 69 of 124

07-10-2002
YOUR 206 CC IN DETAIL
70
Make a careful note of the
number on each key. Thekey number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT deal-er can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your pocket as there is a possibility that itmay unlock your vehicle, without you
being aware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off,except for reprogramming. As a safety precaution (with children on board), remove the ignition key when youleave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of
your vehicle. You risk causing it not towork and the remote control wouldhave to be reprogrammed. When purchasing a second-hand vehi- cle:
Ð ensure that you are given the confi- dential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dealer
on the system. This code is hidden bya film, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function
correctly,
you are warned by an audi-
ble signal and a message on the mul-
tifunction display. In this case, the vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Page 70 of 124

07-10-2002
YOUR 206 CC IN DETAIL
70
Make a careful note of the
number on each key. Thekey number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT deal-er can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your pocket as there is a possibility that itmay unlock your vehicle, without you
being aware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off,except for reprogramming. As a safety precaution (with children on board), remove the ignition key when youleave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of
your vehicle. You risk causing it not towork and the remote control wouldhave to be reprogrammed. When purchasing a second-hand vehi- cle:
Ð ensure that you are given the confi- dential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dealer
on the system. This code is hidden bya film, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function
correctly,
you are warned by an audi-
ble signal and a message on the mul-
tifunction display. In this case, the vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Page 76 of 124

07-10-2002
YOUR 206 CC IN DETAIL
76
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the windscreen
wipers operate continuously.
They switch off when the light becomes bright enough or the wind-screen wipers stop. Note:
In foggy weather or in snow, the
brightness sensor can detect sufficient
light. As a consequence, the lights will
not come on automatically. This function is active when the vehi-
cle is supplied to the customer. To dis-arm or activate the function:
Ð Start with the key in the accessories
position (1st notch),
Ð Press the end of the stalk for more than four seconds.
Note: after the ignition is switched off
and depending on the brightness, the lights remain on for 45 seconds or untilthe vehicle is locked.
The brightness sensor, coupled with
the rain sensor, is located in the centre
of the windscreen, behind the interior
mirror. It is used for automatic switch-ing on of the lights. Operating check Activation Acivation of this function is accompanied by an audible signal and the message"Automatic lighting active''
on the mul-
tifunction display. Disarming Disarming of the function is accompa- nied by an audible signal. Note: the function is temporarily dis-
armed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come on).The driver is alerted by an audible sig-nal, accompanied by the message
"Automatic switching on of lightsfaulty" .
Contact a PEUGEOT dealer to have thesystem checked.
Page 78 of 124

07-10-2002
YOUR 206 CC IN DETAIL
78

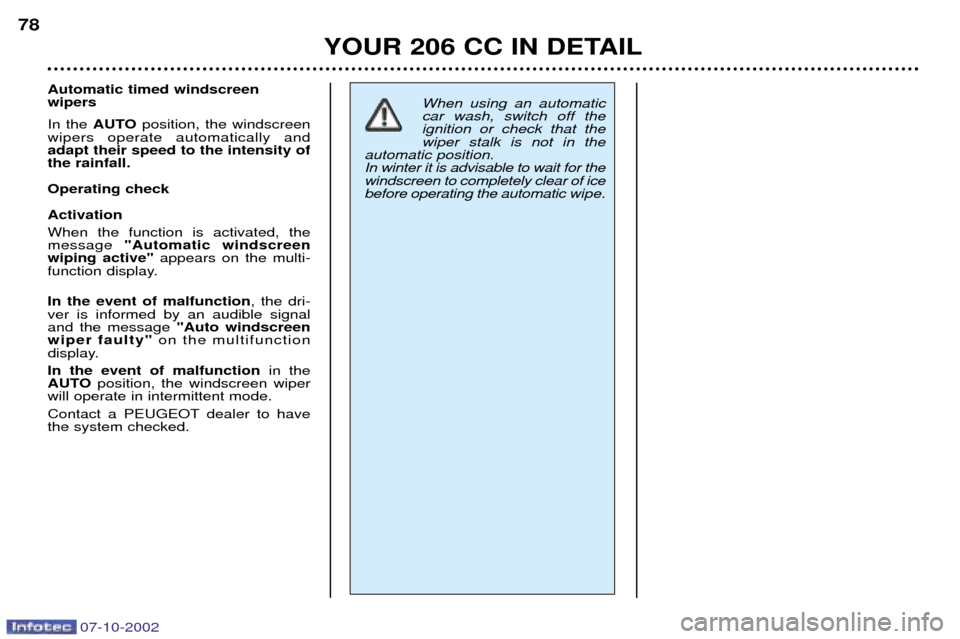

When using an automatic car wash, switch off theignition or check that thewiper stalk is not in the
automatic position.In winter it is advisable to wait for thewindscreen to completely clear of icebefore operating the automatic wipe.
Automatic timed windscreenwipers In the
AUTO position, the windscreen
wipers operate automatically and adapt their speed to the intensity ofthe rainfall. Operating checkActivation When the function is activated, the message "Automatic windscreen
wiping active" appears on the multi-
function display. In the event of malfunction , the dri-
ver is informed by an audible signal and the message "Auto windscreen
wiper faulty" on the multifunction
display. In the event of malfunction in the
AUTO position, the windscreen wiper
will operate in intermittent mode.
Contact a PEUGEOT dealer to have the system checked.
Page 79 of 124

07-10-2002
YOUR 206 CC IN DETAIL79
TRIP COMPUTER
Pressing the button on the end of the wash/wipe stalkenables the following data to be
displayed:
Display B
Ð the range
Ð the distance travelled
Ð the average consumption
Ð the current consumption
Ð the average speed Zero reset Press the stalk for more than two seconds. Display C
Ð the current consumption and the range,
Ð the average consumption, the distance travelled and the
average speed calculated over a period "1",
Ð the average consumption, the distance travelled and the average speed calculated over a period "2".
Periods "1"and "2"are defined by the frequency of the
zero reset. They allow, for instance, daily calculations over period "1"and monthly calculations over period "2".
Zero reset When the required period is displayed, press the stalk for more than two seconds.
Page 80 of 124

07-10-2002
YOUR 206 CC IN DETAIL
80
Range The display shows the distance that can still be covered with the fuelremaining in the tank. Note:
this figure may rise if there is
a change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. If there are less than 3 litres of fuel in the tank, only three segments willbe displayed.
Current fuel consumption This gives the fuel consumption recorded during the last two sec-
onds. This function is only dislpayedwhen the vehicle is travelling atmore than 12 m.p.h. (20 km/h). Average consumption This is the ratio between the amount of fuel consumed and the distancetravelled since the computer waslast reset to zero.
Average speed This is obtained by dividing the dis- tance travelled by the period of timethe vehicle has been in use (with theignition on), since the computer waslast reset to zero. Distance travelled This shows the distance travelled since the computer was last reset tozero. After the trip computer has been reset to zero, the range data becomesmeaningful only after the vehicle hasbeen in use for a certain period. If horizontal segments are displayed instead of figures when driving, contact
a PEUGEOT dealer.
Page 86 of 124

07-10-2002
YOUR 206 CC IN DETAIL
86
AUTOMATIC AUTOADAPTIVE GEARBOX Moving Off
To move off, move the selector lever to position
Nor P. Press the brake to exit
position P. Stopped or parked Always leave the lever in position Pwhen you get out of your vehicle.
If not, a buzzer will sound when you open the driver's door. Positions of the selector lever These positions are displayed on the instrument panel. P. Park: use with the handbrake.
R. Reverse: this must only be engaged when the vehicle is stationary, engine at idle.
N. Neutral: if Nis engaged by mistake while the car is moving, allow the engine to
return to idle before engaging a new forward gear.
D. Drive: in this position, the four gears change automatically. The gear change
points vary depending on the programme selected.
3. Automatic changing of the first three gears only. Select this position when you notice frequent changes between third and fourth gear (town driving or on winding roads).
2. Automatic changing of the first two gears only. This position is particularly suitable for mountain roads, when going uphill (to make the best use of the engine's power) and downhill (engine braking).
Page 87 of 124

07-10-2002
YOUR 206 CC IN DETAIL87
Operating programmes
You have a choice of three operating pro- grammes:
Ð Autoadaptive (normal).
Ð Sport.
Ð Snow.One press on button
Aor Bwill select
Sport or Snow respectively. The selec- tion is displayed on the instrumentpanel. Pressing the button a secondtime will return to the autoadaptive(normal) programme. Autoadaptive programme (normal) Gear changes are carried out on the basis of various parameters, such as:
Ð driving style,
Ð road characteristics,
Ð vehicle load.The gearbox selects the most suitable programme from those in the memoryfor the current driving conditions. Sport programme The Sport programme automatically favours more dynamic driving. Snow Programme In position
D, the Snow programme
provides smooth driving suited to slip- pery roads in order to improve traction
and stability. Starting is in 2nd gear
and changing down is at low enginespeeds. Special operating features
Ð During prolonged braking, the gear- box changes down automatically, so
as to provide efficient engine braking.
Ð If you take your foot off the acceler- ator suddenly (when you are takenby surprise, for example), the gear-box will not change up, so as to
improve safety.
Ð When the engine is cold, the gearbox automatically selects a special pro-gramme that enables the engine toreach its ideal temperature morequickly in order to decrease pollution.
Kickdown For immediate maximum acceleration
without touching the gear lever, pressthe accelerator pedal down as far as it
will go. The gearbox will change downautomatically or stay in the gearselected, up to maximum enginespeed.Any disruption of the system is signalled by the simultane-ous flashing of the Sport andSnow lights on the instrument
panel. In such a case, the gearbox will
operate in downgrade mode. You mayfeel a substantial knock when reverseis selected from Pto Ror Nto R(with-
out any risk of damage to the gear-box). Do not exceed 100km/h.Contact a PEUGEOT dealer without
delay. When the engine is idling with the car
in gear, the car will move even withoutyou accelerating. Do not accelerate while a gear is being selected, when the vehicle is
stationary.
When stationary, have your foot on the
brake pedal when selecting a gear. Do not accelerate in gear with the brakes on. If work needs to be done with the engine running, apply the handbrakeand select position P.
Do not change down to brake on slip-pery roads. Never select position Nwhen the
vehicle is moving.Never engage Por Rif the vehicle is
not stationary.Do not leave children inside the vehicle unsupervised when theengine is running.
Page 88 of 124

07-10-2002
YOUR 206 CC IN DETAIL
88
The normal operation of the ABS may make itself felt by slight vibra-tions of the brake pedal. In emergency braking, press very firmly without releasing thepressure.
THE ABS ANTI-LOCK BRAKING SYSTEM
The ABS system with Electronic Brake Force Distribution (EBFD) increasesthe stability and manoeuvrabilty ofyour vehicle, particularly on poor orslippery road surfaces. Note:
when replacing wheels (tyres
and rims), ensure that they are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
Lighting of this warninglamp, accompanied by anaudible signal and the mes-sage "Braking fault" on the
multifunction display, indicates a mal-function of the electronic brake forcedistribution which could result in loss ofcontrol of the vehicle when braking.
Stop immediately.
Contact a PEUGEOT dealer.
HANDBRAKE Applying When parking, pull the handbrake to immobilise your vehicle. Releasing Pull the handle and press the button to release the handbrake.
Illumination of this warninglight and of the STOPwarning
light, accompanied by anaudible signal (at 10 km/h)
and the message "handbrake on"on
the multifunction display, indicates thatthe handbrake is still applied or has
not been released fully. EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables the optimum braking pressure to be
reached more quickly, thus reducingthe stopping distance. It is triggered by the speed at which
the brake pedal is activated. The effectof this is a reduction in the resistanceof the pedal and an increase in braking
efficiency.
Page 89 of 124

07-10-2002
YOUR 206 CC IN DETAIL89
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY CON-
TROL (ESP) These systems are linked and comple-
ment the ABS.
The ASR system optimises drive to prevent the wheels skidding, by actingon the brakes of the drive wheels andon the engine. It also allows the direc-tional stability of the vehicle to beimproved on acceleration. If there is a variation between the tra- jectory followed by the vehicle and that
required by the driver, the ESP systemautomatically acts on the engine andthe brake of one or more wheels, inorder to put the vehicle back oncourse.Disarming the ASR/ESP systems In exceptional conditions (starting a vehicle which is bogged down, stuck in
snow, on soft ground), it may be advis-
able to disarm the ASR and ESP sys-tems, so that the wheels can movefreely and regain grip.
Press the "ESP OFF" switch, locat-
ed under the steering wheel to the left.
The switch lights up and thewarning light comes on: the
ASR and ESP systems no
longer have any effect on theengine operation.
These are triggered again: automatically if the ignition is
switched off,
automatically above 50 km/h,
manually by pressing the switchagain.
Operation of the ASR and ESPsystems
When one of these two sys-tems is operating, this lightflashes. Operating check
When a malfunction of the sys-tems occurs, the switch lightflashes and the warning lightcomes on, accompanied by anaudible signal and the mes-
sage "ESP/ASR system not opera-
tional" on the multifunction display.
Contact a PEUGEOT dealer to havethe system checked.
The ESP system offersexceptional safety in normaldriving, but this should notencourage the driver to takeextra risks or drive at high
speed. The correct functioning of this sys- tem depends on observation of themanufacturer's recommendationsregarding wheels (tyres and rims),the braking components and theelectronic components, as well asthe PEUGEOT assembly and opera-tion procedures. After an impact, have the system
checked by a PEUGEOT dealer.
