YOUR 206 CC IN DETAIL71
Opening the doors from outside
DOORS
Opening the doors from inside
LOCKING AND UNLOCKING THE BOOT Lock the boot using the key (turn the
key from Ato C) or the remote control.
Unlock it using the key (turn the key
from Ato B).
The lighting is controlled by open- ing the boot.
Locking from the inside
To lock, press button
A.
Locking one of the front doors locks the doors and the boot. Unlocking from the inside
To unlock, pull button Aor the handle.
''Door open'' alert
With the engine running an audible
signal and a message or diagram locating the problem on the multifunc-tion screen, warns you that a door isnot properly closed. Also, when the vehicle is moving ,
with the courtesy light button in the "lighting on opening a door" position,the courtesy light flashes.
Page 72 of 124
07-10-2002
YOUR 206 CC IN DETAIL
72
BONNET STRUT Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To close Lower the bonnet and release it at the end of its travel. Check that the bonnetis locked.
OPENING THE BONNET Inside the vehicle:
pull the handle on
the left-hand side, under the fascia. Outside the vehicle: lift the catch and
raise the bonnet. FILLING THE FUEL TANK The tank must be filled with fuel with the engine switched off
.
Insert the key then turn it to the left. Remove the cap.
A label indicates which type of fuel to use. If you fill your tank, do not continue
after the third cut-off of the pump noz-
zle. This could result in vehicle mal-functions. The capacity of the tank is approxi- mately 10.3 gallons (47 litres).
Page 73 of 124
07-10-2002
YOUR 206 CC IN DETAIL73

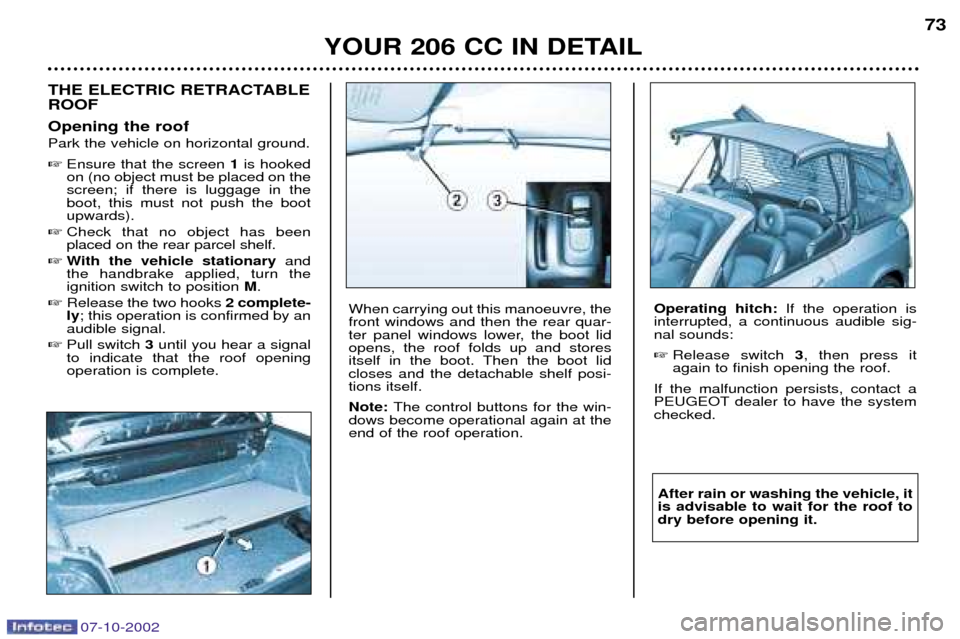

THE ELECTRIC RETRACTABLE ROOF Opening the roof Park the vehicle on horizontal ground.
Ensure that the screen 1is hooked
on (no object must be placed on the screen; if there is luggage in theboot, this must not push the bootupwards).
Check that no object has been placed on the rear parcel shelf.
With the vehicle stationary and
the handbrake applied, turn theignition switch to position M.
Release the two hooks 2 complete-
ly ; this operation is confirmed by an
audible signal.
Pull switch 3 until you hear a signal
to indicate that the roof openingoperation is complete.
When carrying out this manoeuvre, the front windows and then the rear quar-
ter panel windows lower, the boot lidopens, the roof folds up and stores
itself in the boot. Then the boot lidcloses and the detachable shelf posi-tions itself. Note: The control buttons for the win-
dows become operational again at the end of the roof operation.Operating hitch: If the operation is
interrupted, a continuous audible sig- nal sounds: Release switch 3, then press it
again to finish opening the roof.
If the malfunction persists, contact a
PEUGEOT dealer to have the systemchecked.
After rain or washing the vehicle, it is advisable to wait for the roof todry before opening it.
Page 74 of 124
07-10-2002
YOUR 206 CC IN DETAIL
74
Closing the roof
With the vehicle stationary and
the handbrake applied, turn the ignition key to position M.
Press switch 3 until you hear a sig-
nal to indicate that the roof openingoperation is complete.
When carrying out this operation, thefront windows and then the rear quar-ter panel windows open, the boot lidopens and the detachable parcel shelffolds up, the boot lid opens, the roofsunfolds and positions itself, then theboot lid closes again. Lock the two hooks 2.
Note: The control buttons for the win-
dows become operational again at the end of the roof operation. Operating hitch: If the operation is
interrupted, a continuous audible sig- nal sounds: Release switch 3, then press it
again to finish closing the roof.
If the problem persists, contact a
PEUGEOT dealer to have the systemchecked. When the vehicle is moving, if a con-tinuous audible signal can be heard,this means that the roof or the boot lid,or both, are not locked:
Stop the vehicle and apply the handbrake,
Open the roof and close it again
completely, in accordance with theprocedure.
If the problem persists, contact a
PEUGEOT dealer to have the systemchecked. The roof must not be oper-ated when a loaded lug-gage carrier is fitted to theboot lid.
During roof opening and closingoperations, to avoid any risk of
injury, ensure that there is no-onein the proximity of the movingparts.
In the event of danger, release the control knob, the operation
will stop instantly. Never release button 3 for any
length of time, nor switch off theignition when the roof is in anintermediate position (neithercompletely open or closed).
In the case of an electric or hydraulic malfunction of the roof, it is possible
to close the roof manually. When the side windows no longer
open completely, it is impossible tooperate the roof; however it is possibleto close it by using a special proce-
dure. Please consult the breakdown pro- cedure described at the end of thishandbook.
Page 75 of 124
07-10-2002
YOUR 206 CC IN DETAIL75
THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights on Dipped/main beam headlamps
Automatic switching onof lights Direction indicators (flashers)
Left:downwards.
Right: upwards.
Dipped/Main beam change Pull the stalk towards you. Note:
with the ignition off, if the dri-
ver's door is open, a buzzer sounds if you have left your lights on. Front fog lamps and rear fog lamp Rotate the ring Bforwards to switch on
and backwards to switch off. The sta- tus is confirmed by the light on theinstrument panel.
Front fog lamps (1st forwardsturn of the ring)
Front fog lamps and rear fog lamp (2nd for-wards turn of the ring)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring twice backwards. In good or rainy weather,both day and night, thefront fog lamps and therear fog lamp are dazzling
and are prohibited. Do not forget to switch them off when they are no longer needed.
Page 76 of 124
07-10-2002
YOUR 206 CC IN DETAIL
76
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the windscreen
wipers operate continuously.
They switch off when the light becomes bright enough or the wind-screen wipers stop. Note:
In foggy weather or in snow, the
brightness sensor can detect sufficient
light. As a consequence, the lights will
not come on automatically. This function is active when the vehi-
cle is supplied to the customer. To dis-arm or activate the function:
Ð Start with the key in the accessories
position (1st notch),
Ð Press the end of the stalk for more than four seconds.
Note: after the ignition is switched off
and depending on the brightness, the lights remain on for 45 seconds or untilthe vehicle is locked.
The brightness sensor, coupled with
the rain sensor, is located in the centre
of the windscreen, behind the interior
mirror. It is used for automatic switch-ing on of the lights. Operating check Activation Acivation of this function is accompanied by an audible signal and the message"Automatic lighting active''
on the mul-
tifunction display. Disarming Disarming of the function is accompa- nied by an audible signal. Note: the function is temporarily dis-
armed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come on).The driver is alerted by an audible sig-nal, accompanied by the message
"Automatic switching on of lightsfaulty" .
Contact a PEUGEOT dealer to have thesystem checked.
Page 77 of 124
07-10-2002
YOUR 206 CC IN DETAIL77
Windscreen and headlamp wash
Pull the wiper stalk towards you. The windscreen wash, then the wind-screen wipers, operate for a specifiedtime. The windscreen and the headlamp
wash operate simultaneously for twoseconds,
only if the dipped beam
lights or the headlamps areswitched on.
Operation In position
1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed, then resumesits initial speed when the vehicle startsagain. In the Intermittent position, the wiping
speed is proportional to the speed of the vehicle.
In the AUTO position, the wiping
speed is proportional to the heaviness of the rain fall.
When the ignition has been switched off for more than oneminute with the stalk in the wipeposition, it is necesary to reactivatethis function. To do this, move the
stalk to any position, then move it backto the required position.
WINDSCREEN WIPER
STALK Stalk with intermittent wipe Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press down- wards). Stalk with automatic wipe Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe (press down- wards).
Page 78 of 124
07-10-2002
YOUR 206 CC IN DETAIL
78
When using an automatic car wash, switch off theignition or check that thewiper stalk is not in the
automatic position.In winter it is advisable to wait for thewindscreen to completely clear of icebefore operating the automatic wipe.
Automatic timed windscreenwipers In the
AUTO position, the windscreen
wipers operate automatically and adapt their speed to the intensity ofthe rainfall. Operating checkActivation When the function is activated, the message "Automatic windscreen
wiping active" appears on the multi-
function display. In the event of malfunction , the dri-
ver is informed by an audible signal and the message "Auto windscreen
wiper faulty" on the multifunction
display. In the event of malfunction in the
AUTO position, the windscreen wiper
will operate in intermittent mode.
Contact a PEUGEOT dealer to have the system checked.
Page 79 of 124
07-10-2002
YOUR 206 CC IN DETAIL79
TRIP COMPUTER
Pressing the button on the end of the wash/wipe stalkenables the following data to be
displayed:
Display B
Ð the range
Ð the distance travelled
Ð the average consumption
Ð the current consumption
Ð the average speed Zero reset Press the stalk for more than two seconds. Display C
Ð the current consumption and the range,
Ð the average consumption, the distance travelled and the
average speed calculated over a period "1",
Ð the average consumption, the distance travelled and the average speed calculated over a period "2".
Periods "1"and "2"are defined by the frequency of the
zero reset. They allow, for instance, daily calculations over period "1"and monthly calculations over period "2".
Zero reset When the required period is displayed, press the stalk for more than two seconds.
Page 80 of 124
07-10-2002
YOUR 206 CC IN DETAIL
80
Range The display shows the distance that can still be covered with the fuelremaining in the tank. Note:
this figure may rise if there is
a change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. If there are less than 3 litres of fuel in the tank, only three segments willbe displayed.
Current fuel consumption This gives the fuel consumption recorded during the last two sec-
onds. This function is only dislpayedwhen the vehicle is travelling atmore than 12 m.p.h. (20 km/h). Average consumption This is the ratio between the amount of fuel consumed and the distancetravelled since the computer waslast reset to zero.
Average speed This is obtained by dividing the dis- tance travelled by the period of timethe vehicle has been in use (with theignition on), since the computer waslast reset to zero. Distance travelled This shows the distance travelled since the computer was last reset tozero. After the trip computer has been reset to zero, the range data becomesmeaningful only after the vehicle hasbeen in use for a certain period. If horizontal segments are displayed instead of figures when driving, contact
a PEUGEOT dealer.
