YOUR AT A GLANCE

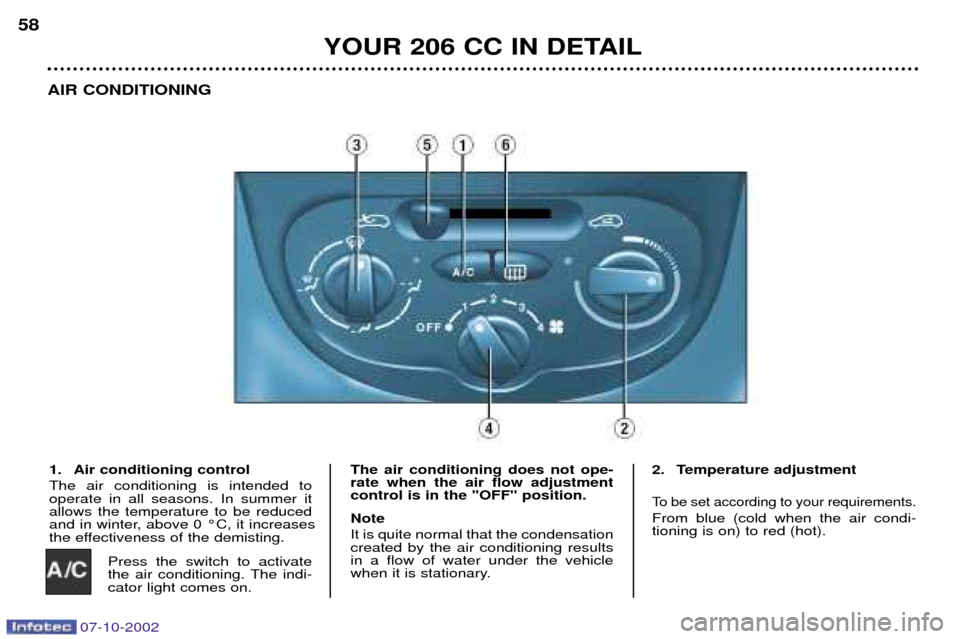

No. Symbol Function
1 Air distribution adjustment.
2 Air intake control.
3 Temperature adjustment.
4 Demisting the rearscreen and the mirrors.
5 Air flow adjustment.
6 Air conditioningcontrol.
HEATING/AIR CONDITIONING
07-10-2002
56
58

13
No. Symbol Function 1 Air flow adjustment.
2 Air distribution adjustment.
3 Air intake control.
4 Air conditioningcontrol.
5 Demisting the rearscreen and themirrors.
6 Stopping the system.
7
Temperatureadjustment.
8 Automatic comfort programme.
9 Automatic visibilityprogramme.
Note: in the cabriolet version, system performance may bereduced.
AUTOMATIC AIR CONDITIONING
YOUR AT
A GLANCE
6007-10-2002

07-10-2002
YOUR 206 CC IN DETAIL
58
AIR CONDITIONING
1. Air conditioning control The air conditioning is intended to operate in all seasons. In summer itallows the temperature to be reduced
and in winter, above 0 ¡C, it increases
the effectiveness of the demisting. Press the switch to activate
the air conditioning. The indi-cator light comes on. The air conditioning does not ope-rate when the air flow adjustmentcontrol is in the "OFF" position. Note It is quite normal that the condensation created by the air conditioning resultsin a flow of water under the vehicle
when it is stationary.
2. Temperature adjustment
To be set according to your requirements.
From blue (cold when the air condi- tioning is on) to red (hot).

07-10-2002
YOUR 206 CC IN DETAIL59
3. Air distribution adjustment
Windscreen and side win- dows (demisting/de-icing).
To quickly de-ice or demist the wind-screen and the side windows:
Ð place the temperature and air flow controls to maximum,
Ð close the central vents,
Ð place the outside air intake control to the left, in the 'Outside air' posi- tion,
Ð operate the air conditioning
Windscreen, side windowsand footwells. Footwells.
These settings are recommended for cold climates.
Central and side vents.
This setting is recommended for hotclimates.
5. Air intake control
Outside air intake.
This is the normal operating position.
Recirculation of interior air.
This position prevents the entry ofunpleasant odours or fumes from theoutside. Used simultaneously with the air con- ditioning enables both the heating andcooling performance to be improved. Used without air conditioning, recir- culation may result in misting thewindows. As soon as possible, place the control in the outside air position. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
4. Air flow adjustment
From position 1to position 4.
Turn the knob to obtain a suf-ficient flow of air to ensureyour comfort. 6. De-misting the rear screen and
the mirrors
With the engine running, press-ing the button de-mists the rear screen and the mirrors.
It switches off automatically afterapproximately twelve minutes. Press again to resume de-misting for twelve minutes. It is possible to stop the de-misting operation by pressing the button againbefore the end of the twelve minutes. Note: this function is disarmed when
the roof is stored in the boot.

07-10-2002
YOUR 206 CC IN DETAIL
60
AUTOMATIC AIR CONDITIONING Note: in the cabriolet version, the effectiveness of the system may be reduced.
2.
Automatic comfort programmePress the "AUTO" button. The system automatically regulatesthe temperature level of the pas-senger compartment in line with
the temperature that you have selected. Toobtain the correct ambiance, it controls the
temperature, the air flow, the distributionand intake of air as well as air conditioning.3.Automatic visibility programme
In certain cases, the automat-ic comfort programme mayprove inadequate to demist orde-ice the windows (because
of humidity, numerous passengers, iceetc.). In these cases select the auto-matic visibility programme to rapidlyclear the windows.
Automatic operation
1. Temperature setting The required temperature is displayed. Press the top and
bottom arrows to change. Asetting of approximately 21allows a comfortable settingto be obtained.

07-10-2002
YOUR 206 CC IN DETAIL61
5.
Air distribution
Successive presses of this button allow the air flow to bedirected alternately to:
Ð the windscreen (demisting or de-icing),
Ð the windscreen and the footwells,
Ð the central and side vents and the footwells,
Ð the central and side vents.
7. Air intake Press this button to recycle
the interior air. Recirculation,
shown on the display, pre-vents the entry of unpleasant
odours and fumes from the outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake.
4. Air conditioning
Press this button to stop the
air conditioning. The "ECO"symbol lights up. Press againto return to automatic opera-
tion of the air conditioning. The "A/C"symbol is displayed. 8. Switching the system off
The "OFF" button enablesthe entire system to be
switched off.
Temperature-related comfort is nolonger guaranteed. Pressing the "OFF", "AUTO" or "Visi-
bility" button again reactivates the
system with the values set before it
was switched off.
9. De-icing the rear window and the mirrors
Press this button to de-ice therear screen and the mirrors.The de-icing system switches
off automatically. It is possible
to stop the de-icing before it switches
off automatically by pressing the but-ton again. Note: this function is disarmed when
the roof is stored in the boot. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish you can make a different
choice from the one offered by the sys-
tem, by changing a setting. The otherfunctions will still be managed automat-
ically. Press the "AUTO" button to returnto completely automatic operation.
6. Air flowThe air flow may beincreased or reducedby pressing the buttons
+ or Ð respectively.
Note
The condensation created by the air condi- tioning causes a normal flow of water
under the vehicle when it stops. To preventcondensation on the inside of the vehicle in
cold or wet weather, you are advised toavoid using the "ECO" mode.

07-10-2002
Fuse RatingFunctions
1 15 A Heated seat - Alarm
4 20 A Mulltifunction screen - Navigation control unit - Boot lighting - Audio system - Retractable roof control unit
5 15 A Automatic gearbox diagnostics
6 10 A Coolant level - Automatic gearbox - Audio system - Steering wheel angle sensor (ESP)
7 15 A Driving school accessories - Alarm fitted as an accessory - Rain detector
9 30 A Hydraulic pump
10 40 A Driving mirror demisting 11 15 A Windscreen wiper
12 30 A Front windows
14 10 A Engine module - Air bags - Steering wheel stalk
15 15 A Instrument panel - Multifunction screen - Navigation control unit - Air conditioning - Audio system
16 30 A Locking/unlocking of doors
20 10 A Right-hand brake light
21 15 A Left-hand brake light - 3rd brake light
22 30 A Front courtesy light - Glove box lighting - Lighter
