3YOUR 206 AT A GLANCE
1Driver's air bag Horn
2 Lights and direction indicators stalk
3 Passenger air bag disarmingswitch*
4 Rear electric windows disarming switch
5 Lighting rheostat for instrument dials
6 Audio equipment remotecontrol
7 Windscreen wiper and windscreen wash stalk
8 Steering lock
9 Hazard warning lights switch
10 Multi-function display 11
Windscreen demisting vents
12 Side window demisting vents
13 Adjustable side vent
14 Passenger air bag
15 Adjustable centre vents
16 Glove box
17 Audio equipment
18 Control for heating, ventilation, air conditioningand heated rear screen andmirrors
19 Front ashtray
20 Gear lever
21 Lighter 22
Electric mirror controls
23 Heated seats switch
24 Front electric window controls
25 Handbrake
26 Bonnet opening control
27 Fuse box
28 Storage compartment
29 Steering wheel height adjustment control
30 Headlamp height adjustment
* According to destination.
17-06-2002

66
68

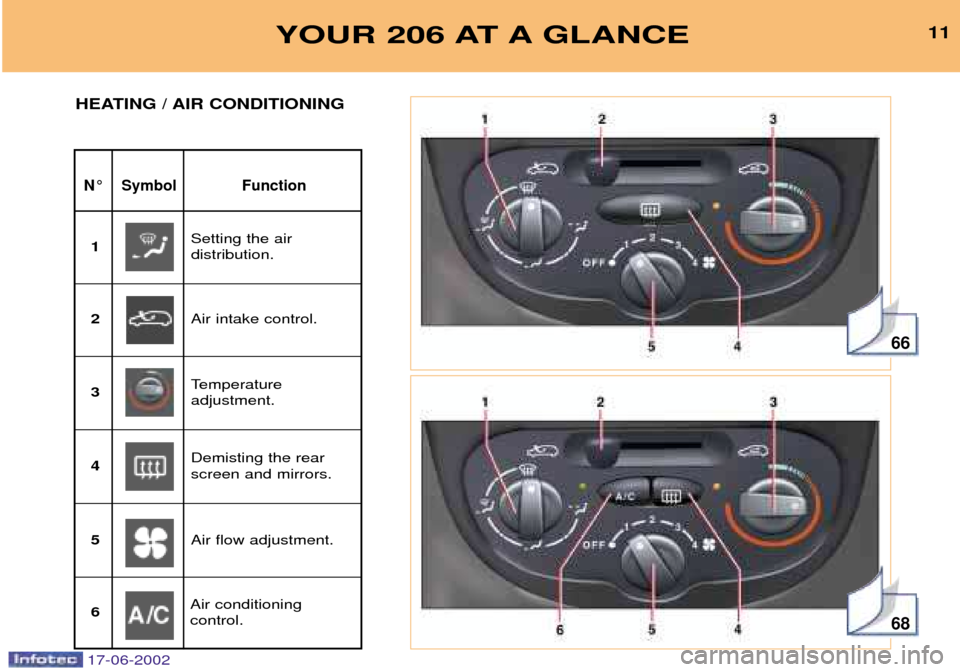

YOUR 206 AT A GLANCE11
N¡ Symbol Function
HEATING / AIR CONDITIONING
Setting the air distribution.
1
Air intake control.
2
Temperature adjustment.
3
Demisting the rearscreen and mirrors.
4
Air flow adjustment.
5
Air conditioning control.
6
17-06-2002

70

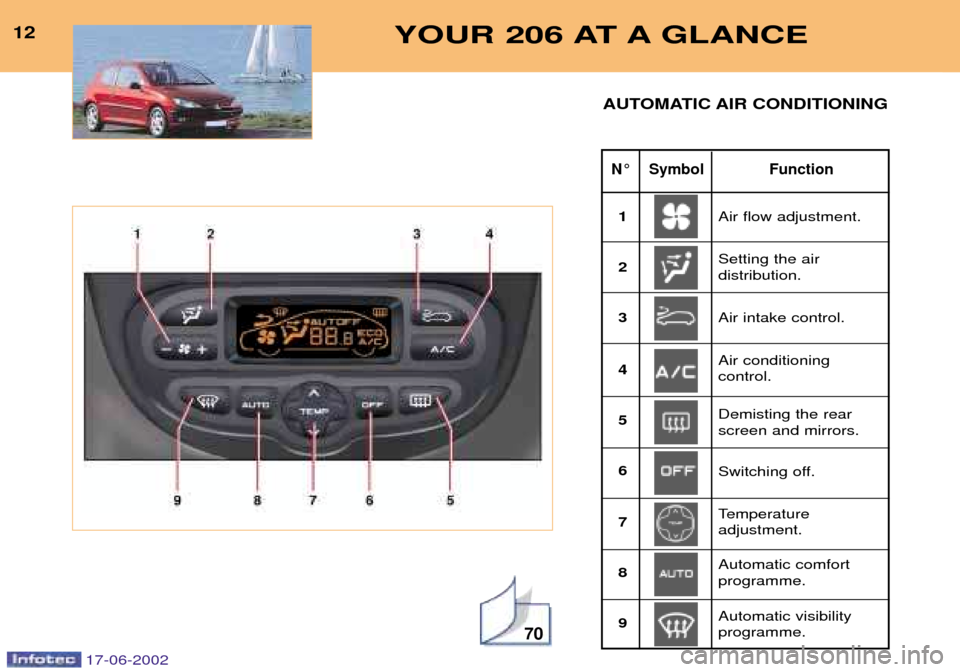

YOUR 206 AT A GLANCE12
N¡ Symbol Function
AUTOMATIC AIR CONDITIONING
Air flow adjustment. Setting the air distribution.
1 23 4 56 7 89 Air intake control. Air conditioning control.
Switching off.
Demisting the rearscreen and mirrors.
Temperature adjustment. Automatic comfort programme.
Automatic visibility programme.
17-06-2002

17-06-2002
YOUR 206 IN DETAIL
68
AIR CONDITIONING
1. Air conditioning The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be lowe-
red and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting. Press the switch to activate
the air conditioning. The indi-cator light comes on. The air conditioning does not opera-te while the air flow adjustmentcontrol is in the "OFF" position. Note: It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
2. Temperature adjustment
To be adjusted to your requirements. From blue (cold when the air condi- tioning is on) to red (hot).

17-06-2002
YOUR 206 IN DETAIL69
3. Air distribution adjustment
Windscreen and side win- dows (de-icing/demisting).
To quickly de-ice or demist the wind-screen and side windows:
Ð turn the temperature and air flow controls to maximum,
Ð close the centre vents,
Ð position the air intake control to the left; the "Outside Air" position,
Ð start the air conditioning.
Windscreen, side windows and footwells. Footwells.
These settings are recommended for cold climates.
Centre and side vents.
This setting is recommended for hotclimates. 5. Air intake control
Intake of exterior air.
This is the normal operating posi-tion.
Recirculation of interior air.
This position prevents exteriorodours and smoke entering the pas-senger compartment. Used simultaneously with the air conditioning, recirculation enablesboth heating and cooling performan-ce to be improved. Used without the air conditioning, recirculation may result in misting ofthe windows. As soon as possible, position the control in the exterior air intake posi-tion. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact a
PEUGEOT dealer. Note:
to optimise the operation of
the air conditioning, leave the vents open.4. Air flow adjustment
Turn the control from posi- tion 1to position 4to obtain
an air flow sufficient toensure your comfort.6. Demisting the rear screen
With the engine running, press once to demist therear screen and the mir-rors.
It switches off automatically afterapproximately twelve minutes. Press again to switch it back on for twelve minutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes.

17-06-2002
YOUR 206 IN DETAIL
70
AUTOMATIC AIR CONDITIONING
Automatic operation
1. Temperature adjustment The chosen temperature is displayed. Press the up and
down arrows to change it. Asetting around 21 ¡C enablesa comfortable temperature tobe obtained. 2. Automatic comfort programme
Press the "AUTO" button.The system automaticallyadjusts the atmosphere insi-de the vehicle in accordancewith the chosen temperature.
To do this, it controls the temperature,
the flow, the distribution and the intakeof air as well as the air conditioning. 3. Automatic visibility programme
In some cases, the automa-tic comfort programme may
not be sufficient for de-icingor demisting of the windows
(humidity, several passen-
gers, ice etc.). In this case, select theautomatic visibility programme to
clear the windows quickly.

17-06-2002
YOUR 206 IN DETAIL71
5. Air distribution
Pressing this button seve- ral times in successionenables the air flow to bedirected in turn towards:
Ð the windscreen (de-icing or demisting),
Ð the windscreen and the footwells,
Ð the footwells,
Ð the centre and side vents and the footwells,
Ð the centre and side vents.
7. Air intake Press this button for recir-
culation of the interior air.Recirculation, shown on
the display, enables the
passenger compartment to be insu-lated from exterior odours andsmoke.
Avoid prolonged recirculation of
interior air. To do this, press the but-ton again to resume intake of exte-
rior air.
4. Air conditioning
Press this button to switch
off the air conditioning. Thesymbol "ECO" is displayed.Automatic operation of the
air conditioning is resumed when the
button is pressed again. The symbol"A/C" is displayed. 8. Switching the system off
The "OFF" button enablesthe entire system to be
switched off.
9. Demisting the rear screen Press this button to demistthe rear screen and themirrors. Demisting switches
off automatically. It is pos-
sible to stop operation of the demis-
ting before it is switched off automa-tically by pressing the button again. Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month,
to keep it in good working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer. Note: to optimise the operation of
the air conditioning, leave the vents open.
Manual operation
If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The otherfunctions will still be controlled auto-
matically. Pressing the "AUTO" but-ton returns the system to completelyautomatic operation.
6. Air flowThe flow of air can beincreased or reducedby pressing buttons
+ or - respectively.
Note It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.

17-06-2002
PRACTICAL INFORMATION
130
Fuse No. Rating
Functions
1 10A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor - Air flow sensor (diesel)
2 15A Canister solenoid valve - Fuel pump
3 10A ABS control unit
4 10A Automatic gearbox control unit - Engine control unit
5 Ñ Not used
7 20A Headlamp wash pump
8 20A Fan assembly relay - Engine control unit - Diesel injection pump - Diesel high pressure regulator - Engine management solenoid valve
9 15A Left-hand dipped beam
10 15A Right-hand dipped beam 11 10A Left-hand main beam
12 15A Right-hand main beam
13 15A Horns
14 10A Front and rear windscreen wash pumps
15 30A Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit - Air flow sensor - Ignition coil - Engine management solenoid valve - Diesel heater - Injectors
16 30A Air pump relay
17 30A High and low speed windscreen wiper
18 40A Air conditioning fan

17-06-2002
PRACTICAL INFORMATION
128
Fuse No. Rating
Functions
1 15A Heated seat - Alarm
4 20A Multi-function display - Navigation control unit - Boot lighting - Audio equipment
5 15A Automatic gearbox diagnostics
6 10A Coolant level - Automatic gearbox - Audio equipment
7 15A Driving school accessory - Alarm fitted as an accessory
9 30A Rear electric windows
10 40A Rear screen amd mirror demisting 11 15A Rear windscreen wiper
12 30A Front windscreen wiper - Sunroof
14 10A Engine fuse box - Air bags - Steering wheel controls - Rain sensor
15 15A Instrument panel - Multi-function display - Navigation control unit - Air conditioning - Audio equipment
16 30A Locking/unlocking controls for doors, bonnet and boot - Deadlocking controls
20 10A Right-hand brake light
21 15A Left-hand brake light - 3rd brake light
22 30A Front courtesy light and rear courtesy light (206 SW) - Map reading light - Glove box lighting - Lighter - Rear 12 volt socket (206 SW)
S1 Shunt PARC shunt
