buttons Peugeot 206 Dag 2002 Owner's Manual

17-06-2002
YOUR 206 IN DETAIL41

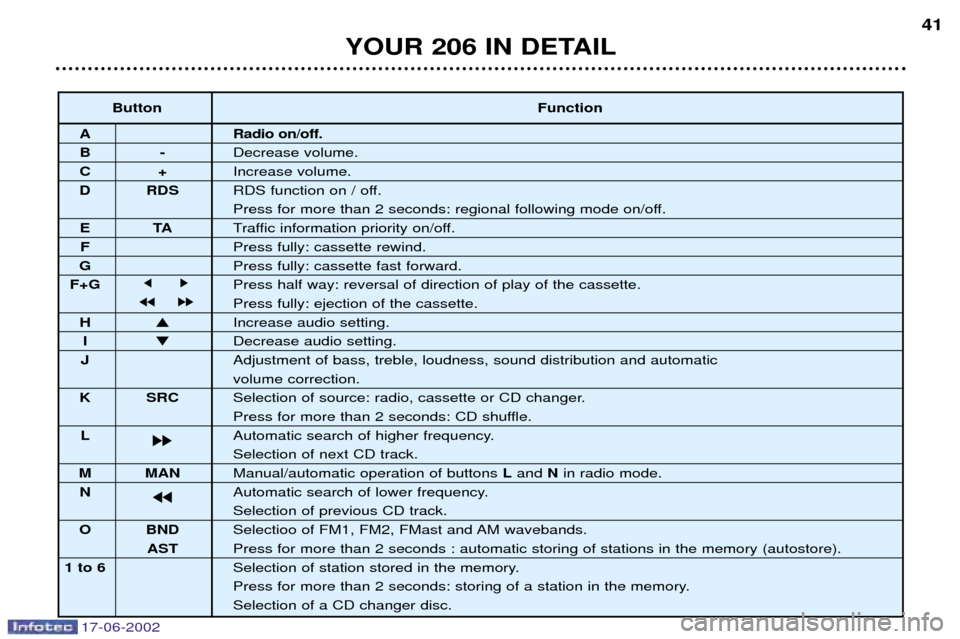

Button
Function
A Radio on/off.
B-Decrease volume.
C+Increase volume.
D RDS RDS function on / off.
Press for more than 2 seconds: regional following mode on/off.
ETATraffic information priority on/off.
F Press fully: cassette rewind.
G Press fully: cassette fast forward.
F+G jk Press half way: reversal of direction of play of the cassette.
jj kk Press fully: ejection of the cassette.
H Increase audio setting.
I Decrease audio setting.
J Adjustment of bass, treble, loudness, sound distribution and automatic
volume correction.
K SRC Selection of source: radio, cassette or CD changer.
Press for more than 2 seconds: CD shuffle.
L kk Automatic search of higher frequency.
Selection of next CD track.
M MAN
Manual/automatic operation of buttons Land Nin radio mode.
N jj Automatic search of lower frequency.
Selection of previous CD track.
O BND Selectioo of FM1, FM2, FMast and AM wavebands.
ASTPress for more than 2 seconds : automatic storing of stations in the memory (autostore).
1 to 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.Selection of a CD changer disc.

17-06-2002
GENERAL FUNCTIONSOn/off With the ignition key in the accessories or ignition on position, press button Ato switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press button Cto increase the volume, or button Bto decrease it.
Continuous pressure on buttons Band Callows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Jseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader (FAD) , balance (BAL)and automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button J
after configuration of the automatic volume correction. Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cas-
sette (RB3) , CD (RD3) and CD changer.
YOUR 206 IN DETAIL
44

17-06-2002
Adjusting the bassWhen "BASS" is displayed, press button Hor Ito vary the setting.
- "BASS -9" for a minimum bass setting,
- "BASS 0" for a normal setting,
- "BASS +9" for a maximum bass setting.
Adjusting the treble When "TREB" is displayed, press button Hor Ito vary the setting.
- "TREB -9" for a minimum treble setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum treble setting.
Adjusting the loudnessThis function automatically emphasises bass and treble tones. Press button Hor Ito switch the function on or off.
Adjusting the front/rear sound distribution (Fader) When "FAD" is displayed, press button Hor I.
Button Hincreases the volume in the front.
Button Iincreases the volume in the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Hor I.
Button Hincreases the volume on the right-hand side.
Button Iincreases the volume on the left-hand side.
Automatic volume correctionThis function enables the volume to be automatically adjusted depending on the level of noise produced by the speed of the vehicle. Press buttons Hor Ito switch the function on or off.
YOUR 206 IN DETAIL 45

17-06-2002
Manual station search Press the "MAN"button.
Briefly press button Lor Nto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press and hold one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)
Audio RB3:press and hold the "BND/AST" button for more than two seconds.
Audio RD3: press and hold button Pfor more than two seconds.
Your radio automatically stores the six stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find six stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1"to "6" to recall the corresponding station.
YOUR 206 IN DETAIL 47

17-06-2002
CASSETTE: AUDIO RB3 Selecting cassette modeWhen a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, press the "SRC"button until cassette mode is selected.
Note: before inserting the cassette, ensure that the tape is taut.
Ejecting the cassette Fully press buttons Fand Gto eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a
side.
To manually reverse the direction of play, press buttons Fand Ghalf-way.
Fast forward/rewind Fully press button For Gto fast forward or rewind the cassette. At the end of the fast forward/rewind, the set plays the cur-
rent side. Recommendations for using casssettes
- Use good quality cassettes.
- Avoid the use of cassettes which play for longer than 90 minutes.
- Never expose the cassettes to heat or the direct rays of the sun.
- Re-tighten the tape if necessary before inserting the cassette in the player.
- Clean the playing head regularly with a damp type cleaning cassette.
YOUR 206 IN DETAIL
50

17-06-2002
CD CHANGER Selecting CD changer modeAudio RB3: press the "SRC" button several times in succession.
Audio RD3: press button R.
Selecting a disc Press buttons "1"to "6" to select the corresponding disc.
Selecting a track Press button Lto select the next track.
Press button Nto return to the start of the current track or to select the previous track.
Accelerated playPress and hold button Lor N for forwards or backwards accelerated play. Accelerated play stops as soon as the button is
released. Shuffle When the CD changer is selected: - Audio RB3 : press and hold the "SRC" button for two seconds;
- Audio RD3 : press and hold button Rfor two seconds.
The tracks will be played in random sequence. Pressing the button again for two seconds returns you to normal play.
YOUR 206 IN DETAIL
52
The use of copied CDs may cause malfunctions.

17-06-2002
YOUR 206 IN DETAIL43

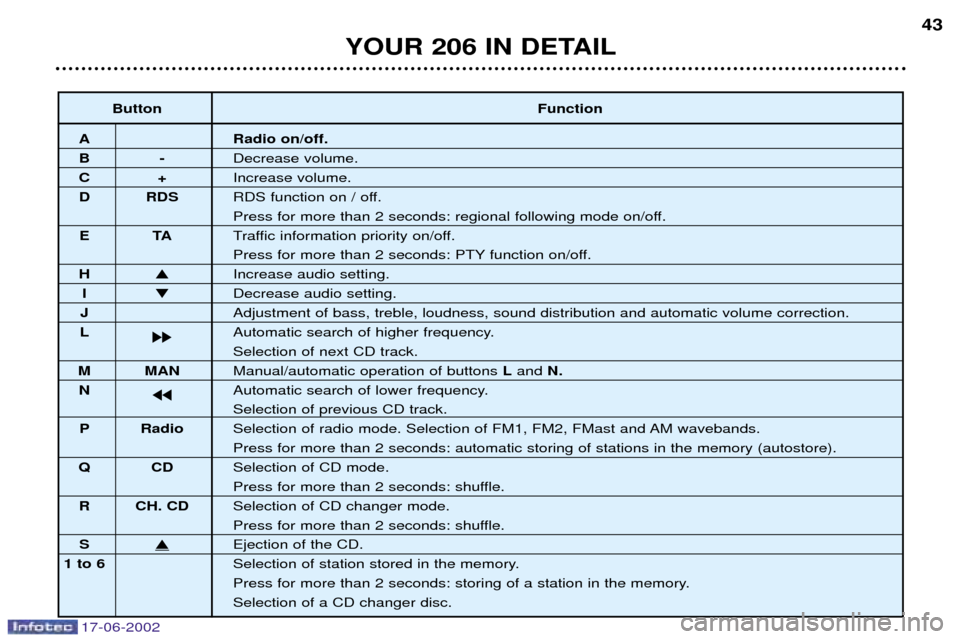

Button Function
A Radio on/off.
B-Decrease volume.
C+Increase volume.
D RDS RDS function on / off.
Press for more than 2 seconds: regional following mode on/off.
ET ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
H Increase audio setting.
I Decrease audio setting.
J Adjustment of bass, treble, loudness, sound distribution and automatic volume correction.
L kk Automatic search of higher frequency.
Selection of next CD track.
M MAN
Manual/automatic operation of buttons Land N.
N jj Automatic search of lower frequency.
Selection of previous CD track.
P Radio Selection of radio mode. Selection of FM1, FM2, FMast and AM wavebands.
Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
QC DSelection of CD mode.
Press for more than 2 seconds: shuffle.
R CH. CD Selection of CD changer mode.
Press for more than 2 seconds: shuffle.
SEjection of the CD.
1 to 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.Selection of a CD changer disc.

17-06-2002

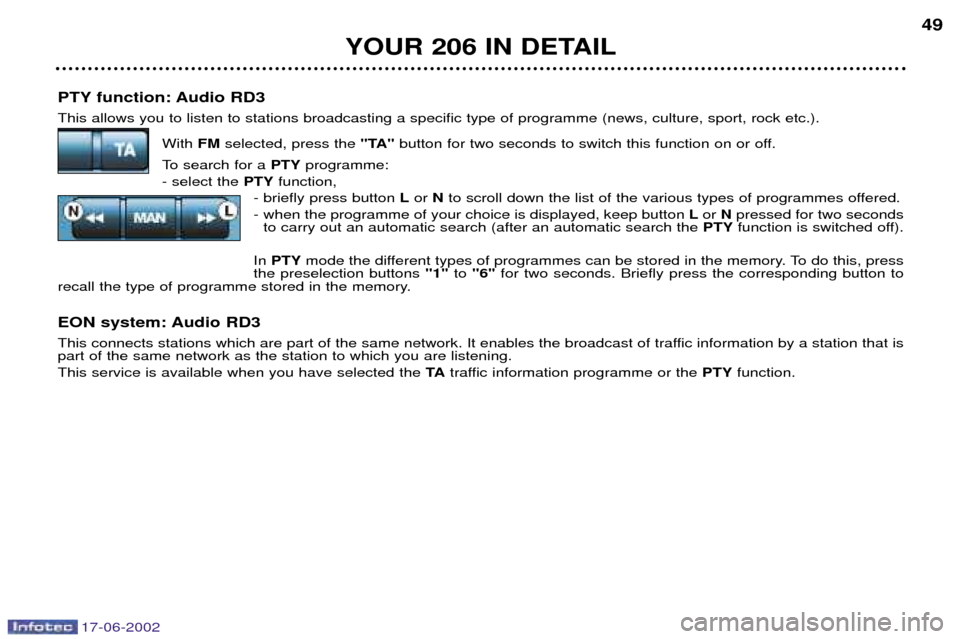

Manual station search Press the "MAN"button.
Briefly press button Lor Nto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press and hold one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)
Audio RB3:press and hold the "BND/AST" button for more than two seconds.
Audio RD3: press and hold button Pfor more than two seconds.
Your radio automatically stores the six stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find six stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1"to "6" to recall the corresponding station.
YOUR 206 IN DETAIL 47

17-06-2002
PTY function: Audio RD3 This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.).With FMselected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Lor Nto scroll down the list of the various types of programmes offered.
- when the programme of your choice is displayed, keep button Lor Npressed for two seconds
to carry out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the memory. To do this, press
the preselection buttons "1"to "6" for two seconds. Briefly press the corresponding button to
recall the type of programme stored in the memory.
EON system: Audio RD3
This connects stations which are part of the same network. It enables the broadcast of traffic information by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.
YOUR 206 IN DETAIL 49

17-06-2002
YOUR 206 IN DETAIL71
5. Air distribution
Pressing this button seve- ral times in successionenables the air flow to bedirected in turn towards:
Ð the windscreen (de-icing or demisting),
Ð the windscreen and the footwells,
Ð the footwells,
Ð the centre and side vents and the footwells,
Ð the centre and side vents.
7. Air intake Press this button for recir-
culation of the interior air.Recirculation, shown on
the display, enables the
passenger compartment to be insu-lated from exterior odours andsmoke.
Avoid prolonged recirculation of
interior air. To do this, press the but-ton again to resume intake of exte-
rior air.
4. Air conditioning
Press this button to switch
off the air conditioning. Thesymbol "ECO" is displayed.Automatic operation of the
air conditioning is resumed when the
button is pressed again. The symbol"A/C" is displayed. 8. Switching the system off
The "OFF" button enablesthe entire system to be
switched off.
9. Demisting the rear screen Press this button to demistthe rear screen and themirrors. Demisting switches
off automatically. It is pos-
sible to stop operation of the demis-
ting before it is switched off automa-tically by pressing the button again. Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month,
to keep it in good working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer. Note: to optimise the operation of
the air conditioning, leave the vents open.
Manual operation
If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The otherfunctions will still be controlled auto-
matically. Pressing the "AUTO" but-ton returns the system to completelyautomatic operation.
6. Air flowThe flow of air can beincreased or reducedby pressing buttons
+ or - respectively.
Note It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
