AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if the
light is poor.
They switch off when the light becomes bright enough. Note: In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Start with the key in the accesso-
ries position (1st notch),
- Press the end of the lights stalk for more than four seconds.
Note: after the ignition is switched
off and depending on the brightness, the lights remain on for about 45seconds or until the vehicle is loc-ked.
Note: the brightness sensor, cou-
pled with the rain sensor, is loca-ted in the centre of the wind-
screen, behind the interior mirror.It is used for automatic switchingon of the lights. Operating check Activation Acivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting acti-
ve" on the multi-function display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by anaudible signal, accompanied by themessage "Automatic switching on
of lights faulty" on the multi-func-
tion display.
Contact a PEUGEOT dealer to have the system checked.

17-06-2002
PRACTICAL INFORMATION
130
Fuse No. Rating
Functions
1 10A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor - Air flow sensor (diesel)
2 15A Canister solenoid valve - Fuel pump
3 10A ABS control unit
4 10A Automatic gearbox control unit - Engine control unit
5 Ñ Not used
7 20A Headlamp wash pump
8 20A Fan assembly relay - Engine control unit - Diesel injection pump - Diesel high pressure regulator - Engine management solenoid valve
9 15A Left-hand dipped beam
10 15A Right-hand dipped beam 11 10A Left-hand main beam
12 15A Right-hand main beam
13 15A Horns
14 10A Front and rear windscreen wash pumps
15 30A Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit - Air flow sensor - Ignition coil - Engine management solenoid valve - Diesel heater - Injectors
16 30A Air pump relay
17 30A High and low speed windscreen wiper
18 40A Air conditioning fan

17-06-2002
PRACTICAL INFORMATION
128

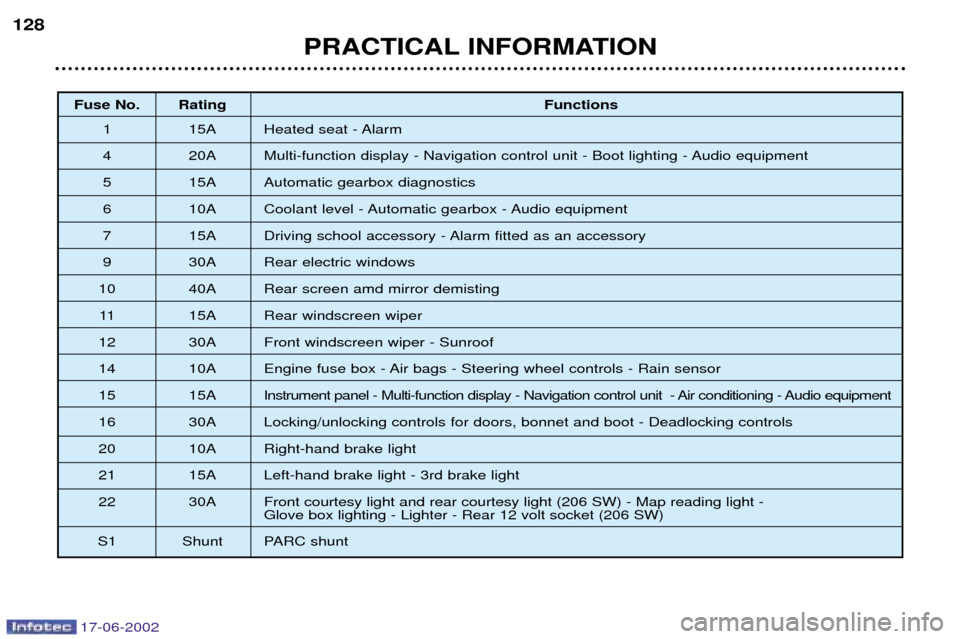

Fuse No. Rating
Functions
1 15A Heated seat - Alarm
4 20A Multi-function display - Navigation control unit - Boot lighting - Audio equipment
5 15A Automatic gearbox diagnostics
6 10A Coolant level - Automatic gearbox - Audio equipment
7 15A Driving school accessory - Alarm fitted as an accessory
9 30A Rear electric windows
10 40A Rear screen amd mirror demisting 11 15A Rear windscreen wiper
12 30A Front windscreen wiper - Sunroof
14 10A Engine fuse box - Air bags - Steering wheel controls - Rain sensor
15 15A Instrument panel - Multi-function display - Navigation control unit - Air conditioning - Audio equipment
16 30A Locking/unlocking controls for doors, bonnet and boot - Deadlocking controls
20 10A Right-hand brake light
21 15A Left-hand brake light - 3rd brake light
22 30A Front courtesy light and rear courtesy light (206 SW) - Map reading light - Glove box lighting - Lighter - Rear 12 volt socket (206 SW)
S1 Shunt PARC shunt
