FAMILIARISATION
4 -
INSTRUMENTS AND
CONTROLS
1. Cruise control/speed limiter
control.
2. Steering wheel adjustment
control.
3. Lights and direction indicators
stalk.
4. Instrument panel.
5. Driver's air bag.
Horn.
6. Gear lever.
7. Handbrake.
8. Bonnet release.
9. Fuse box.
10. Dynamic stability control
(ESP/ASR) button.
11. Rear electric windows
deactivation control.
12. Passenger air bag disarming
control.
13. Headlamp height adjustment.
14. Side adjustable and closing vent.
15. Side window demisting vent.
16. Speaker (tweeter).
17. Windscreen demisting vent.

LAYOUT
70 -
HEADLAMP ADJUSTMENT
Depending on the load in your vehicle,
it is recommended that the headlamp
beam is adjusted.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum
authorised load.
3. Driver + maximum
authorised load.
Initial setting is position 0.
STEERING WHEEL HEIGHT
ADJUSTMENT
When stationary, lower the handle to
unlock the steering wheel.
Adjust to the desired height and
lift the handle to lock the steering
wheel.
HORN
Press one of the spokes of
the steering wheel.

103
PRACTICAL INFORMATION
-

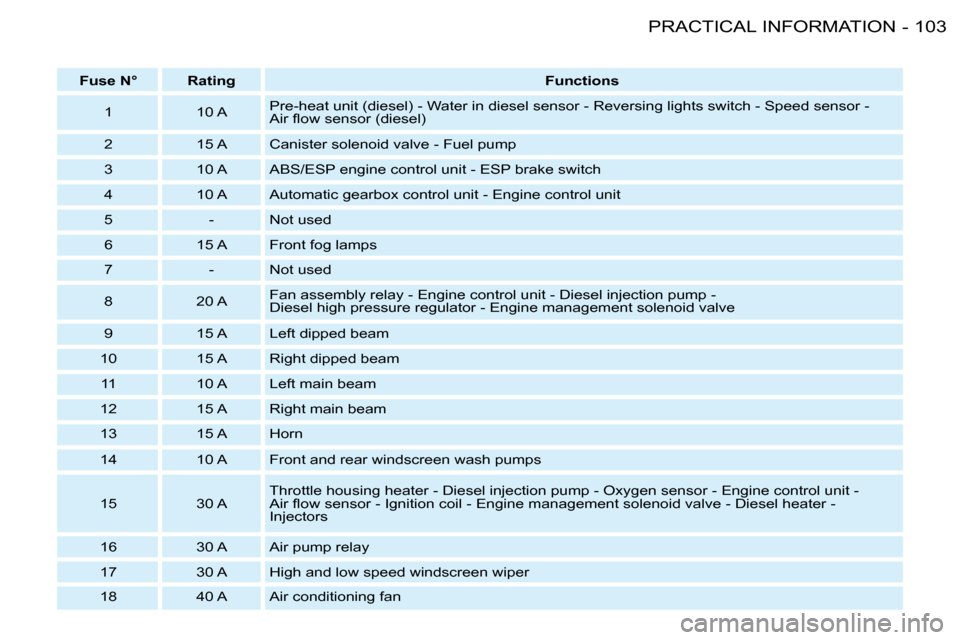

Fuse N° Rating Functions
1 10 A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights sw
itch - Speed sensor -
Air low sensor (diesel)
2 15 A Canister solenoid valve - Fuel pump
3 10 A ABS/ESP engine control unit - ESP brake switch
4 10 A Automatic gearbox control unit - Engine control unit
5 - Not used
6 15 A Front fog lamps
7 - Not used
8 20 A Fan assembly relay - Engine control unit - Diesel injection pump
-
Diesel high pressure regulator - Engine management solenoid valve
9 15 A Left dipped beam
10 15 A Right dipped beam
11 10 A Left main beam
12 15 A Right main beam
13 15 A Horn
14 10 A Front and rear windscreen wash pumps
15 30 A Throttle housing heater - Diesel injection pump - Oxygen senso
r - Engine control unit -
Air low sensor - Ignition coil - Engine management solenoid valve - Diesel heater -
Injectors
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan
