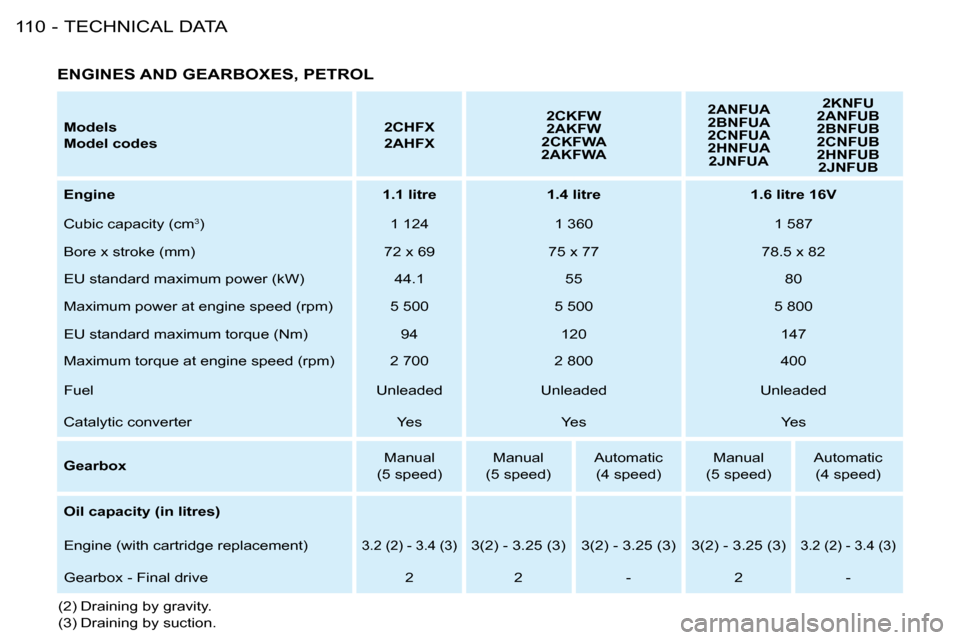

TECHNICAL DATA
110 -
Models
Model codes 2CHFX
2AHFX2CKFW
2AKFW
2CKFWA
2AKFWA 2ANFUA
2BNFUA
2CNFUA
2HNFUA
2JNFUA 2KNFU
2ANFUB
2BNFUB
2CNFUB
2HNFUB 2JNFUB
Engine 1.1 litre 1.4 litre 1.6 litre 16V
Cubic capacity (cm 3
) 1 124 1 360 1 587
Bore x stroke (mm) 72 x 69 75 x 77 78.5 x 82
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 44.1 55 80
M a x i m u m p o w e r a t e n g i n e s p e e d ( r p m ) 5 500 5 500 5 800
EU standard maximum torque (Nm) 94 120 147
Maximum torque at engine speed (rpm) 2 700 2 800 400
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
Gearbox Manual
(5 speed) Manual
(5 speed) Automatic
(4 speed) Manual
(5 speed) Automatic
(4 speed)
Oil capacity (in litres)
E n g i n e ( w i t h c a r t r i d g e r e p l a c e m e n t )
3.2 (2) - 3.4 (3)3(2) - 3.25 (3) 3(2) - 3.25 (3) 3(2) - 3.25 (3)3.2 (2) - 3.4 (3)
Gearbox - Final drive 2 2 - 2 -
ENGINES AND GEARBOXES, PETROL
(2) Draining by gravity.
(3) Draining by suction.
Page 122 of 127
111
TECHNICAL DATA
-

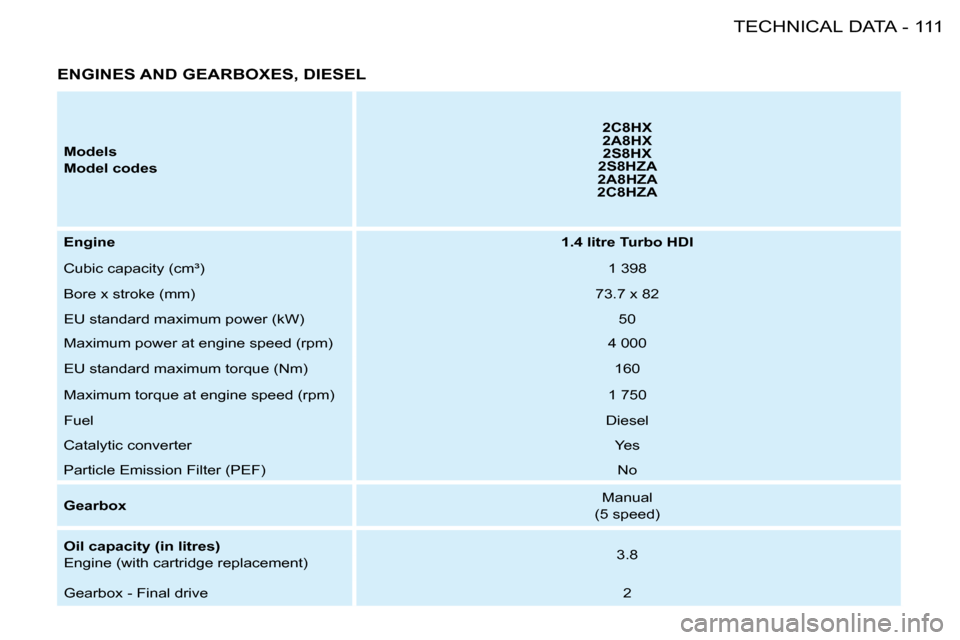

ENGINES AND GEARBOXES, DIESEL
Models
Model codes 2C8HX
2A8HX
2S8HX
2S8HZA
2A8HZA
2C8HZA
Engine 1.4 litre Turbo HDI
Cubic capacity (cm³) 1 398
Bore x stroke (mm) 73.7 x 82
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 50
M a x i m u m p o w e r a t e n g i n e s p e e d ( r p m ) 4 000
EU standard maximum torque (Nm) 160
Maximum torque at engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
Particle Emission Filter (PEF) No
Gearbox Manual
(5 speed)
Oil capacity (in litres)
E n g i n e ( w i t h c a r t r i d g e r e p l a c e m e n t ) 3.8
Gearbox - Final drive 2
Page 123 of 127
TECHNICAL DATA
112 -
CONSUMPTION
In accordance with EC Directive 80/1268 (as amended) mpg (litres/100 km)
Engine Gearbox Model
codes 2... Urban
driving Inter-urban Mixed
Emission of
CO 2 by weight
(g/km)
1.1 litre Manual HFXF 8.2 5 6.2 148
1.4 litre Manual KFWF 8.4 5 6.3 149
KFWA 8.5 5.2 6.3 151
1.4 litre Automatic KFWR 9.6 5.3 6.9 165
1.6 litre 16V Manual NFUF 8.6 5.1 6.4 153
HNFUF/NFUA 8.7 5.5 6.7 159
1.6 litre 16V Automatic NFUR 9.9 5.5 7.1 179
HNFUR 10.2 5.8 7.5 176
NFUB 10.2 5.7 7.4 176
1.4 litre Turbo HDI Manual 8HXF 5.5 3.6 4.3 113
8HZA 5.4 3.7 4.3 112
F u e l c o n s u m p t i o n v a l u e s c o r r e c t a t t i m e o f p r i n t i n g . T h e s e c o n s u m p t i o n v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h E C
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f i c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e
l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f t h e a c c e s s o r i e s .
Page 124 of 127
113
TECHNICAL DATA
-

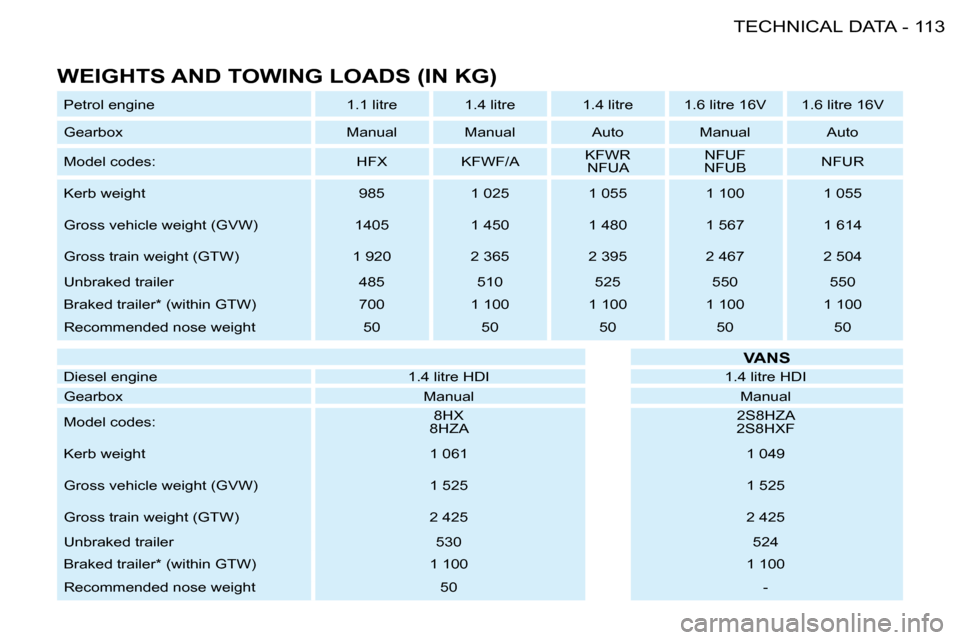

WEIGHTS AND TOWING LOADS (IN KG)
Petrol engine 1.1 litre 1.4 litre 1.4 litre 1.6 litre 16V 1.6 litre 16V
Gearbox Manual Manual Auto Manual Auto
Model codes: HFX KFWF/A KFWR
NFUA NFUF
NFUB NFUR
K e r b w e i g h t 985 1 025 1 055 1 100 1 055
G r o s s v e h i c l e w e i g h t ( G V W ) 1405 1 450 1 480 1 567 1 614
G r o s s t r a i n w e i g h t ( G T W ) 1 920 2 365 2 395 2 467 2 504
Unbraked trailer 485 510 525 550 550
B r a k e d t r a i l e r * ( w i t h i n G T W ) 700 1 100 1 100 1 100 1 100
R e c o m m e n d e d n o s e w e i g h t 50 50 50 50 50
Diesel engine 1.4 litre HDI 1.4 litre HDI
Gearbox ManualManual
Model codes: 8HX
8HZA 2S8HZA
2S8HXF
K e r b w e i g h t 1 0611 049
G r o s s v e h i c l e w e i g h t ( G V W ) 1 5251 525
G r o s s t r a i n w e i g h t ( G T W ) 2 4252 425
Unbraked trailer 530524
B r a k e d t r a i l e r * ( w i t h i n G T W ) 1 1001 100
R e c o m m e n d e d n o s e w e i g h t 50-
VANS
Page 125 of 127
TECHNICAL DATA
114 -

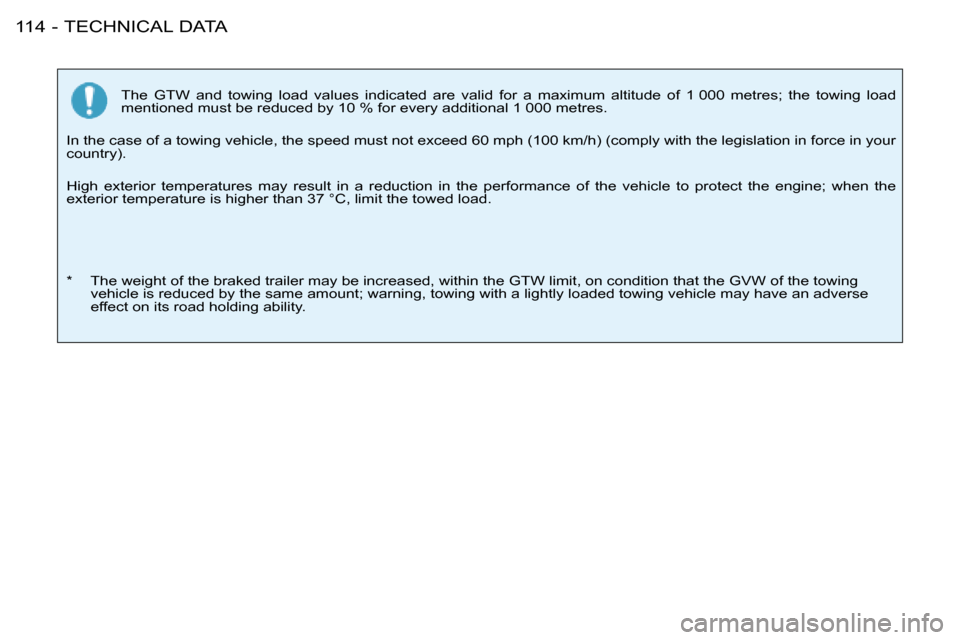

T h e G T W a n d t o w i n g l o a d v a l u e s i n d i c a t e d a r e v a l i d f o r a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w i n g l o a d
m e n t i o n e d m u s t b e r e d u c e d b y 1 0 % f o r e v e r y a d d i t i o n a l 1 0 0 0 m e t r e s .
I n t h e c a s e o f a t o w i n g v e h i c l e , t h e s p e e d m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r
country).
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; w h e n t h e
e x t e r i o r t e m p e r a t u r e i s h i g h e r t h a n 3 7 ° C , l i m i t t h e t o w e d l o a d .
* T h e w e i g h t o f t h e b r a k e d t r a i l e r m a y b e i n c r e a s e d , w i t h i n t h e G T W l i m i t , o n c o n d i t i o n t h a t t h e G V W o f t h e t o w i n g
v e h i c l e i s r e d u c e d b y t h e s a m e a m o u n t ; w a r n i n g , t o w i n g w i t h a l i g h t l y l o a d e d t o w i n g v e h i c l e m a y h a v e a n a d v e r s e
effect on its road holding ability.
Page 126 of 127
115
TECHNICAL DATA
-
DIMENSIONS
3-door 5-door
Page 127 of 127
TECHNICAL DATA
116 -
A. Manufacturer’s plate on the centre pillar (location
according to version).
B. Serial number on the bodywork.
C. Serial number on the fascia. D. Tyres and paint reference.
The label
D on the door centre pillar
gives:
- t h e w h e e l a n d t y r e s i z e s ,
- the brands of tyres approved by t h e m a n u f a c t u r e r ,
- the tyre pressures: (tyre
pressure checks must be
carried out cold, at least every
month) .
- the paint colour reference. E. Fuel consumption in the
corner of the windscreen.
THE IDENTIFICATION FEATURES OF YOUR 206
