Page 7 of 127
FAMILIARISATION
10 -
SITTING COMFORTABLY
Front seat belts adjustment
2. Height adjustment.
: 86 Steering wheel adjustment
1.
Unlocking.
2. Height adjustment.
3. Locking.
: 70
1. Fastening.
Page 77 of 127
LAYOUT
70 -
HEADLAMP ADJUSTMENT
D e p e n d i n g o n t h e l o a d i n y o u r v e h i c l e ,
it is recommended that the headlamp
beam is adjusted.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum
authorised load.
3. Driver + maximum
authorised load.
Initial setting is position 0.
STEERING WHEEL HEIGHT
ADJUSTMENT
W h e n s t a t i o n a r y , l o w e r t h e h a n d l e t o
u n l o c k t h e s t e e r i n g w h e e l .
Adjust to the desired height and
lift the handle to lock the steering
w h e e l .
HORN
Press one of the spokes of
t h e s t e e r i n g w h e e l .
Page 102 of 127
93
PRACTICAL INFORMATION
-

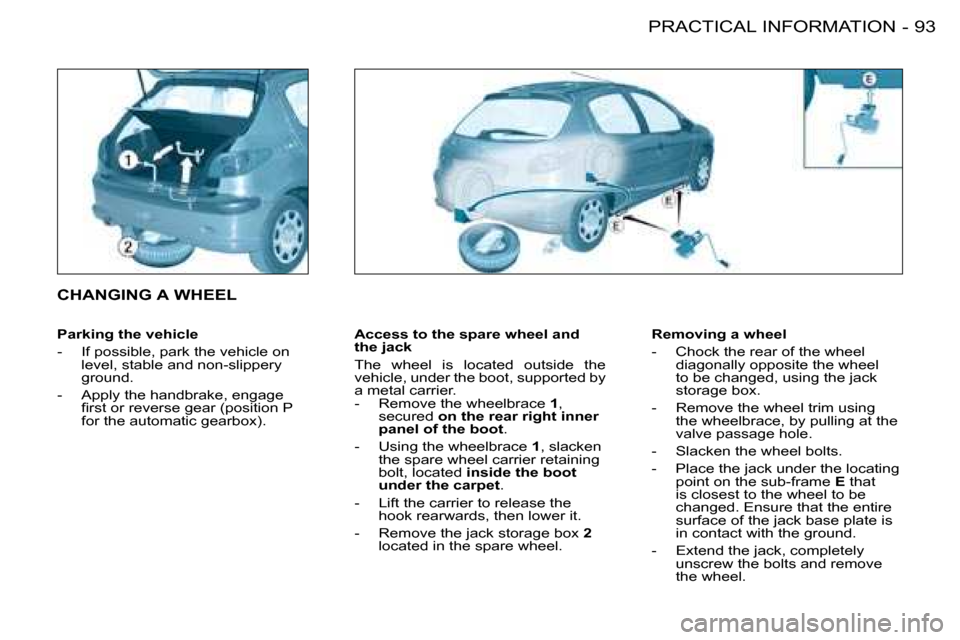

Access to the spare wheel and
the jack
T h e w h e e l i s l o c a t e d o u t s i d e t h e
v e h i c l e , u n d e r t h e b o o t , s u p p o r t e d b y
a metal carrier.
- R e m o v e t h e w h e e l b r a c e 1 ,
secured on the rear right inner
panel of the boot .
- U s i n g t h e w h e e l b r a c e 1 , s l a c k e n
t h e s p a r e w h e e l c a r r i e r r e t a i n i n g
b o l t , l o c a t e d inside the boot
under the carpet .
- Lift the carrier to release the h o o k r e a r w a r d s , t h e n l o w e r i t .
- Remove the jack storage box 2
l o c a t e d i n t h e s p a r e w h e e l .
CHANGING A WHEEL
Removing a wheel
- C h o c k t h e r e a r o f t h e w h e e l d i a g o n a l l y o p p o s i t e t h e w h e e l
t o b e c h a n g e d , u s i n g t h e j a c k
storage box.
- R e m o v e t h e w h e e l t r i m u s i n g t h e w h e e l b r a c e , b y p u l l i n g a t t h e
valve passage hole.
- S l a c k e n t h e w h e e l b o l t s .
- Place the jack under the locating point on the sub-frame E that
i s c l o s e s t t o t h e w h e e l t o b e
changed. Ensure that the entire
surface of the jack base plate is
i n c o n t a c t w i t h t h e g r o u n d .
- E x t e n d t h e j a c k , c o m p l e t e l y u n s c r e w t h e b o l t s a n d r e m o v e
t h e w h e e l .
Parking the vehicle
- I f p o s s i b l e , p a r k t h e v e h i c l e o n
l e v e l , s t a b l e a n d n o n - s l i p p e r y
ground.
- A p p l y t h e h a n d b r a k e , e n g a g e i r s t o r r e v e r s e g e a r ( p o s i t i o n P
for the automatic gearbox).
Page 103 of 127
PRACTICAL INFORMATION
94 -

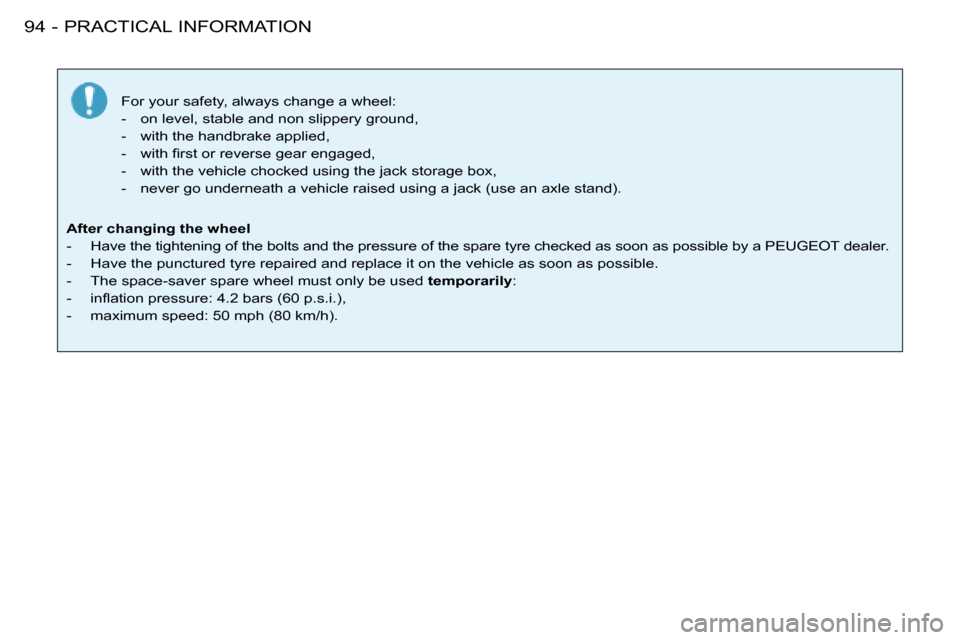

F o r y o u r s a f e t y , a l w a y s c h a n g e a w h e e l :
- o n l e v e l , s t a b l e a n d n o n s l i p p e r y g r o u n d ,
- w i t h t h e h a n d b r a k e a p p l i e d ,
- w i t h i r s t o r r e v e r s e g e a r e n g a g e d ,
- w i t h t h e v e h i c l e c h o c k e d u s i n g t h e j a c k s t o r a g e b o x ,
- never go underneath a vehicle raised using a jack (use an axle stand).
After changing the wheel
- Have the tightening of the bolts and the pressure of the spare tyre checked as soon as possible by a PEUGEOT dealer.
- Have the punctured tyre repaired and replace it on the vehicl e as soon as possible.
- T h e s p a c e - s a v e r s p a r e w h e e l m u s t o n l y b e u s e d temporarily:
- i n l a t i o n p r e s s u r e : 4 . 2 b a r s ( 6 0 p . s . i . ) ,
- maximum speed: 50 mph (80 km/h).
Page 104 of 127
SPECIAL FEATURES OF
ALLOY WHEELSFitting the spare wheel
I f y o u r v e h i c l e i s e q u i p p e d w i t h a
s t e e l s p a r e w h e e l , w h e n i t t i n g i t , i t i s
normal t o n o t i c e t h a t t h e b o l t w a s h -
e r s d o n o t c o m e i n t o c o n t a c t w i t h t h e
r i m . T h e s p a r e w h e e l i s s e c u r e d b y
the cone shape of each bolt. Wheel anti-theft bolts
I f y o u r w h e e l s a r e i t t e d w i t h a n t i - t h e f t
b o l t s ( o n e p e r w h e e l ) , t h e c h r o m e -
plated trim cap and then the plastic
c o v e r o n t h e w h e e l m u s t b e r e m o v e d ,
using the
yellow tool (located in the
b o x i x e d t o t h e l e f t - h a n d s i d e o f t h e
b o o t ) , b e f o r e s l a c k e n i n g t h e b o l t u s -
ing the anti-theft socket (located in
t h e g l o v e b o x ) a n d t h e w h e e l b r a c e ,
located in the boot rear right inner
panel.
Note: take a careful note of the code
number engraved on the head of the
a n t i - t h e f t s o c k e t . T h i s w i l l e n a b l e y o u
to obtain a duplicate anti-theft socket
from a PEUGEOT dealer.
Fitting snow tyres
I f y o u i t s n o w t y r e s t h a t a r e m o u n t e d
o n s t e e l r i m s o n t o y o u r v e h i c l e , i t i s
essential
that you use special bolts
available from your PEUGEOT dealer.

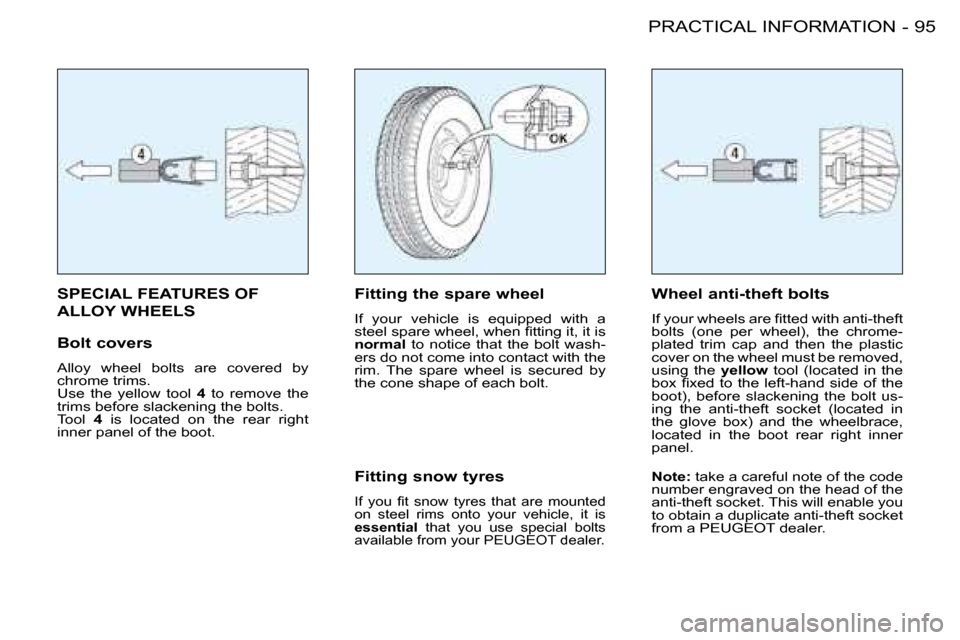

Bolt covers
A l l o y w h e e l b o l t s a r e c o v e r e d b y
chrome trims.
U s e t h e y e l l o w t o o l 4 to remove the
trims before slackening the bolts.
Tool 4 is located on the rear right
inner panel of the boot. 95
PRACTICAL INFORMATION
-
Page 105 of 127
SPECIAL FEATURES
120 -

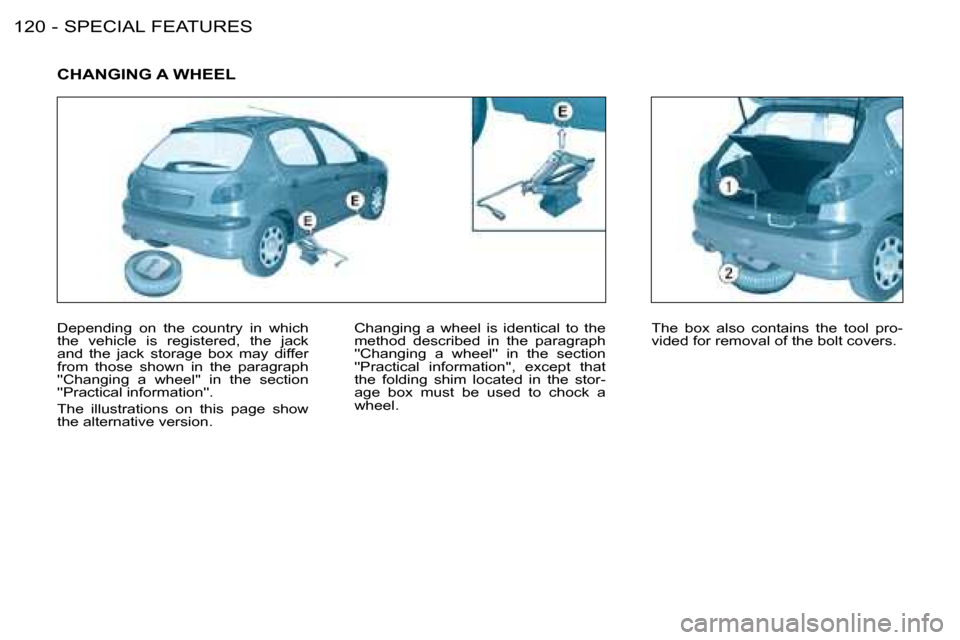

CHANGING A WHEEL
C h a n g i n g a w h e e l i s i d e n t i c a l t o t h e
method described in the paragraph
' ' C h a n g i n g a w h e e l ' ' i n t h e s e c t i o n
' ' P r a c t i c a l i n f o r m a t i o n ' ' , e x c e p t t h a t
the folding shim located in the stor-
age box must be used to chock a
w h e e l .
D e p e n d i n g o n t h e c o u n t r y i n w h i c h
t h e v e h i c l e i s r e g i s t e r e d , t h e j a c k
and the jack storage box may differ
f r o m t h o s e s h o w n i n t h e p a r a g r a p h
' ' C h a n g i n g a w h e e l ' ' i n t h e s e c t i o n
''Practical information''.
T h e i l l u s t r a t i o n s o n t h i s p a g e s h o w
the alternative version. The box also contains the tool pro-
vided for removal of the bolt covers.
Page 117 of 127
PRACTICAL INFORMATION
106 -

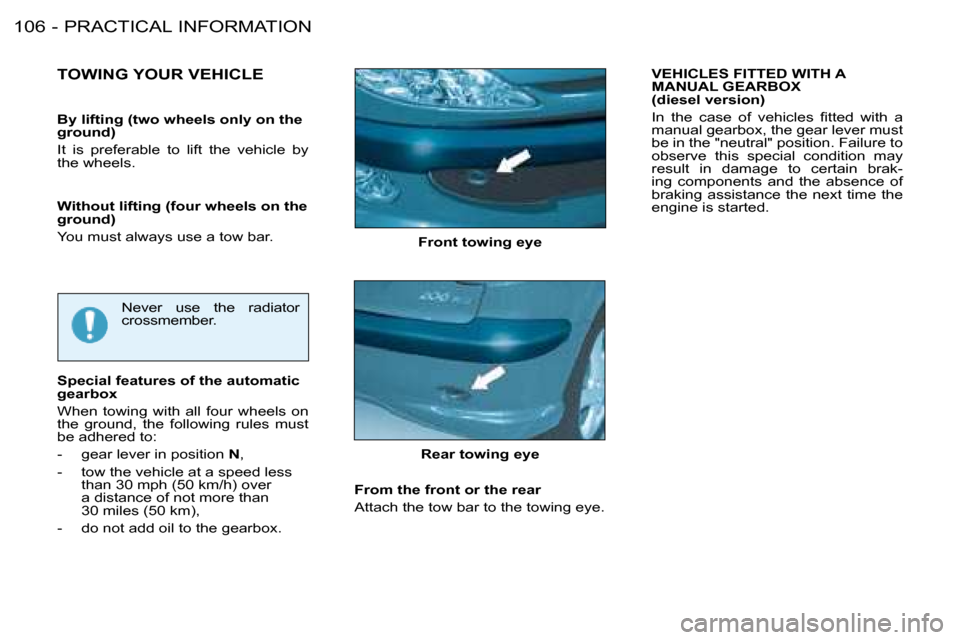

Front towing eye
TOWING YOUR VEHICLE
Never use the radiator
crossmember.
Special features of the automatic
gearbox
W h e n t o w i n g w i t h a l l f o u r w h e e l s o n
t h e g r o u n d , t h e f o l l o w i n g r u l e s m u s t
be adhered to:
- gear lever in position N ,
- t o w t h e v e h i c l e a t a s p e e d l e s s than 30 mph (50 km/h) over
a distance of not more than
3 0 m i l e s ( 5 0 k m ) ,
- do not add oil to the gearbox. Rear towing eye
From the front or the rear
A t t a c h t h e t o w b a r t o t h e t o w i n g e y e .
By lifting (two wheels only on the
ground)
It is preferable to lift the vehicle by
t h e w h e e l s .
Without lifting (four wheels on the
ground)
Y o u m u s t a l w a y s u s e a t o w b a r .
VEHICLES FITTED WITH A
MANUAL GEARBOX
(diesel version)
I n t h e c a s e o f v e h i c l e s i t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
be in the "neutral" position. Failure to
observe this special condition may
result in damage to certain brak-
ing components and the absence of
braking assistance the next time the
engine is started.
