key Peugeot 206 SW Dag 2003 Owner's Manual

87
4YOUR 206 AT A GLANCE
26-05-2003
KEYS The keys allow you to indepen- dently operate the locks on thefront doors and the tailgate(saloon), the passenger airbagdisarming switch, the fuel fillercap and the steering lock. Central locking
From the driver's door, you can lock and unlock the doors and
the tailgate. If one of the doors,
the tailgate (206 SW) or therear screen (206 SW) is open,the central locking does notwork. Remote control Pressing button
Aremotely locks
the vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Pressing button Bremotely
unlocks the vehicle.This is confirmed by rapid flash- ing of the direction indicators forapproximately two seconds.
206 SW: Pressing and holding
button Bunlocks the vehicle and
opens the rear screen. Leaving the ignition key in If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door. Locating the vehicle
To locate your vehicle, when you have left it locked in a car park:  press button A, the courtesy
lights will come on and the indicator lights flash for a fewseconds. STARTING The 4 positions of the key in the ignition:
STOP position:
The ignition is
off.
1st notch, Accessories posi- tion: The ignition is off but the
accessories can be used. 2nd notch, Running position: The ignition is on. Starting position: Operates the
starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently turningthe steering wheel at the same
time as you turn the key. It is advisable to press the clutch
pedal while operating the starter,
to make starting easier.

87
4YOUR 206 AT A GLANCE
26-05-2003
KEYS The keys allow you to indepen- dently operate the locks on thefront doors and the tailgate(saloon), the passenger airbagdisarming switch, the fuel fillercap and the steering lock. Central locking
From the driver's door, you can lock and unlock the doors and
the tailgate. If one of the doors,
the tailgate (206 SW) or therear screen (206 SW) is open,the central locking does notwork. Remote control Pressing button
Aremotely locks
the vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Pressing button Bremotely
unlocks the vehicle.This is confirmed by rapid flash- ing of the direction indicators forapproximately two seconds.
206 SW: Pressing and holding
button Bunlocks the vehicle and
opens the rear screen. Leaving the ignition key in If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door. Locating the vehicle
To locate your vehicle, when you have left it locked in a car park:  press button A, the courtesy
lights will come on and the indicator lights flash for a fewseconds. STARTING The 4 positions of the key in the ignition:
STOP position:
The ignition is
off.
1st notch, Accessories posi- tion: The ignition is off but the
accessories can be used. 2nd notch, Running position: The ignition is on. Starting position: Operates the
starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently turningthe steering wheel at the same
time as you turn the key. It is advisable to press the clutch
pedal while operating the starter,
to make starting easier.

Precautions regarding the passenger air bag For a vehicle fitted with a disarm- ing switch:Ð disarm theair bag ifyou install arear-facingchild seat,
Ð arm the air bag for anadult pas-
senger.
For a vehicle not fitted with adisarming switch: Ð do not installa rear-fac-ing childseat on
the frontpassengerseat.
In no circumstances should youplace your feet or any otherobject on the fascia.
11 4
5YOUR 206 AT A GLANCE
26-05-2003
Never race a cold engine. Never run the engine in a confined space.
Do not make any modificationsto the steering lock.
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until theengine turns.
Starting a dieselengine Do not press the accele-
rator.
Turn the key to the ''Running''
position. If the engine is warm enough, the pre-heat light does not come on
and you can start immediately. If the pre-heat light comes on, wait for it to go out before
operating the starter. If the engine stalls, it is necessary to return the key to the ''STOP''
position before restarting. FRONT AIR BAGS
Operating check * According to destination.
Disarming the passenger air bag* Insert the ignition key in the switch 1
and turn it to:
Ð the ''ON'' position, the passen-
ger air bag is armed,
Ð the ''OFF'' position, the pas-
senger air bag is disarmed.
With the ignition on (2nd notch),illumination of this warning light,accompanied by an audible
signal and the message"Passenger air bag deactivated"
on the multifunction display, indi-cates that the passenger air bagis disarmed (switch in the "OFF"
position).
The warning light remains onthroughout the disarming process.

26-05-2003
Windscreen wipers Front2 Fast wipe
1 Normal wipe
I Intermittent wipe
or
AUTO Automatic wipe
0 Off
Single wipe
Windscreen wash: pull the stalk towards you. Rear
Off Intermittent
Windscreenwipe wash
Automatic wipe In the AUTOposition,
the wipers operate auto-
matically and adjust
their speed to theintensity of the rainfall.
Rear fog lamp
(ring B)
Rear fog lamp (rotation of the ring forwards)
Front fog lamps/Rear fog lamp(ring C)
Front fog lamps (1st rotation of the ringforwards).
Front fog lampsand rear fog lamp(2nd rotation of thering forwards).
9395
8YOUR 206 AT A GLANCE
STEERING WHEEL CONTROLS Lights Front and rear lights (ring A)
Lights off Side lights Dipped/ main beam headlamps Automatic switching on of lights
Automatic switching on of lights
To activate or disarm the func- tion, place the key in the acces-sories position and the lightsstalk in position 0, then press the
end of the stalk for more thanfour seconds.

Precautions regarding the passenger air bag For a vehicle fitted with a disarm- ing switch:Ð disarm theair bag ifyou install arear-facingchild seat,
Ð arm the air bag for anadult pas-
senger.
For a vehicle not fitted with adisarming switch: Ð do not installa rear-fac-ing childseat on
the frontpassengerseat.
In no circumstances should youplace your feet or any otherobject on the fascia.
11 4
5YOUR 206 AT A GLANCE
26-05-2003
Never race a cold engine. Never run the engine in a confined space.
Do not make any modificationsto the steering lock.
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until theengine turns.
Starting a dieselengine Do not press the accele-
rator.
Turn the key to the ''Running''
position. If the engine is warm enough, the pre-heat light does not come on
and you can start immediately. If the pre-heat light comes on, wait for it to go out before
operating the starter. If the engine stalls, it is necessary to return the key to the ''STOP''
position before restarting. FRONT AIR BAGS
Operating check * According to destination.
Disarming the passenger air bag* Insert the ignition key in the switch 1
and turn it to:
Ð the ''ON'' position, the passen-
ger air bag is armed,
Ð the ''OFF'' position, the pas-
senger air bag is disarmed.
With the ignition on (2nd notch),illumination of this warning light,accompanied by an audible
signal and the message"Passenger air bag deactivated"
on the multifunction display, indi-cates that the passenger air bagis disarmed (switch in the "OFF"
position).
The warning light remains onthroughout the disarming process.

26-05-2003
TYPES OF SERVICE Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating two types of service, A and C, intermediate visits and a few additional operations depend- ing on your vehicle; these correspond to key stages in the life of your vehicle. When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
THE MAINTENANCE CYCLE FOR YOUR SALOON and 206 SW PETROL
Service every 20,000 miles (30,000 km) or 2 years.
1st service at
6,000 miles (10,000 km) or 6 months*.
This is necessary
in order to benefit from the warranty
These services are to be carried with at least 10W40 synthetic based oil.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit included in the Servicing Schedule.
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000)
80,000 (120,000) 100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000)

26-05-2003
TYPES OF SERVICE Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating two types of service, A and C, intermediate visits and a few additional operations depend- ing on your vehicle; these correspond to key stages in the life of your vehicle. When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
THE MAINTENANCE CYCLE FOR YOUR SALOON and 206 SW PETROL
Service every 20,000 miles (30,000 km) or 2 years.
1st service at
6,000 miles (10,000 km) or 6 months*.
This is necessary
in order to benefit from the warranty
These services are to be carried with at least 10W40 synthetic based oil.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit included in the Servicing Schedule.
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000)
80,000 (120,000) 100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000)

26-05-2003
GENERAL FUNCTIONSOn/off
With the ignition key in the accessories or ignition position, press button A to switch the audio system on
or off. The audio system can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft system The audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press button Cto increase the volume, or button Bto decrease it.
Continuous pressure on buttons Cand Ballows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Hseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader (FAD) , balance (BAL)and automatic volume correction settings.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button H
after configuration of the automatic volume correction. Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cassette
(RB3) , CD (RD3) and CD changer.
YOUR 206 IN DETAIL
46

26-05-2003
YOUR 206 IN DETAIL83

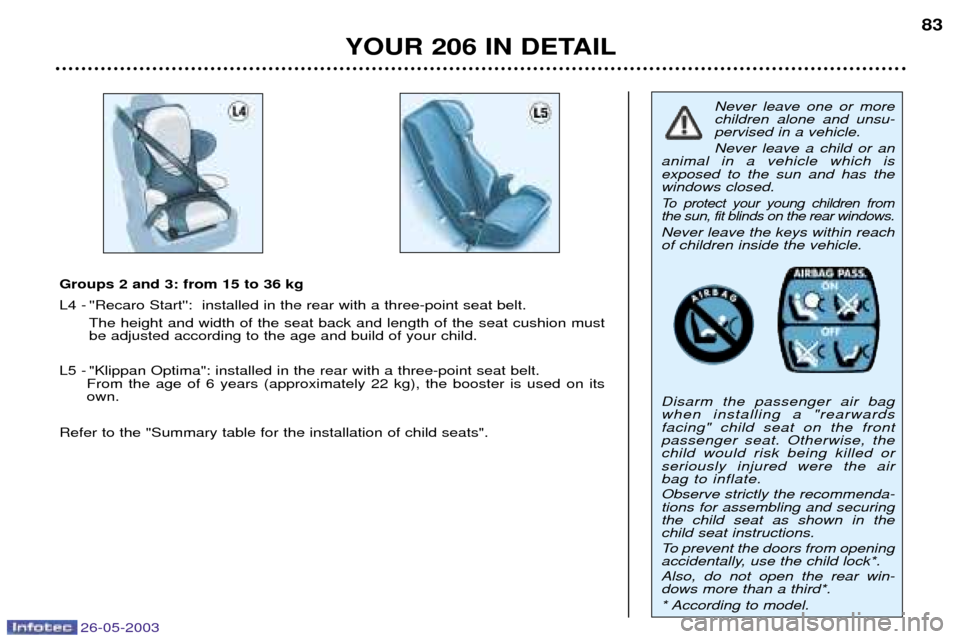

Never leave one or more children alone and unsu-pervised in a vehicle. Never leave a child or an
animal in a vehicle which is exposed to the sun and has thewindows closed.
To protect your young children fromthe sun, fit blinds on the rear windows.
Never leave the keys within reachof children inside the vehicle. Disarm the passenger air bag when installing a "rearwardsfacing" child seat on the frontpassenger seat. Otherwise, thechild would risk being killed orseriously injured were the airbag to inflate. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in thechild seat instructions.
To prevent the doors from opening
accidentally, use the child lock*. Also, do not open the rear win- dows more than a third*.
* According to model.
Groups 2 and 3: from 15 to 36 kg
L4 -''Recaro Start'': installed in the rear with a three-point seat belt.
The height and width of the seat back and length of the seat cushion must be adjusted according to the age and build of your child.
L5 -"Klippan Optima": installed in the rear with a three-point seat belt.
From the age of 6 years (approximately 22 kg), the booster is used on its own.
Refer to the "Summary table for the installation of child seats".

26-05-2003
YOUR 206 IN DETAIL87
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message ''Remote con-
trol battery low'' on the multi-func-
tion display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt bat-tery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to switch on the ignition and operate the passengerair bag disarming switch and the fuelfiller cap, as well as independentlyoperate the locks on the front doors. Central locking The keys allow you to lock or unlock the doors and tailgate from the frontdoors. If one of the doors, the tailgate
(206 SW) or the rear screen
(206 SW) is open, the central lockingdoes not work. The remote control This performs the same functions as
the key, at a distance. Locking Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button Bto unlock the vehicle.
This is confirmed by the rapid flashing of the direction indicators.
206 SW: Press and hold button Bto
unlock the vehicle and open the rear screen. Note: If the vehicle is locked and
unlocking is activated inadvertently, unless the doors are opened within30 seconds, the vehicle will lockautomatically (206 SW).
Avoid pressing the buttons of your remote control out of range of your
vehicle. You risk causing it not towork and the remote control wouldthen have to be reprogrammed. Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
press button A. The courtesy
lights come on and the direction indicators flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
Programming the remote control  Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote controlis now working again.
