tow Peugeot 206 SW Dag 2003 Owner's Manual

26-05-2003
Windscreen wipers Front2 Fast wipe
1 Normal wipe
I Intermittent wipe
or
AUTO Automatic wipe
0 Off
Single wipe
Windscreen wash: pull the stalk towards you. Rear
Off Intermittent
Windscreenwipe wash
Automatic wipe In the AUTOposition,
the wipers operate auto-
matically and adjust
their speed to theintensity of the rainfall.
Rear fog lamp
(ring B)
Rear fog lamp (rotation of the ring forwards)
Front fog lamps/Rear fog lamp(ring C)
Front fog lamps (1st rotation of the ringforwards).
Front fog lampsand rear fog lamp(2nd rotation of thering forwards).
9395
8YOUR 206 AT A GLANCE
STEERING WHEEL CONTROLS Lights Front and rear lights (ring A)
Lights off Side lights Dipped/ main beam headlamps Automatic switching on of lights
Automatic switching on of lights
To activate or disarm the func- tion, place the key in the acces-sories position and the lightsstalk in position 0, then press the
end of the stalk for more thanfour seconds.

26-05-2003
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The brake fluid must be replaced every 60 000 km or every 2 years.
The passenger compartment filter must be checked at each visitto the PEUGEOT dealer (intermediate visits and regu-
lar services).The timing belt : consult your PEUGEOT dealer.
PEUGEOT SERVICING 19
Arduous conditions of use If the vehicle is used in certain particularly arduous conditions:
Ð Continuous door-to-door use.
Ð Town use (e.g. taxi).
Ð Repeated short journeys, with the engine cold in low temperatures.
Or in long stays in the following conditions: Ð Hot countries with temperatures often above 30 ¡C.
Ð Cold countries with temperatures often below minus 15 ¡C.
Ð Countries with a dusty atmosphere.
Ð Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous Conditions" servicing schedule, which includes: Ð shorter service intervals: ¥ Every 15 000 km or every year for 206 RC petrol engine vehicles.
¥ Every 20 000 km or every year for saloon and 206 SW petrol engine vehicles.
¥ Every 15 000 km or every year for Direct Injection Diesel engine vehicles.
¥ Every 10 000 km or every year for Indirect Injection Diesel engine vehicles.
Ð special operations: ¥ Replacement of the air filter every 15 000 km for the 206 RC.

26-05-2003
YOUR 206 IN DETAIL59
Main menu Switch on the ignition. Press the
"Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button).
Following selection of the "Navigation/guidance"menu, a
screen warns you about the use of the navigation system. Follow the regulations in force and do not use the remotecontrol while driving. Press the "VAL"button to access the next screen.
The "Navigation/guidance" menu offers the following
options:
Ð entering of the address of a new destination;
Ð selection of a service (hotel, station, airport...) available in a town;
Ð selection of an address stored in one of the two directories;
Ð access to the "Navigation options" menu.
Ð Radio functions are suspended when the system is in guidance mode.
Navigation/Guidance

26-05-2003
YOUR 206 IN DETAIL
60
Enter the name of the street. Select the
"Validate"function
then press the "VAL"button.
Note: the guidance can be activated from the time the town
is entered without the name of a street or a number. To do this, select the "City centre"function.
Enter the number on the street. Select the "Validate"func-
tion then press the "VAL"button.
Note: the guidance can be activated as soon as the town
and street are entered without a number. To do this, selectthe "Validate" function.The last town entered is displayed.
To enter the name of another town, select each letter using the direction arrows then confirm ( "VAL"button) for each
letter. If an error is made, the "Correct"function enables the last
letter entered to be cleared.The "List" function indicates, as the name is entered, the
number of towns beginning with the same letters. If the list contains less than 5 names, these are displayed automati-
cally. Select a town then confirm ( "VAL"button).
The "Change" function enables the town entered to be
completely cleared. When the complete name of the town is displayed, select the "Validate" function then press the "VAL"button.
Note: following confirmation of a letter, only those letters
which could make up an existing name appear.
Entering a new destination

26-05-2003
YOUR 206 IN DETAIL
62
Selecting a service The last address entered is displayed. There are 3 options for defining the location in which you wish to obtain a service:
Ð resume the last address entered by means of the
"Validate" function.
Ð enter the name of a new town then enter the street (or the "City centre" function) by means of the " Change"
function.
Ð automatically enter your current location by using the "Current location" function.
The address of the required service is displayed. An indication on the right-hand side of the screen (e.g. 1/50) indicates whether there are any other establishments
(50 maximum) offering the same service within a radius ofapproximately 30 miles (50 km). Use the "Next" or "Previous" functions to consult the list
offered.When the establishment of your choice is displayed, select the "Validate" function then press the "VAL"button. Select
a guidance criterion. Guidance begins, follow the instruc-tions.
After confirming the address, select a service by scrollingthrough the list using the direction arrows then press the
"VAL" button.
A cursor on the left-hand side of the screen indicates yourposition in the list.

26-05-2003
YOUR 206 IN DETAIL73
5. Air distribution
Pressing this button sever- al times in successionenables the air flow to bedirected in turn towards:
Ð the windscreen (de-icing or demisting),
Ð the windscreen and the footwells,
Ð the footwells,
Ð the centre and side vents and the footwells,
Ð the centre and side vents.
7. Air intake
Press this button for recircu-
lation of the interior air.Recirculation, shown on the
display, enables the passen-
ger compartment to be insulated fromexterior odours and smoke.
Avoid prolonged recirculation of interi-
or air. To do this, press the buttonagain to resume automatic manage-
ment of the intake of air. Note: To prevent condensation on the
inside of the vehicle in cold or wet
weather, you are advised to avoidusing this mode.
4. Air conditioning
Press this button to switch
off the air conditioning. Thesymbol ECOis displayed.
Automatic operation of the
air conditioning is resumed when the
button is pressed again. The symbolA/C is displayed. 8. Switching the system off
The OFF button enables
the entire system to be
switched off.
Temperature-related com-
fort is no longer guaranteed.Pressing the OFF, AUTO , or visi-
bility button again reactivates the
system with the values set before it
was switched off.
9. Demisting the rear screen Press this button to demistthe rear screen and themirrors. Demisting switches
off automatically. It is pos-
sible to stop operation of the
demisting before it is switched offautomatically by pressing the buttonagain. Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month,
to keep it in good working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The otherfunctions will still be controlled auto-
matically. Pressing the
AUTObutton
returns the system to completelyautomatic operation.
6. Air flowThe flow of air can beincreased or reducedby pressing buttons+or Ðrespectively.
Notes It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
To prevent condensation on the inside of the vehicle in cold or wet
weather, you are advised to avoidusing the ECOmode.

26-05-2003
YOUR 206 IN DETAIL75
6. Head restraint height adjust-
ment (saloon and 206 SW)
To raise the restraint, pull it upwards.
The adjustment is correctwhen the upper edge of thehead restraint is level withthe top of the head.
The head restraint has a framewith notches, which prevent thehead restraint dropping down(this is a safety device in theevent of an impact).
To lower the head restraint, it is necessary to push simultaneously:
Ð the button located on the left guide at the base of the head restraint,
Ð the head restraint downwards.
To remove the head restraint, press the lug.
Never drive with thehead restraints removed;they must be in placeand correctly adjusted. Rear head restraints These have a high position for when they are in use and a lowposition for when they are stored.They are removable.
To lower the head restraints, press the lug.
To remove them, pull upwards as far as the stop then press therelease control.FRONT SEATS
1. Forwards-backwards
adjustment Lift the control and slide the seat forwards or backwards.
2. Access to rear seats (3 door) Pull one of the two handles to fold the seat back and move the seatforwards. On repositioning, theseat returns to its initial position It is impossible to access the rear seats if the front seat is in thereclining position.
3. Seat back angle adjustment Push one of the two handles
towards the rear.
4. Seat height adjustment Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat
to lower.
5. Heated seats switch Press the switch. The tempera-
ture is controlled automatically. Press the switch again to stop operation.

26-05-2003
YOUR 206 IN DETAIL
76
Storage compartment
Ð Lift the cover to gain access to the
storage compartment.
Ð Ensure that the cover is locked correctly before folding back the seat cushion. Folding seat back(all models)
Ð Remove the head restraint for
complete folding of the seat.

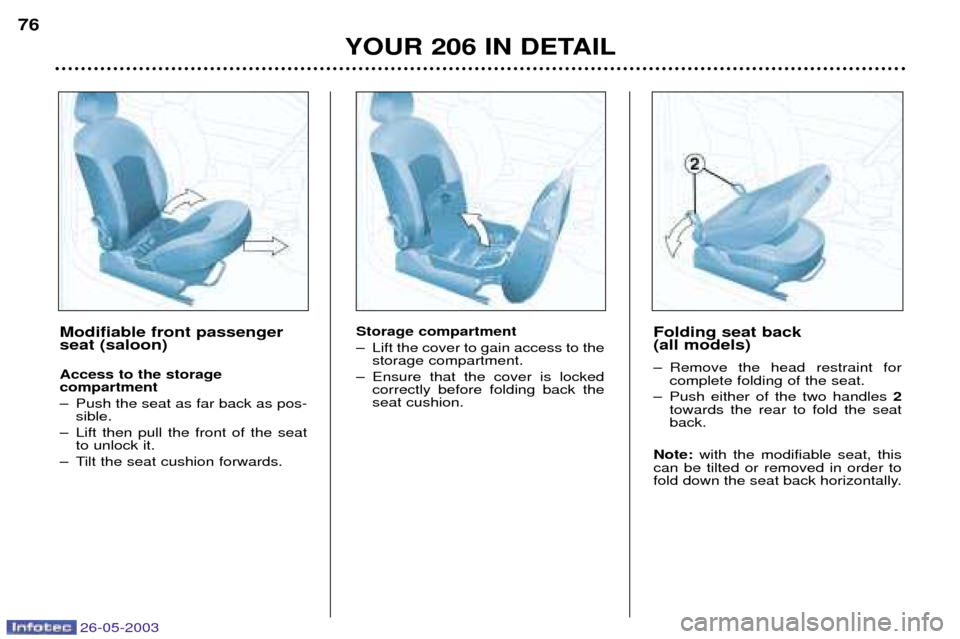

Ð Push either of the two handles 2
towards the rear to fold the seat back.
Note: with the modifiable seat, this
can be tilted or removed in order to
fold down the seat back horizontally.Modifiable front passenger seat (saloon) Access to the storage compartment
Ð Push the seat as far back as pos- sible.
Ð Lift then pull the front of the seat to unlock it.
Ð Tilt the seat cushion forwards.

26-05-2003
YOUR 206 IN DETAIL75
6. Head restraint height adjust-
ment (saloon and 206 SW)
To raise the restraint, pull it upwards.
The adjustment is correctwhen the upper edge of thehead restraint is level withthe top of the head.
The head restraint has a framewith notches, which prevent thehead restraint dropping down(this is a safety device in theevent of an impact).
To lower the head restraint, it is necessary to push simultaneously:
Ð the button located on the left guide at the base of the head restraint,
Ð the head restraint downwards.
To remove the head restraint, press the lug.
Never drive with thehead restraints removed;they must be in placeand correctly adjusted. Rear head restraints These have a high position for when they are in use and a lowposition for when they are stored.They are removable.
To lower the head restraints, press the lug.
To remove them, pull upwards as far as the stop then press therelease control.FRONT SEATS
1. Forwards-backwards
adjustment Lift the control and slide the seat forwards or backwards.
2. Access to rear seats (3 door) Pull one of the two handles to fold the seat back and move the seatforwards. On repositioning, theseat returns to its initial position It is impossible to access the rear seats if the front seat is in thereclining position.
3. Seat back angle adjustment Push one of the two handles
towards the rear.
4. Seat height adjustment Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat
to lower.
5. Heated seats switch Press the switch. The tempera-
ture is controlled automatically. Press the switch again to stop operation.

26-05-2003
YOUR 206 IN DETAIL
86

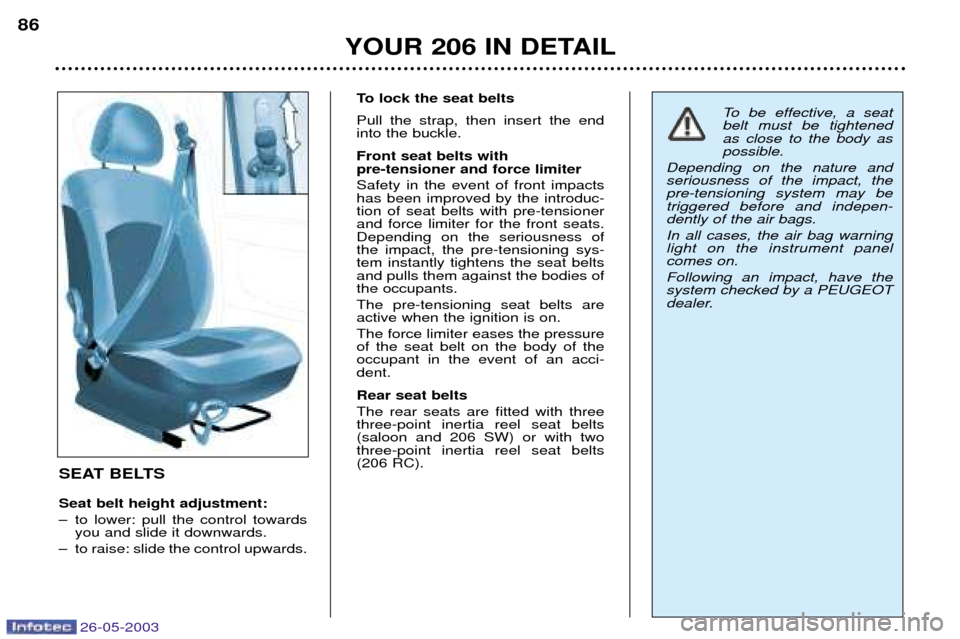

SEAT BELTS Seat belt height adjustment:
Ð to lower: pull the control towardsyou and slide it downwards.
Ð to raise: slide the control upwards. To lock the seat belts Pull the strap, then insert the end into the buckle. Front seat belts with pre-tensioner and force limiter Safety in the event of front impacts has been improved by the introduc-tion of seat belts with pre-tensionerand force limiter for the front seats.Depending on the seriousness ofthe impact, the pre-tensioning sys-tem instantly tightens the seat beltsand pulls them against the bodies ofthe occupants. The pre-tensioning seat belts are active when the ignition is on. The force limiter eases the pressure of the seat belt on the body of theoccupant in the event of an acci-dent. Rear seat belts The rear seats are fitted with three three-point inertia reel seat belts(saloon and 206 SW) or with twothree-point inertia reel seat belts(206 RC).
To be effective, a seat belt must be tightenedas close to the body aspossible.
Depending on the nature andseriousness of the impact, thepre-tensioning system may betriggered before and indepen-dently of the air bags. In all cases, the air bag warning light on the instrument panelcomes on. Following an impact, have the system checked by a PEUGEOT
dealer.
