15
FAMILIARISATION
-
KEEPING YOUR PASSENGERS SAFE
Front passenger air bag
1. Insertion of the key.
2. Selection of the position:
"ON" ( a c t i v a t i o n ) , w i t h f r o n t
p a s s e n g e r o r " f o r w a r d f a c i n g "
c h i l d s e a t ,
"OFF" ( d i s a r m i n g ) , w i t h
"rear facing" child seat.
3. Removal of the key keeping the
s w i t c h i n t h i s p o s i t i o n .
: 84 Driver's seat belt and
air bags
A.
Driver's seat belt not fastened or
u n f a s t e n e d w a r n i n g l i g h t ,
lit in red.
B. P a s s e n g e r a i r b a g w a r n i n g l i g h t ;
lit if the air bag is disarmed.
C. A i r b a g s w a r n i n g l i g h t ; o f f a f t e r
t h e i g n i t i o n i s s w i t c h e d o n .
: 21
STARTING
Ignition switch
1. Stop position.
2. Accessories position.
3. Running position.
4. Starting position.
Page 34 of 123
35
AUDIO EQUIPMENT
-
Ejection of a disc Selecting a track
S h u f l e ( R D M )
When the CD player is selected,
press and hold button Q for two sec-
onds. The tracks will be played in
random sequence. Pressing the but-
ton again for two seconds returns
you to normal play.
S h u f l e m o d e i s d e - a c t i v a t e d e a c h
time the set is switched off.
COMPACT DISC
Press button L to select the next
track.
Press button N to return to the start
of the current track or to select the
previous track.
Accelerated play
Press and hold button L or N for for-
wards or backwards accelerated play.
Accelerated play stops as soon as
the button is released.
After insertion of a disc,
printed face upwards,
the player starts auto-
matically.
If a disc is already inserted, press
button Q.
Press button S to eject
the disc from the player.
The use of copied compact
discs may cause faults.
Insert circular compact discs
only.
Selecting CD mode
Page 39 of 123
COMFORT
40 -
DE-ICING AND DEMISTING
De-icing the rear screen and
mirrors
When the engine is running,
pressing this button de-ices
the rear screen and exterior
mirrors.
It switches off automatically, after approximately twelve minutes,
to prevent an excessive consumption
of current. Pressing the button again
restarts operation for twelve minutes.
It is possible to stop the operation of
the de-icing before it is switched off
automatically by pressing the button
again.
Switch off the de-icing as soon as
you consider this necessary as low
current consumption reduces fuel
consumption. Manual demisting
T o q u i c k l y d e m i s t t h e w i n d s c r e e n a n d
side windows:
- switch on the air conditioning,
- place the temperature and air
l o w c o n t r o l s i n t h e m a x i m u m
position,
- close the central vents,
- place the exterior air intake control on the left, in the
"Exterior Air" position. Automatic demisting,
visibility programme
In some cases, the AUTO programme
m a y n o t b e s u f i c i e n t t o d e m i s t t h e
windscreen and side windows (hu-
midity, several passengers, ice...).
Select the
"visibility" demisting pro-
gramme by pressing this button to
c l e a r t h e w i n d o w s q u i c k l y .
To exit from this programme and re-
turn to the AUTO programme, press
the AUTO button.
Page 60 of 123
ACCESS
58 -
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.

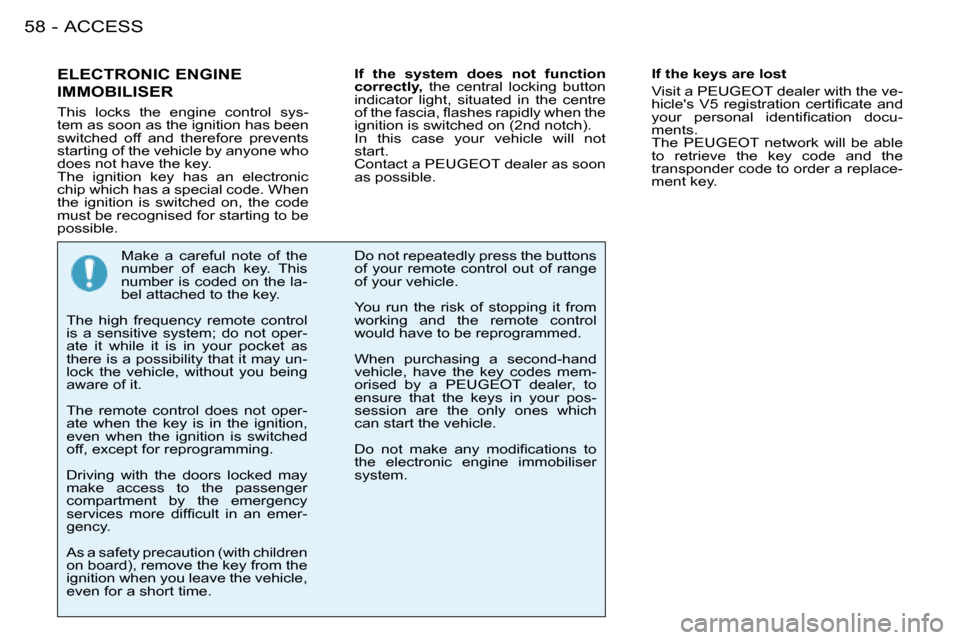

Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock the vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
o f f , e x c e p t f o r r e p r o g r a m m i n g .
Driving with the doors locked may
make access to the passenger
compartment by the emergency
s e r v i c e s m o r e d i f i c u l t i n a n e m e r -
gency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle, have the key codes mem-
orised by a PEUGEOT dealer, to
ensure that the keys in your pos-
session are the only ones which
can start the vehicle.
D o n o t m a k e a n y m o d i i c a t i o n s t o
the electronic engine immobiliser
system.
If the system does not function
correctly,
the central locking button
indicator light, situated in the centre
o f t h e f a s c i a , l a s h e s r a p i d l y w h e n t h e
ignition is switched on (2nd notch).
In this case your vehicle will not
start.
Contact a PEUGEOT dealer as soon
as possible. If the keys are lost
Visit a PEUGEOT dealer with the ve-
h i c l e ' s V 5 r e g i s t r a t i o n c e r t i i c a t e a n d
y o u r p e r s o n a l i d e n t i i c a t i o n d o c u
-
ments.
The PEUGEOT network will be able
to retrieve the key code and the
transponder code to order a replace-
ment key.
Page 61 of 123
ACCESS
58 -
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock the vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
o f f , e x c e p t f o r r e p r o g r a m m i n g .
Driving with the doors locked may
make access to the passenger
compartment by the emergency
s e r v i c e s m o r e d i f i c u l t i n a n e m e r -
gency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle, have the key codes mem-
orised by a PEUGEOT dealer, to
ensure that the keys in your pos-
session are the only ones which
can start the vehicle.
D o n o t m a k e a n y m o d i i c a t i o n s t o
the electronic engine immobiliser
system.
If the system does not function
correctly,
the central locking button
indicator light, situated in the centre
o f t h e f a s c i a , l a s h e s r a p i d l y w h e n t h e
ignition is switched on (2nd notch).
In this case your vehicle will not
start.
Contact a PEUGEOT dealer as soon
as possible. If the keys are lost
Visit a PEUGEOT dealer with the ve-
h i c l e ' s V 5 r e g i s t r a t i o n c e r t i i c a t e a n d
y o u r p e r s o n a l i d e n t i i c a t i o n d o c u
-
ments.
The PEUGEOT network will be able
to retrieve the key code and the
transponder code to order a replace-
ment key.
Page 111 of 123
PRACTICAL INFORMATION
1 0 4 -
BATTERY
To charge the battery using a bat-
tery charger:
- Disconnect the battery,
- Follow the instructions for use
given by the battery charger
manufacturer,
- Reconnect starting with the n e g a t i v e ( - ) t e r m i n a l ,
- Check that the terminals and connectors are clean. If they are
c o v e r e d w i t h s u l p h a t e ( w h i t e o r
greenish deposit), disconnect
them and clean them. - W a i t f o r 2 m i n u t e s
after switching off
the ignition before
disconnecting the
battery.
- Never disconnect a terminal when the engine is running.
- Never charge a battery w i t h o u t i r s t d i s c o n n e c t i n g t h e
terminals.
- Close the windows and the roof before disconnecting the
battery.
- After every reconnection of the battery, switch on the
ignition and wait 1 minute
before starting to allow the
electronic systems to be
i n i t i a l i s e d . I f s l i g h t d i f i c u l t i e s
are experienced after this,
please consult a PEUGEOT
dealer.
It is advisable to disconnect the
battery if the vehicle is not to be
used for a period of more than
one month.
ECONOMY MODE
FUNCTION
After the engine has stopped, certain
f u n c t i o n s ( w i n d s c r e e n w i p e r , e l e c
-
tric windows, courtesy lights, audio
equipment, etc.) can only be used for
a combined duration of approximately
thirty minutes, to prevent discharging
the battery.
Once the thirty minutes are over, a
switching to economy mode mes-
sage appears on the multi-function
display and the active functions are
put on standby.
These functions are reactivated au-
tomatically next time the vehicle is
driven.
In order to resume the use of these
functions immediately, the engine
must be started and left to run for a
few minutes.
The time available to you will then
be double the duration for which the
engine is left running. However,
this period will always be between
i v e a n d t h i r t y m i n u t e s .
To start the vehicle from another
battery:
- Connect the red cable to the
p o s i t i v e ( + ) t e r m i n a l s o f t h e
two batteries,
- Connect one end of the green o r b l a c k c a b l e t o t h e n e g a t i v e ( - )
terminal of the slave battery,
- Connect the other end of the green or black cable to an
earth point on the broken down
vehicle, as far as possible from
t h e b a t t e r y ( f o r e x a m p l e , r i g h t -
hand engine mounting),
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables.
A l a t b a t t e r y p r e v e n t s t h e
engine from starting.
