PEUGEOT 207 2005.5 Manual PDF

3
!
71

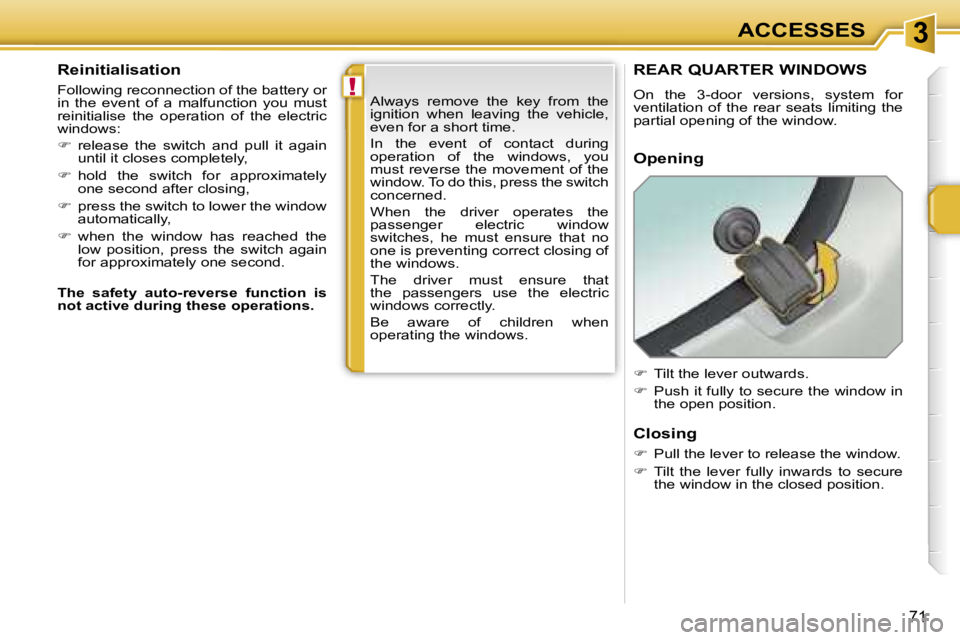

Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
 release the switch and pull it again
until it closes completely,
 hold the switch for approximately
one second after closing,
 press the switch to lower the window
automatically,
 when the window has reached the
low position, press the switch again
for approximately one second.
The safety auto-reverse function is
not active during these operations. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of the
window. To do this, press the switch
concerned.
When the driver operates the
passenger electric window
switches, he must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that
the passengers use the electric
windows correctly.
Be aware of children when
operating the windows.
REAR QUARTER WINDOWS
On the 3-door versions, system for
ventilation of the rear seats limiting the
partial opening of the window.
Opening
Closing

Pull the lever to release the window.
 Tilt the lever fully inwards to secure
the window in the closed position.

Tilt the lever outwards.
 Push it fully to secure the window in
the open position.
ACCESSES

3
!
72

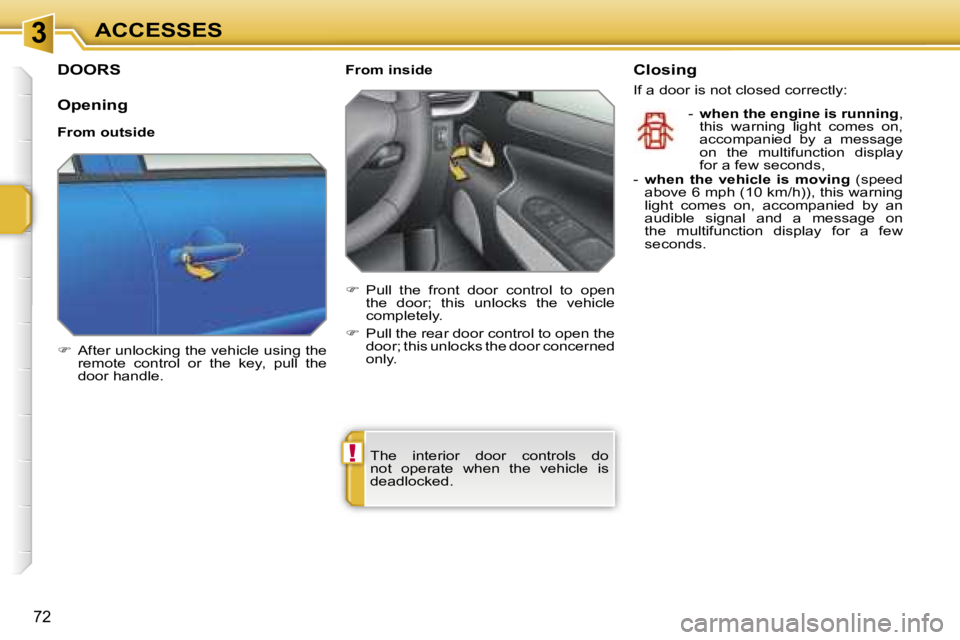

DOORS
Opening
From outside
 After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside

Pull the front door control to open
the door; this unlocks the vehicle
completely.
 Pull the rear door control to open the
door; this unlocks the door concerned
only.
The interior door controls do
not operate when the vehicle is
deadlocked.
Closing
If a door is not closed correctly: - when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
light comes on, accompanied by an
audible signal and a message on
the multifunction display for a few
seconds.
ACCESSES

3
i
!
i
73

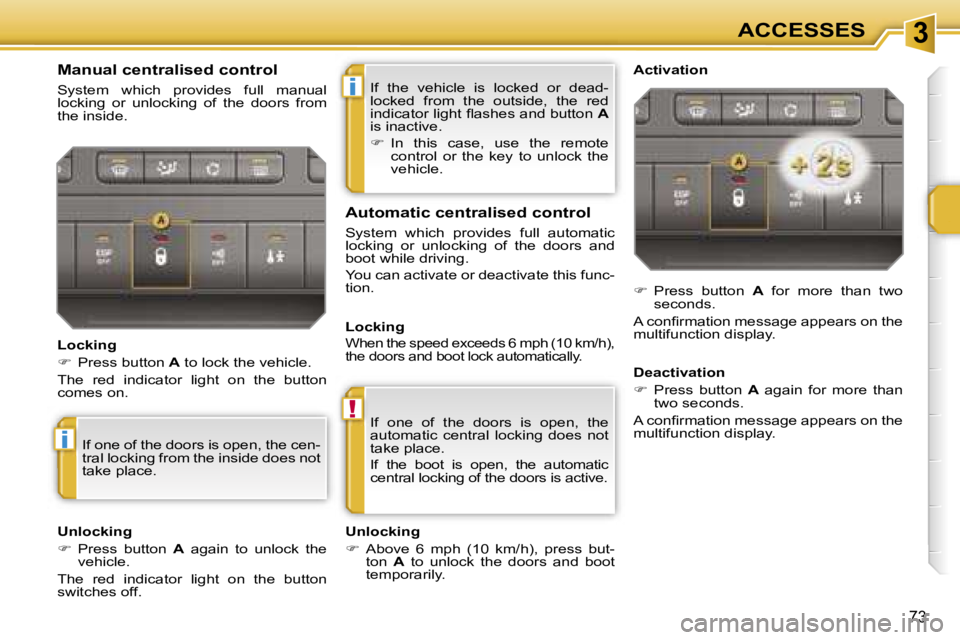

If the vehicle is locked or dead-
locked from the outside, the red
indicator light flashes and button A
is inactive.
 In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors is open, the
automatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is active.
Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
 Press button A to lock the vehicle.
The red indicator light on the button
comes on.
Automatic centralised control
System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this func-
tion. Activation

Press button A for more than two
seconds.
A confirmation message appears on the
multifunction display.
Unlocking
 Above 6 mph (10 km/h), press but-
ton A to unlock the doors and boot
temporarily.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
Unlocking
 Press button A again to unlock the
vehicle.
The red indicator light on the button
switches off. Locking
When the speed exceeds 6 mph (10 km/h),
the doors and boot lock automatically.
Deactivation

Press button A again for more than
two seconds.
A confirmation message appears on the
multifunction display.
ACCESSES

3
74

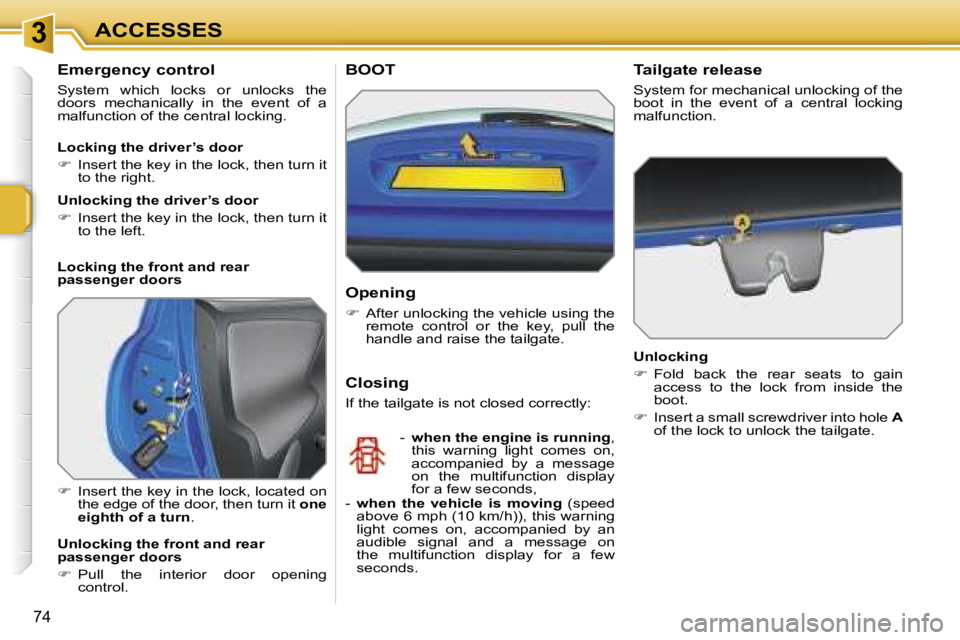

Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn .
Opening
 After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
light comes on, accompanied by an
audible signal and a message on
the multifunction display for a few
seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking
 Fold back the rear seats to gain
access to the lock from inside the
boot.
 Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver’s door

Insert the key in the lock, then turn it
to the right.
Unlocking the driver’s door
 Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
 Pull the interior door opening
control.
Closing
If the tailgate is not closed correctly:
ACCESSES

3
74
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn .
Opening
 After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
light comes on, accompanied by an
audible signal and a message on
the multifunction display for a few
seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking
 Fold back the rear seats to gain
access to the lock from inside the
boot.
 Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver’s door

Insert the key in the lock, then turn it
to the right.
Unlocking the driver’s door
 Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
 Pull the interior door opening
control.
Closing
If the tailgate is not closed correctly:
ACCESSES

3
i
!
75

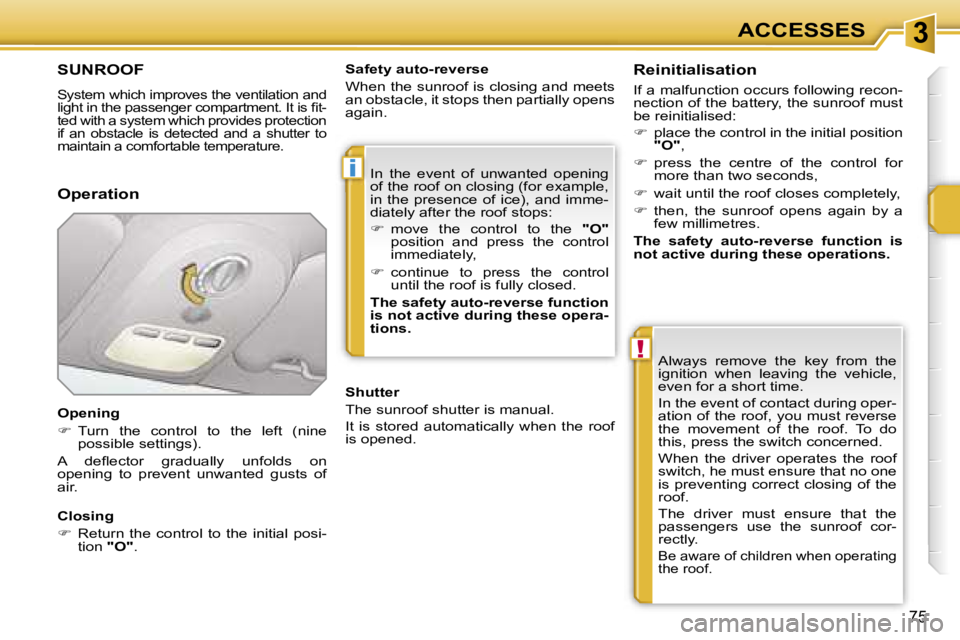

SUNROOF
System which improves the ventilation and
light in the passenger compartment. It is fit-
ted with a system which provides protection
if an obstacle is detected and a shutter to
maintain a comfortable temperature.
Opening
 Turn the control to the left (nine
possible settings).
A deflector gradually unfolds on
opening to prevent unwanted gusts of
air. Safety auto-reverse
When the sunroof is closing and meets
an obstacle, it stops then partially opens
again.
Reinitialisation
If a malfunction occurs following recon-
nection of the battery, the sunroof must
be reinitialised:

place the control in the initial position
"O" ,
 press the centre of the control for
more than two seconds,
 wait until the roof closes completely,
 then, the sunroof opens again by a
few millimetres.
The safety auto-reverse function is
not active during these operations.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during oper-
ation of the roof, you must reverse
the movement of the roof. To do
this, press the switch concerned.
When the driver operates the roof
switch, he must ensure that no one
is preventing correct closing of the
roof.
The driver must ensure that the
passengers use the sunroof cor-
rectly.
Be aware of children when operating
the roof.
In the event of unwanted opening
of the roof on closing (for example,
in the presence of ice), and imme-
diately after the roof stops:
 move the control to the "O"
position and press the control
immediately,
 continue to press the control
until the roof is fully closed.
The safety auto-reverse function
is not active during these opera-
tions.
Shutter
The sunroof shutter is manual.
It is stored automatically when the roof
is opened.
Operation
Closing
 Return the control to the initial posi-
tion "O".
ACCESSES

3
76

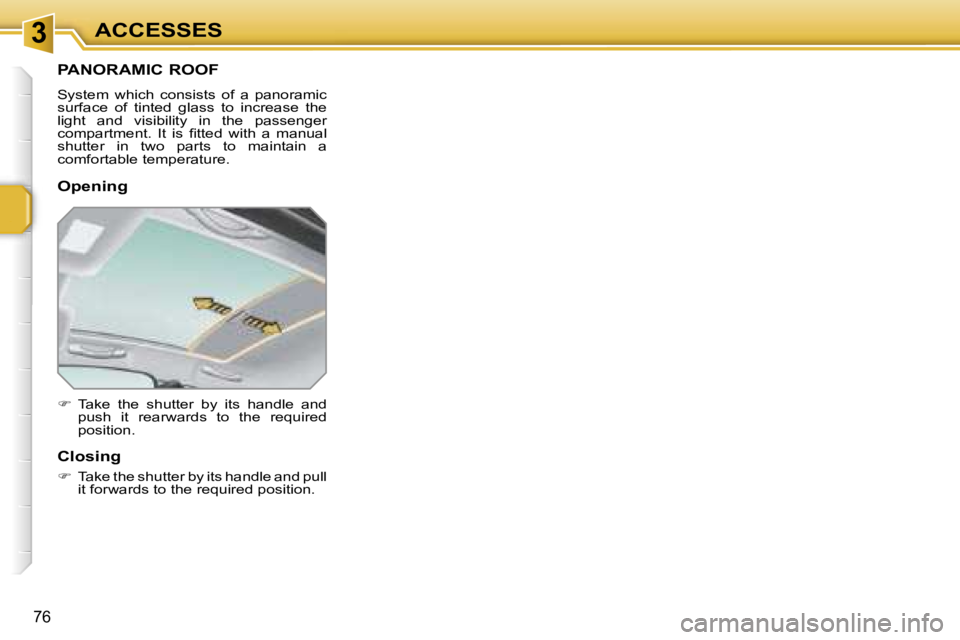

PANORAMIC ROOF
System which consists of a panoramic
surface of tinted glass to increase the
light and visibility in the passenger
compartment. It is fitted with a manual
shutter in two parts to maintain a
comfortable temperature.
 Take the shutter by its handle and
push it rearwards to the required
position.
Opening
Closing
 Take the shutter by its handle and pull
it forwards to the required position.
ACCESSES

3
i
77
The key cannot be removed from
the lock until the cap is put back on
the tank.

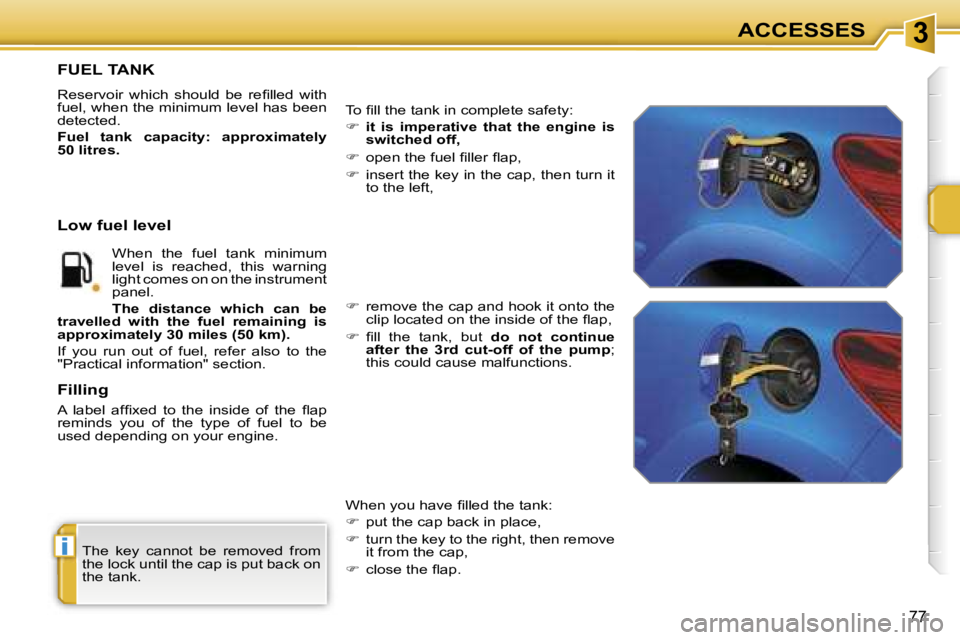

FUEL TANK
Reservoir which should be refilled with
fuel, when the minimum level has been
detected.
Fuel tank capacity: approximately
50 litres.To fill the tank in complete safety:

it is imperative that the engine is
switched off,
 open the fuel filler flap,
 insert the key in the cap, then turn it
to the left,
When you have filled the tank:
 put the cap back in place,
 turn the key to the right, then remove
it from the cap,
 close the flap.

remove the cap and hook it onto the
clip located on the inside of the flap,
 fill the tank, but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
Low fuel level
When the fuel tank minimum
level is reached, this warning
light comes on on the instrument
panel.
The distance which can be
travelled with the fuel remaining is
approximately 30 miles (50 km).
If you run out of fuel, refer also to the
"Practical information" section.
Filling
A label affixed to the inside of the flap
reminds you of the type of fuel to be
used depending on your engine.
ACCESSES

4VISIBILITY
78

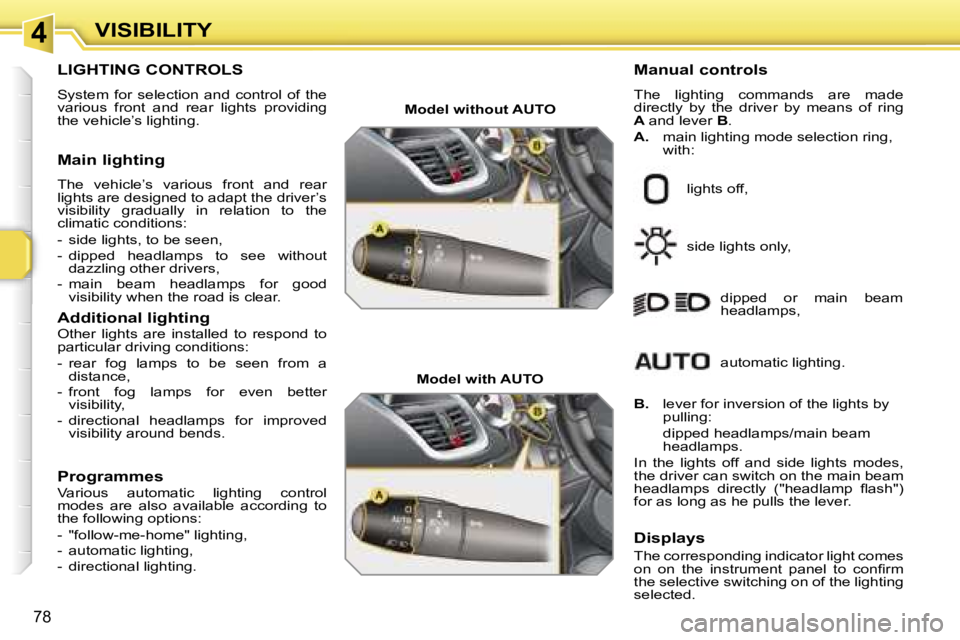

LIGHTING CONTROLS
System for selection and control of the
various front and rear lights providing
the vehicle’s lighting.
Manual controls
The lighting commands are made
directly by the driver by means of ring
A and lever B.
A. main lighting mode selection ring,
with:
Model without AUTO
Model with AUTO lights off,
side lights only,
dipped or main beam
headlamps,
B. lever for inversion of the lights by
pulling:
dipped headlamps/main beam headlamps.
In the lights off and side lights modes,
the driver can switch on the main beam
headlamps directly ("headlamp flash")
for as long as he pulls the lever. automatic lighting.
Displays
The corresponding indicator light comes
on on the instrument panel to confirm
the selective switching on of the lighting
selected.
Main lighting
The vehicle’s various front and rear
lights are designed to adapt the driver’s
visibility gradually in relation to the
climatic conditions:
- side lights, to be seen,
- dipped headlamps to see without
dazzling other drivers,
- main beam headlamps for good visibility when the road is clear.
Additional lightingOther lights are installed to respond to
particular driving conditions:
- rear fog lamps to be seen from a distance,
- front fog lamps for even better visibility,
- directional headlamps for improved visibility around bends.
ProgrammesVarious automatic lighting control
modes are also available according to
the following options:
- "follow-me-home" lighting,
- automatic lighting,
- directional lighting.

4
!
i

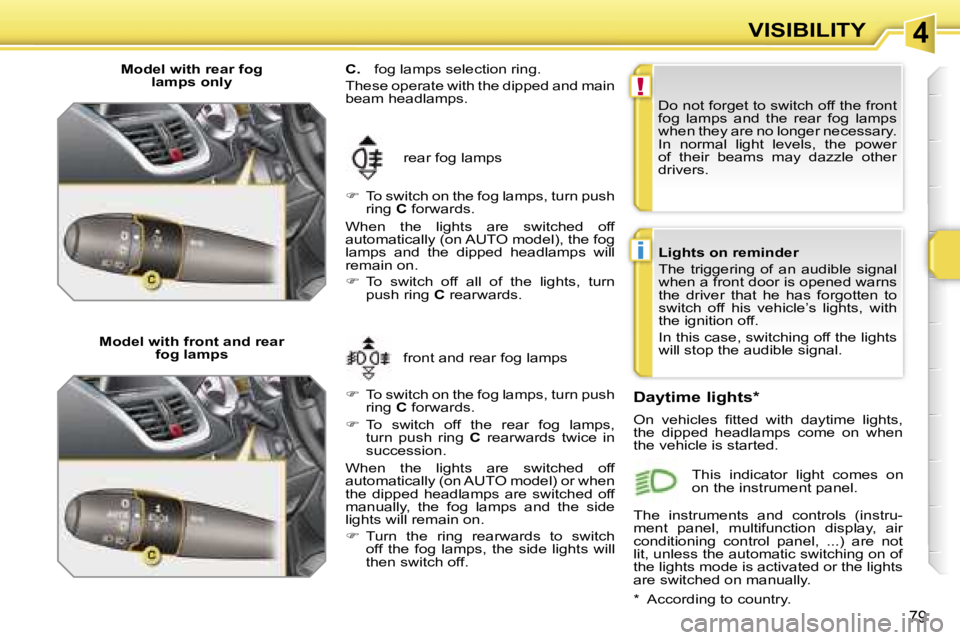

VISIBILITY
79
Model with rear fog lamps only
Model with front and rear fog lamps front and rear fog lamps
rear fog lamps
C.
fog lamps selection ring.
These operate with the dipped and main
beam headlamps.
 To switch on the fog lamps, turn push
ring C forwards.
When the lights are switched off
automatically (on AUTO model), the fog
lamps and the dipped headlamps will
remain on.
 To switch off all of the lights, turn
push ring C rearwards.
 To switch on the fog lamps, turn push
ring C forwards.
 To switch off the rear fog lamps,
turn push ring C rearwards twice in
succession.
When the lights are switched off
automatically (on AUTO model) or when
the dipped headlamps are switched off
manually, the fog lamps and the side
lights will remain on.
 Turn the ring rearwards to switch
off the fog lamps, the side lights will
then switch off. Do not forget to switch off the front
fog lamps and the rear fog lamps
when they are no longer necessary.
In normal light levels, the power
of their beams may dazzle other
drivers.
Lights on reminder
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle’s lights, with
the ignition off.
In this case, switching off the lights
will stop the audible signal.
Daytime lights*
On vehicles fitted with daytime lights,
the dipped headlamps come on when
the vehicle is started.
* According to country. This indicator light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are not
lit, unless the automatic switching on of
the lights mode is activated or the lights
are switched on manually.
